Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Wi-Fi 7
The latest wireless solution with a new 160MHz channel, achieving a maximum transmission speed of 2.9Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
Specifikacijos
| Vendor Homepage | https://www.msi.com/Motherboard/MPG-B850I-EDGE-TI-WIFI/Specification |
|---|---|
| Category Code | MBA |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.225 |
| Unit Box Width | 0.275 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | AMD B850 |
| Motherboard chipset family | AMD |
| Motherboard form factor | mini ITX |
| Product colour | Grey |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| RAID levels | 0/1 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,NVMe,SATA III |
| On-board graphics card | No |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 6 |
| Number of CPU fan connectors | 1 |
| Number of SATA III connectors | 2 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| S/PDIF out port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB connector type | USB Type-A/USB Type-C |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8126 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Depth | 170 mm |
| Width | 170 mm |

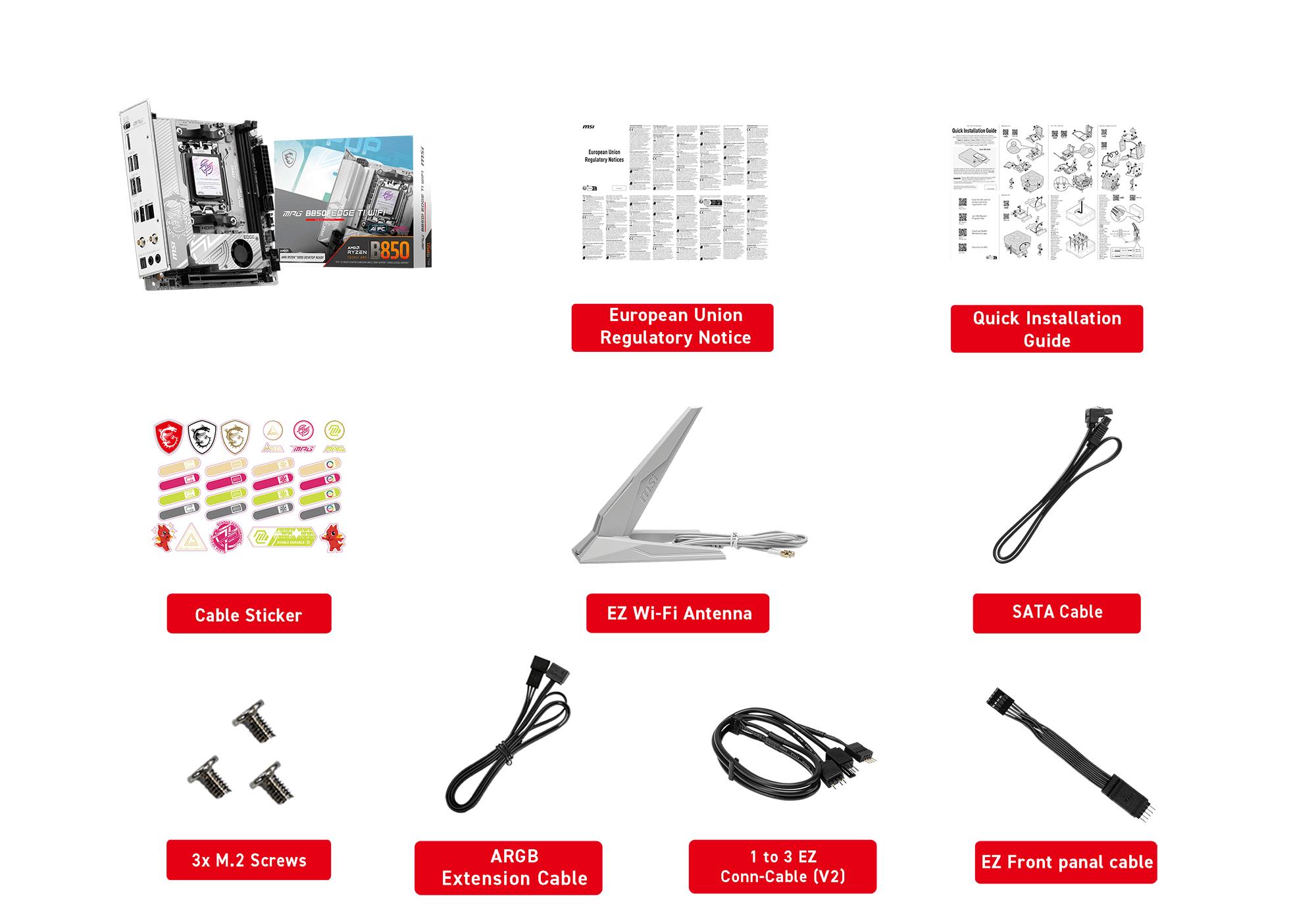

| Antenna included | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Quick installation guide | Yes |

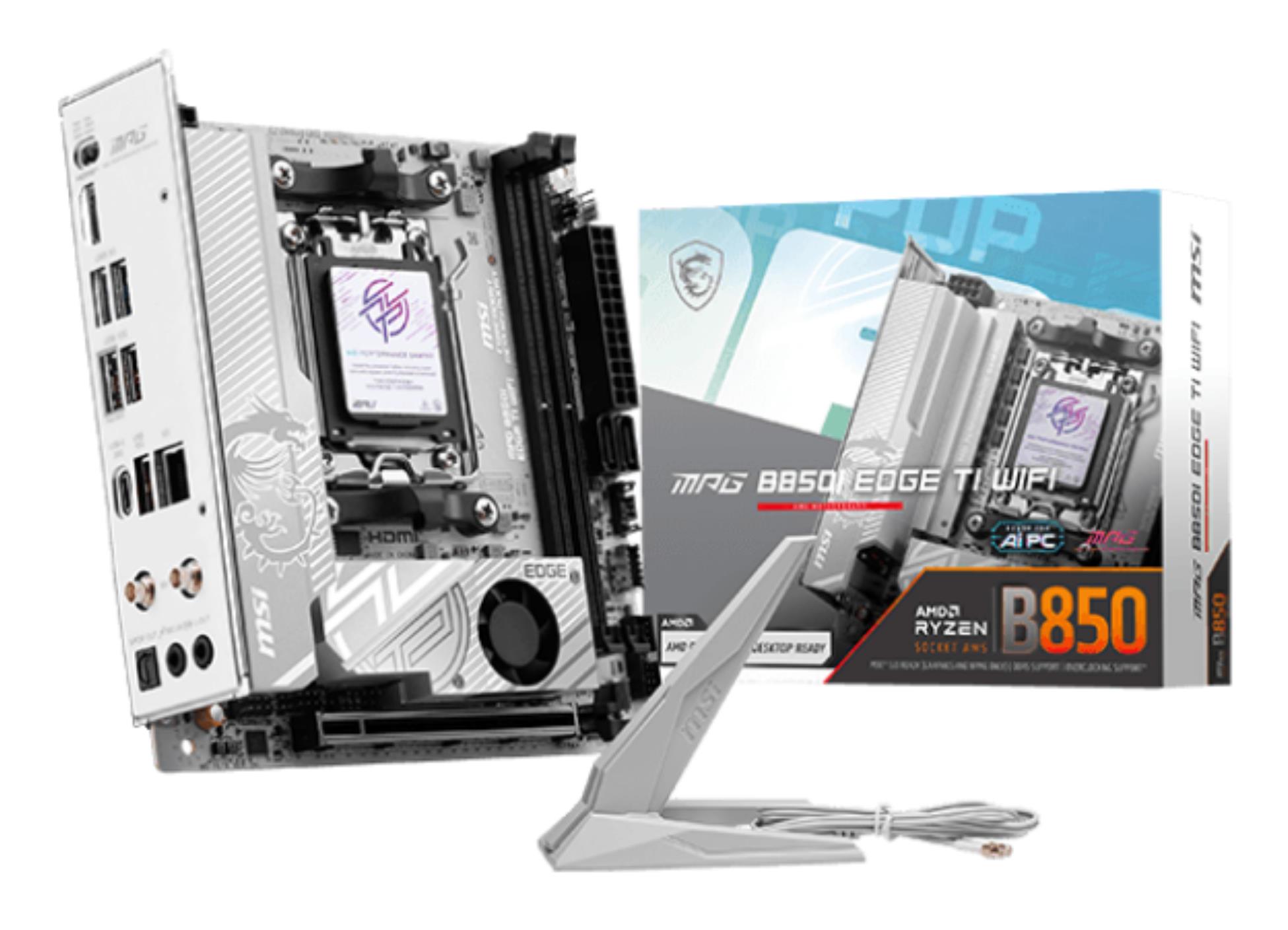

| Model | MPG B850I EDGE TI WIFI |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004394 cubm |
| Unit Calculated Weight | 1.28 kg |
