Description:
Description:
• CERTIFIED THUNDERBOLT™ 5 – Our highest model TB5 device, fully certified for guaranteed compatibility and peak performance.

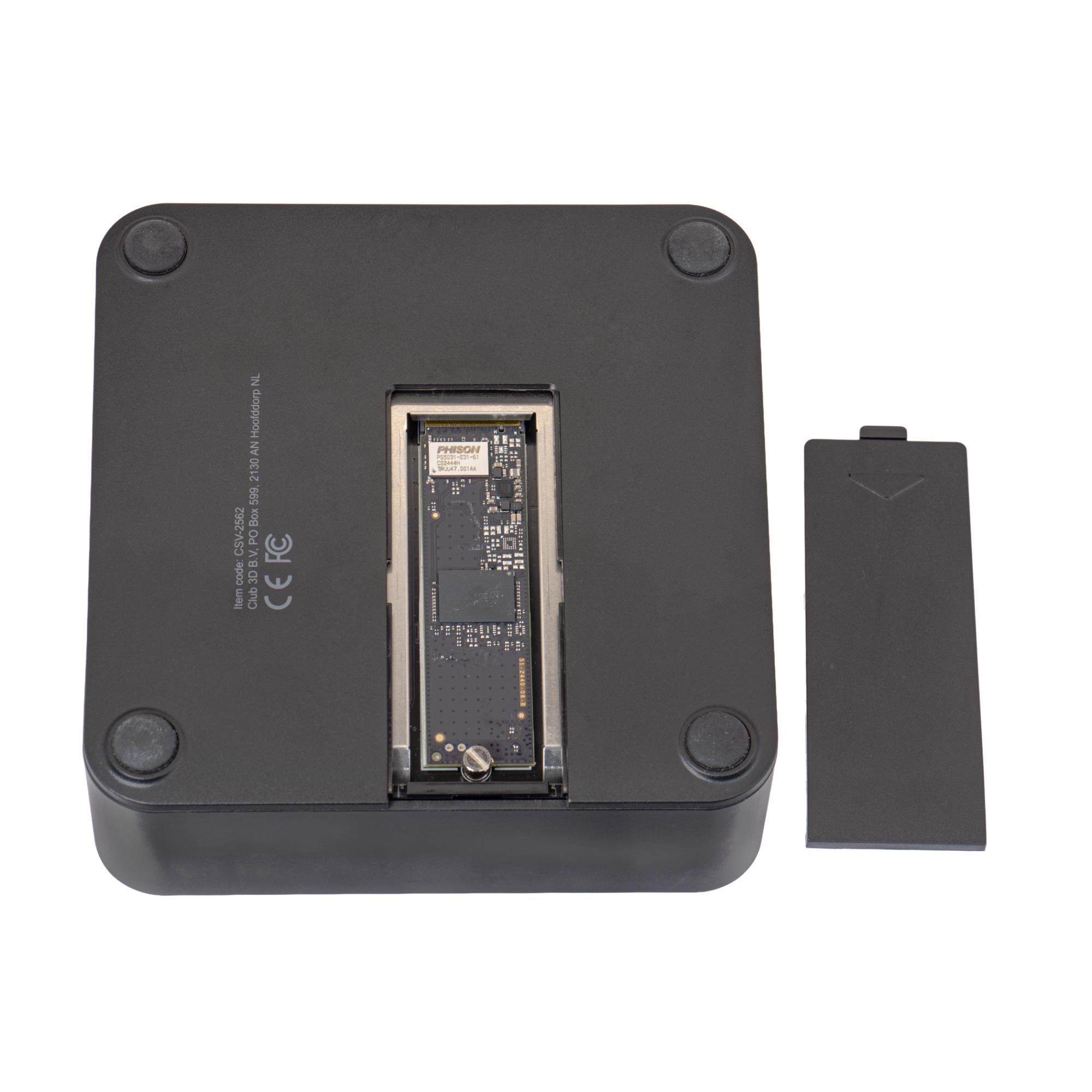

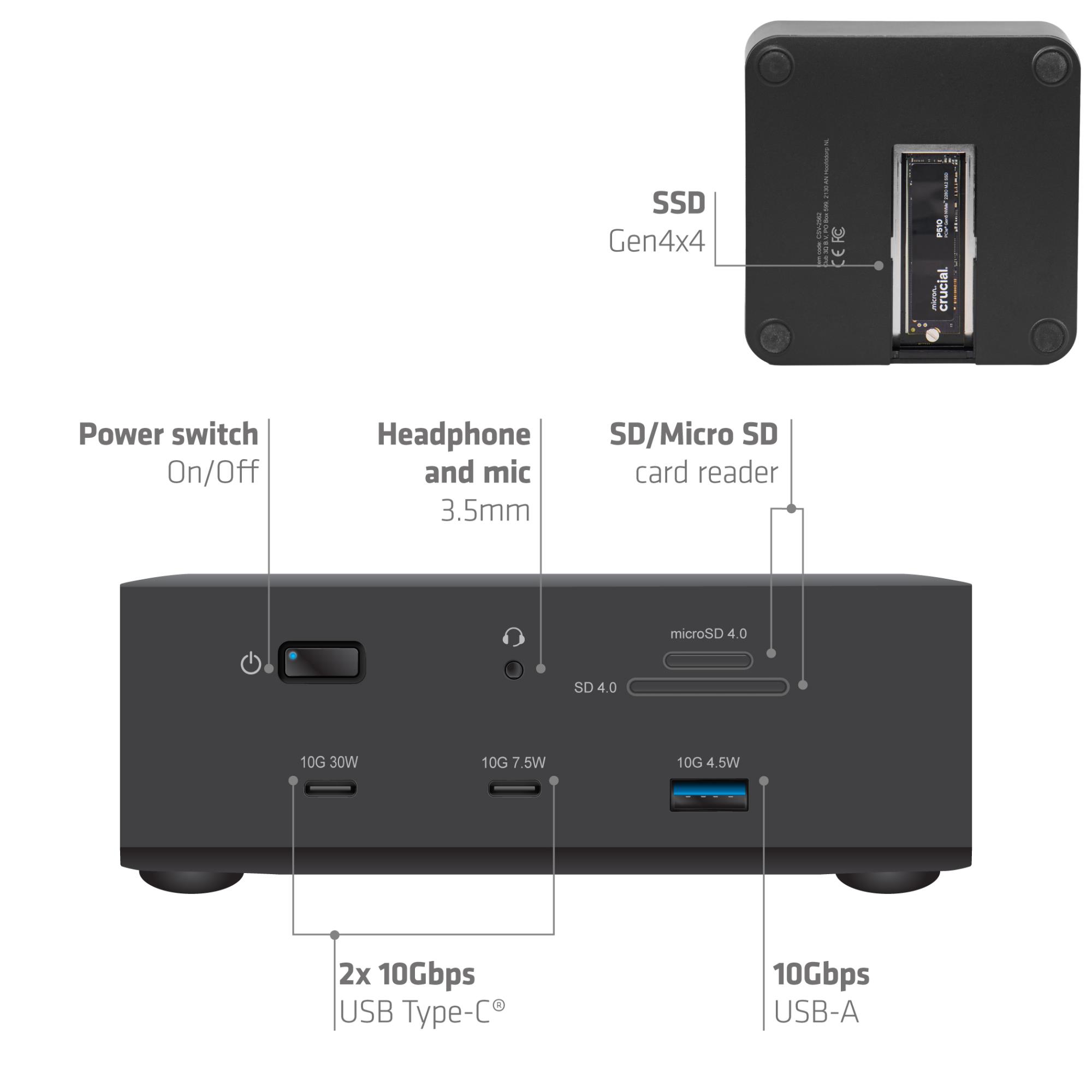

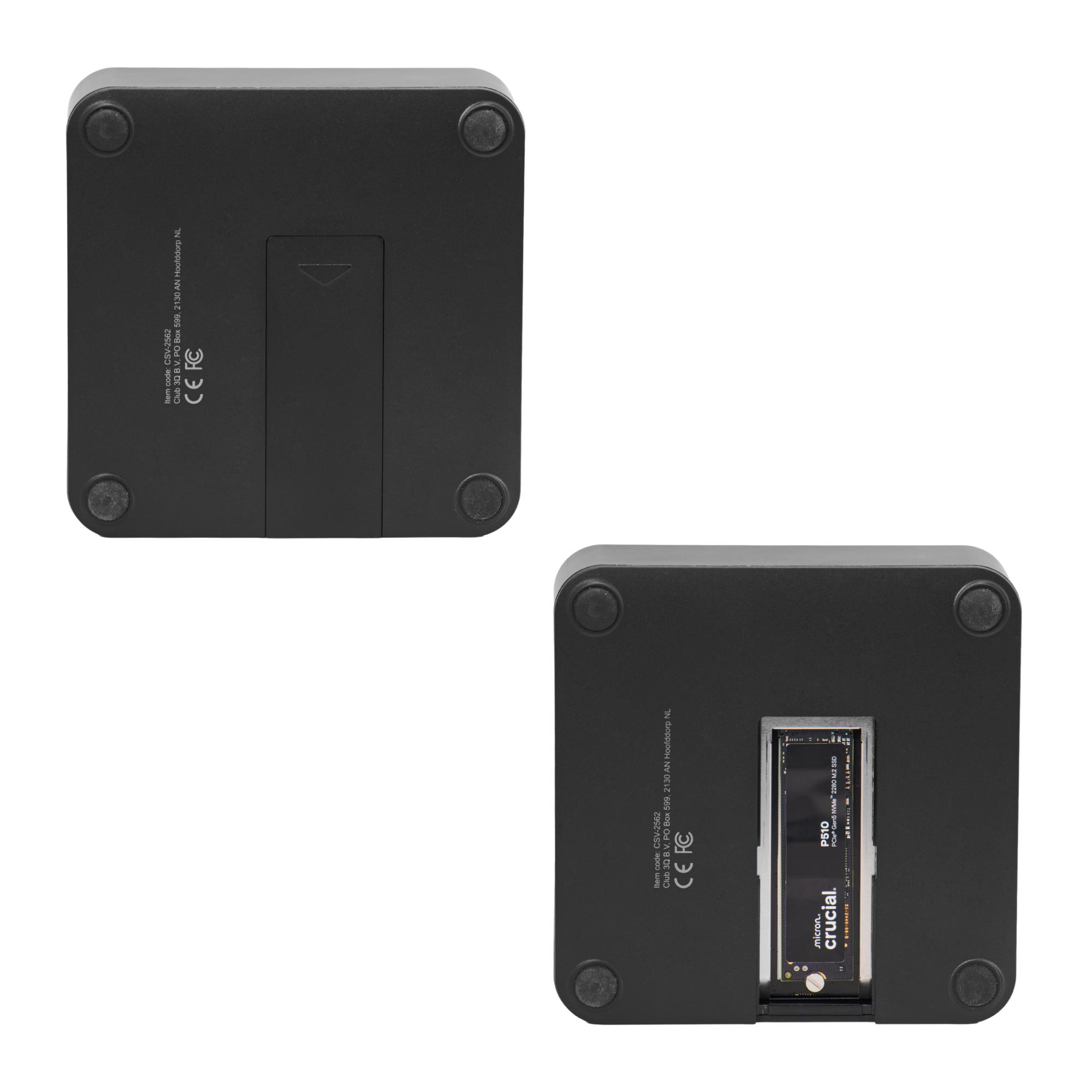

• EXPAND STORAGE HASSLE-FREE – Add more space with an easy-to-use SSD slot, giving your computer the same lightning-fast speed as its built-in storage.
• POWER YOUR WHOLE SETUP – Delivers 140W to your laptop + 30W to phones/tablets via two front-facing USB-C® ports (no extra chargers needed).
• THUNDERBOLT™ SHARE INCLUDED – Comes with a Thunderbolt™ Share license to connect two computers directly for seamless file transfer and display control.
- Features:
- Adopting Barlow Ridge solution

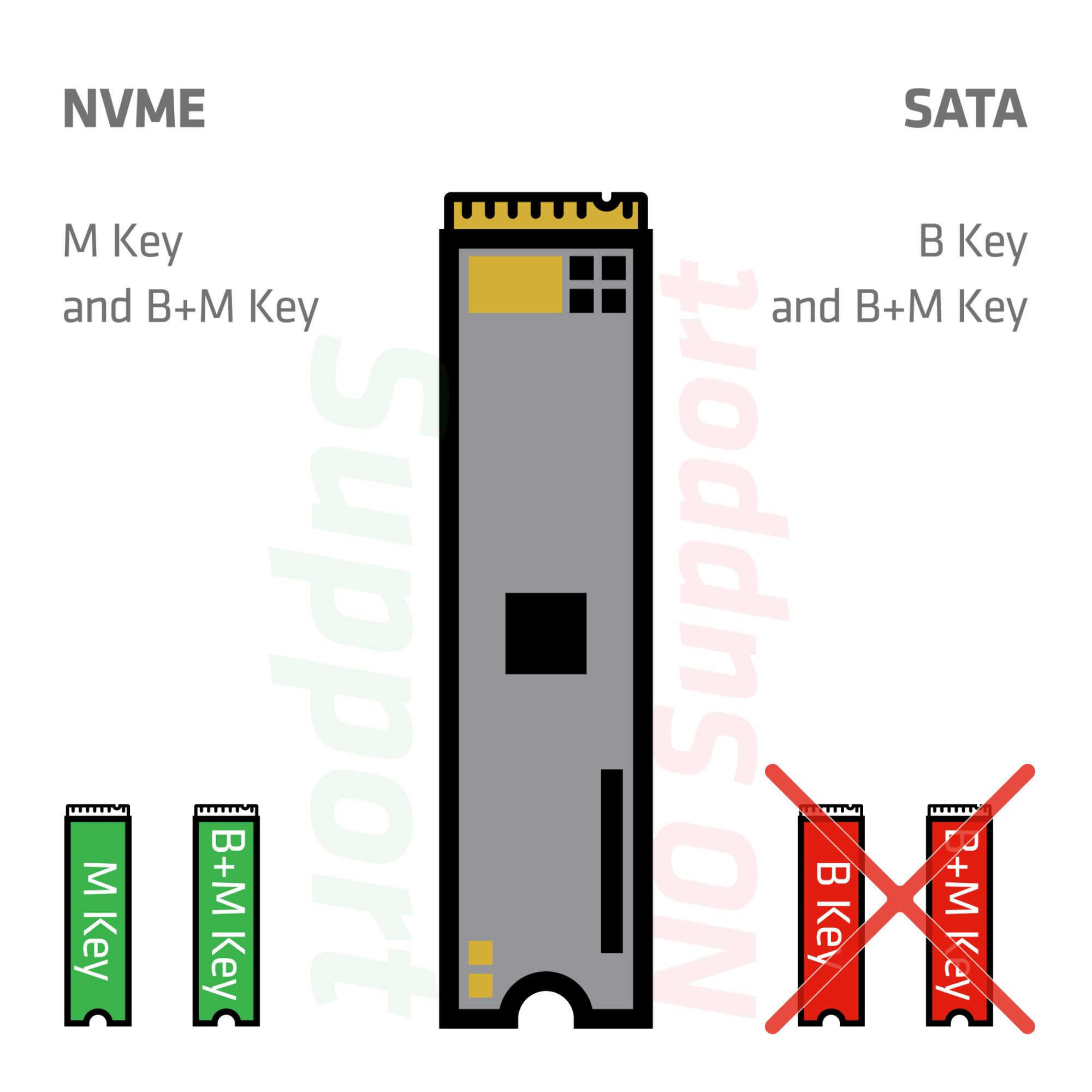

- Compatible with SSDs in 2280, 2260, 2242, and 2230 sizes
- supporting PCIe Gen4x4 (16Gbps, 4 lanes) with maximum read and
- write speeds of 6000MB/s
- Designed for TB5/TB4/USB4 based PCs and compatible with TB3/
- DP-Alt-mode PCs
- Support Thunderbolt™ 5 max 80Gbps or 120Gbps for high speed data
- and outstanding video transfer
- Downstream ports allow you to cascade Thunderbolt™ devices up to 5
- levels
- Downstream ports support max. 80Gbps or 120Gbps data transfer
- support Type-C® dongle/adapter/dock

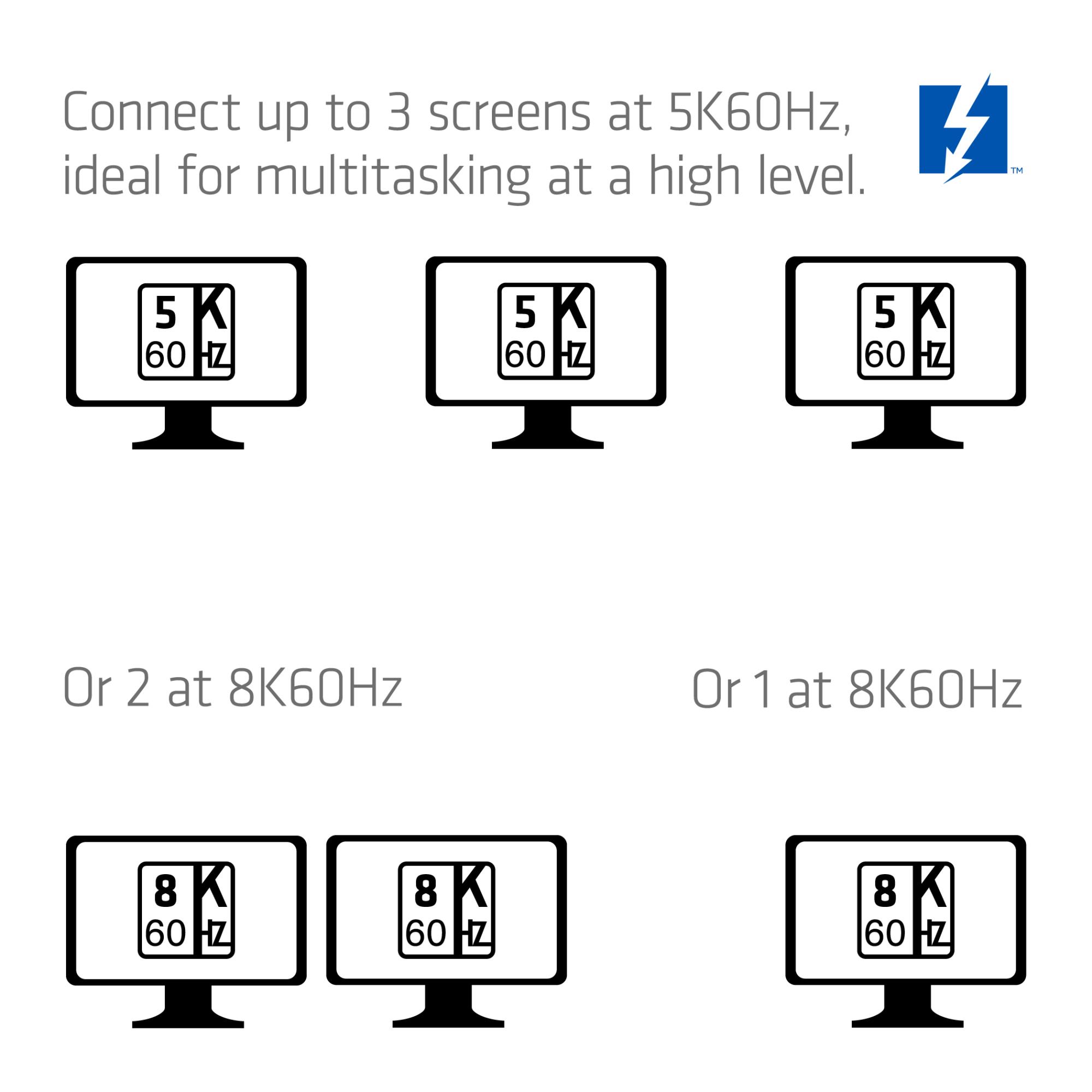

- Support max 10K60Hz for one video output and to be more efficient
- 5K60Hz or 4K144Hz for triple

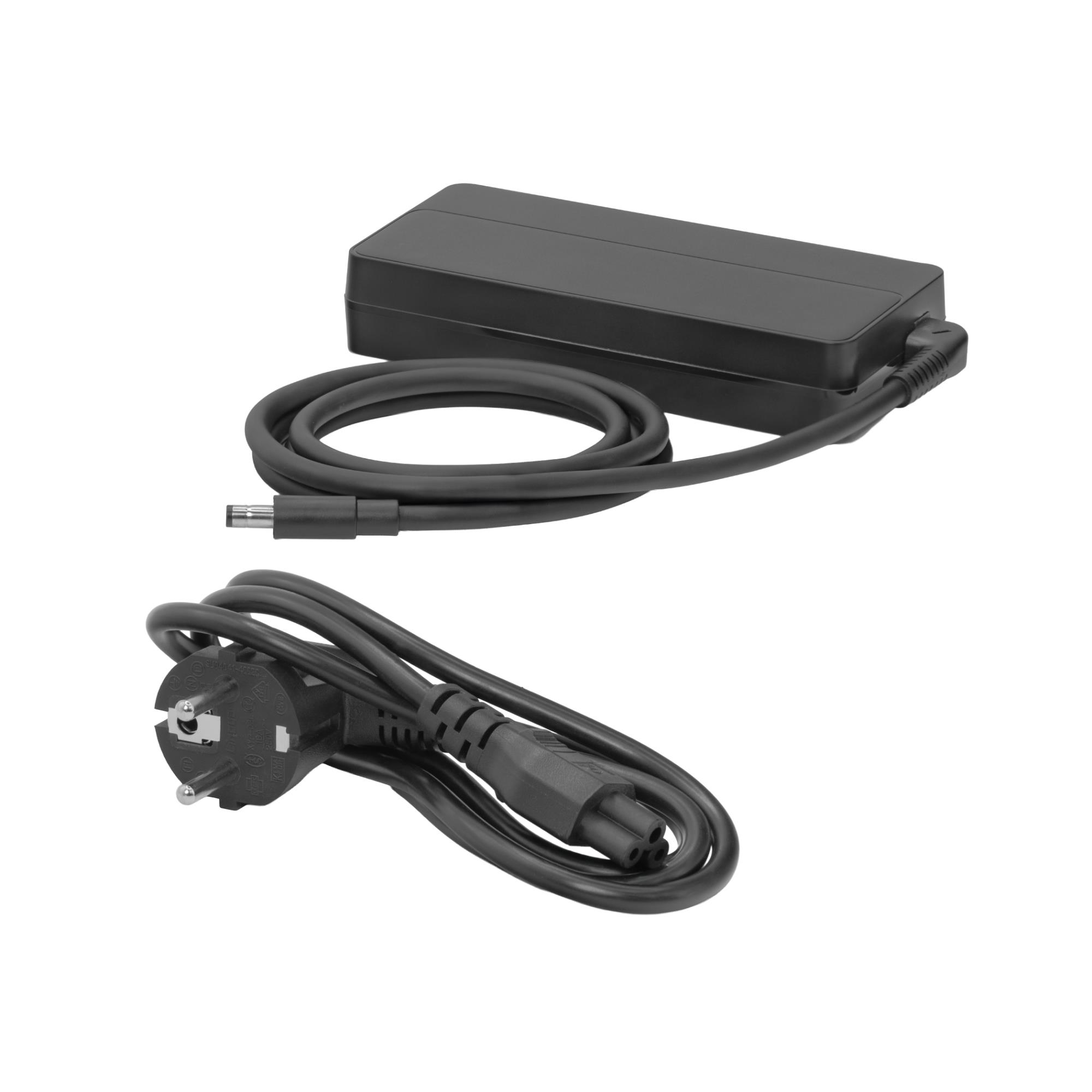

- Self-powered from DC power adapter with max. 180Watt for host and
- Hub
- Made from recycled materials (PCR). Sustainable and durable
- The device has standard and nano Kensington lock slots for a secure
- anti-theft mechanism

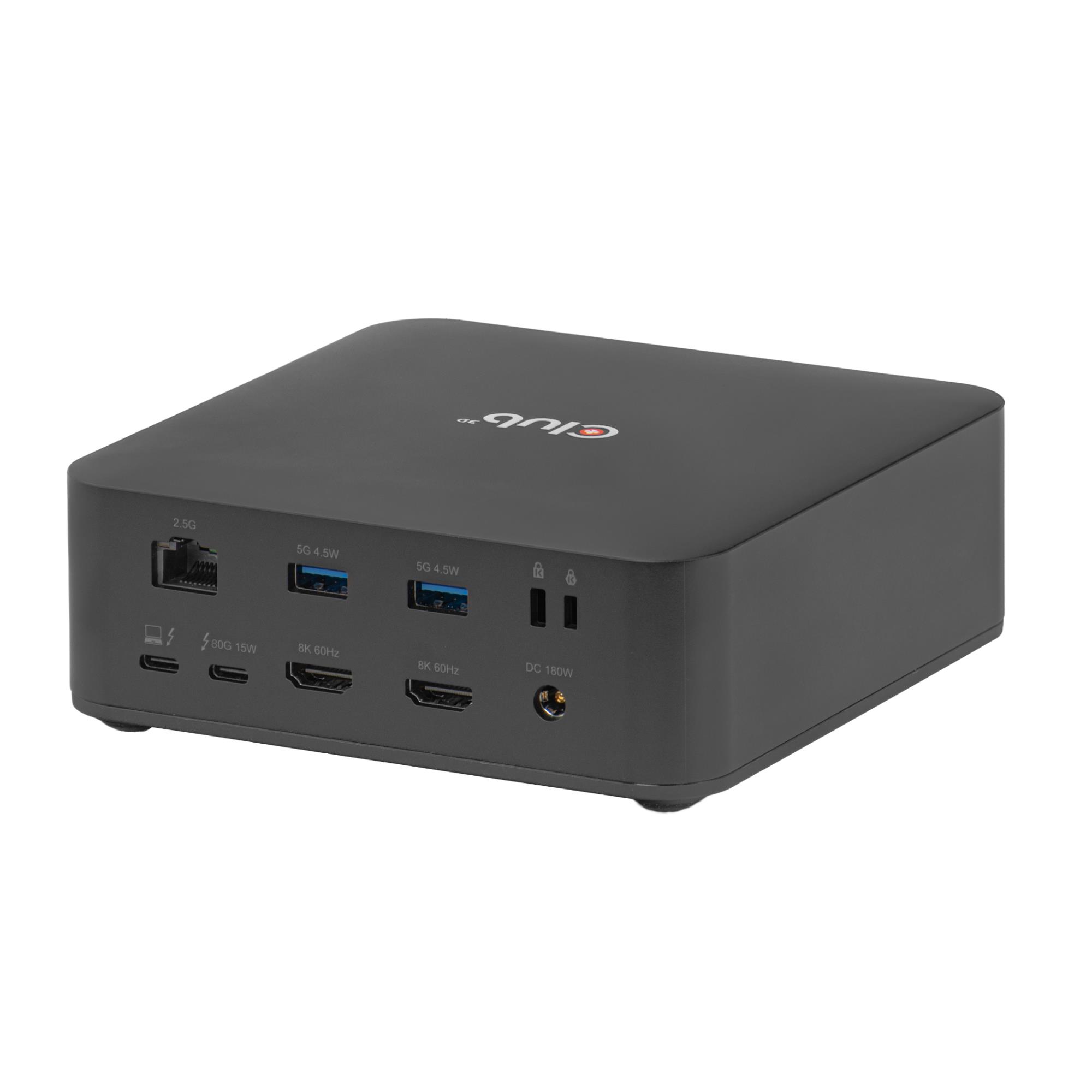

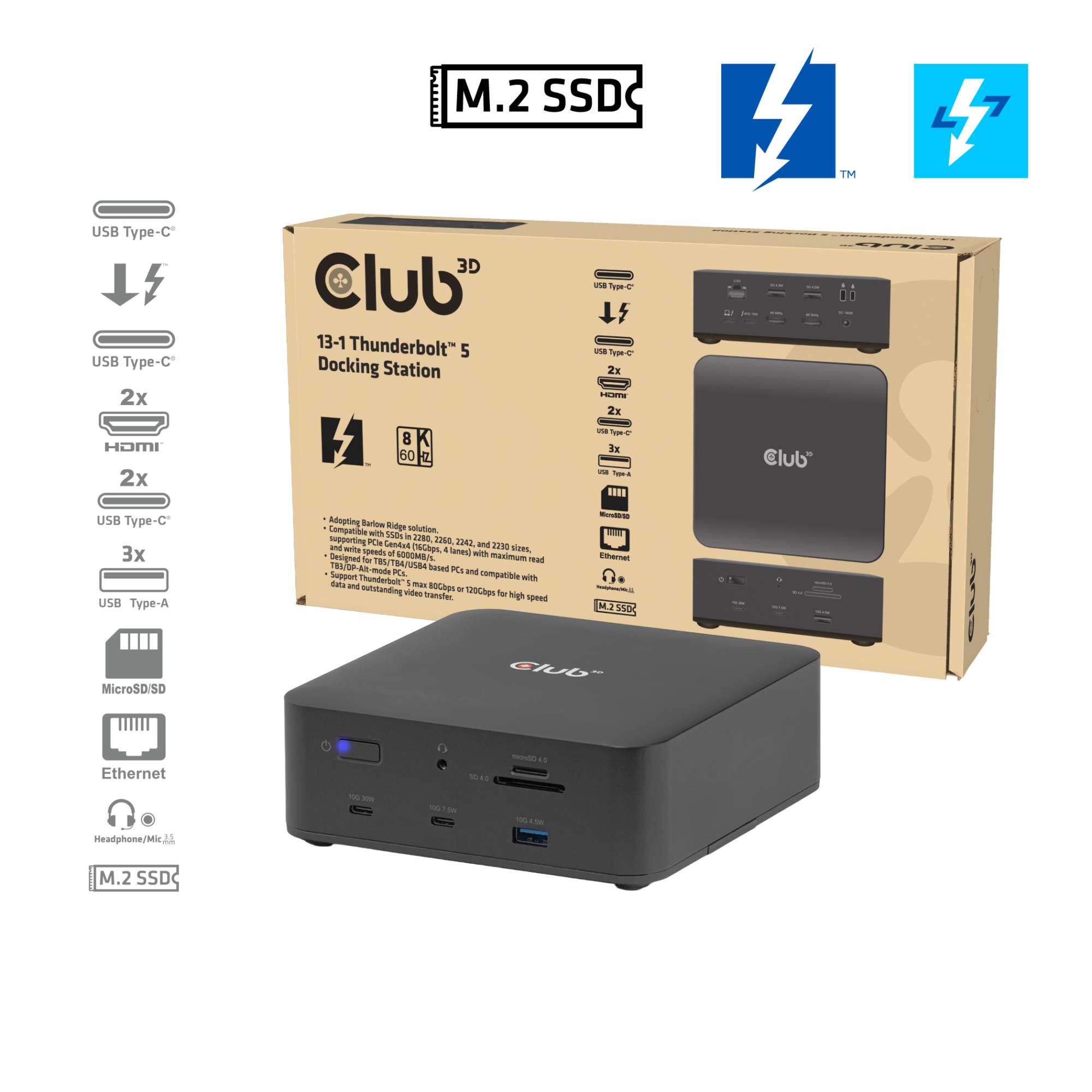

Summary: CLUB3D CSV-2562 13-1 Thunderbolt™ 5 Docking Station M.2 SSD 2x HDMI™ 8K60Hz Thunderbolt™ Share Certified 180W. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD Express, SD, Data transfer rate: 120 Gbit/s. Power source type: DC, Power supply: 180 W, USB cable length: 1 m. Sustainability certificates: SCS Product Category Rule (PCR)
Vendor Homepage: https://www.club-3d.com/shop/csv-2562-1498?search=2562&order=name+asc#attr=2864,2865,2866,2867,2868,2869,2870,2871,2872,2873,2874,2875,2877,2878,2876,2879,2880
Category Code: NBK
CnCode: 84733020
Unit Box Height: 0.065
Unit Box Length: 0.305
Unit Box Width: 0.175

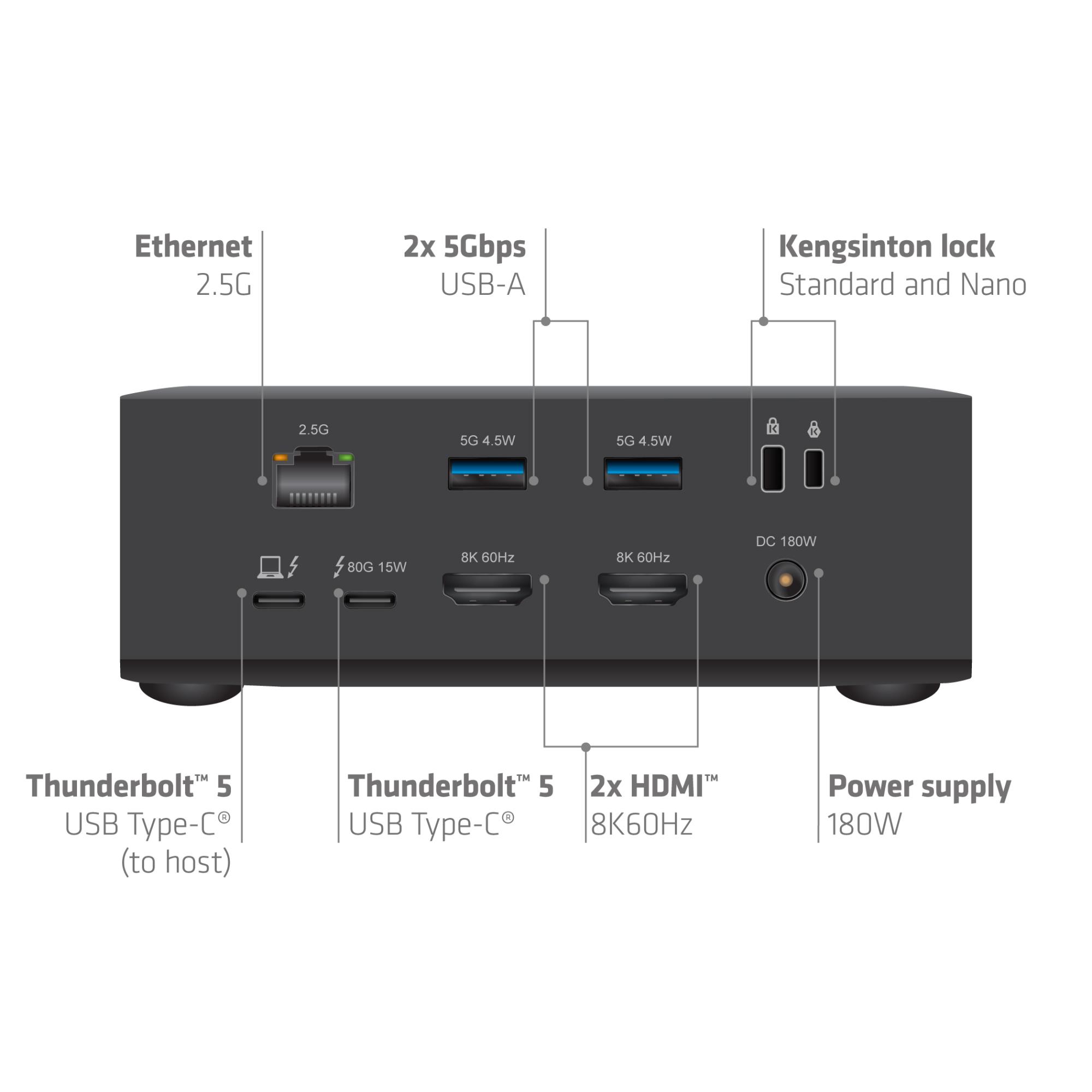

Connectivity technology: Wired

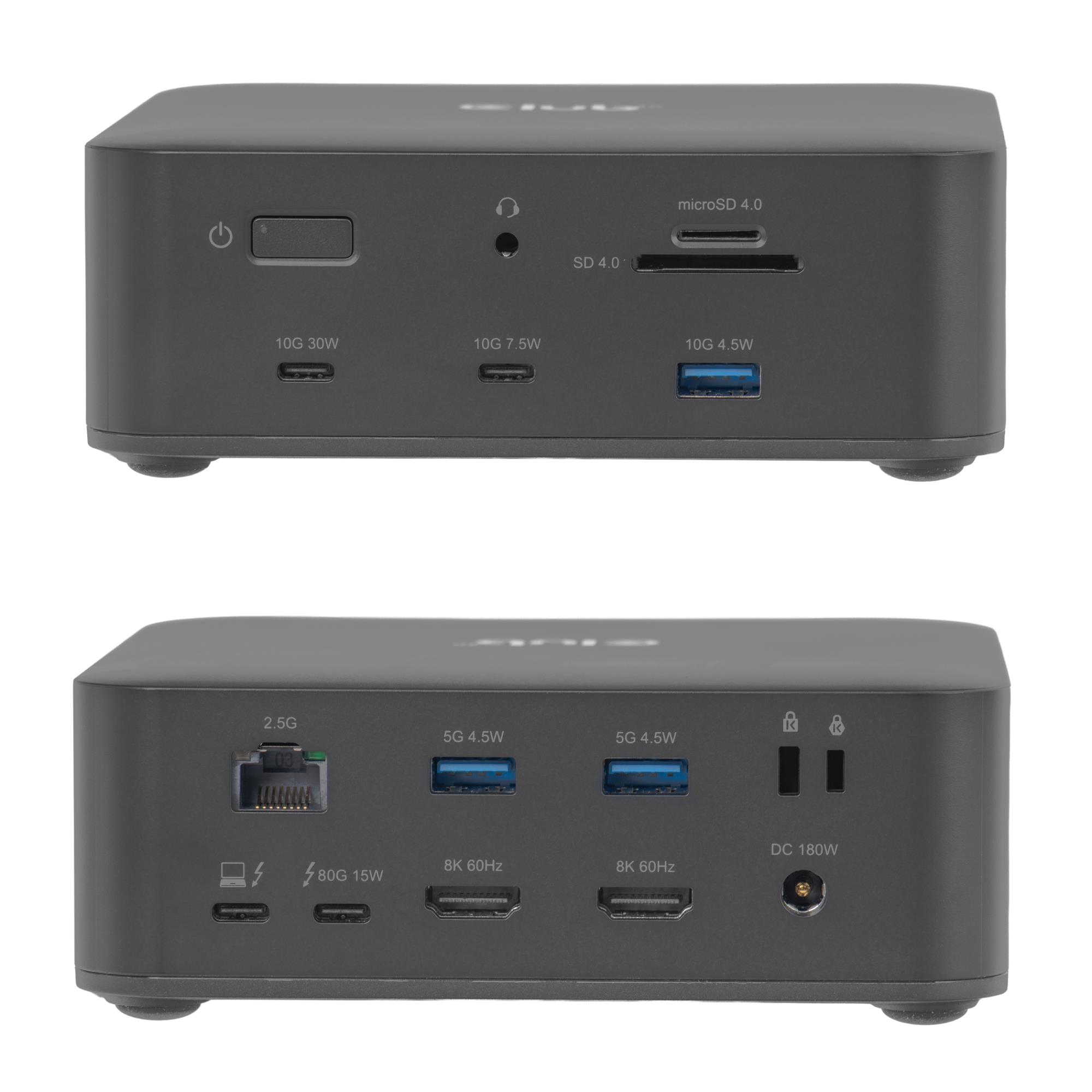

HDMI ports quantity: 2
Headphone connectivity: 3.5 mm
Headphone outputs: 1
Host interface: Thunderbolt 5
Microphone in: No
Thunderbolt 5 ports quantity: 1
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB Power Delivery up to: 140
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10/100/1000/2500
Cable lock slot: Yes
Cable lock slot type: Kensington/Nano
Card reader integrated: Yes
Compatible memory cards: MicroSD Express/SD
Data transfer rate: 120
HD type: 8K Ultra HD
Housing material: Plastic
Maximum refresh rate: 144
Number of displays supported: 3
NVMe: Yes
On/off switch: Yes
Product colour: Black
SSD enclosure: Yes
Built-in speaker(s): No
Power source type: DC
Power supply: 180
USB cable length: 1
Sustainability certificates: SCS Product Category Rule (PCR)

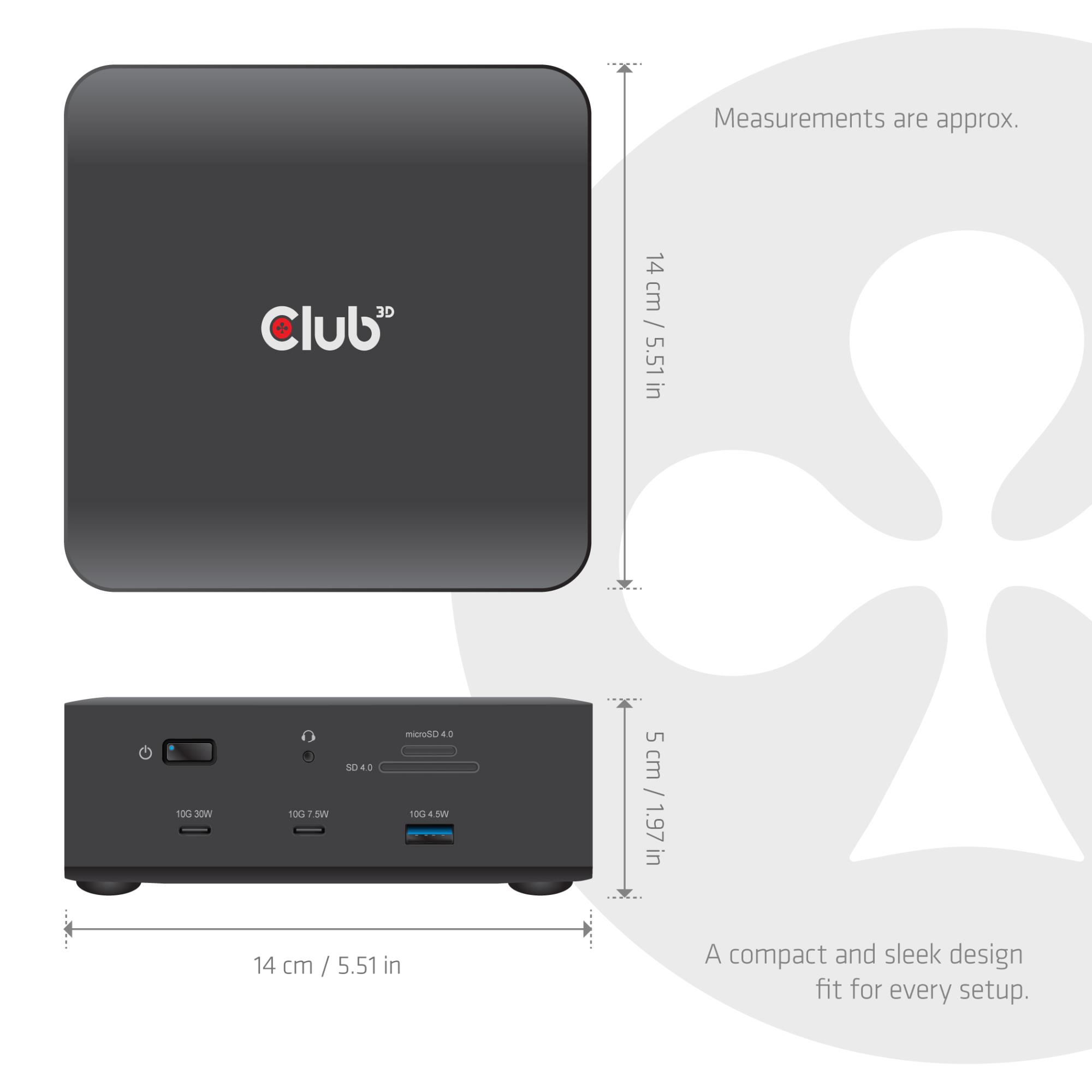

Depth: 140
Height: 50
Weight: 794
Width: 140
Package depth: 59
Package height: 169
Package weight: 1598
Package width: 302
Quantity per pack: 1
Cables included: Thunderbolt
Paper/cardboard packaging weight: 168
Plastic packaging weight: 7
Total paper/cardboard packaging weight: 336
Total plastic packaging weight: 14
Harmonized System (HS) code: 8473 3020
Units per Pallet: 0
Units per Shipping Box: 5
Unit Calculated Volume: 0.004574
Unit Calculated Weight: 1.78
