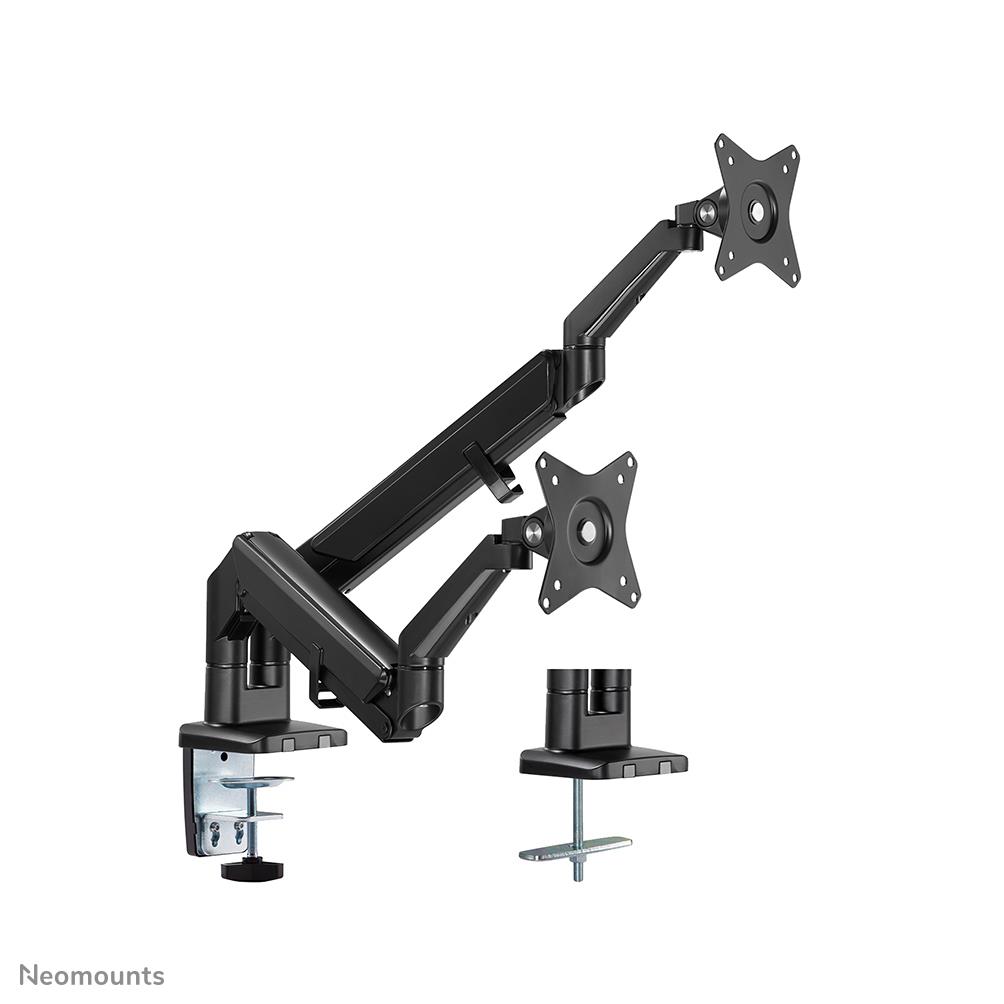

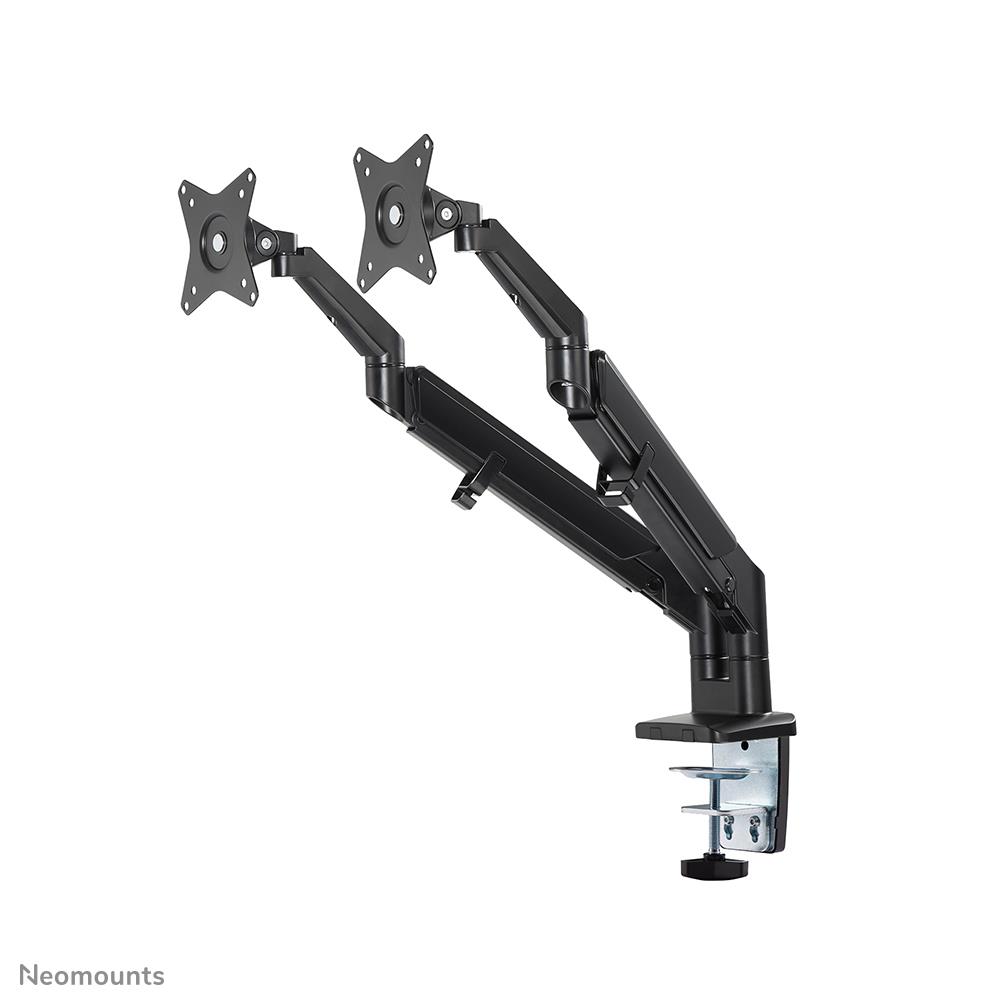

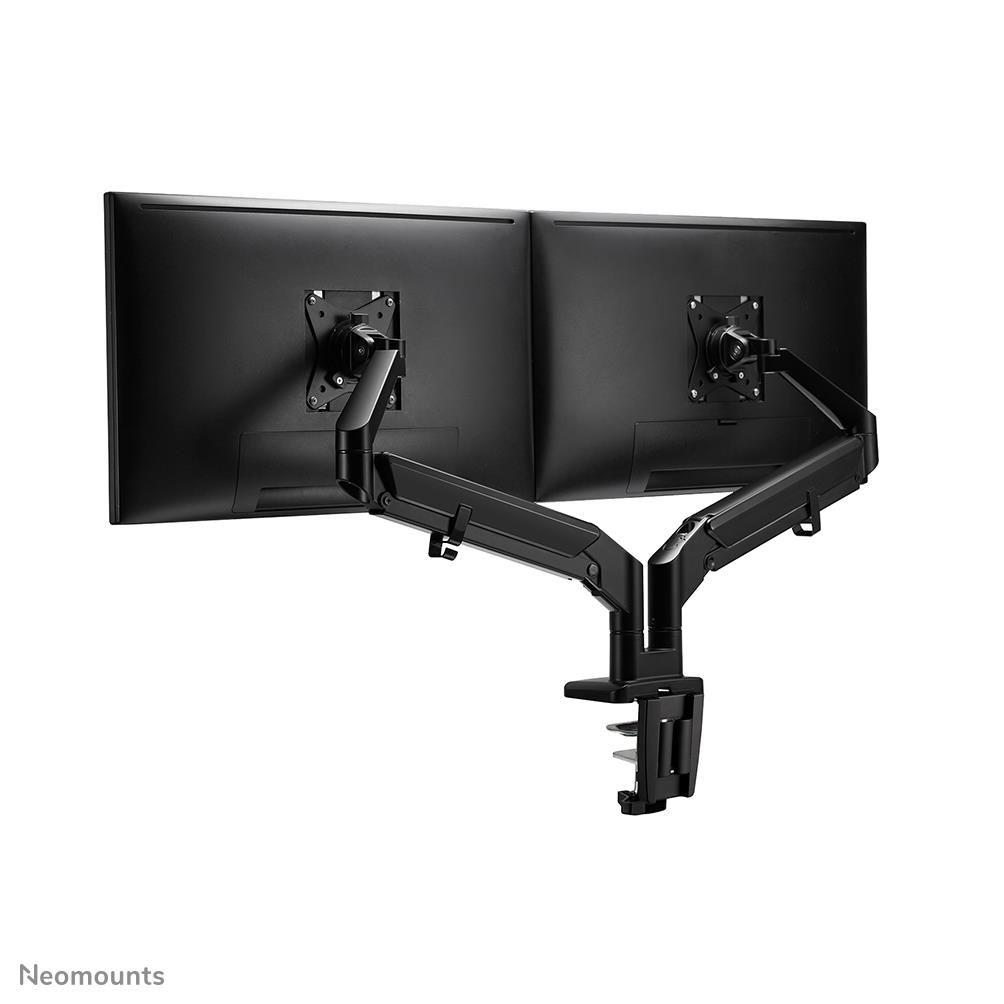

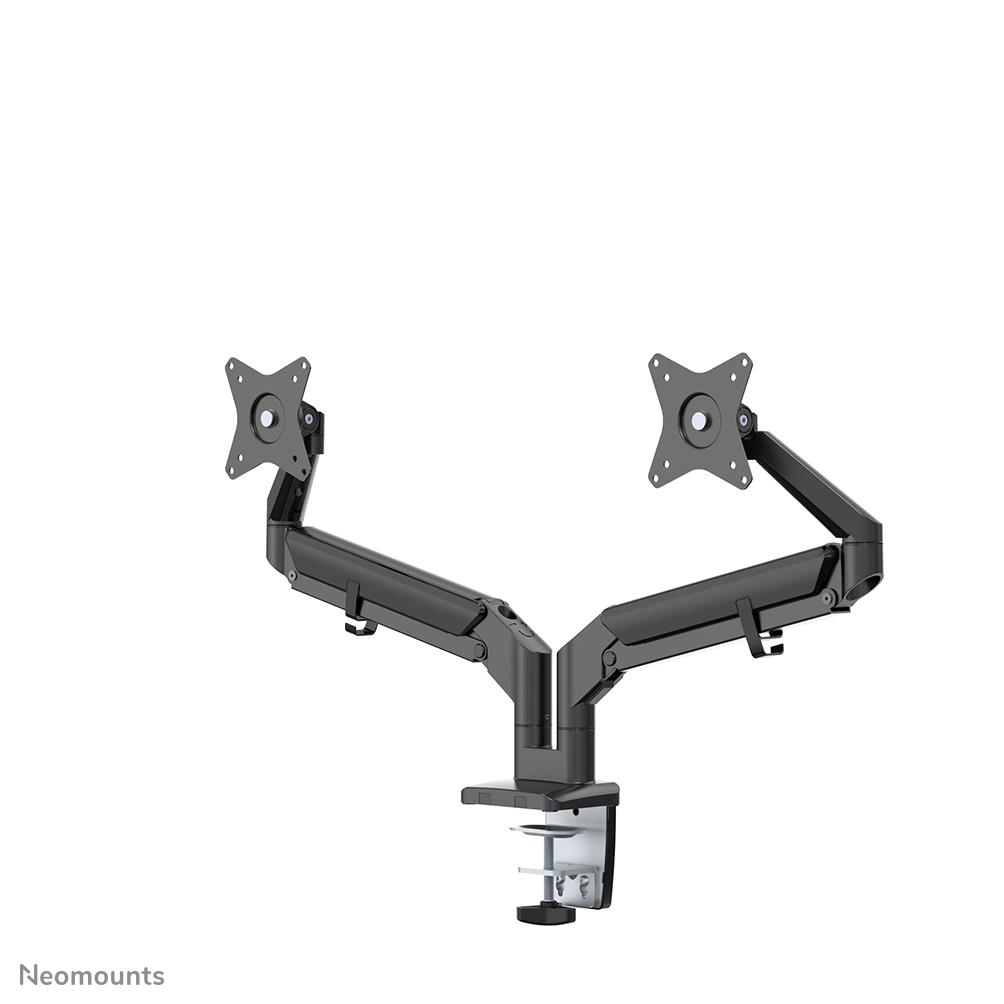

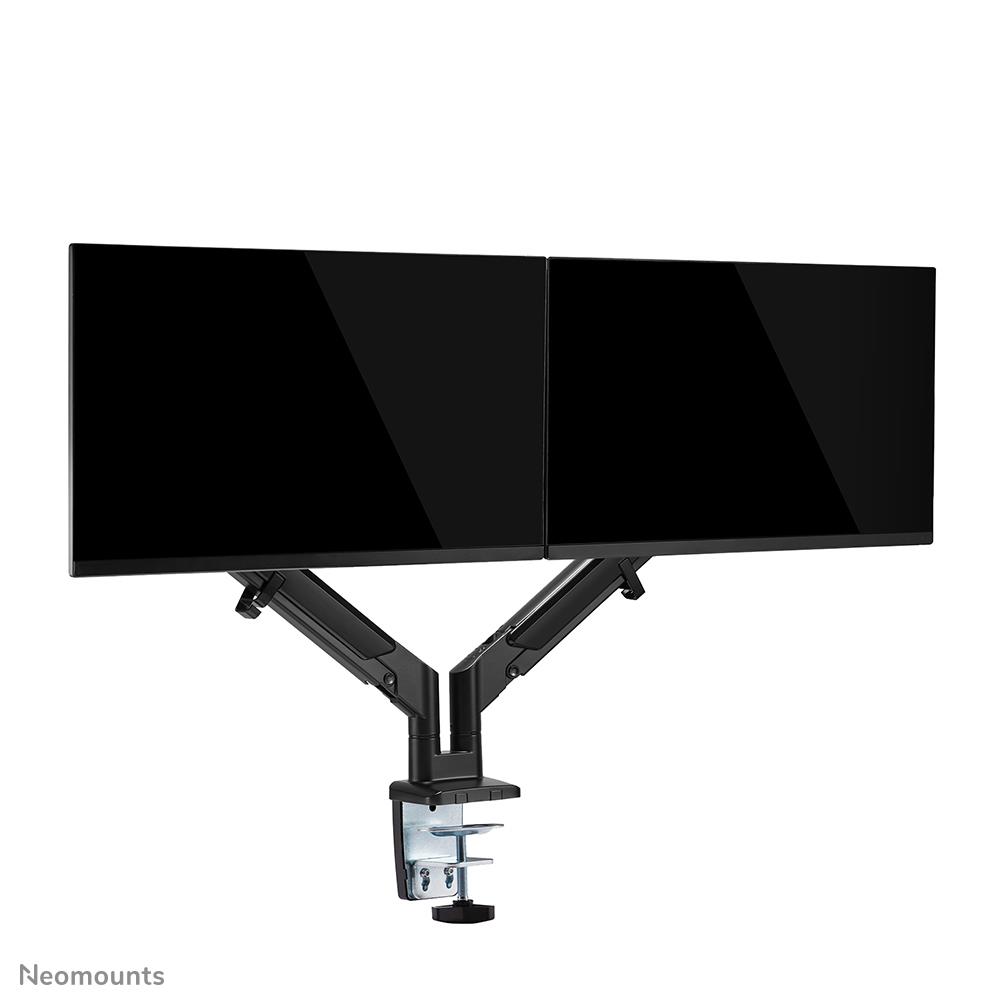

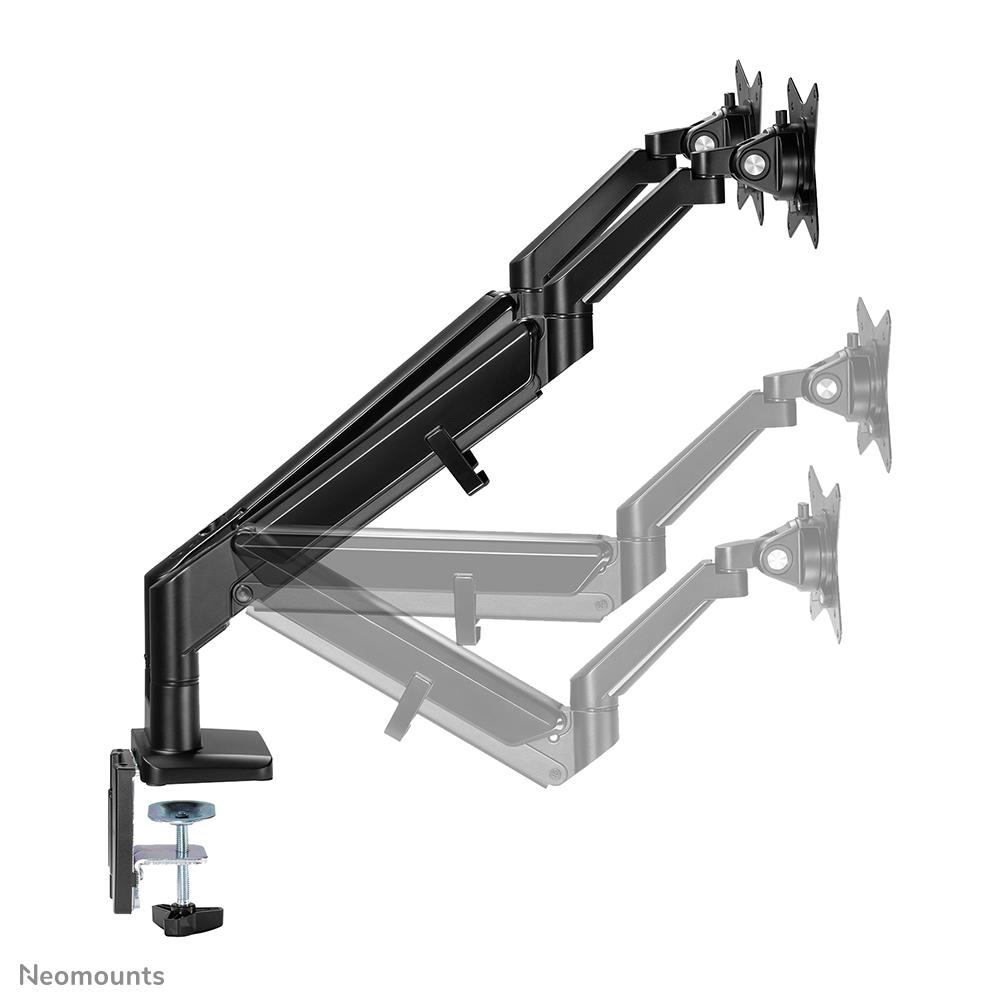

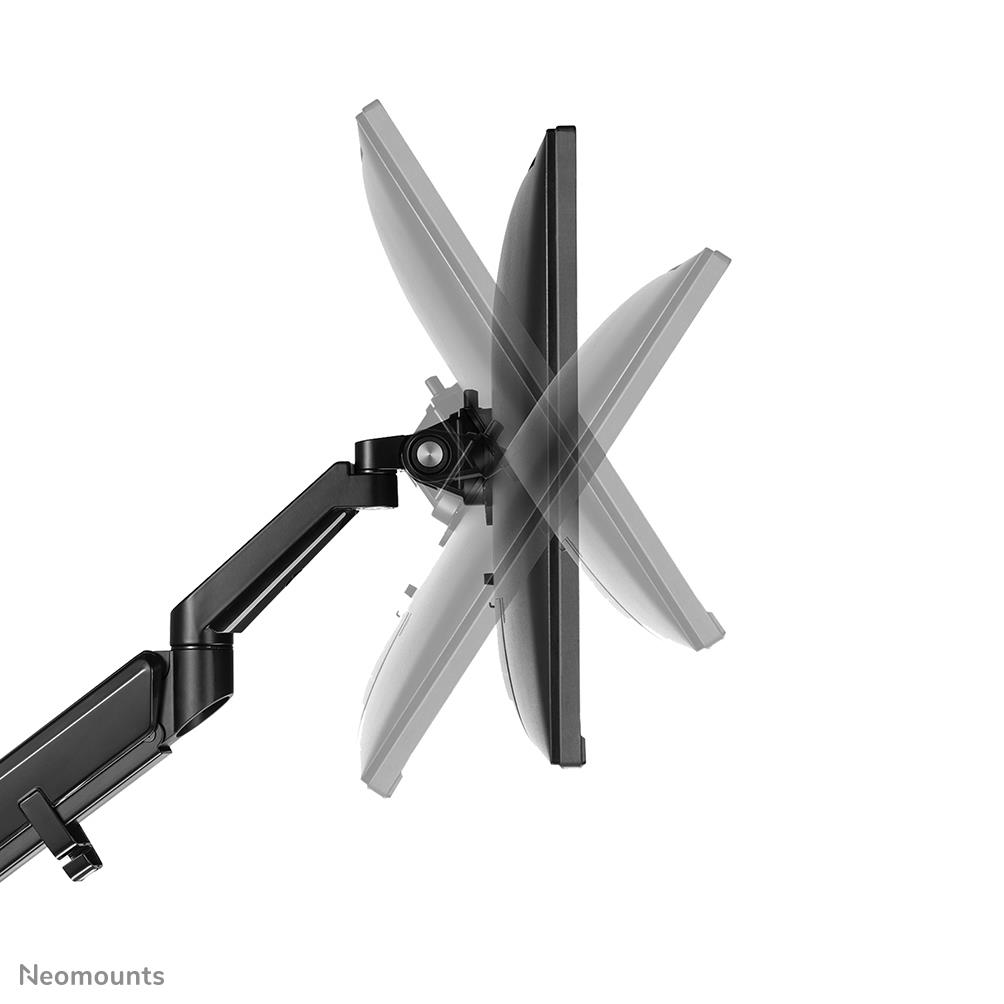

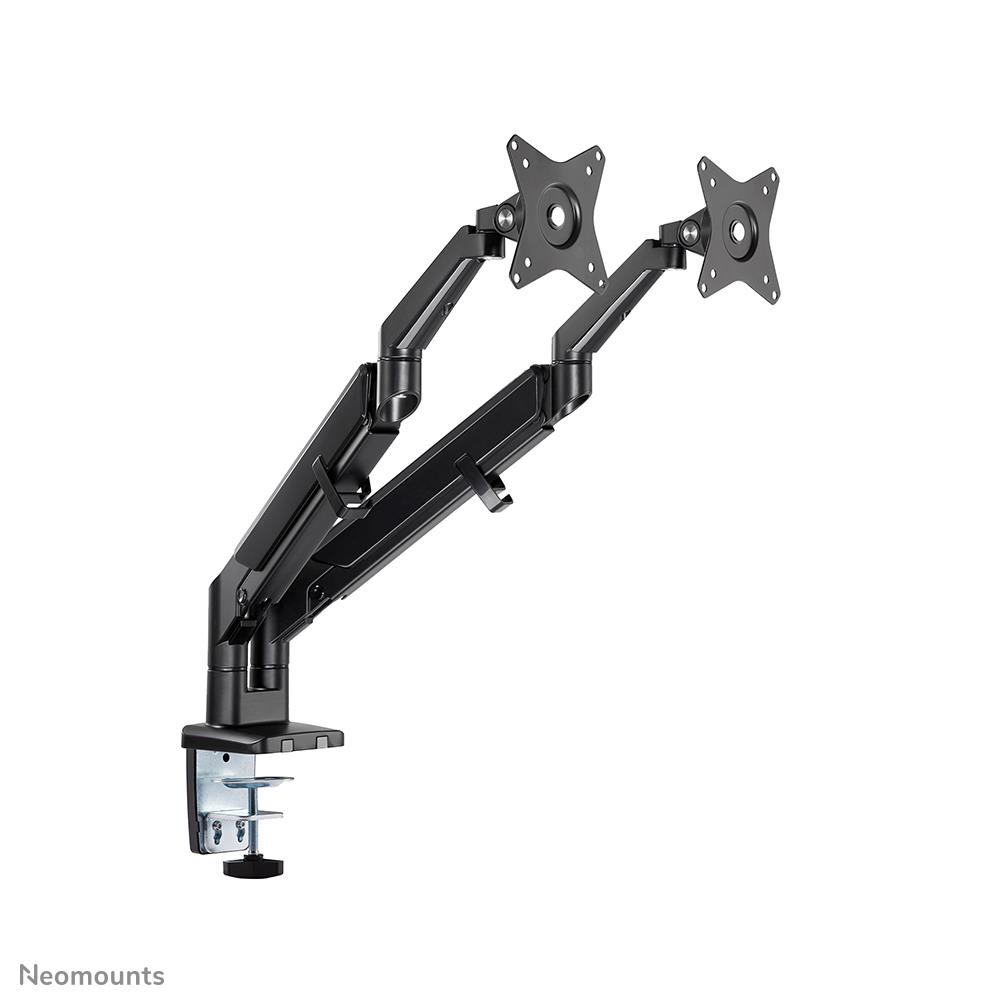

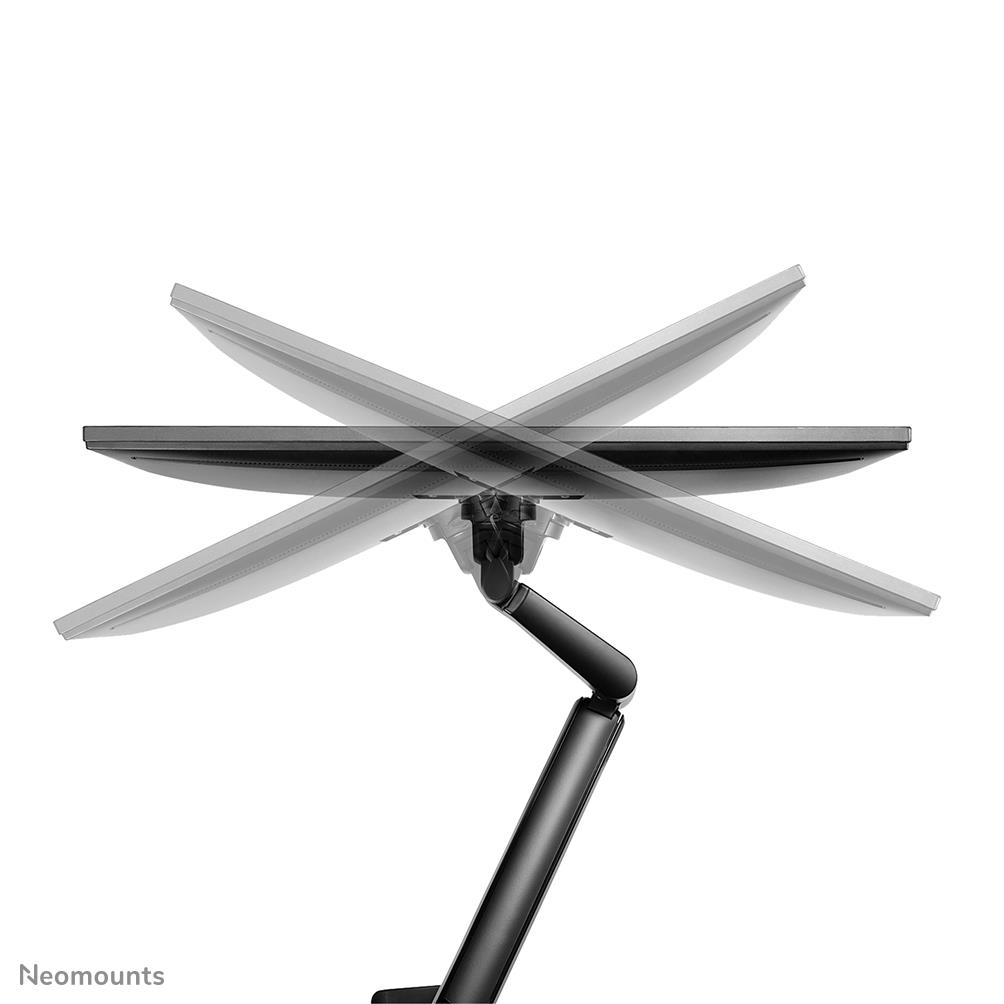

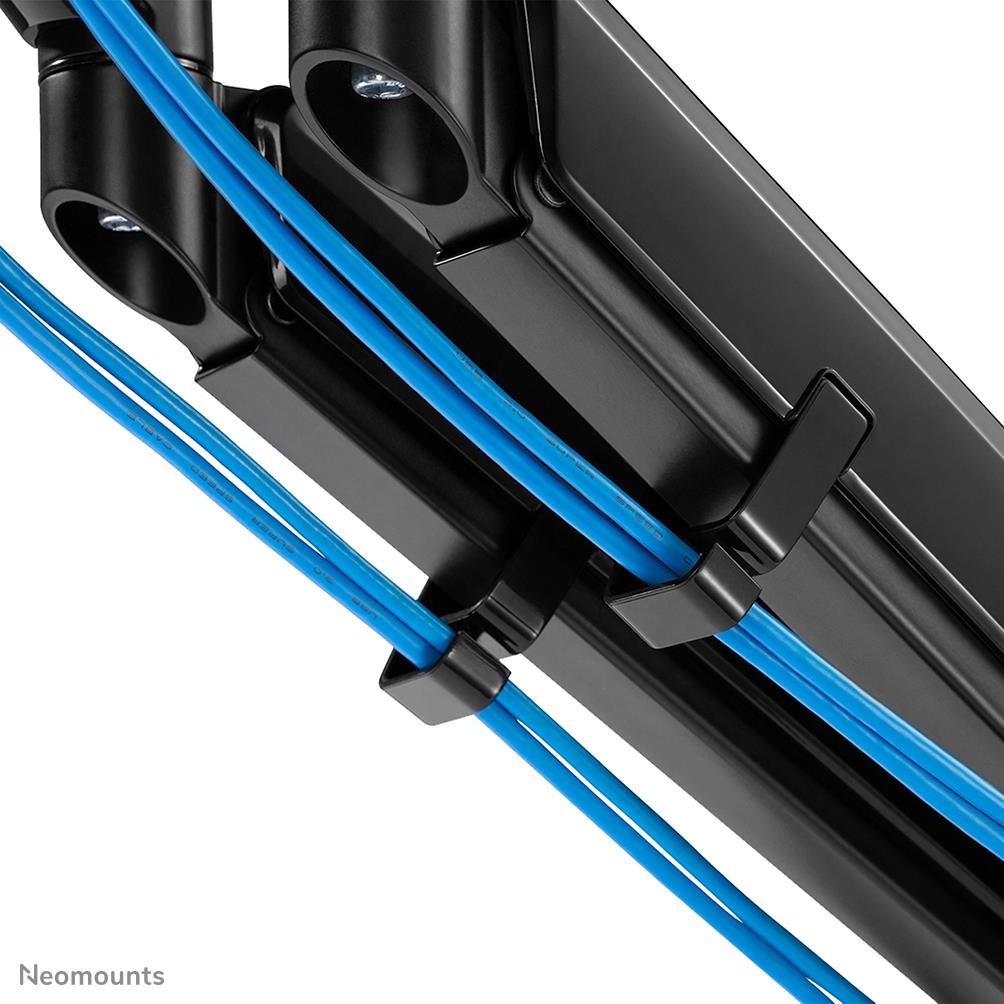

The Neomounts DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.

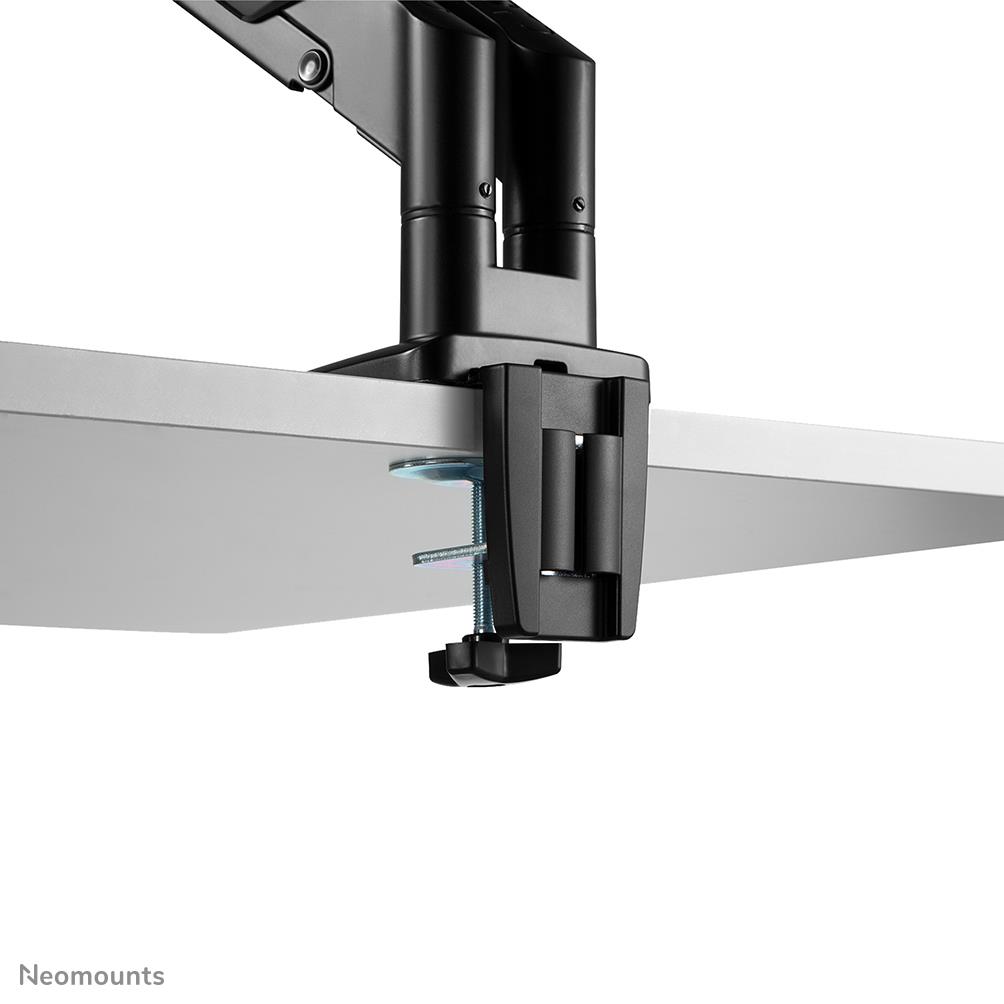

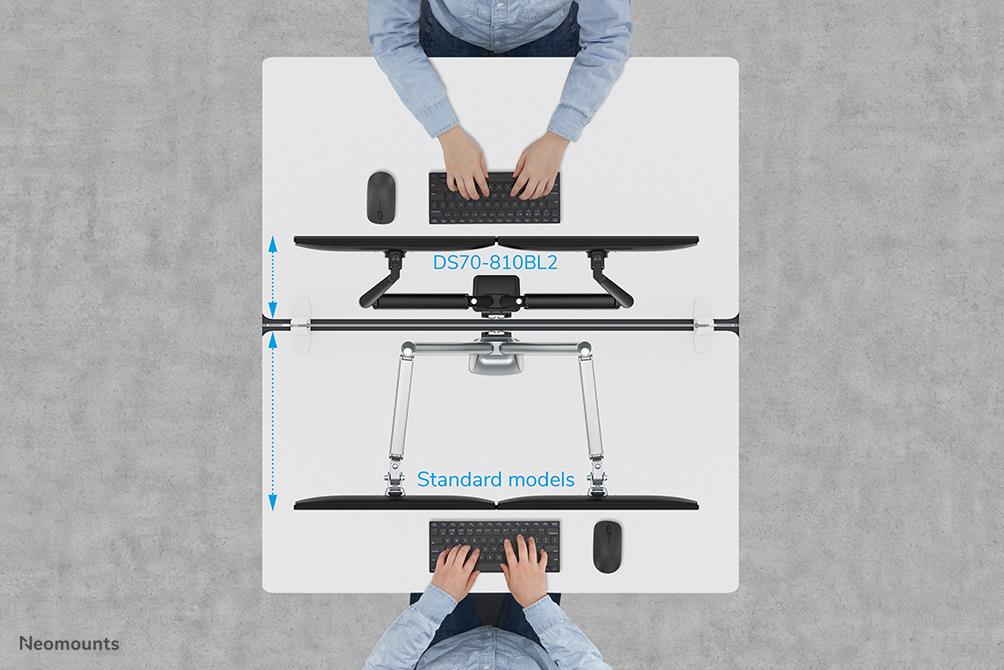

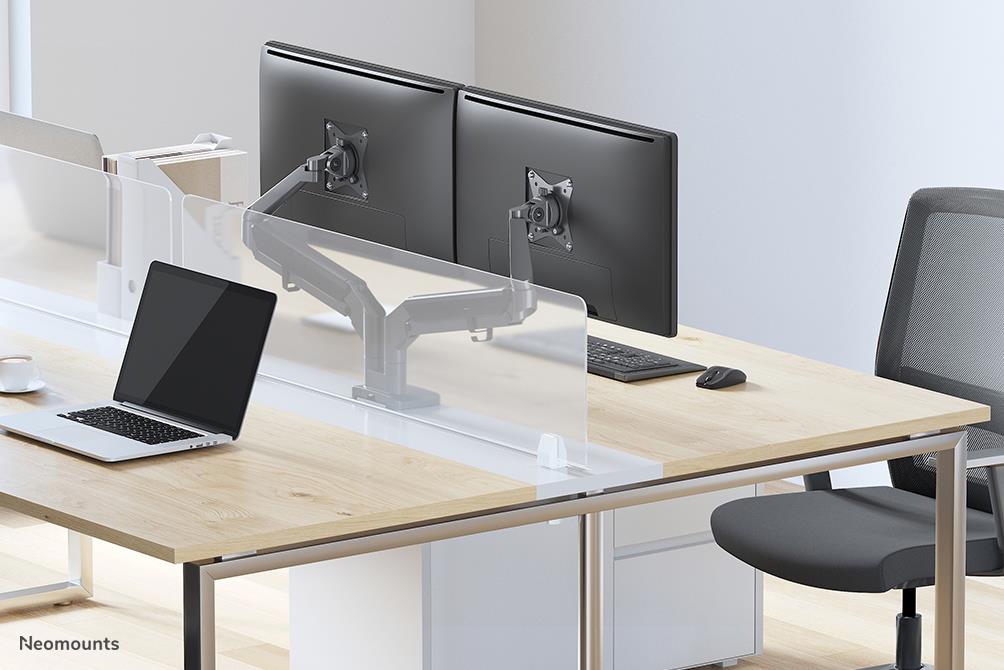

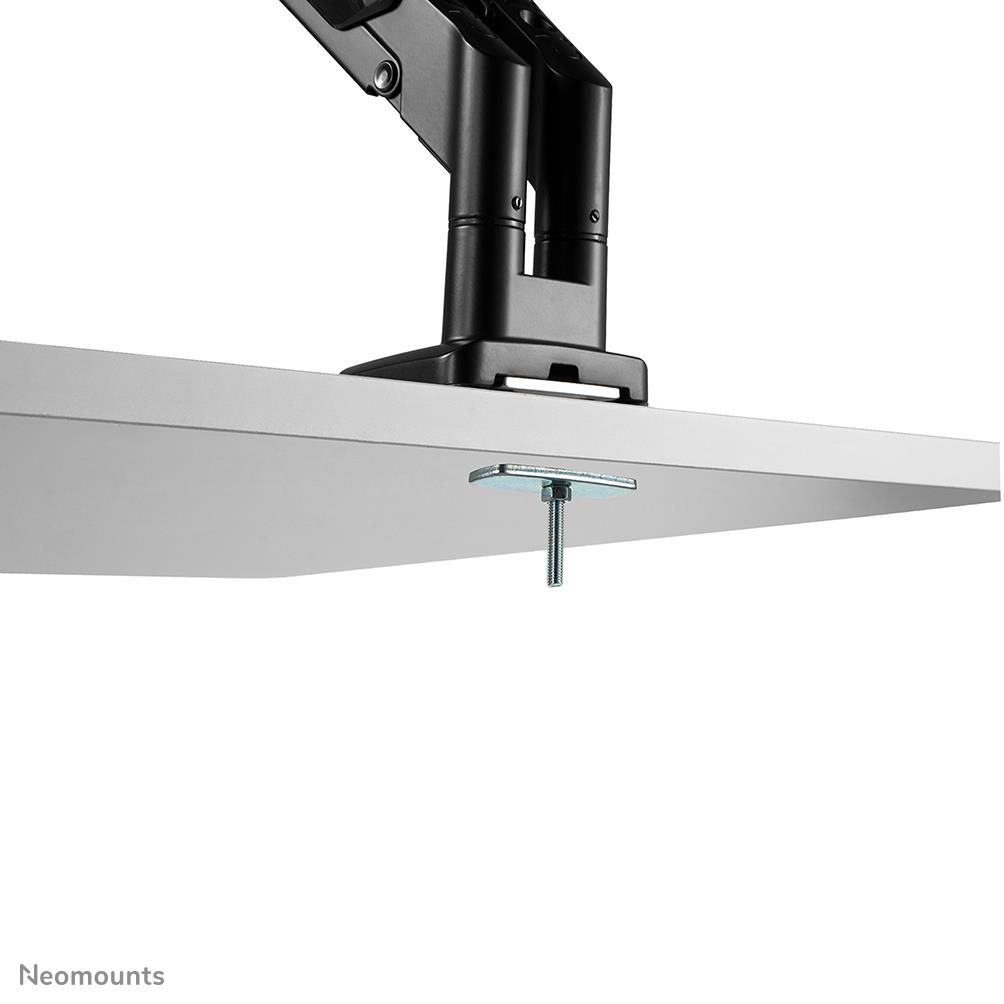

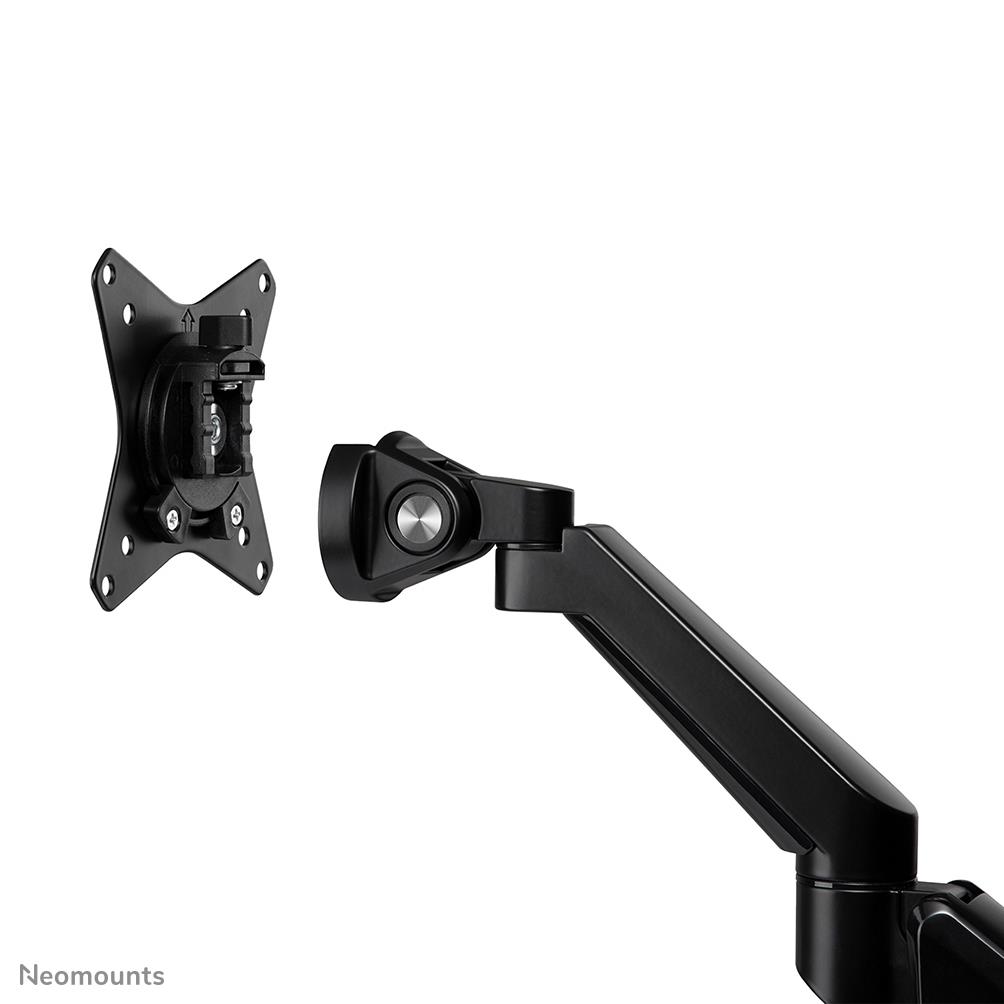

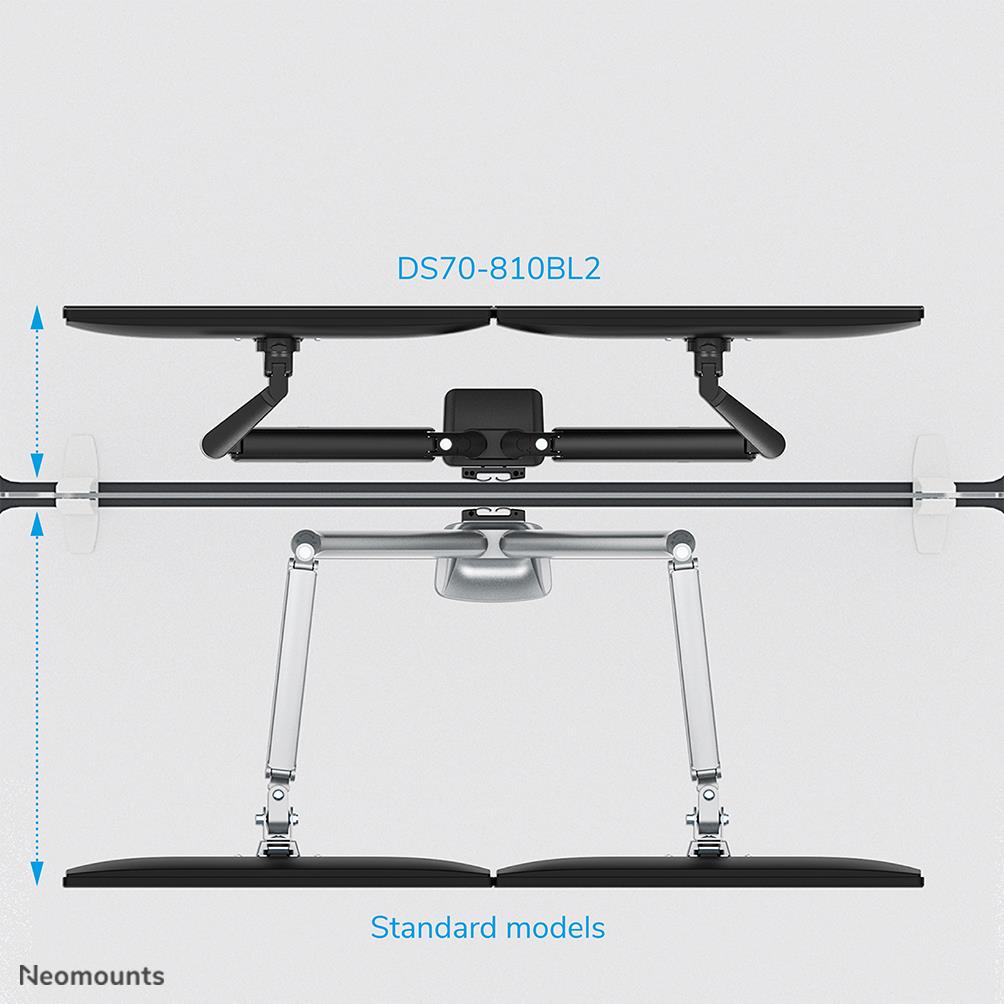

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-810BL2 |
|---|---|
| Category Code | MAS |
| Unit Box Height | 0.26 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.15 |
| Desk thickness (max) | 85 mm |
| Desk thickness (min) | 10 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 9 kg |
| Maximum weight capacity (per display) | 9 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 0 - 490 mm |
| Height adjustment | Yes |
| Height adjustment range | 265 - 550 mm |

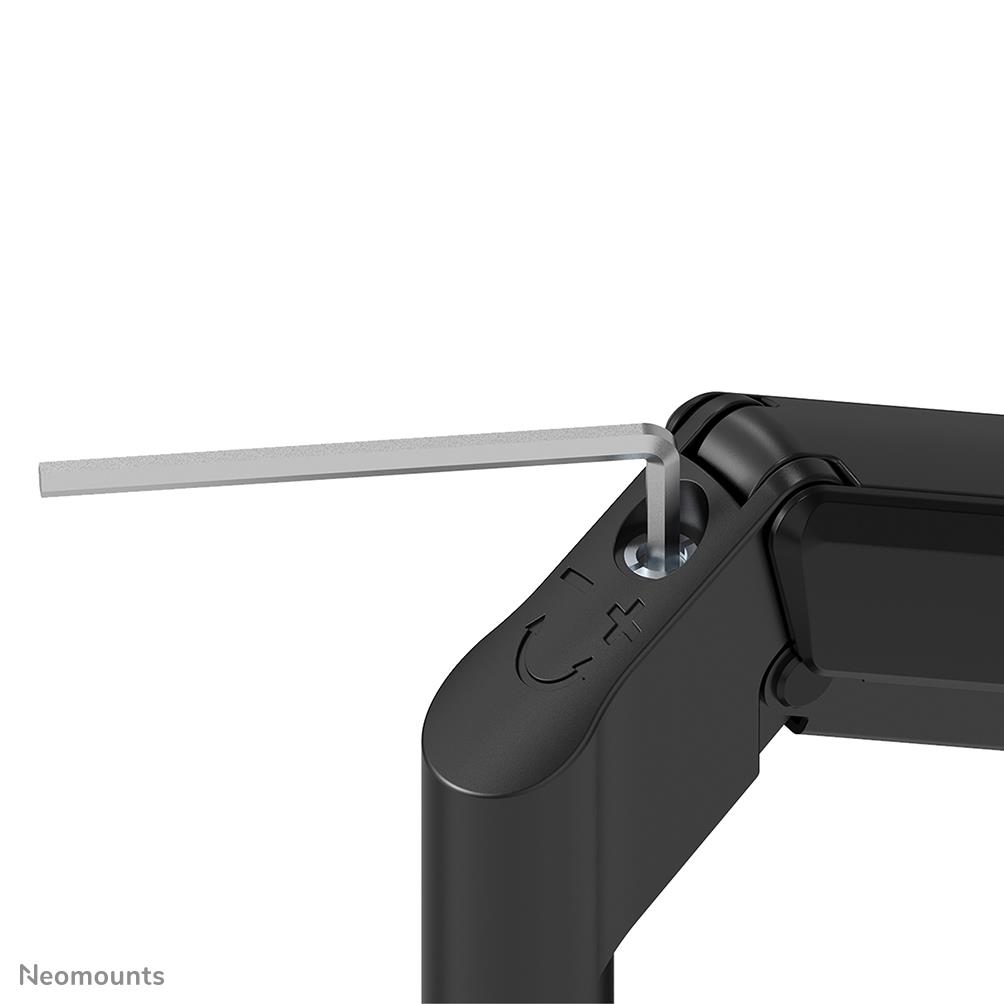

| Height adjustment type | Gas spring |
| Pivot angle | -180 - 180 ° |
| Rotating | Yes |
| Swivel angle range | -90 - 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45 ° |
| Housing material | Steel |
| Orientation | Landscape/Portrait |
| Product colour | Black |
| Depth | 555 mm |
| Height | 615 mm |
| Weight | 5200 g |
| Width | 117 mm |
| Package depth | 142 mm |
| Package height | 395 mm |
| Package net weight | 6000 g |
| Package weight | 6000 g |
| Package width | 265 mm |
| Quantity per pack | 1 pc(s) |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 1070 mm |
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 24600 g |
| Master (outer) case height | 305 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case net weight | 21000 g |
| Master (outer) case width | 550 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 72 pc(s) |
| Units per Pallet | 0 |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.01425 cubm |
| Unit Calculated Weight | 6.15 kg |
