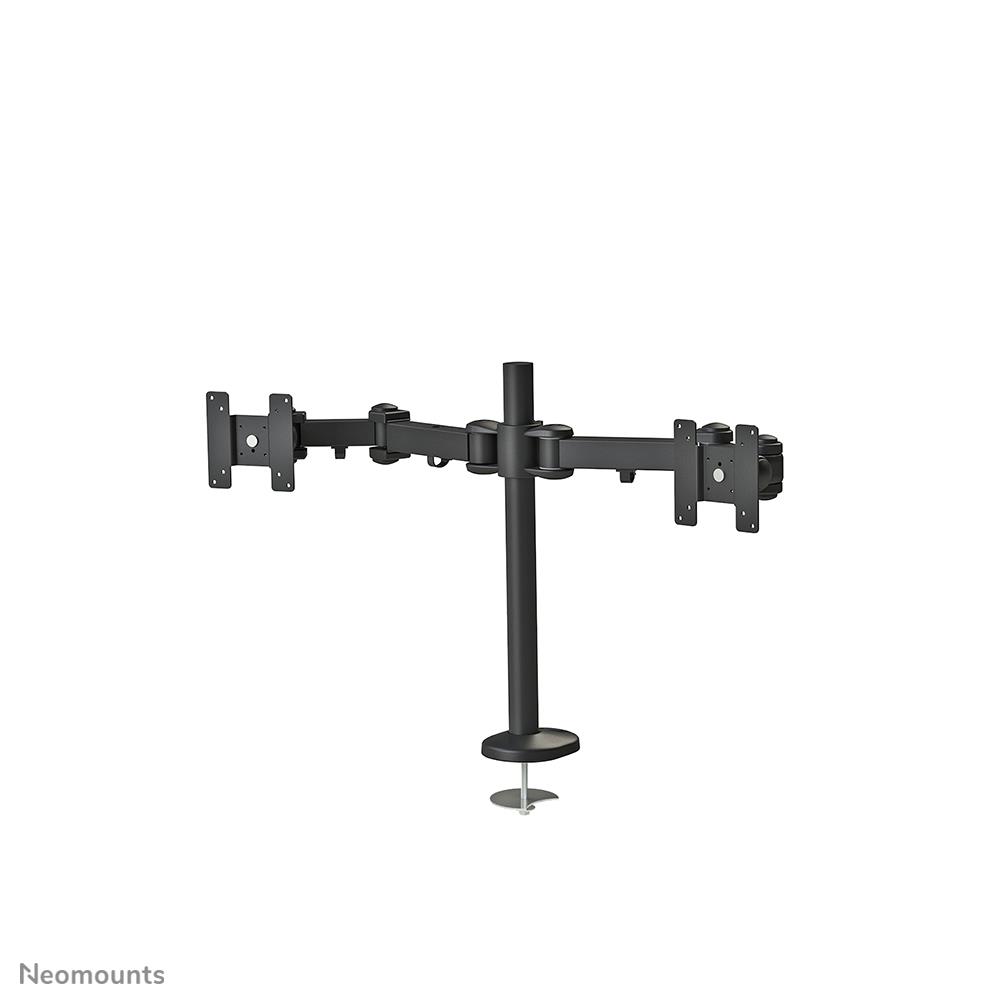

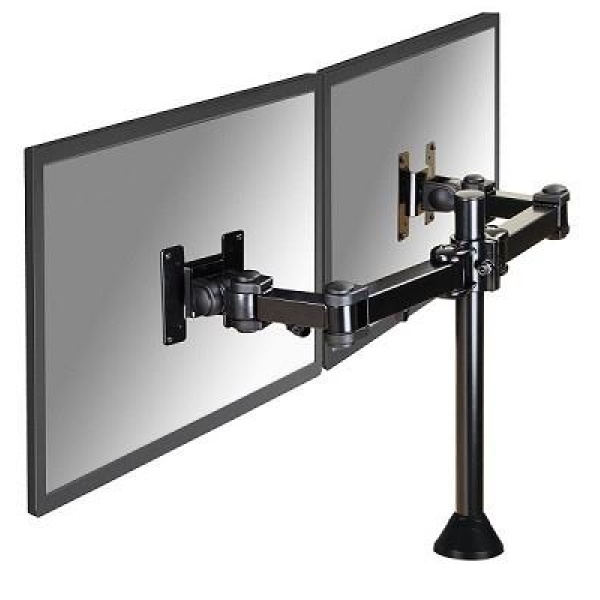

The Neomounts desk mount, model FPMA-D960DG is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This mount is a great choice for space saving placement on desks using a grommet mount.

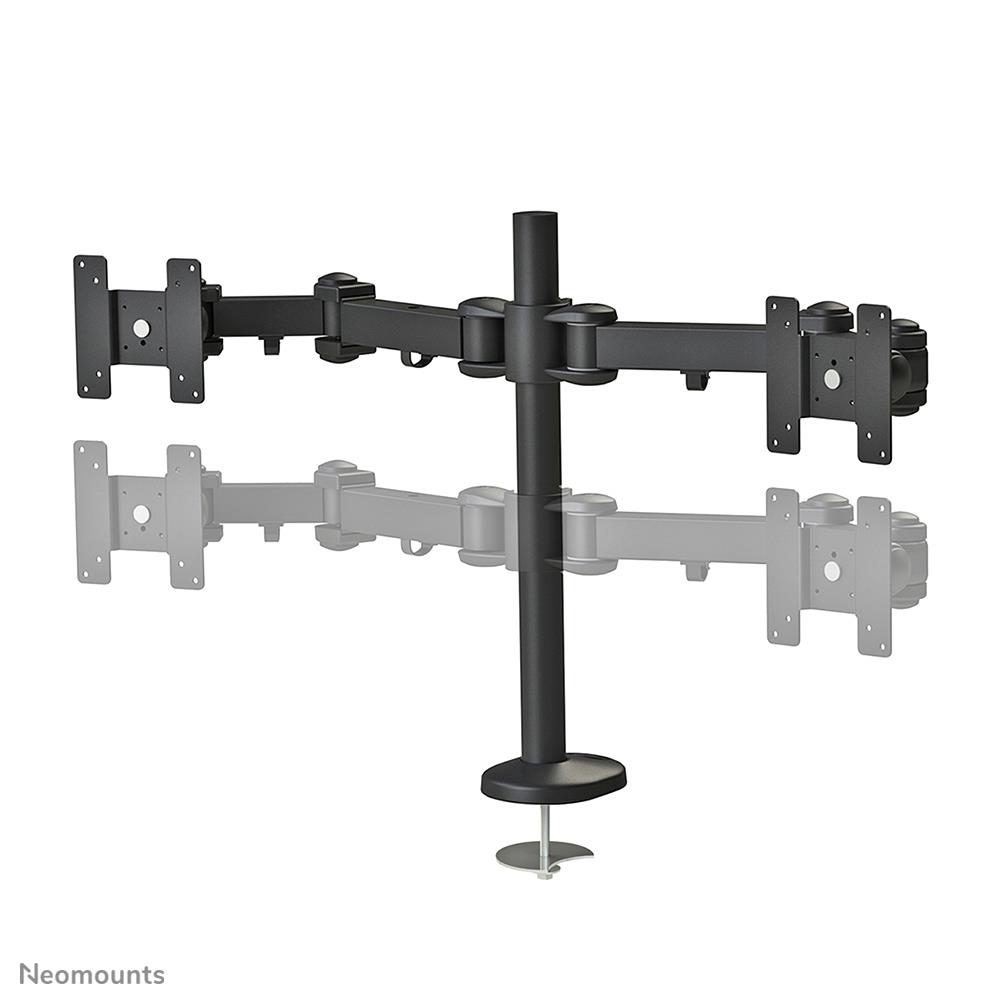

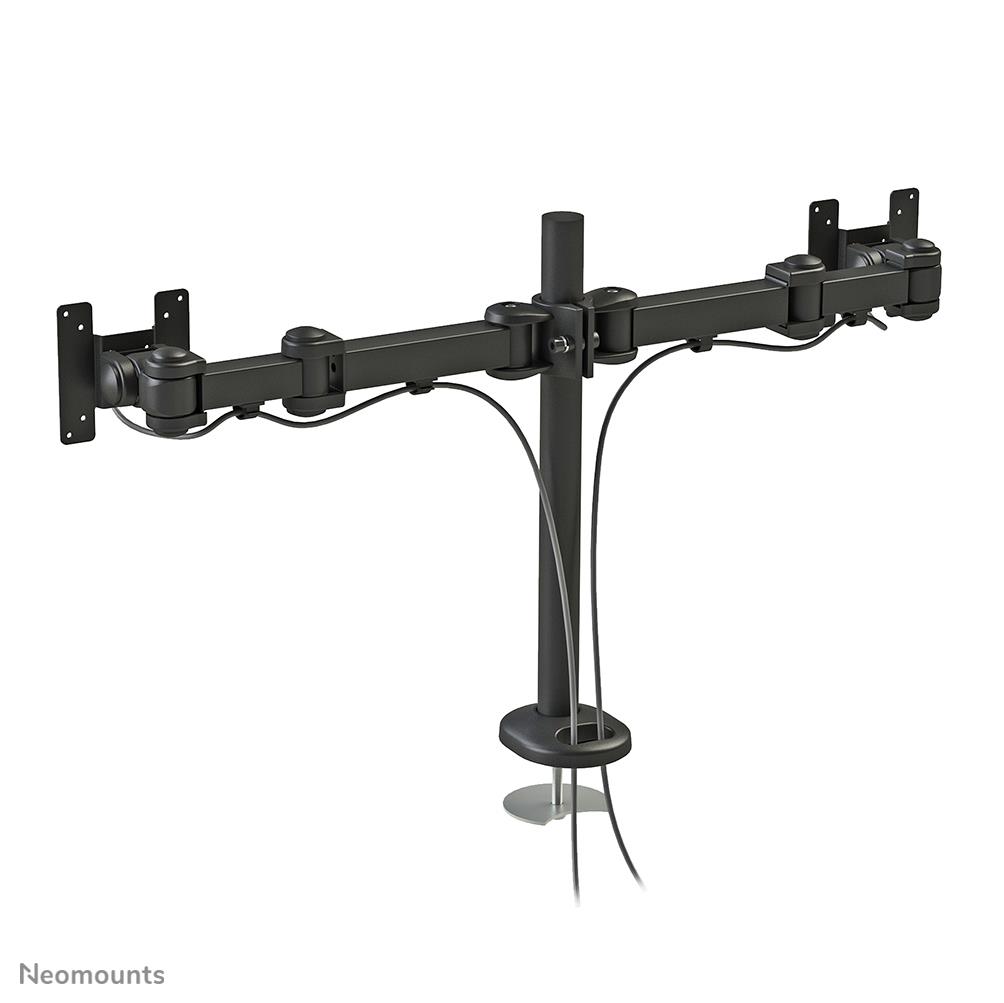

Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. Depth adjustable from 10 to 43 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D960DG has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
For curved monitor screens we recommend our FPMA-D960 PLUS models; our FPMA-D960DVBLACKPLUS is suitable for screens up to 49" (124 cm). The weight capacity of this product is 32 kg each screen. This monitor arm is therefore extremely suitable for widescreens and curved screens.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifikacijos

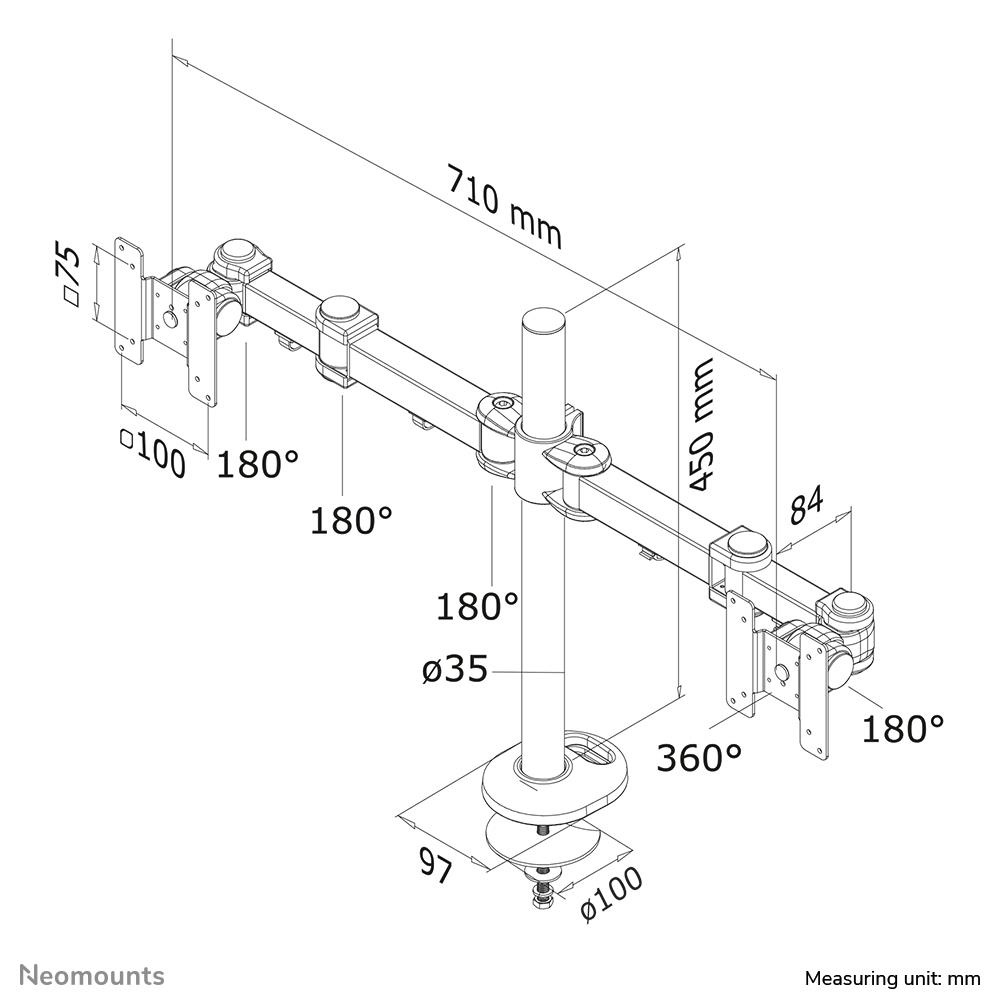

| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-D960DG |
|---|---|
| Category Code | MAS |
| Unit Box Height | 0.26 |
| Unit Box Length | 0.485 |
| Unit Box Width | 0.145 |
| Distance to the wall (max) | 430 mm |
| Distance to the wall (min) | 100 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 100 - 430 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 450 mm |
| Height adjustment type | Manual |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180 ° |
| Housing material | Steel |
| Product colour | Black |
| Depth | 1430 mm |
| Height | 450 mm |
| Weight | 3980 g |
| Package depth | 248 mm |
| Package height | 139 mm |
| Package weight | 4200 g |
| Package width | 473 mm |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 10200 g |
| Master (outer) case height | 345 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case net weight | 9400 g |
| Master (outer) case width | 500 mm |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 48 pc(s) |
| Units per Pallet | 40 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01828 cubm |
| Unit Calculated Weight | 4.58 kg |
