- 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688×1520) @25/30fps
- Built-in IR LED, and the max. illumination distance is 50 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
- 12 VDC/PoE power supply; ePoE
- IP67 protection
- SMD 3.0

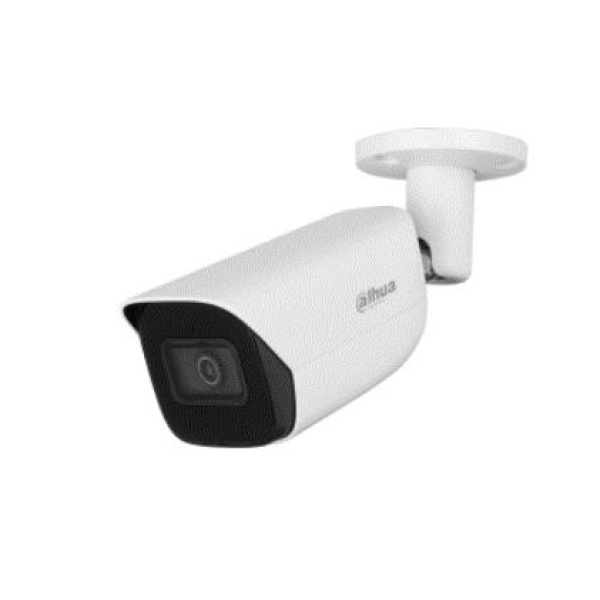

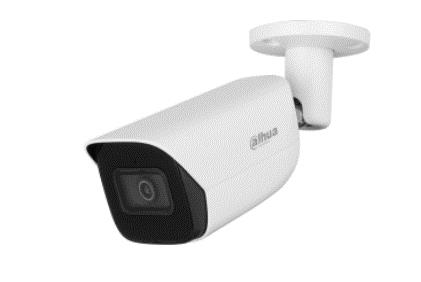

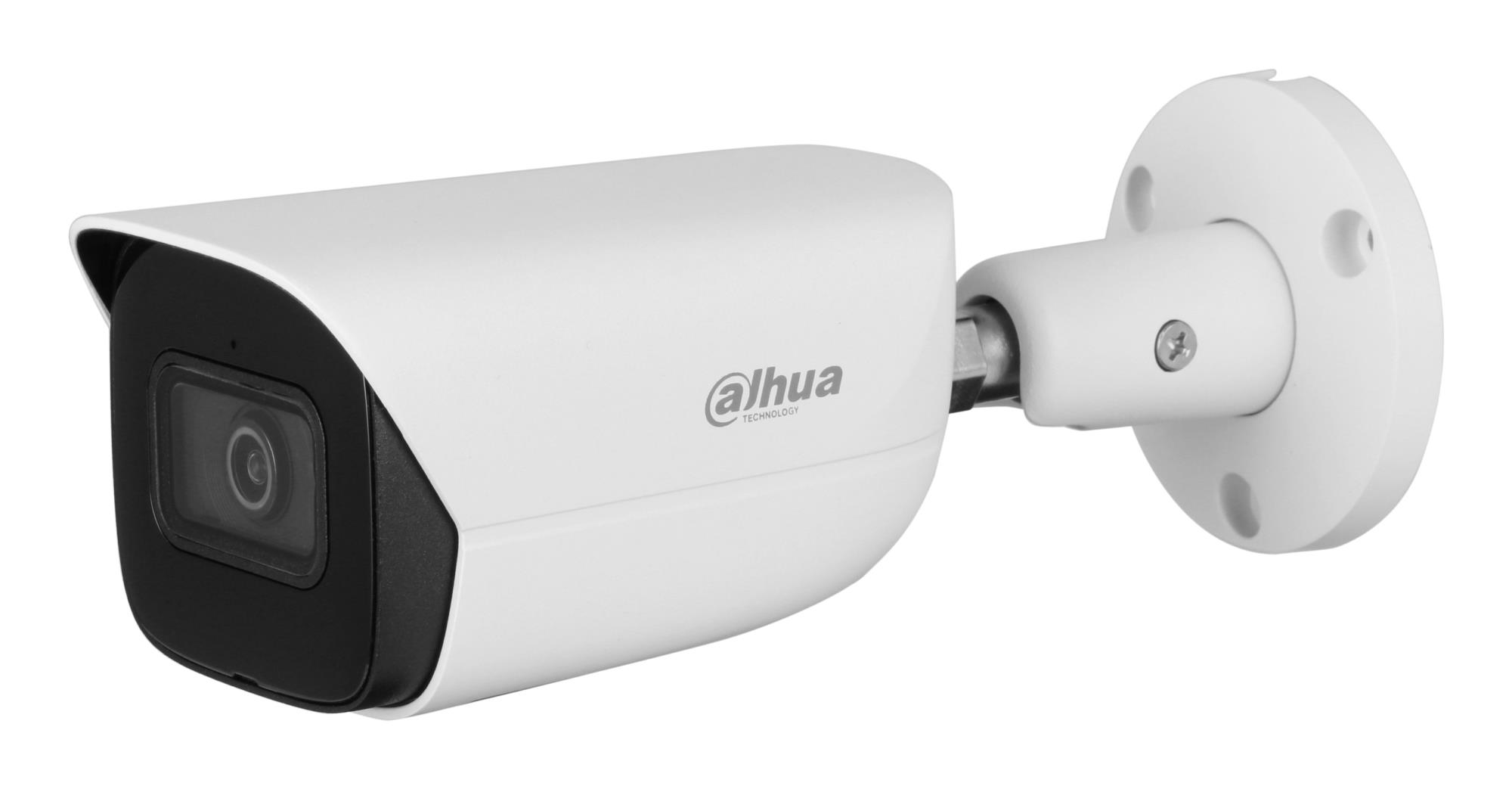

| Summary | Dahua Technology WizMind IPC-HFW5442E-ASE-0280B-S3. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 61.5 m, Observe distance: 24.6 m, Recognize distance: 12.3 m |
|---|---|
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/4MP/IPC-HFW5442E-ASE=S3 |
| Category Code | FNC |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.11 |
| Form factor | Bullet |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Pole clamp |
| Product colour | White |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 140 dB |
| Placement supported | Indoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 – 1/100000 s |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 139 ° |
| Lens viewing angle, horizontal | 112 ° |
| Lens viewing angle, vertical | 58 ° |
| Minimum illumination | 0.0004 lx |
| Number of Privacy masking areas | 8 |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 90 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 1.3 m |
| Detect distance | 61.5 m |
| Fixed focal length | 2.8 mm |
| Fixed focus | Yes |
| Identify distance | 6.2 m |
| Maximum aperture number | 1.6 |
| Observe distance | 24.6 m |
| Recognize distance | 12.3 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 50 m |
| Number of illumination LEDs | 1 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 60 fps |
| Gain control type | Auto |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2688 x 1520 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Built-in microphone | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 GB |
| RAM capacity | 1024 MB |
| ROM capacity | 4096 MB |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Human and vehicle targets classification | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 6.2 W |
| Power consumption (typical) | 4 W |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -40 – 60 °C |
| Storage relative humidity (H-H) | 10 – 95 % |
| Storage temperature (T-T) | -40 – 60 °C |
| Mobile operating systems supported | Android/iOS |
| Height | 66.4 mm |
| Length | 192.7 mm |
| Weight | 590 g |
| Width | 70.5 mm |
| Compliance certificates | CE/Federal Communications Commission (FCC)/UL |
| Package weight | 780 g |
| Manual | Yes |
| Number of cameras | 1 |
| Model | IPC-HFW5442E-ASE-0280B-S3 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00242 cubm |
| Unit Calculated Weight | 0.79 kg |
