Supported resolutions
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
Supported network protocols
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Certification
EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
- Access, storage or forwarding at 80 Mbps
- Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
- Connected to the third-party network cameras
- Security baseline 2.3

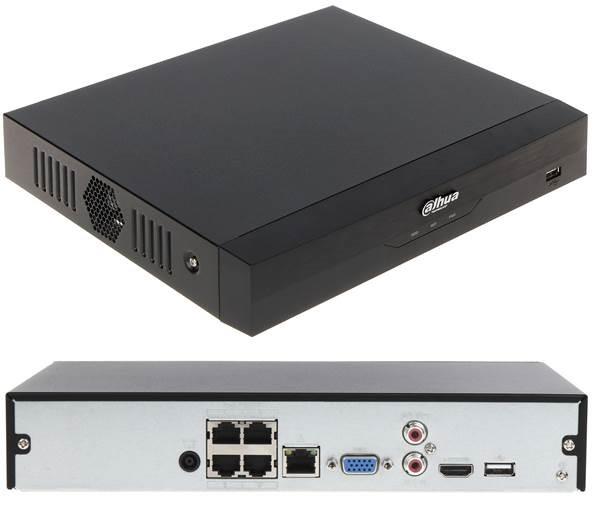

Dahua Technology WizSense NVR4104HS-P-EI. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;.... Rack capacity: 1U, Product colour: Black, Certification: EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN.... Power consumption (max): 10 W, Output current: 1.226 A
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4104HS-P-EI |
|---|---|
| Category Code | NVR |
| Unit Box Height | 0.305 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.115 |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726/PCM |
| Backup function | Yes |
| Face detection | Yes |
| Image formats supported | MJPEG |
| Input bandwidth | 80 Mbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Multi-screen | Yes |
| Operating system installed | Embedded LINUX |
| Output bandwidth | 80 Mbit/s |
| People counting | Yes |
| Video formats supported | H.264/H.264+/H.265/H.265+ |
| Video input channels | 4 channels |
| Video recording modes | 1080p/720p/960p |
| Wi-Fi | No |
| HDD interface | SATA |
| Maximum storage capacity | 16 TB |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Output current | 1.226 A |
| Power consumption (max) | 10 W |
| Browser supported | Chrome; IE9 and later; Firefox |
| Mobile operating systems supported | Android/iOS |
| Operating relative humidity (H-H) | 10 - 93 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | CE/Federal Communications Commission (FCC) |
| Depth | 232.7 mm |
| Height | 47.6 mm |
| Package depth | 89 mm |
| Package height | 315 mm |
| Package weight | 1880 g |
| Package width | 333 mm |
| Weight | 860 g |
| Width | 260 mm |
| Model | NVR4104HS-P-EI |
| Model name | NVR4104HS-P-EI |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.0151 cubm |
| Unit Calculated Weight | 2.1 kg |
