Compliance certificates
CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)/UL

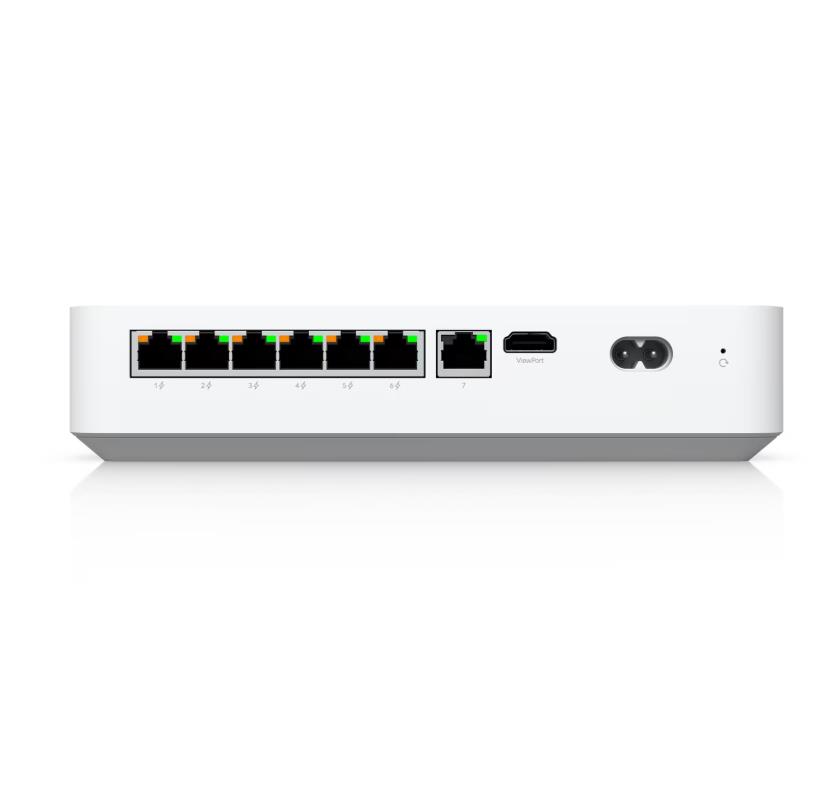

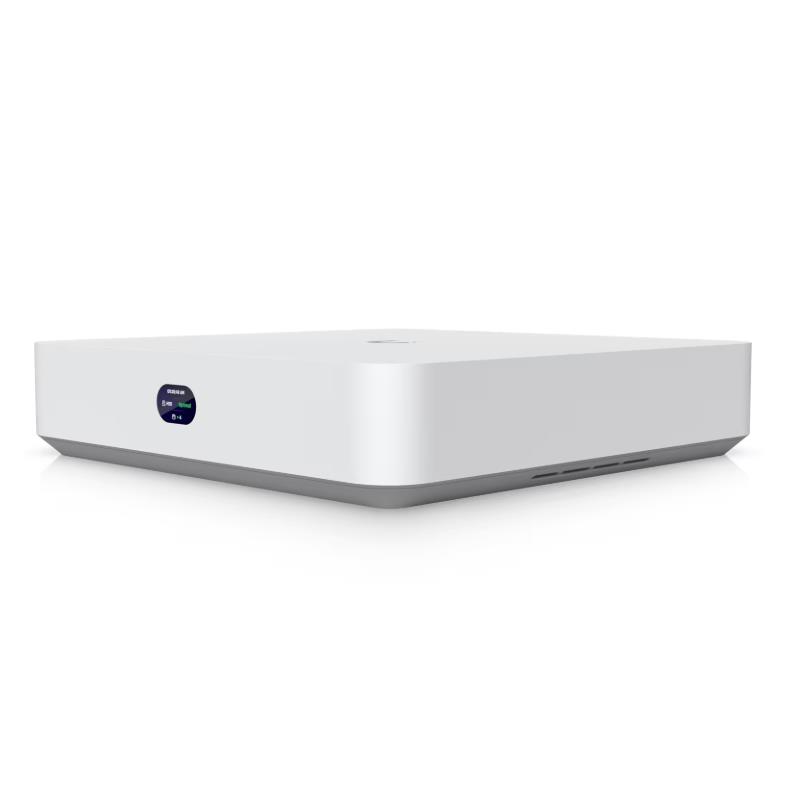

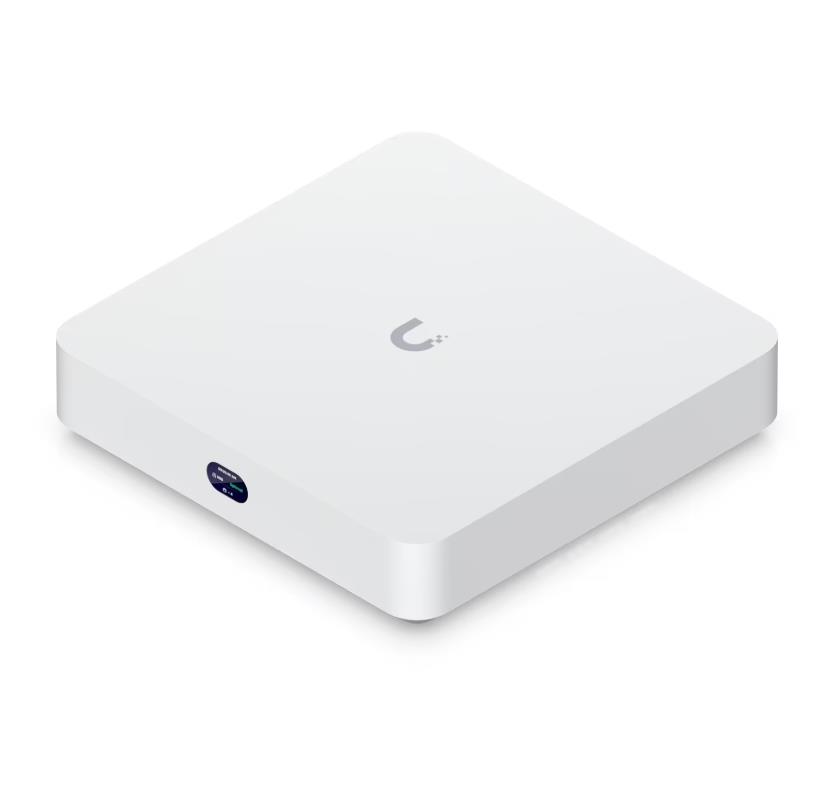

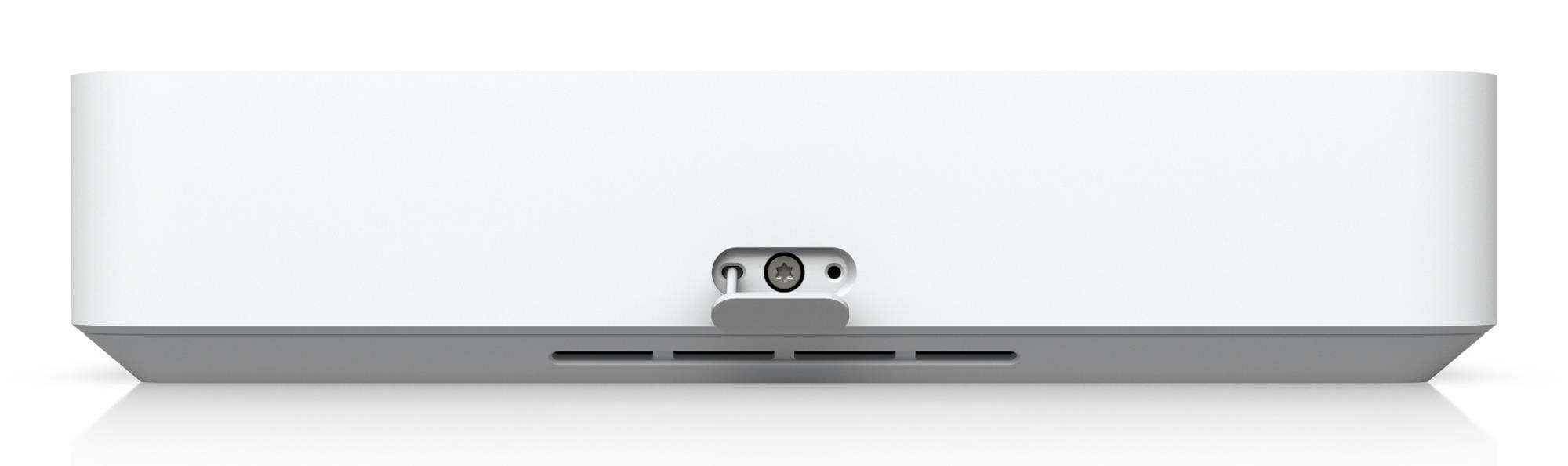

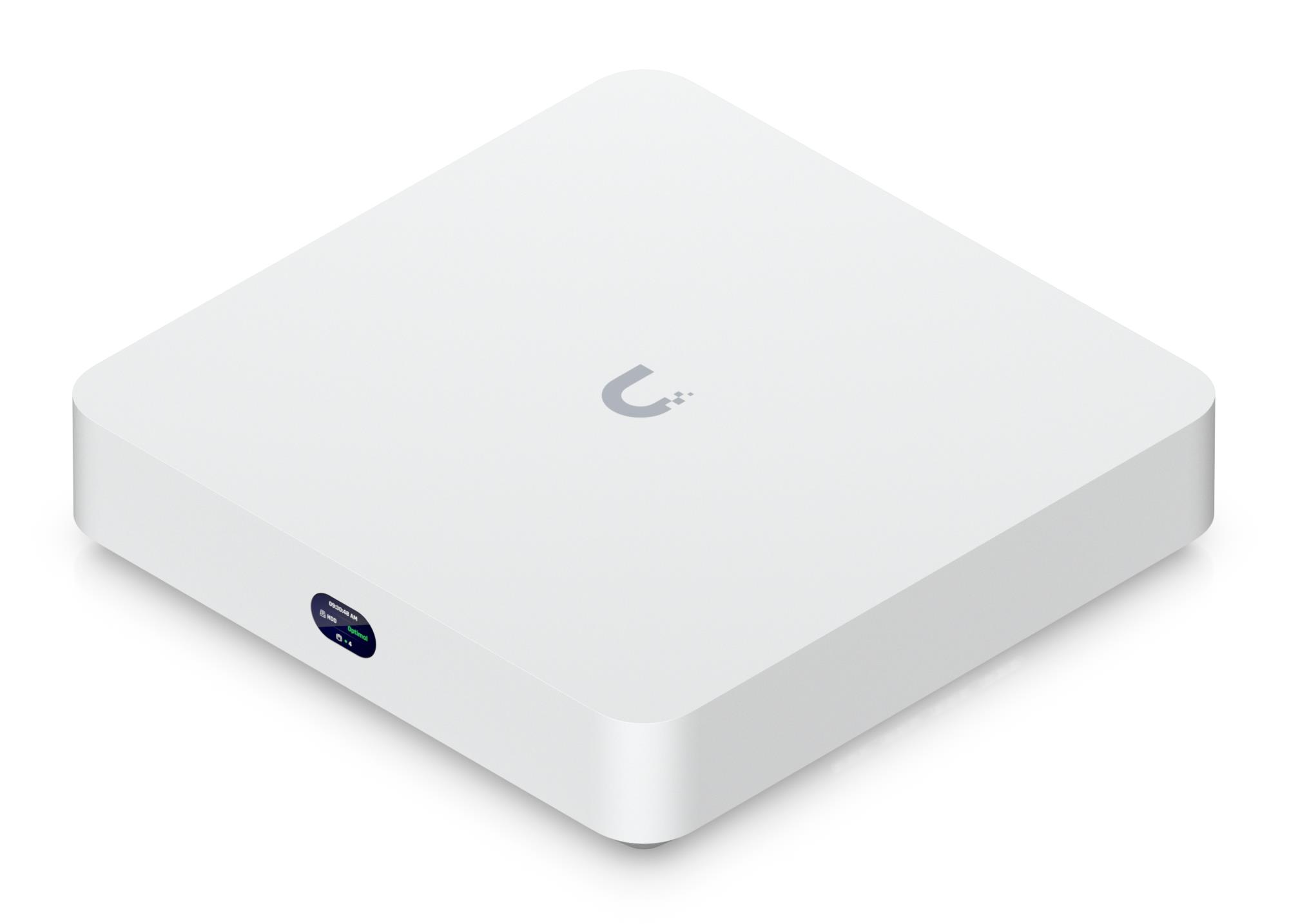

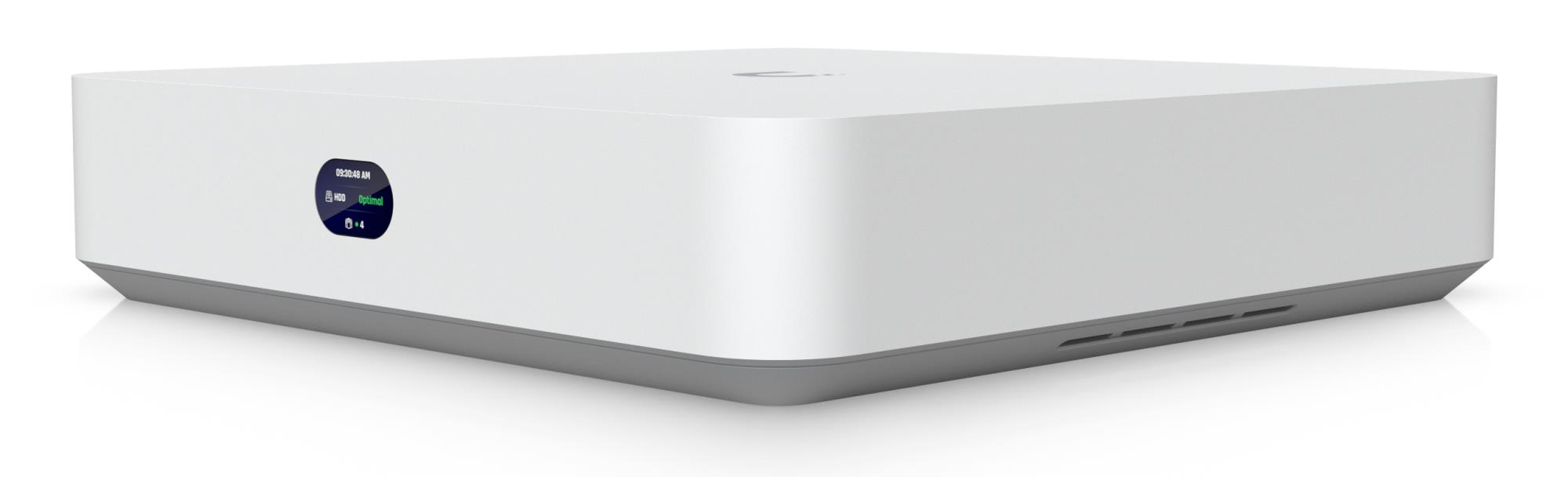

Compact UniFi Protect NVR with 3.5″ HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Ubiquiti UNVR-Instant. Maximum resolution: 3840 x 2160 pixels. HDD size: 3.5″. Ethernet LAN data rates: 10,100,1000 Mbit/s. LED indicators: LAN, PoE, Product colour: White. Processor frequency: 1.7 GHz
Specifikacijos
| Vendor Homepage | https://eu.store.ui.com/eu/en/category/cameras-nvr/collections/unvr-instant/products/unvr-instant |
|---|---|
| Category Code | NVR |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.275 |
| Maximum resolution | 3840 x 2160 pixels |
| Wi-Fi | No |

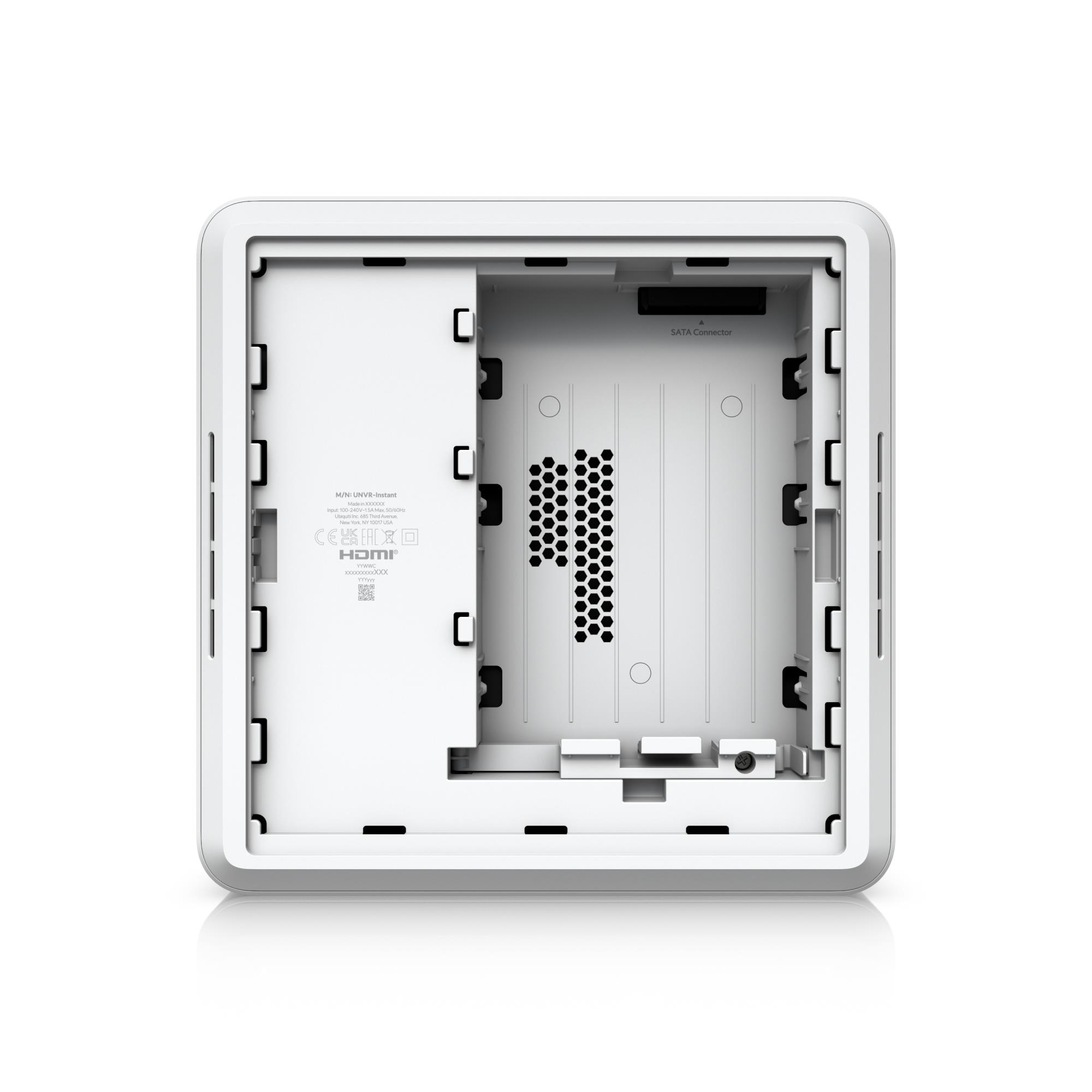

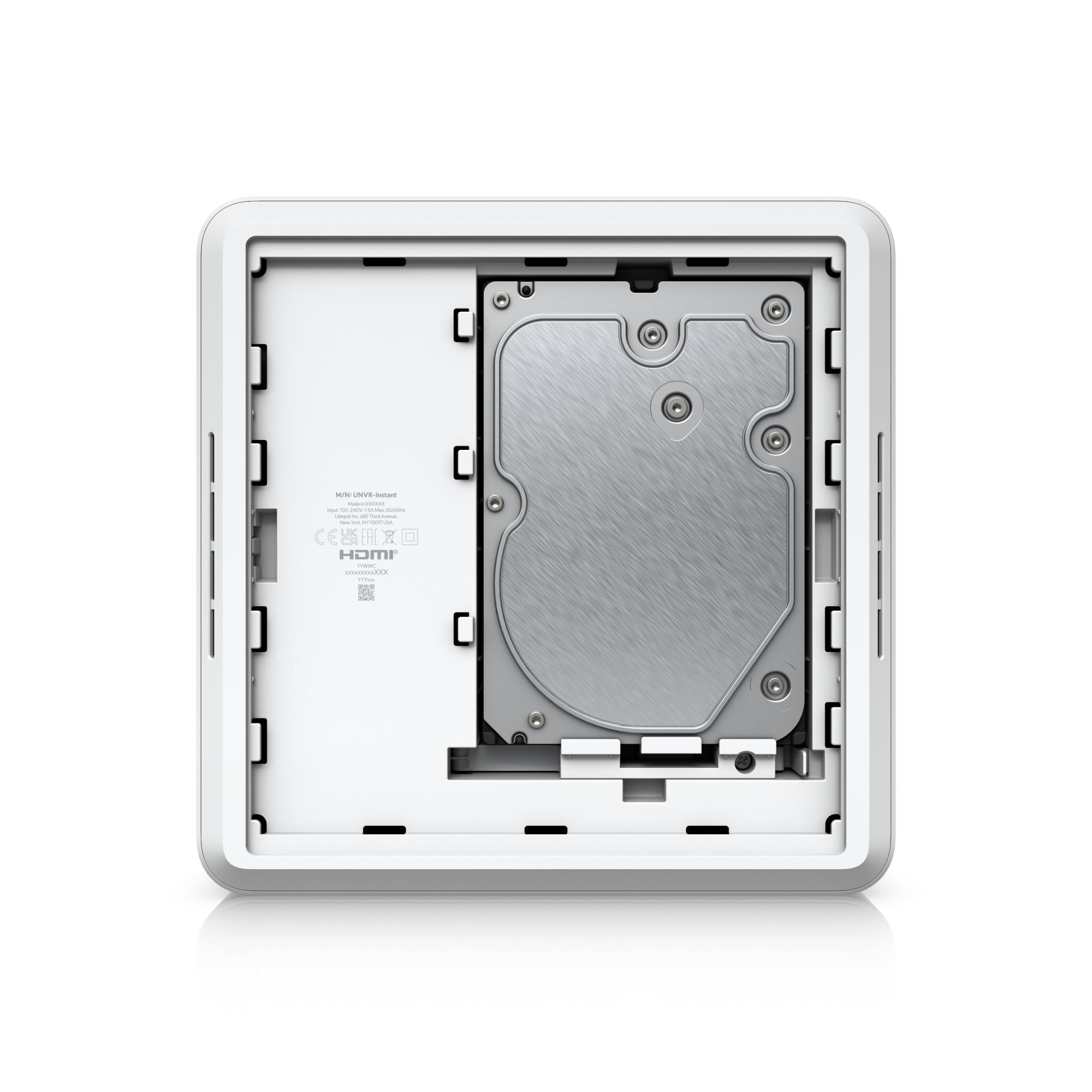

| HDD size | 3.5 " |
| Number of HDDs supported | 1 |

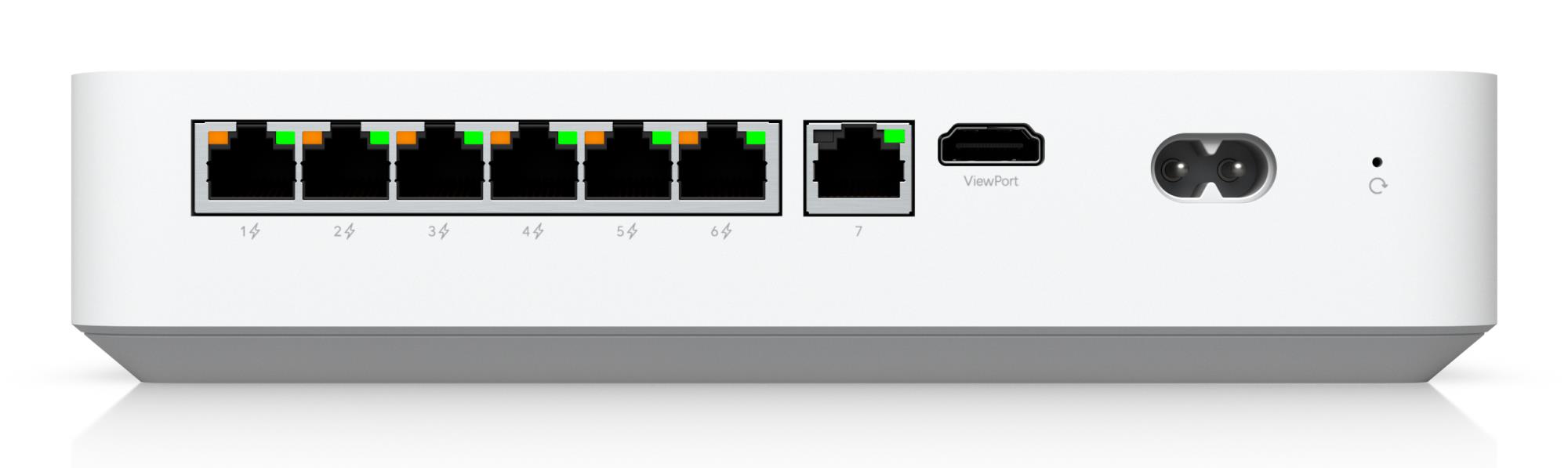

| Ethernet LAN (RJ-45) ports | 7 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 6 |
| LED indicators | LAN/PoE |
| Product colour | White |
| Reset button | Yes |
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.7 GHz |

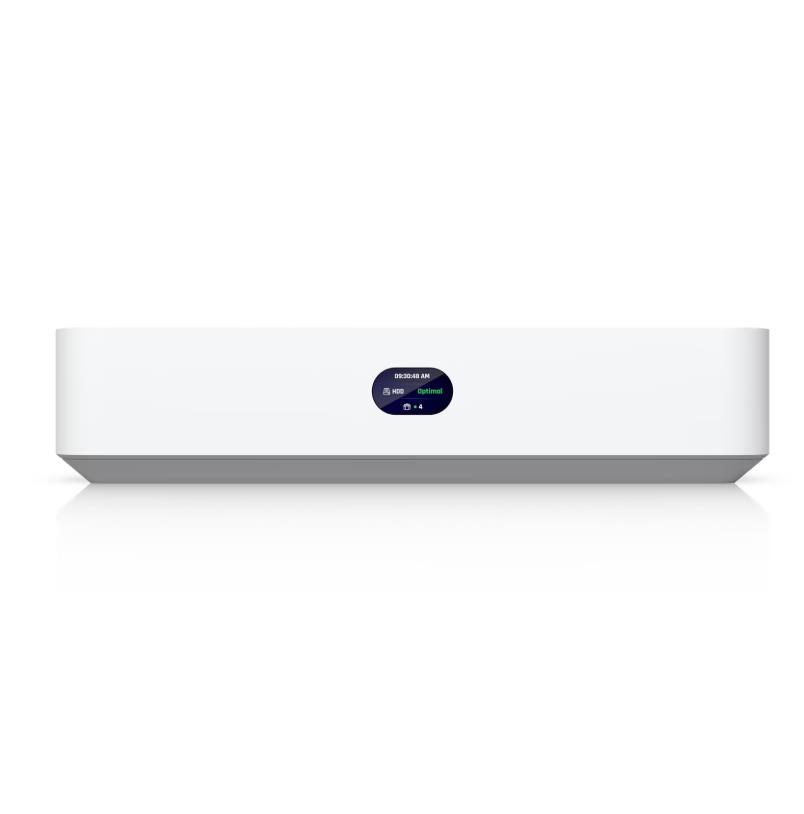

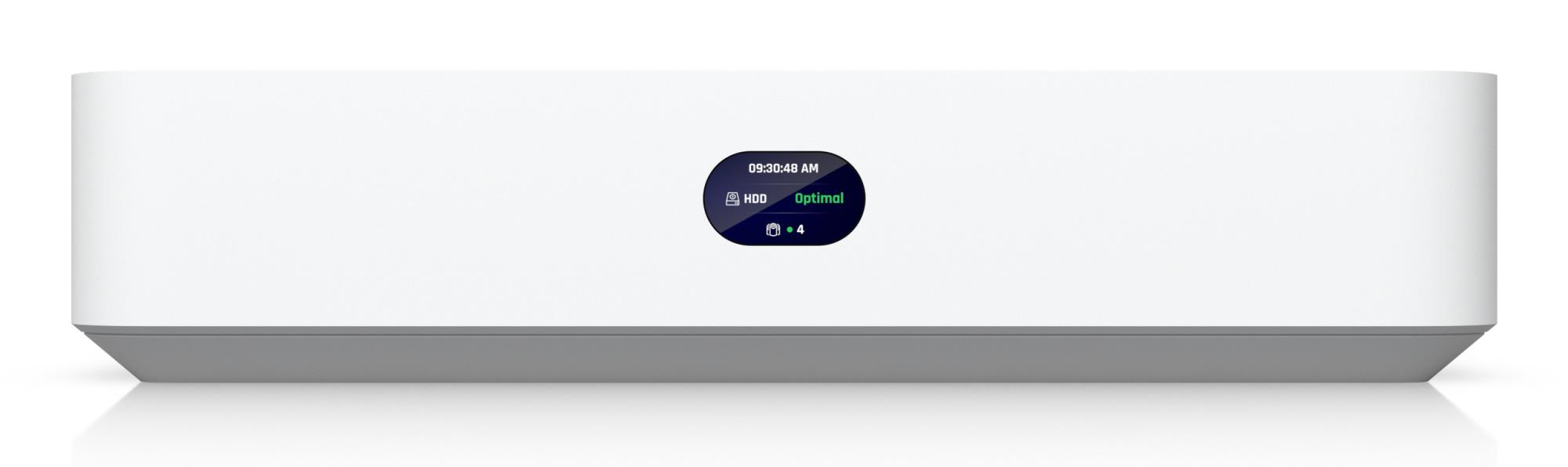

| Built-in display | Yes |
| Display diagonal | 1.14 " |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (max) | 9 W |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 40 W |
| Operating relative humidity (H-H) | 5 – 95 % |
| Operating temperature (T-T) | 0 – 40 °C |
| Depth | 220 mm |
| Height | 47 mm |
| Weight | 1040 g |
| Width | 220 mm |

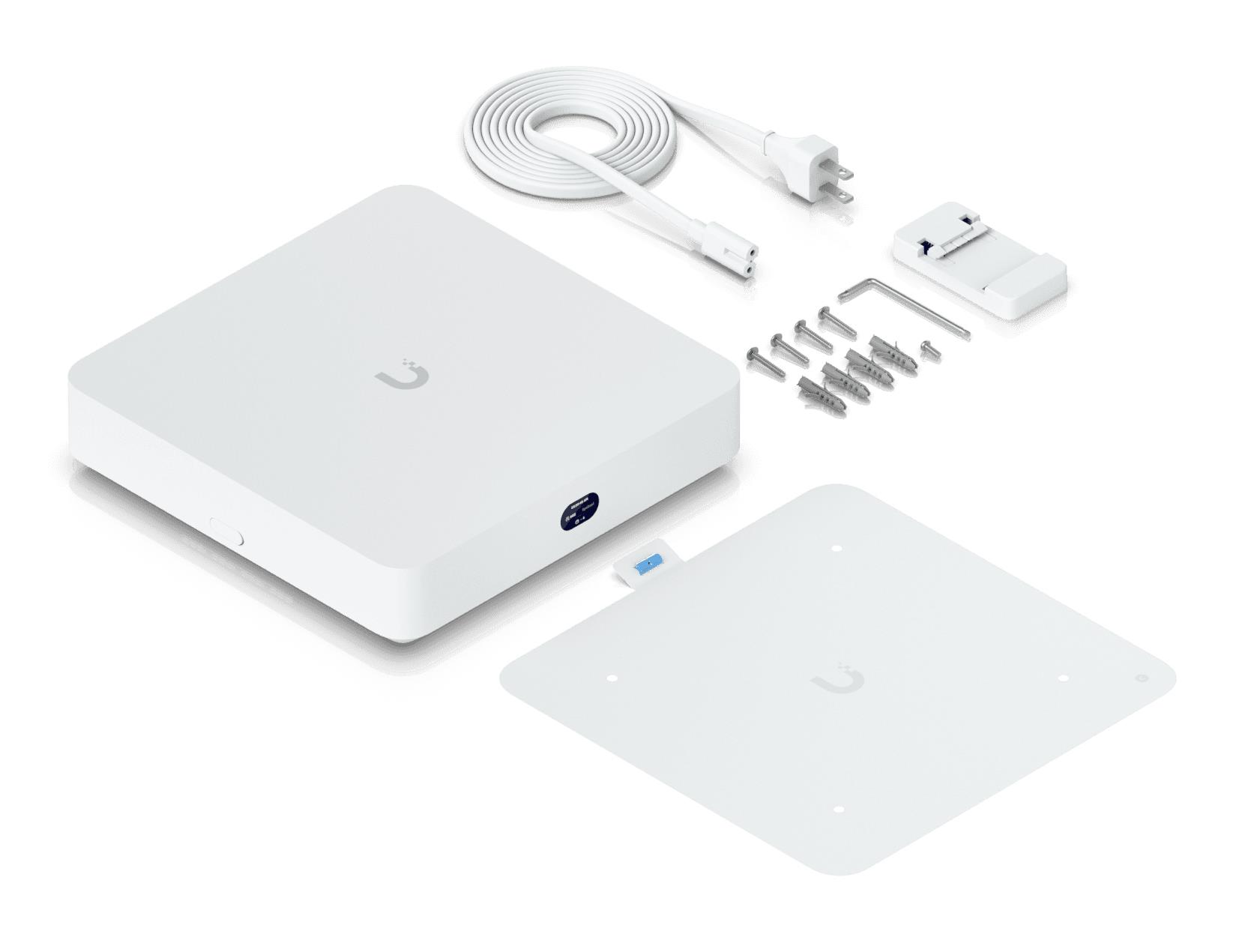

| Cables included | Power |
| Harmonized System (HS) code | 85219000 |
| Model | UNVR-INSTANT |
| Model name | UNVR-Instant |
| Units per Pallet | 0 |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.02007 cubm |
| Unit Calculated Weight | 2.25 kg |
