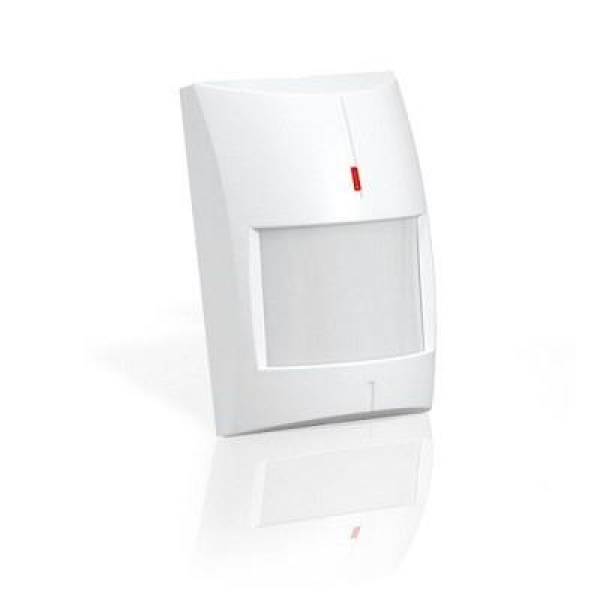

Motion detector, whose function is to detect an intruder moving within the system protected area. Owing to its pet immunity, the MPD-300 can provide protection even if small animals, such as small dogs or cats, are moving in its coverage range at the time of supervision. A lithium battery used to power the device ensures many years of work without having to replace it, so the system is as easy to use as the traditional wired solutions.
- compatible with MICRA alarm module, PERFECTA 16-WRL and PERFECTA 32-WRL control panels as well as VERSA-MCU and MTX-300 wireless system controllers
- digital detection algorithm with temperature compensation for high immunity to false alarms and repeatability of parameters
- ability to change sensitivity to match optimum detector parameters to the protected space
- optional operating mode with up to 15kg pet immunity, which allows protection of areas where there are pets
- energy management system to enable many years of operation without having to replace the CR123A lithium battery
- LED indicating violations in test mode, for easy start-up and subsequent maintenance of the system
- detection of tamper, e.g. opening enclosure, ripping away from mounting surface
Satel MPD-300. Mounting type: Wall, Placement: Indoor, Outdoor, Product colour: White. Sensor type: Passive infrared (PIR) sensor, Connectivity technology: Wireless, Operating frequency: 433.05/434.79 MHz. Power source type: Battery, Power consumption: 20 mA, Standby current: 0.09 mA. Width: 63 mm, Depth: 49 mm, Height: 96 mm. Quantity per pack: 1 pc(s)
Specifikacijos
| Vendor Homepage | https://www.satel.pl/ |
|---|---|
| Category Code | MDE |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.147 |
| Unit Box Width | 0.066 |
| Alarm function | Yes |
| Connectivity technology | Wireless |
| Operating frequency | 433.05/434.79 MHz |
| Pet immunity (max) | 15 kg |
| Sensor type | Passive infrared (PIR) sensor |
| Certification | CE |
| Housing material | Plastic |
| Installation height (min) | 2.4 m |
| LED colour | Red |
| LED indicators | Yes |
| Mounting type | Wall |
| Placement | Indoor,Outdoor |
| Product colour | White |
| Status feedback | Yes |
| Battery type | CR123A |
| Input voltage | 3 V |
| Power consumption | 20 mA |
| Power source type | Battery |
| Standby current | 0.09 mA |
| Operating relative humidity (H-H) | 0 - 93 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Depth | 49 mm |
| Height | 96 mm |
| Weight | 108 g |
| Width | 63 mm |
| Quantity per pack | 1 pc(s) |
| Battery technology | Lithium |
| Model name | MPD-300 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0005336 cubm |
| Unit Calculated Weight | 0.149 kg |
