80 PLUS® PLATINUM
The Vertex PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

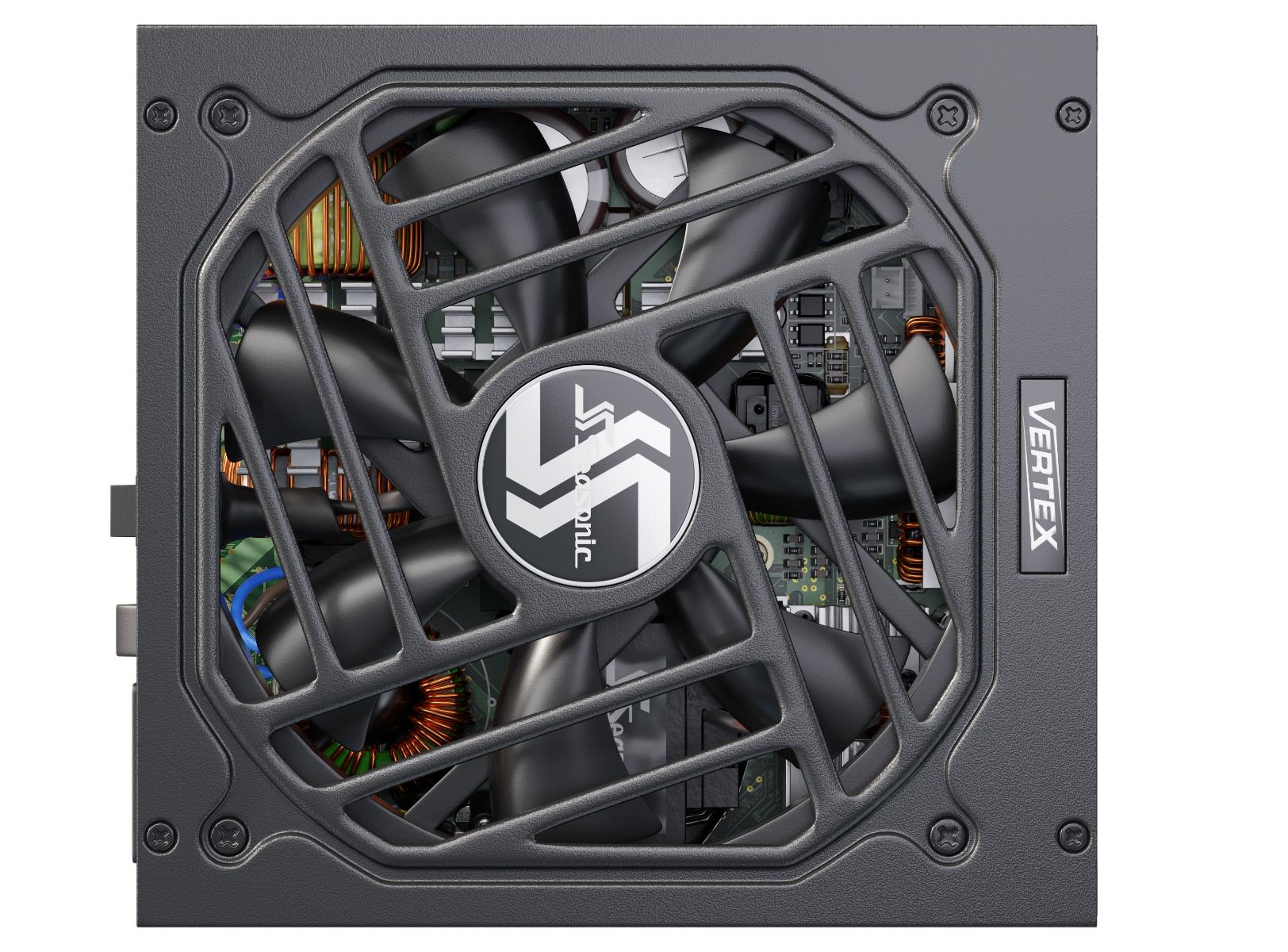

FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
- Super-High Efficiency, 80 PLUS® Platinum Certified
- Fully Modular
- ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
- Top-Quality 135 mm Fluid Dynamic Bearing Fan
- Premium Hybrid Fan Control
- Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]
- Gold Plated High Current Terminal (MB, CPU and PCIe)
Specifikacijos
| Vendor Homepage | https://seasonic.com/vertex-px# |
|---|---|
| Category Code | PSU |
| Unit Box Height | 0.185 |
| Unit Box Length | 0.35 |
| Unit Box Width | 0.12 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 125 W |
| Combined power (+5V) | 125 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Input current | 10 - 5 A |
| Max output current (+12V) | 62 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power protection features | Over power/Over voltage/Short circuit/Under power |
| Total power | 750 W |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power cable length | 650 mm |
| EPS power connector (8-pin) | Yes |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 24-pin ATX |
| PCI Express power cable length | 750 mm |
| PCI Express power connectors (16-pin) | 1 |
| Peripheral (Molex) power cable length | 470/690 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 470/550/570/700/760/860/950 mm |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.0 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 150000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 50 °C |
| Cables included | CPU,PCIe,Peripheral (Molex),SATA |
| Compliance certificates | REACH/RoHS/WEEE |
| Depth | 160 mm |
| Height | 86 mm |
| Width | 150 mm |
| Package type | Box |
| Sustainability certificates | ENERGY STAR |
| Model name | VERTEX PX |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00777 cubm |
| Unit Calculated Weight | 3.53 kg |
