- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
- 16× Gigabit 802.3af/at PoE+ ports
- 8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
- 150 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for quiet operation

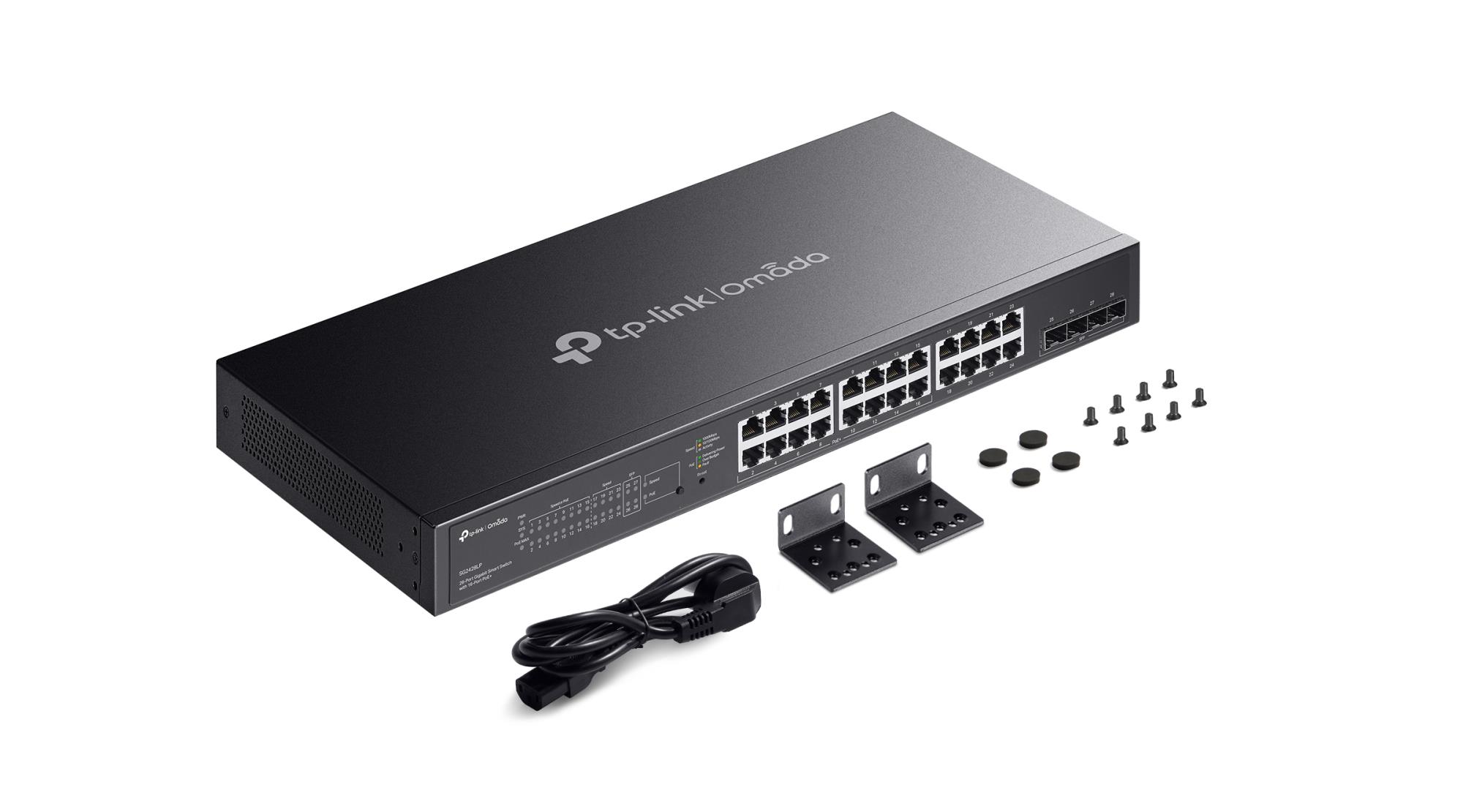

- Durable metal casing and rackmountable design

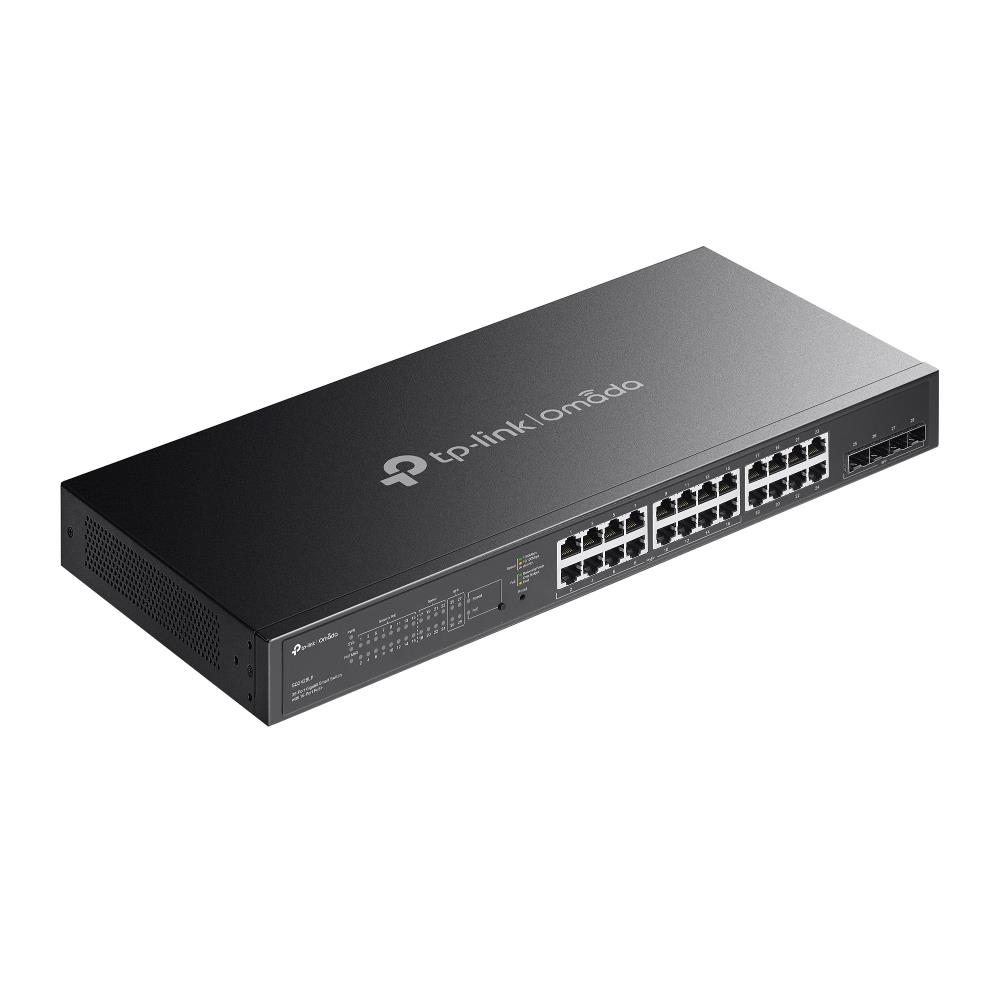

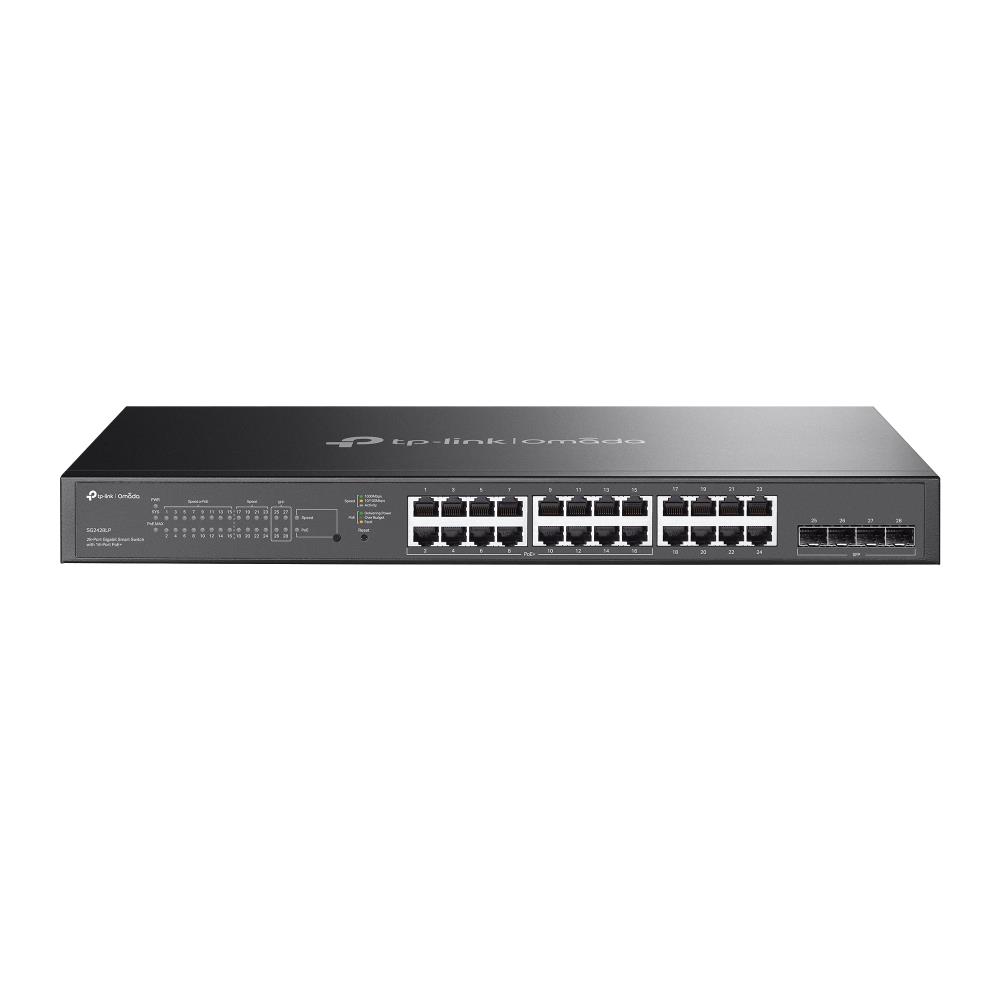

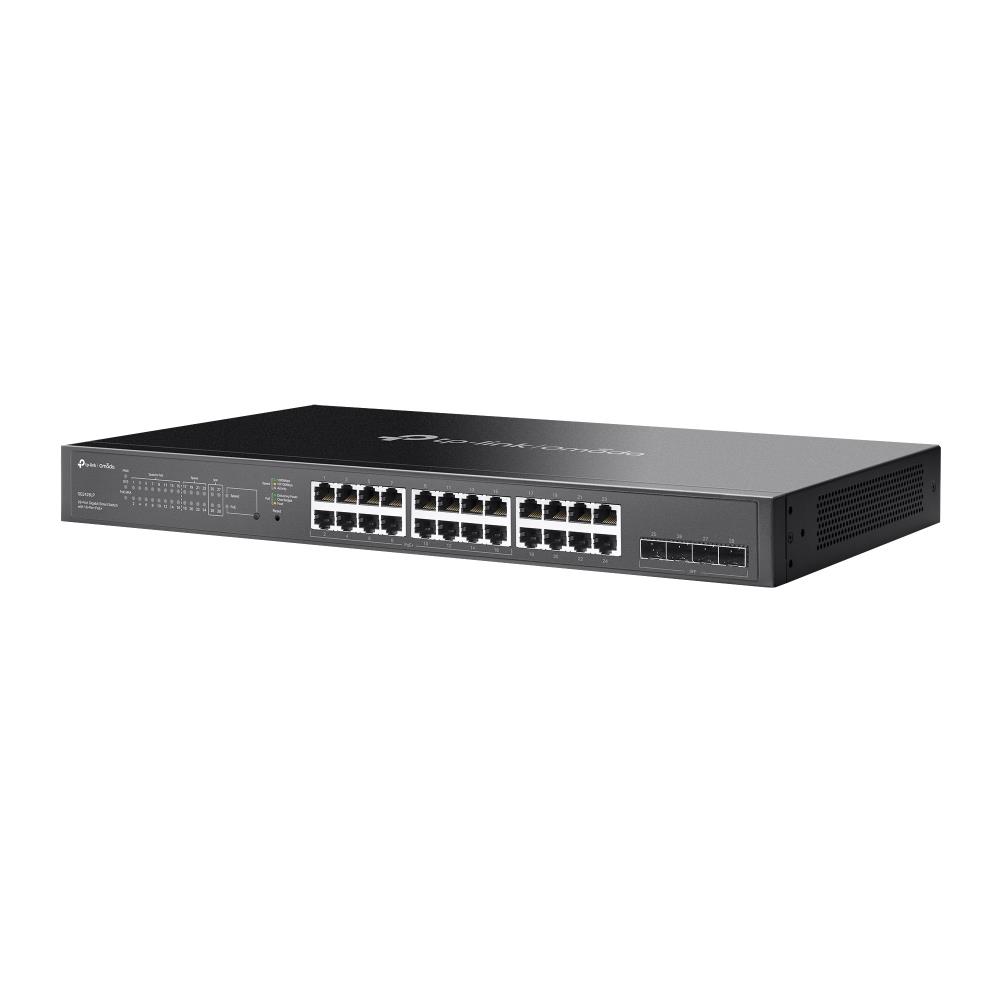

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/au/business-networking/omada-switch-smart/sg2428lp/#highlights |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.535 |
| Unit Box Width | 0.34 |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| 10G support | No |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Number of VLANs | 4000 |
| Spanning tree protocol | Yes |
| Virtual LAN features | MAC address-based VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN |
| VLAN support | Yes |
| Forwarding rate | 41.66 Mpps |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Packet buffer memory | 4.1 MB |
| Switching capacity | 56 Gbit/s |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay/DHCP server |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Multicast support | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Rack mounting | Yes |
| Fanless | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 184.7 W |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 150 W |
| Heat dissipation | 628 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 220 mm |
| Height | 44 mm |
| Width | 440 mm |
| Series | Omada |
| Model name | SG2428LP |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.02178 cubm |
| Unit Calculated Weight | 4.35 kg |
