DHCP features
DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
Compliance certificates
CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)

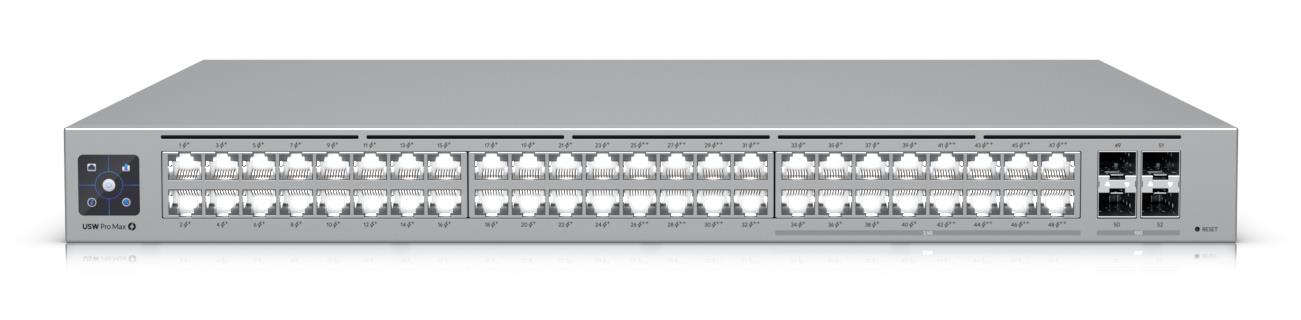

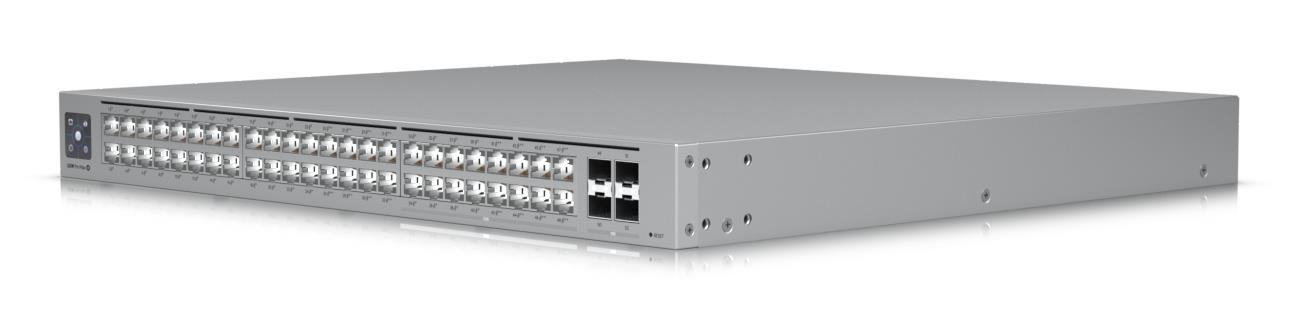

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.

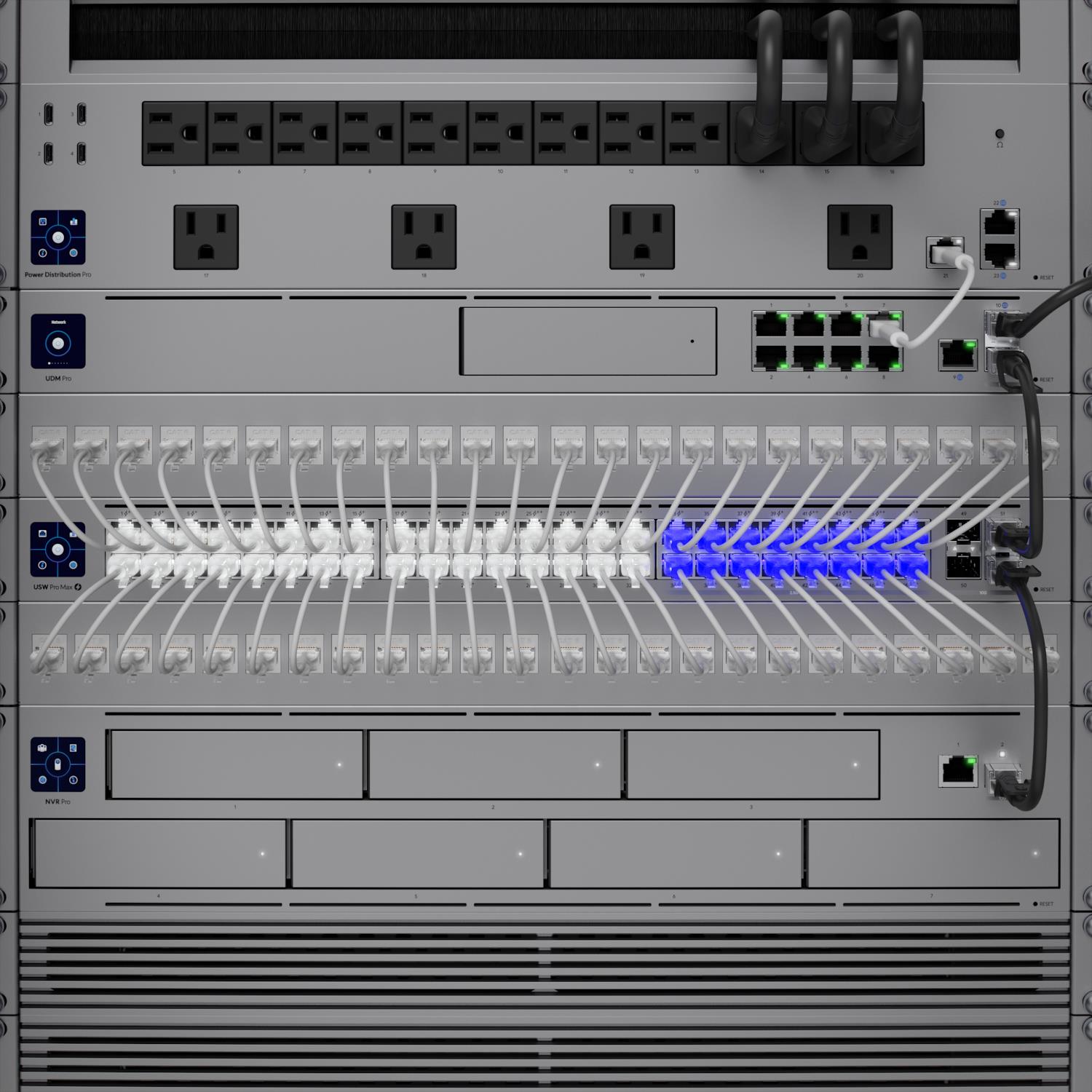

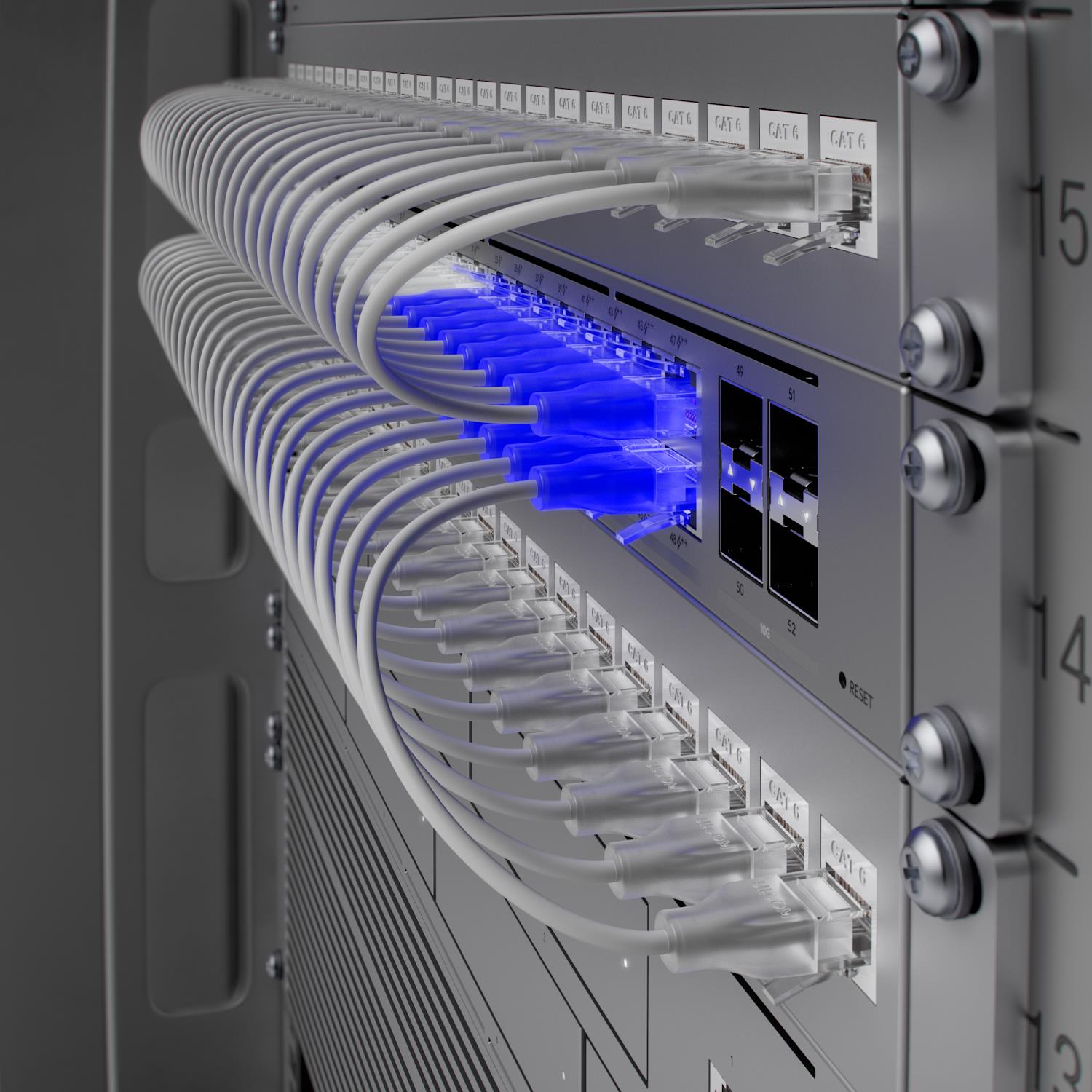

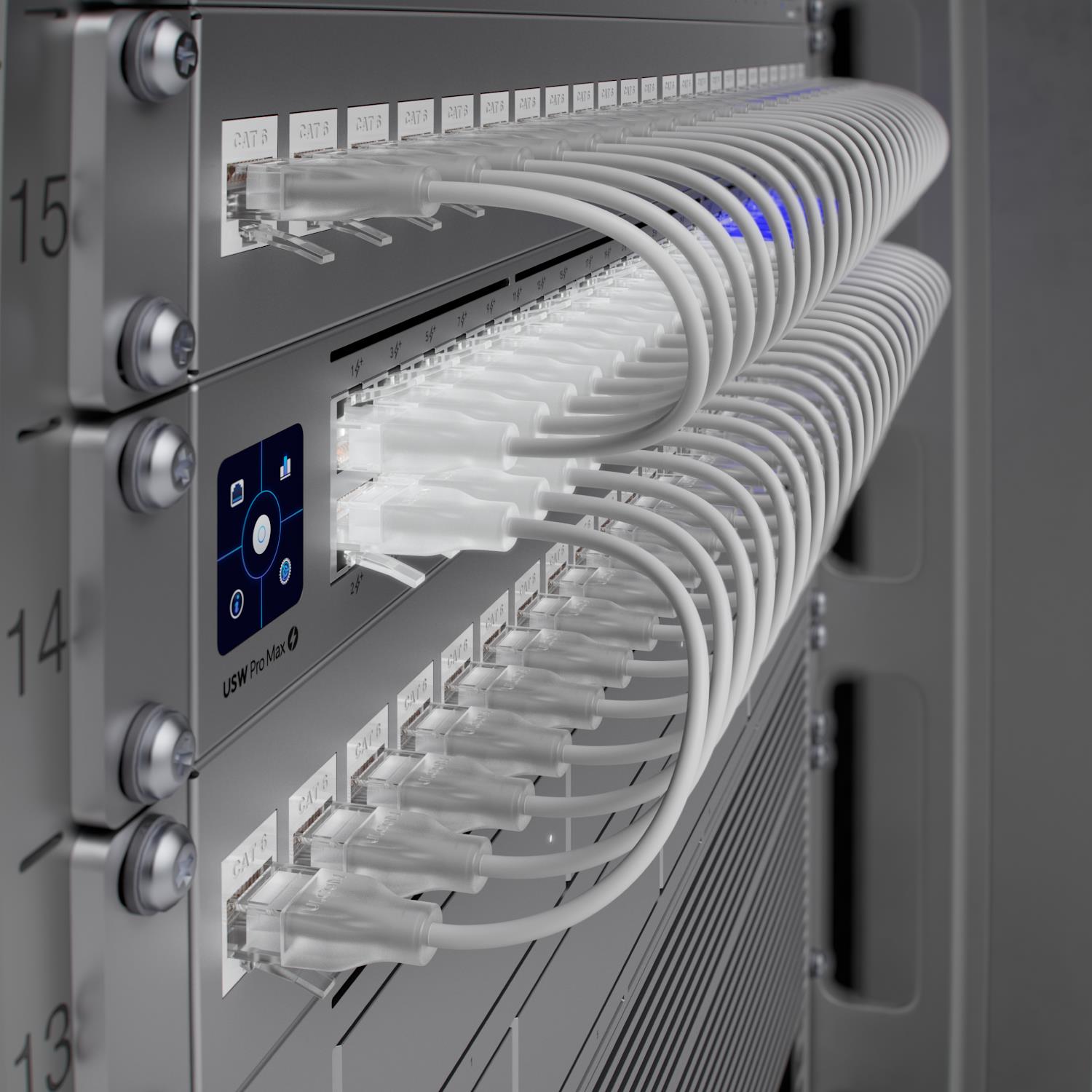

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
- (32) GbE ports including (24) PoE+ and (8) PoE++
- (4) 10G SFP+ ports

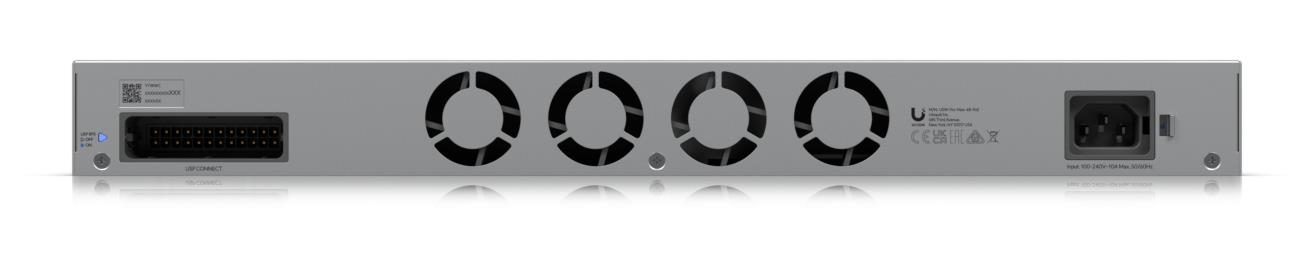

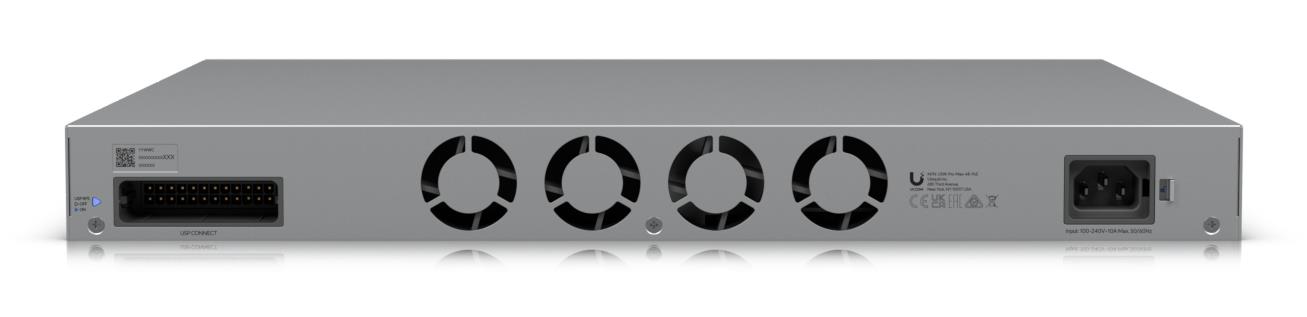

- DC power backup ready
- 720W total PoE availability
- Managed with UniFi Network 8.0.24 and later

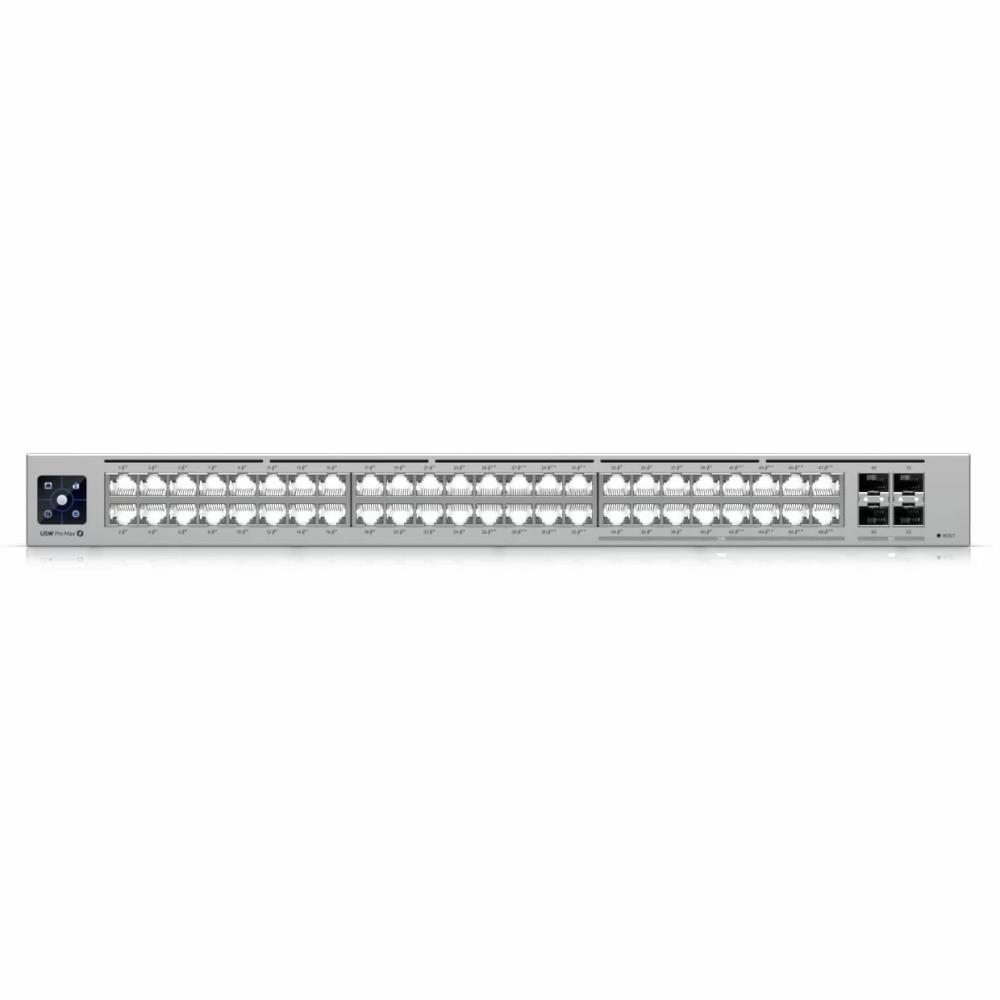

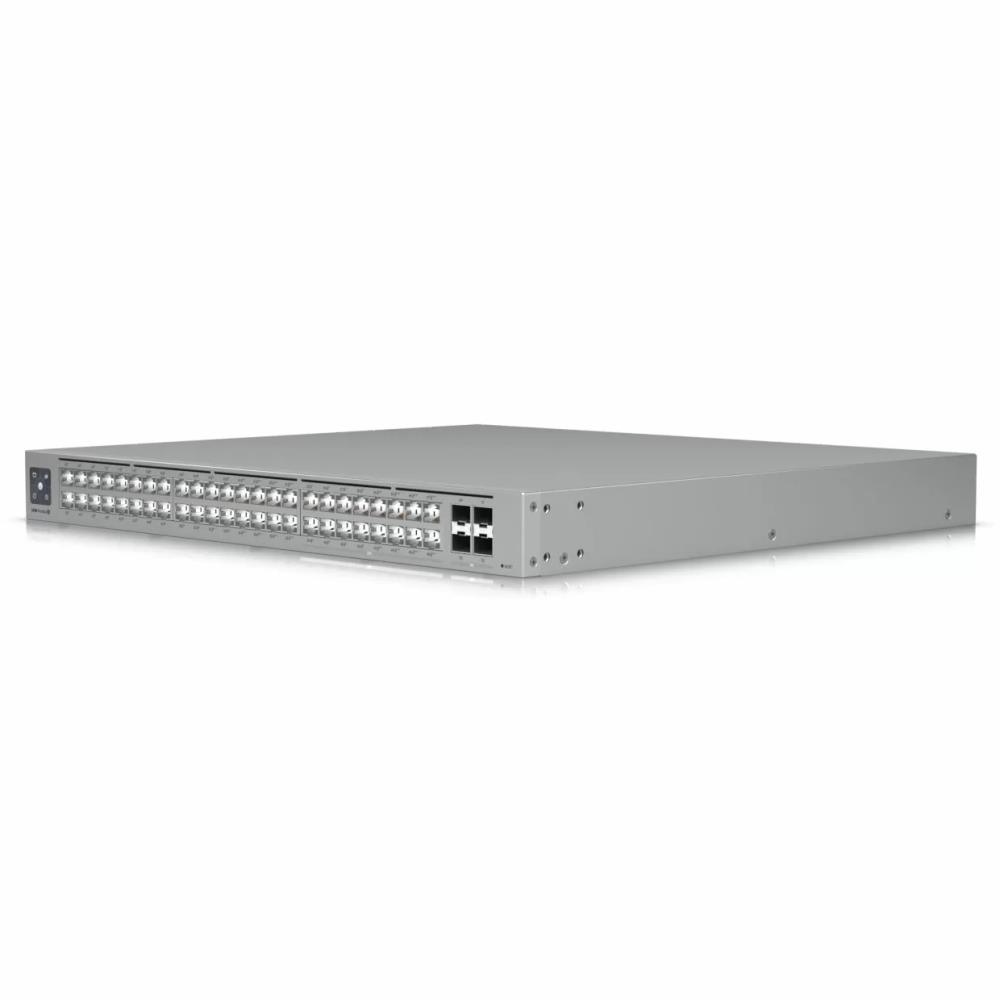

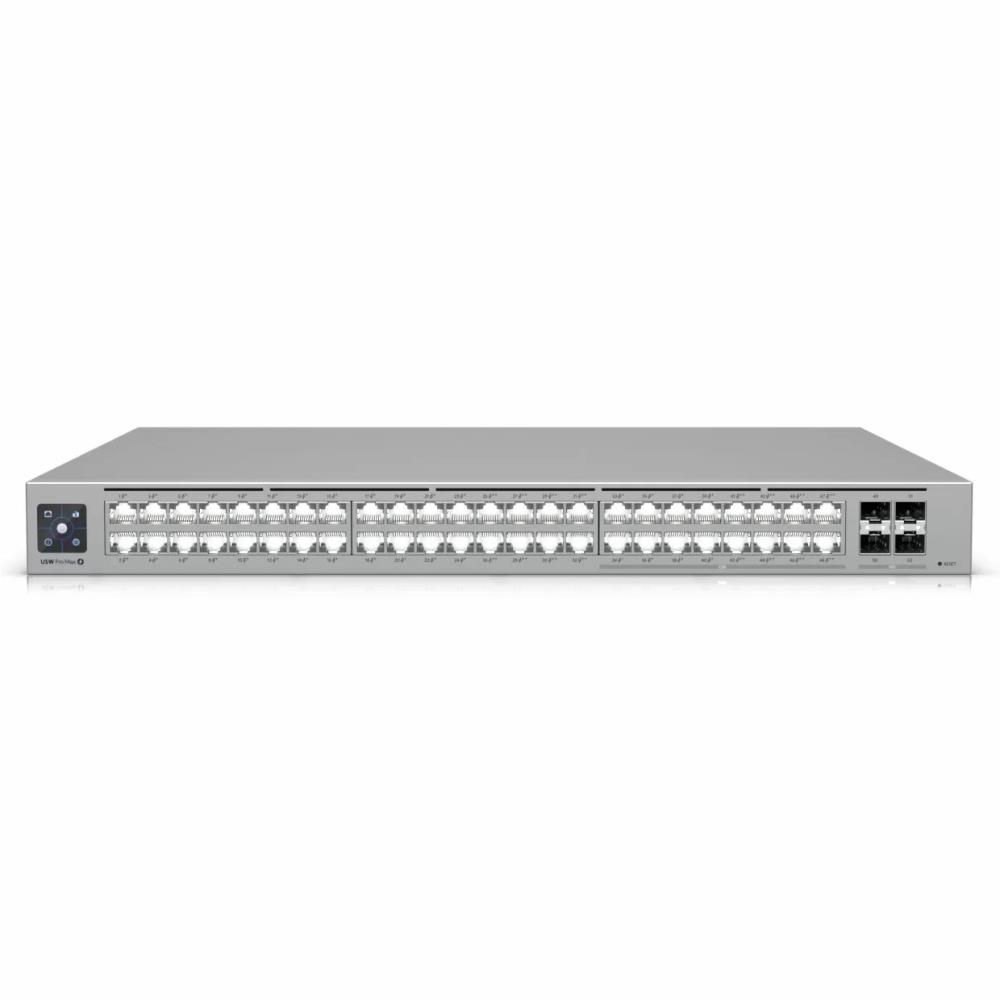

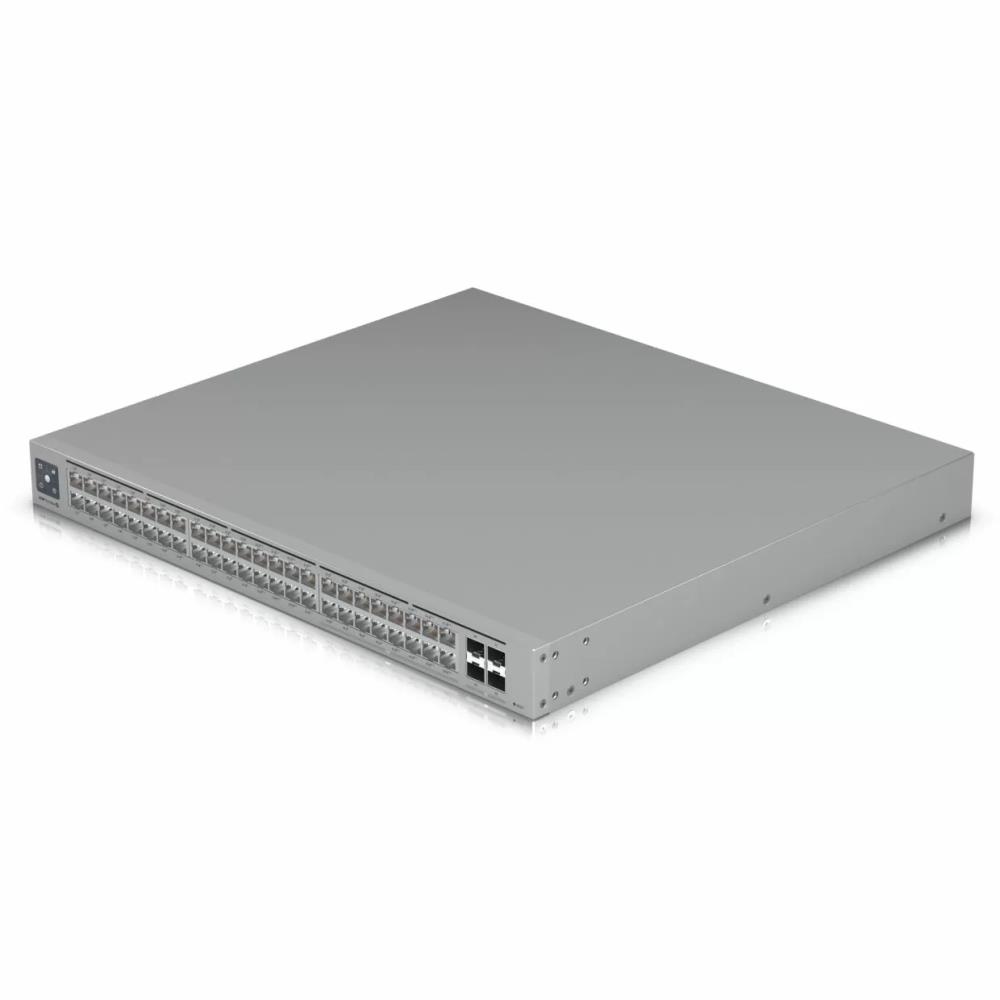

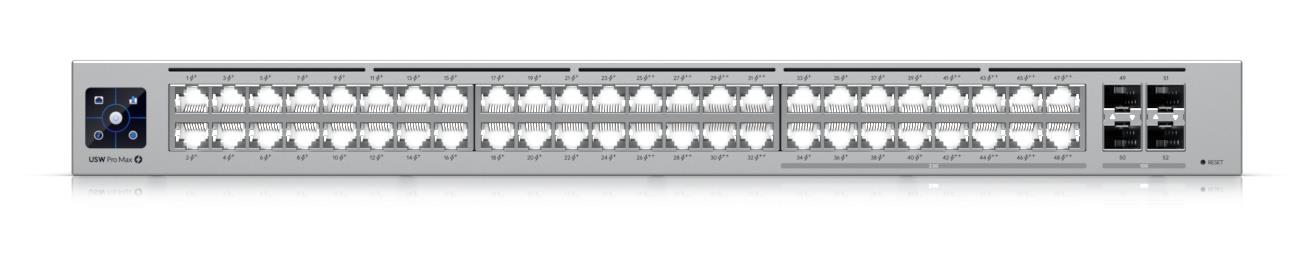

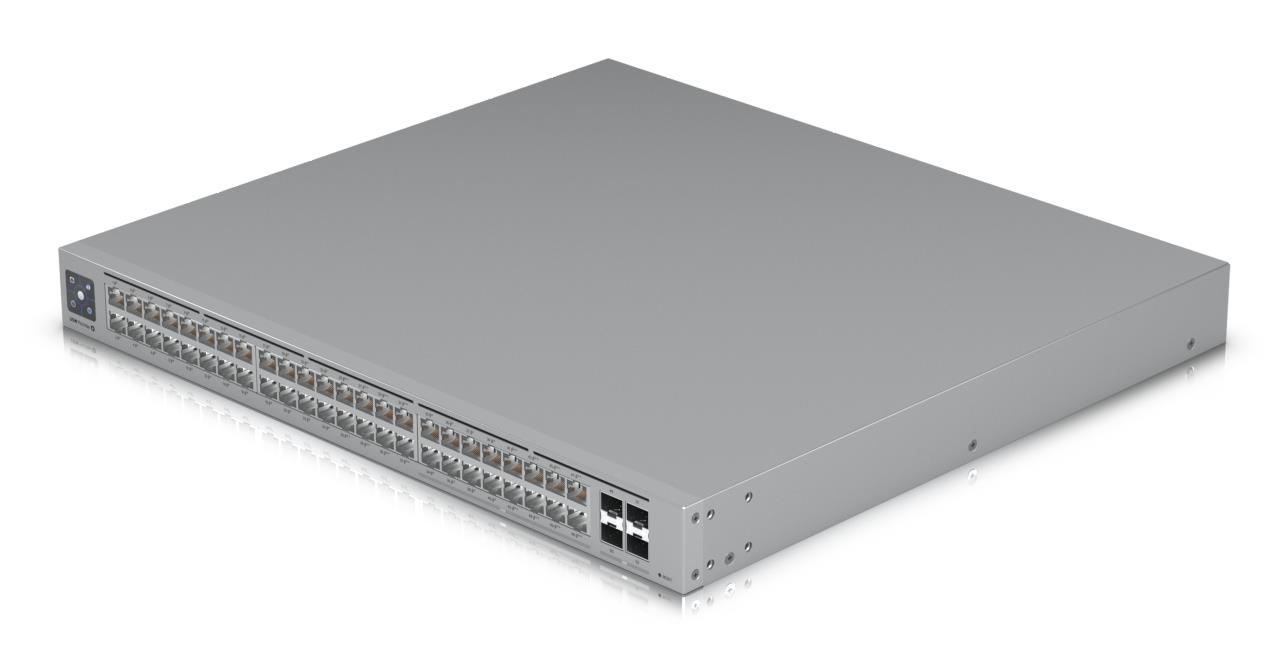

Ubiquiti UniFi Pro Max 48 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifikacijos
| Vendor Homepage | https://eu.store.ui.com/eu/en/pro/category/switching-professional-max/collections/unifi-switching-pro-max/products/usw-pro-max-48-poe?variant=usw-pro-max-48-poe-eu |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.52 |
| Unit Box Length | 0.538 |
| Unit Box Width | 0.12 |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| 2.5G Ethernet (copper) ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 32 |
| Power connector | AC-in jack |
| SFP+ module slots quantity | 4 |
| 10G support | No |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| IPv4 routes | 12000 |
| Networking standards | IEEE 802.1x |
| Number of VLANs | 1000 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
| Forwarding rate | 167 Mpps |
| Jumbo frames support | Yes |
| MAC address table | 32000 entries |
| Packet buffer memory | 2 MB |
| Static route | Yes |
| Switching capacity | 224 Gbit/s |
| Throughput | 112 Gbit/s |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Backlight display | Yes |
| Display type | LCM |
| Form factor | 1U |
| Housing material | SGCC |
| LED indicators | System |
| Product colour | Grey |
| Rack mounting | Yes |
| Reset button | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (max) | 820 W |
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet (PoE) type supported | PoE+/PoE++ (4PPoE) |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 16 |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 720 W |
| Heat dissipation | 341.2 BTU/h |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | -5 – 40 °C |
| Depth | 399.6 mm |
| Height | 43.7 mm |
| Weight | 6200 g |
| Width | 442.4 mm |

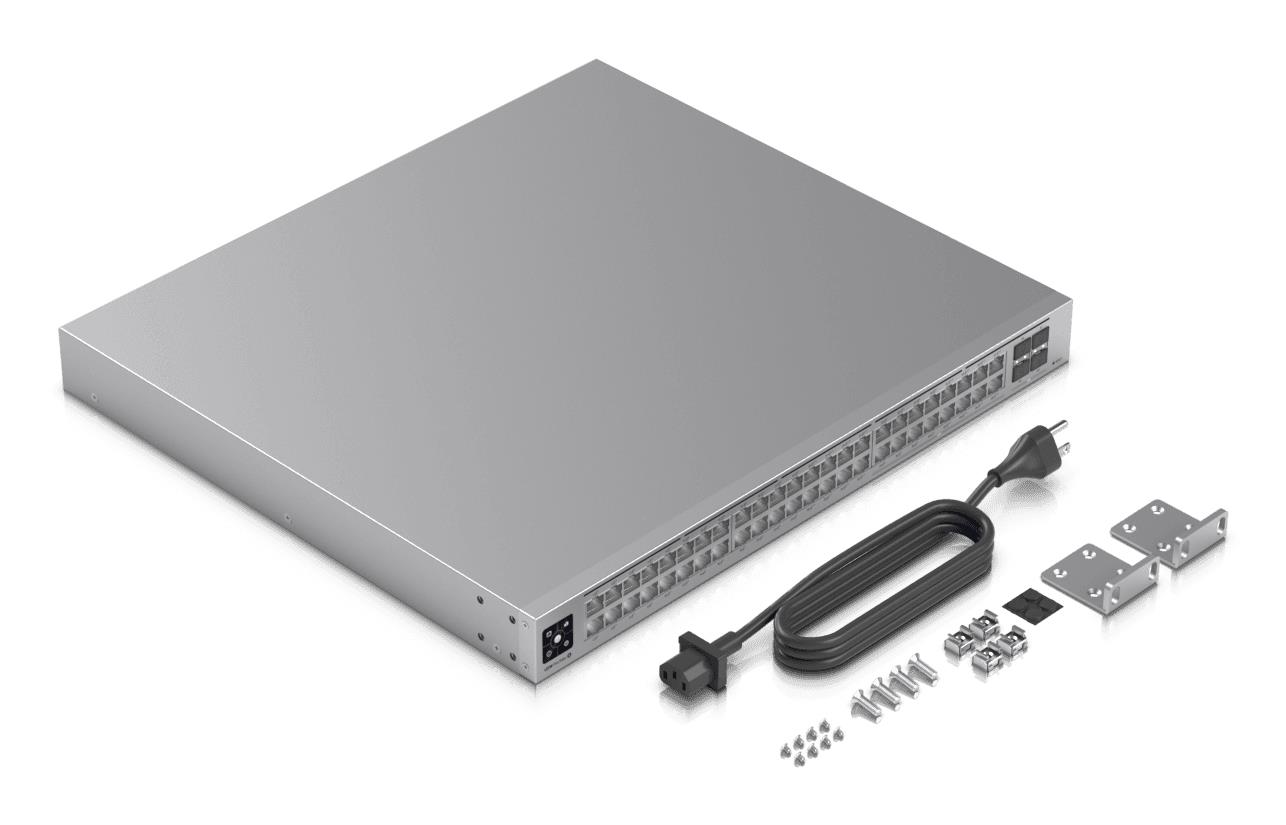

| Cables included | Power |
| Manual | Yes |
| Rack mount kit | Yes |
| Sustainability compliance | Yes |
| Model | USW-PRO-MAX-48-POE |
| Model name | Pro Max 48 PoE |
| Units per Shipping Box | 2 |
| Unit Calculated Volume | 0.04008 cubm |
| Unit Calculated Weight | 8.68 kg |
