What This Product Does

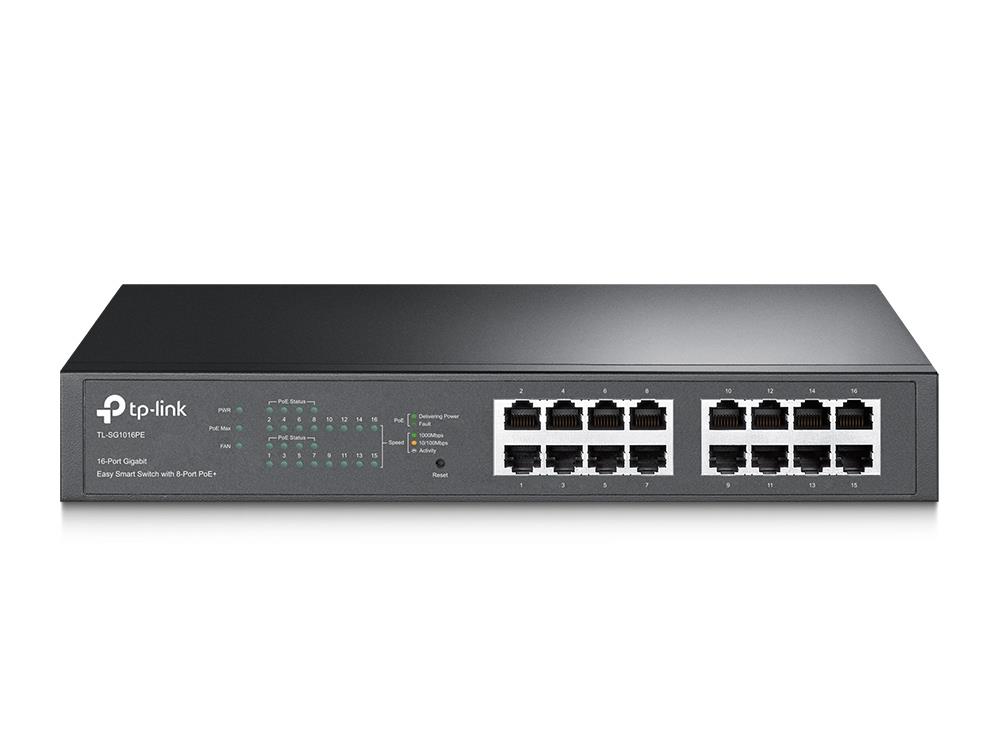

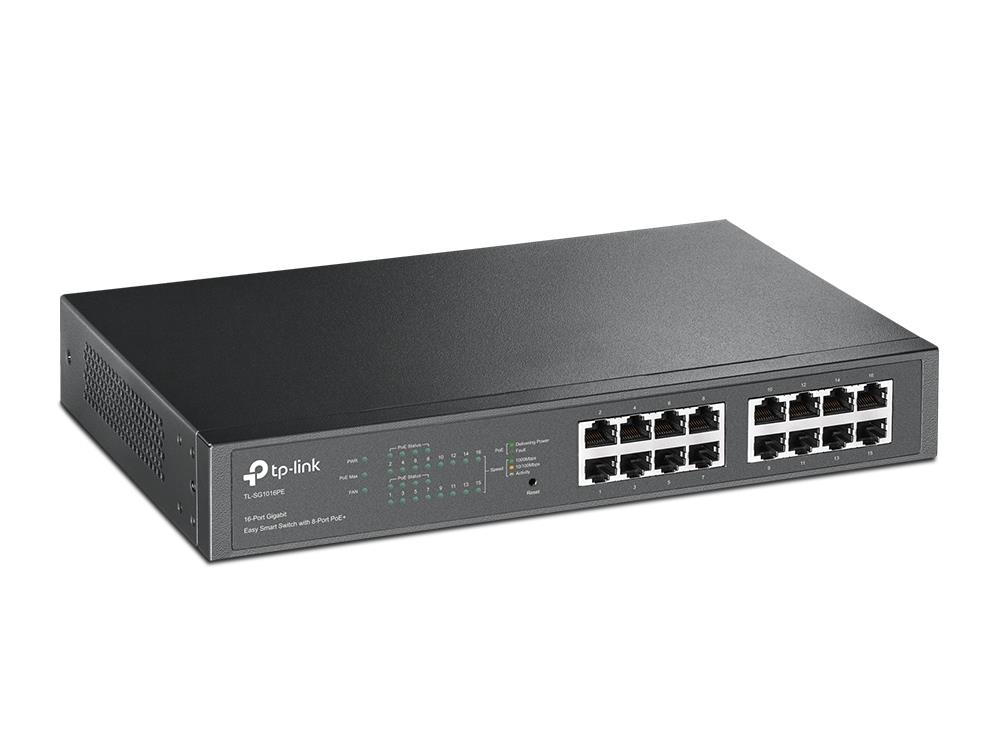

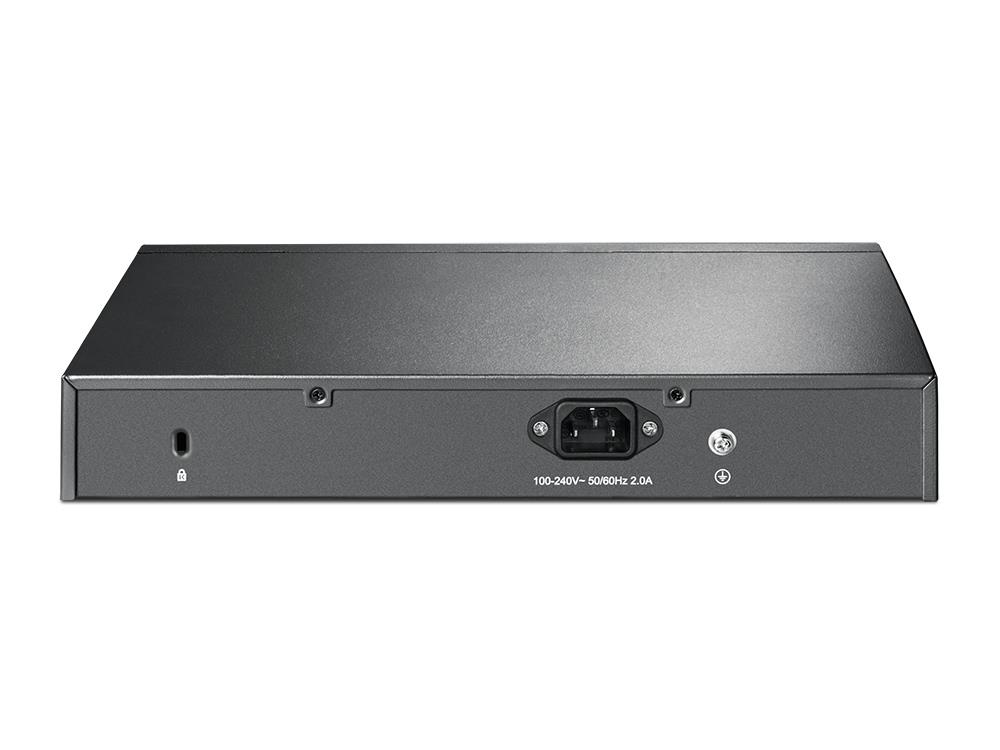

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
- 16 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/us/products/details/cat-41_TL-SG1016PE.html |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.08 |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC-in jack |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Number of VLANs | 4000 |
| Port mirroring | Yes |
| Virtual LAN features | Port-based VLAN/Tagged VLAN |
| VLAN support | Yes |
| Forwarding rate | 23.8 Mpps |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Packet buffer memory | 4.1 MB |
| Store-and-forward | Yes |
| Switching capacity | 32 Gbit/s |
| IGMP snooping | Yes |
| Form factor | 1U |
| Housing material | Metal |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | No |
| Compatible operating systems | Windows |
| Maximum cable length | 100 m |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 124.4 W |
| Power source | AC/PoE |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 110 W |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 294 mm |
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
| Package depth | 400 mm |
| Package height | 80 mm |
| Package type | Box |
| Package weight | 2280 g |
| Package width | 250 mm |
| Resource CD | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.01026 cubm |
| Unit Calculated Weight | 2.44 kg |
