- 1× Gigabit SFP WAN/LAN port
- 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
- 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app*
- DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
- Rackmount/Desktop

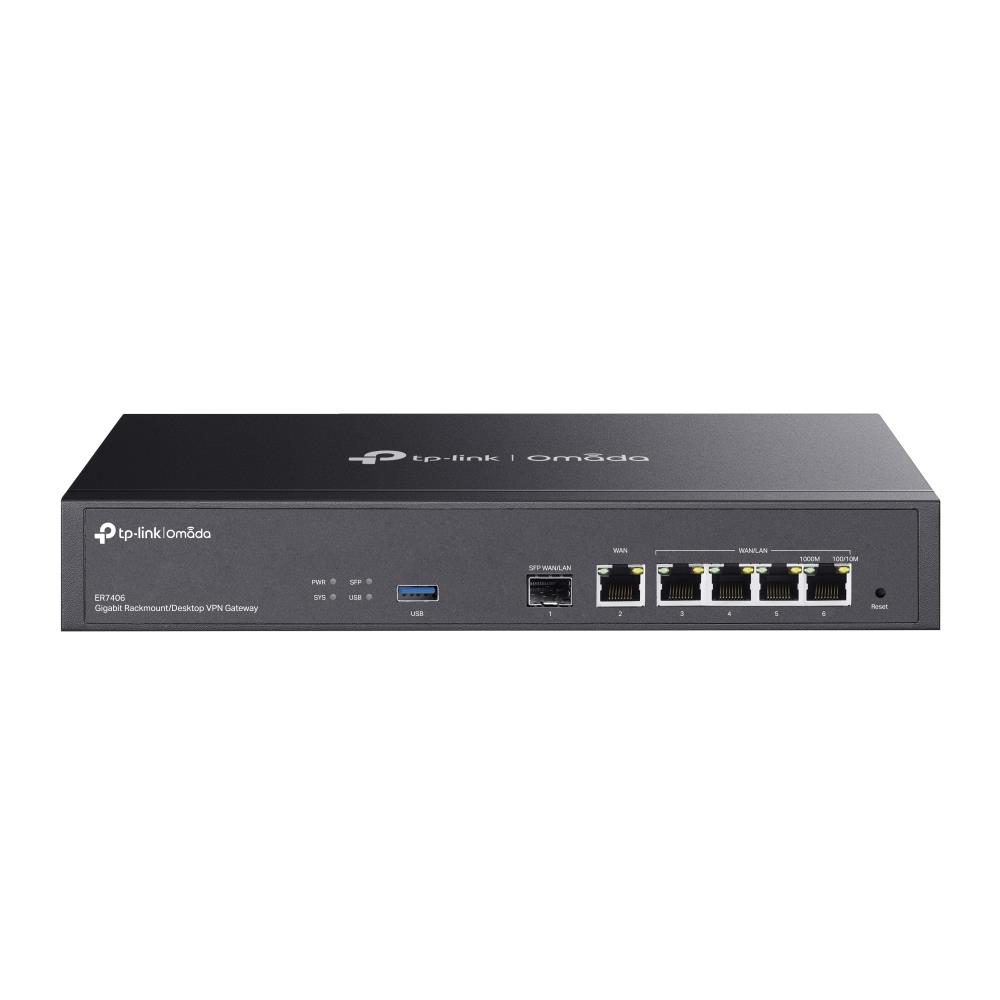

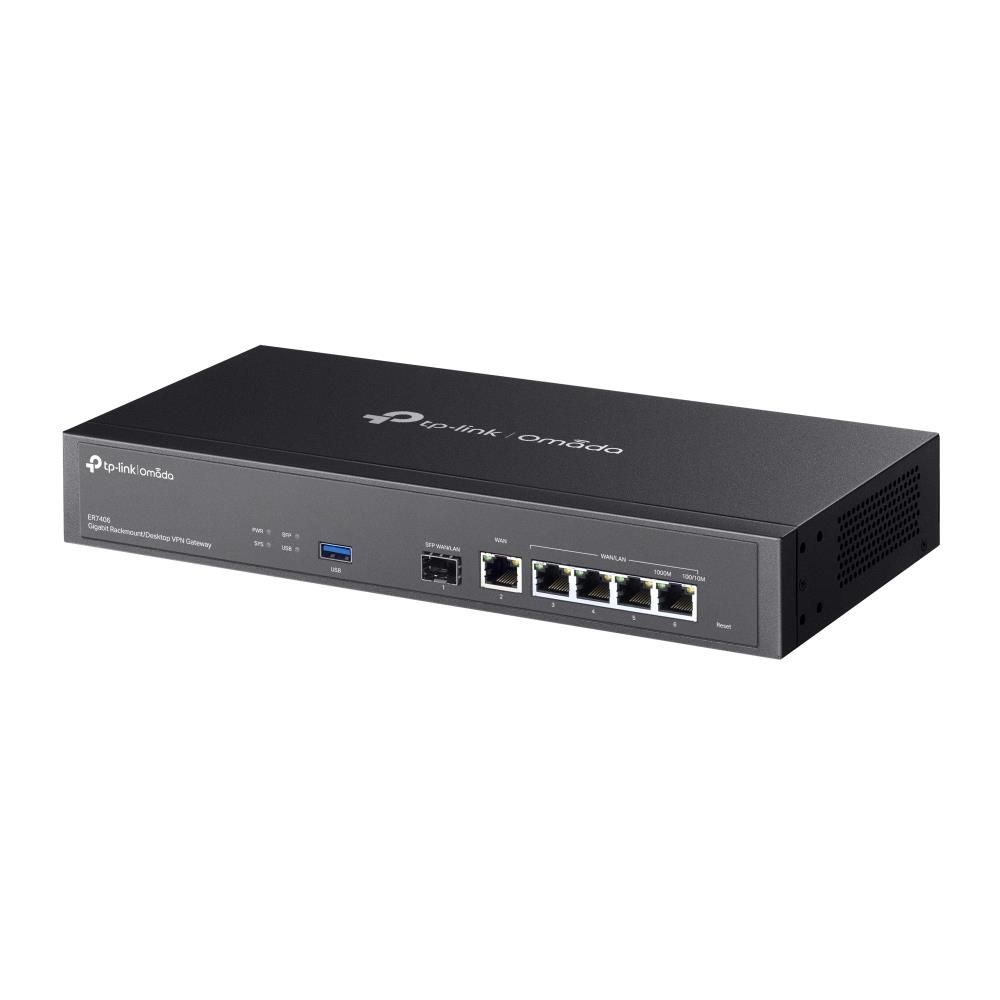

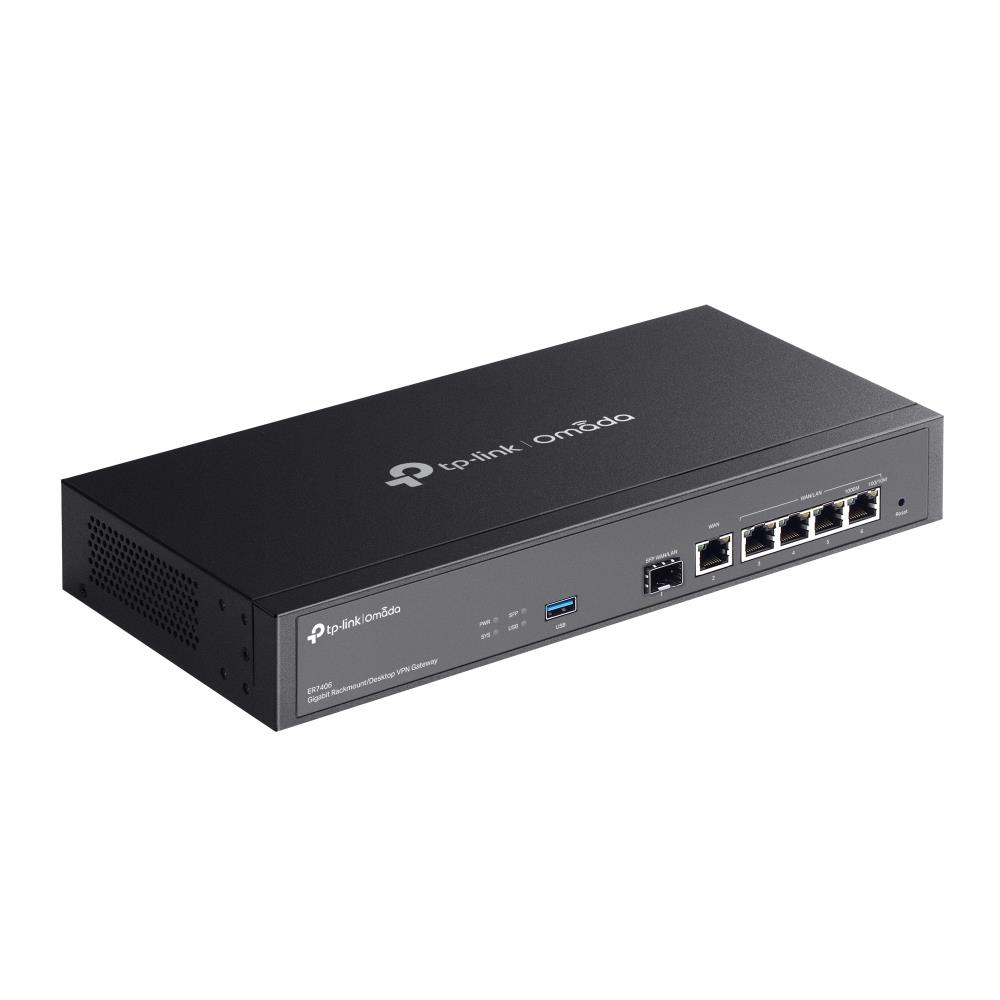

TP-Link ER7406. Networking standards: IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Cables included: AC. Flash memory: 128 MB, Internal memory: 512 MB, Internal memory type: DDR4
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/omada-router-wired-router/er7406/ |
|---|---|
| Category Code | ROU |
| Unit Box Height | 0.235 |
| Unit Box Length | 0.345 |
| Unit Box Width | 0.08 |
| 3G/4G USB modem compatibility | Yes |
| DSL WAN | No |
| Ethernet WAN | Yes |
| SFP WAN | Yes |
| SIM card slot | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Networking standards | IEEE 802.1D/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Static route | Yes |
| VLAN support | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| Installed SFP modules quantity | 1 |
| USB ports quantity | 1 |
| DHCP server | Yes |
| DMZ support | Yes |
| ARP attack prevention | Yes |
| DoS attack prevention | Yes |
| ICMP attack prevention | Yes |
| Security algorithms | 128-bit AES/192-bit AES/256-bit AES/DES/MD5/SHA-1/SHA-2/SHA-384/SHA-512 |
| URL filtering | Yes |
| VPN tunnels quantity | 50 |
| Cables included | AC |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Quick installation guide | Yes |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Internal memory type | DDR4 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10/Windows 2000/Windows 7/Windows 8/Windows 8.1/Windows 98SE/Windows NT/Windows Vista/Windows XP |
| Product colour | Black |
| Rack mounting | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 7.5 W |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 140 mm |
| Height | 44 mm |
| Width | 294 mm |
| Model | ER7406 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.006486 cubm |
| Unit Calculated Weight | 1.77 kg |
