Playback modes
Digital zoom,Fast play,Forward,Full screen,Pause,Play,Stop
Supported resolutions
HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x10
Certification
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

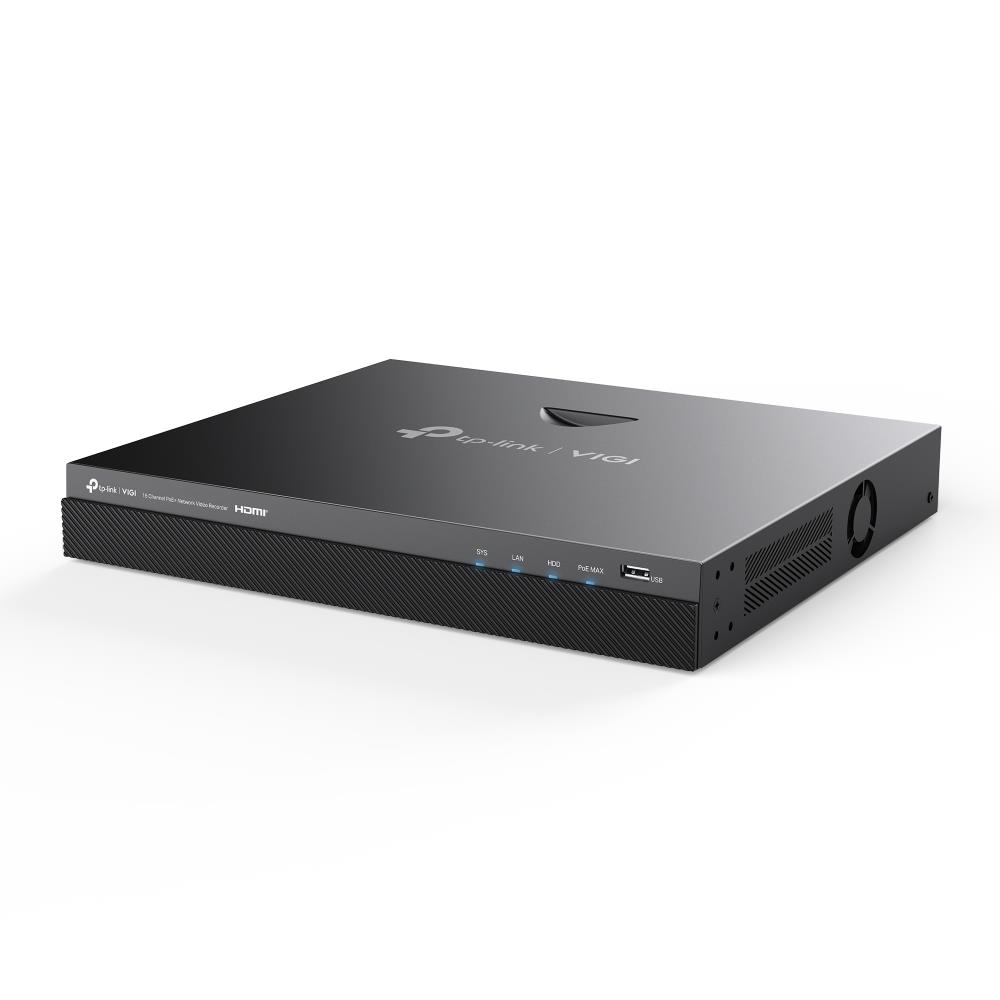

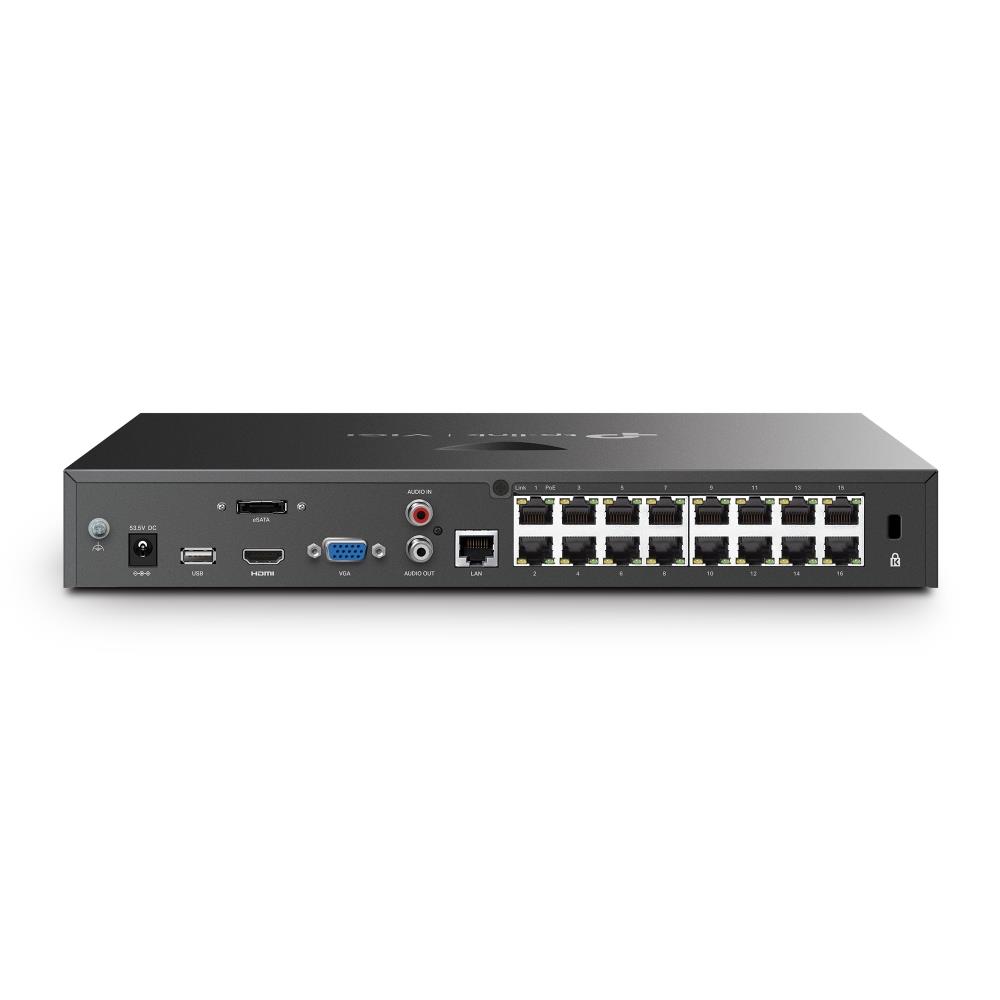

TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 V
Specifikacijos
| Vendor Homepage | www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr2016h-16mp/v1%20(no%20hdd)/ |
|---|---|
| Category Code | NVR |
| Unit Box Height | 0.345 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.14 |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726 |
| Input bandwidth | 80 Mbit/s |
| Maximum frame rate | 30 fps |
| Maximum resolution | 3840 x 2160 pixels |
| Number of simultaneously playbacked channels | 16 channels |
| Output bandwidth | 60 Mbit/s |
| Playback controls | Yes |
| Recording modes | Manual,Schedule |
| Video formats supported | H.264/H.264+/H.265/H.265+ |
| Video input channels | 16 channels |
| Video motion detection | Yes |
| Video recording modes | 1080p/720p |
| Wi-Fi | No |
| HDD capacity | 0 GB |
| HDD interface | SATA |
| Maximum storage capacity | 10 TB |
| Number of HDDs supported | 2 |
| Audio output | 1 |
| DC-in jack | Yes |
| eSATA | Yes |
| eSATA ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HDMI ports quantity | 1 |
| Internal SATA ports quantity | 2 |
| Line-in | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Supported network protocols | UPnP (Plug and Play), NTP (Network Timing) |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Product colour | Black |
| Reset button | Yes |
| Output current | 2.43 A |
| Output voltage | 53.5 V |
| Power consumption (max) | 40 W |
| Total Power over Ethernet (PoE) budget | 140 W |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 285 mm |
| Height | 45 mm |
| Package weight | 4100 g |
| Weight | 2100 g |
| Width | 330 mm |
| AC adapter included | Yes |
| Cables included | AC |
| Quick installation guide | Yes |
| Model | VIGI NVR2016H-16MP |
| Model name | VIGI NVR2016H-16MP |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01932 cubm |
| Unit Calculated Weight | 4.06 kg |
