Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

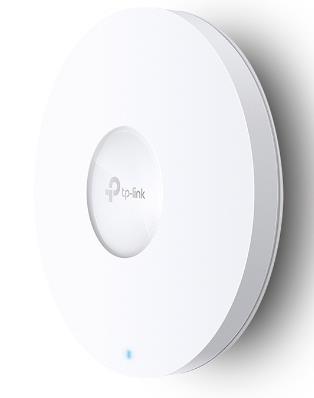

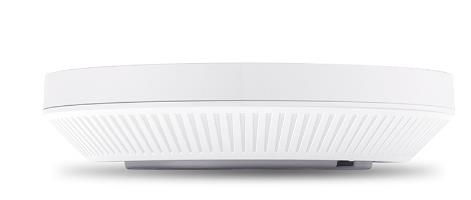

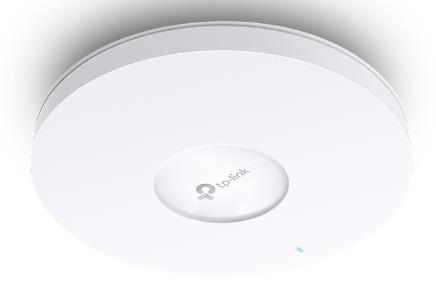

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.
Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/omada-sdn-access-point/eap653/#overview |
|---|---|
| Category Code | WAP |
| Unit Box Height | 0.225 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.065 |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Airtime Fairness (ATF) | Yes |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Fit AP mode features | Mesh networking |
| Flow control support | Yes |
| Frequency band | 2.4 - 5 GHz |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11h |
| Number of users | 250 user(s) |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Spread spectrum method | OFDMA |
| Transmitting power (CE) | 27 dBm |
| Transmitting power (FCC) | 22 dBm |
| VLAN support | Yes |
| MAC address filtering | Yes |
| Security algorithms | HTTPS/SNMP/SNMPv2/SNMPv3/SSH/WPA/WPA2/WPA3 |
| Firmware upgradeable | Yes |
| Syslog | Yes |
| Web-based management | Yes |

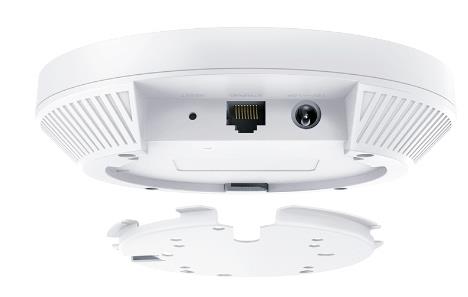

| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC voltage range | 12 V |
| Power over Ethernet (PoE) | Yes |
| LED indicators | Yes |
| Placement | Ceiling,Wall |
| Product colour | White |
| Reset button | Yes |
| Antenna type | Internal |
| Depth | 160 mm |
| Height | 33.6 mm |
| Width | 160 mm |
| Package type | Box |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Model | EAP653 UR |
| Series | Omada |
| Model name | EAP653 UR |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00351 cubm |
| Unit Calculated Weight | 0.8 kg |
