Networking standards
IEEE 802.1p/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Increase Your Network Speed and Save Energy
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

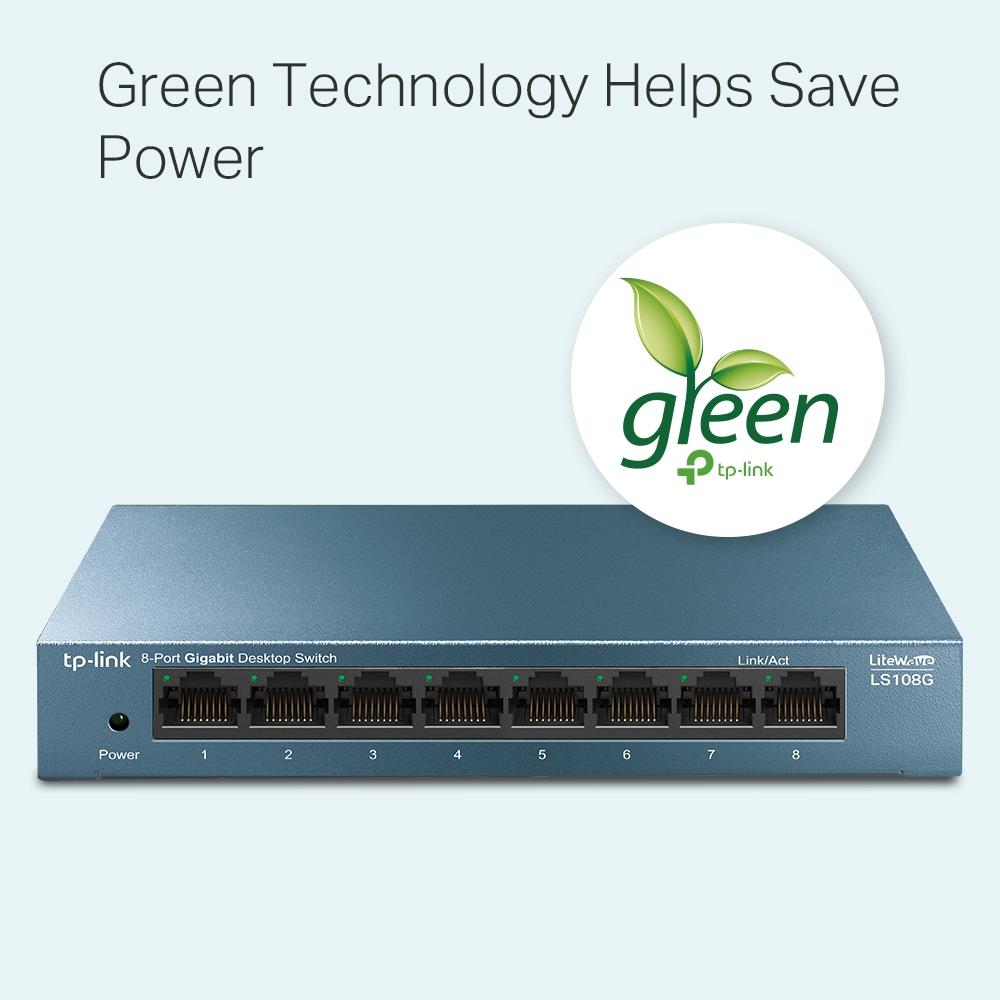

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

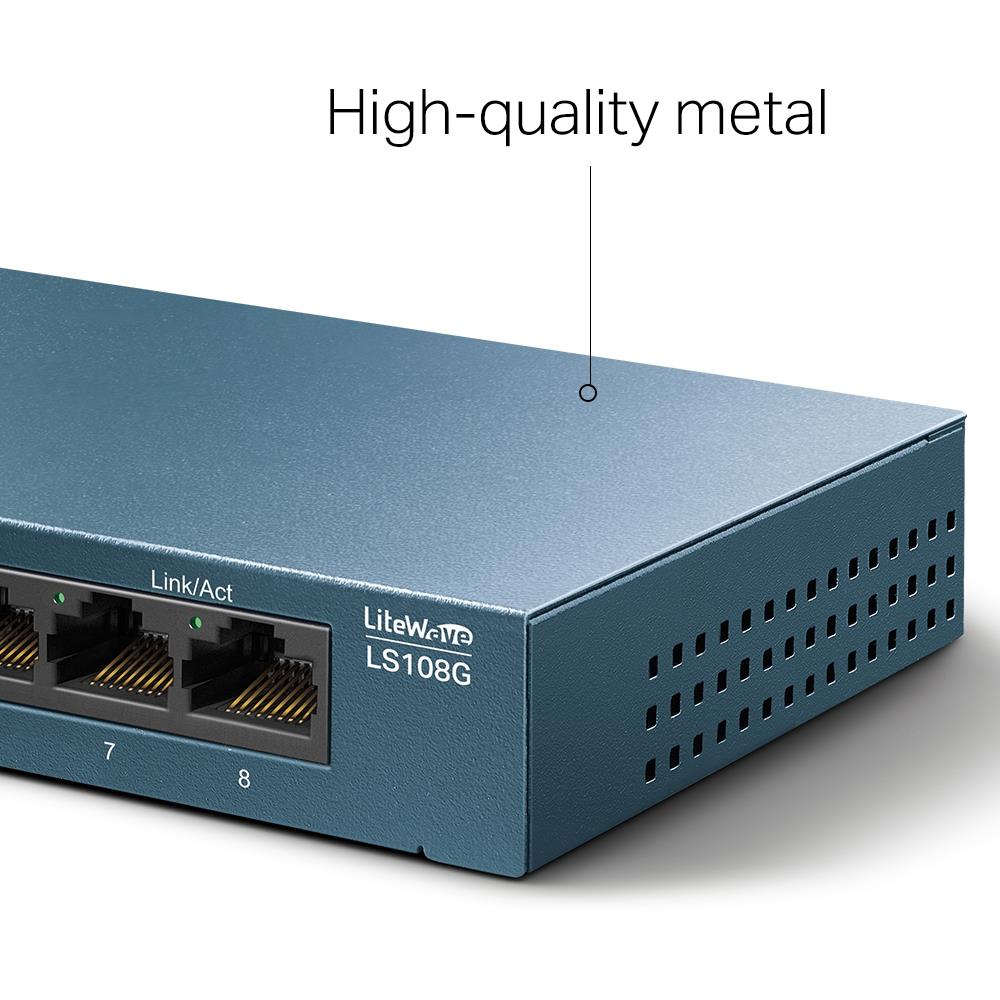

Durable Metal Casing
The interior components of LS108G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS108G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

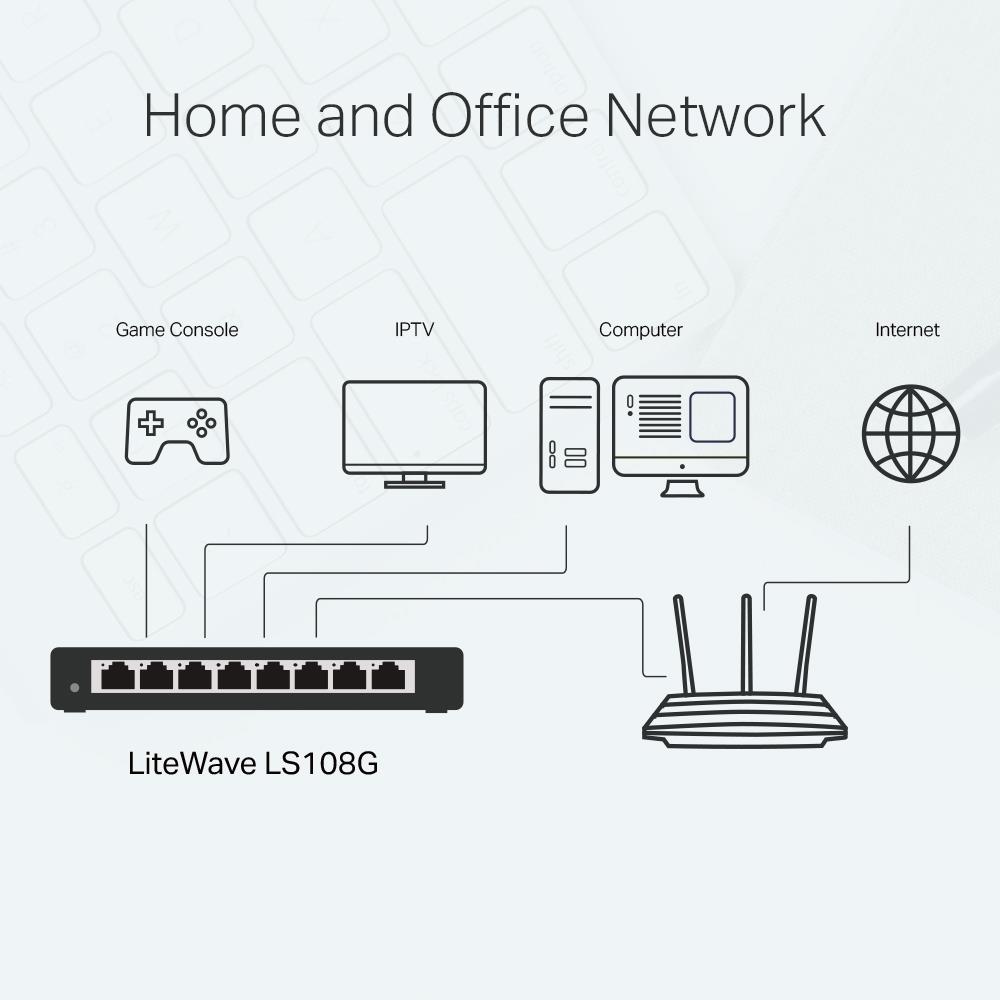

Use Where You Need, However You Need
The LS108G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
- 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS function
- Plug and play, no configuration needed
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/pe/business-networking/unmanaged-switch/ls108g/#overview |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.19 |
| Unit Box Width | 0.09 |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 4000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
| Rack mounting | No |
| Product colour | Blue |
| LED indicators | Activity/LAN/Power |
| Power source | DC |
| Power supply included | Yes |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power consumption (max) | 3.7 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 90 % |
| Heat dissipation | 12.617 BTU/h |
| Width | 158 mm |
| Depth | 99 mm |
| Height | 25 mm |
| Quick start guide | Yes |
| Package width | 130 mm |
| Package depth | 191 mm |
| Package height | 92 mm |
| Package weight | 470 g |
| Certification | CE, FCC, RoHS |
| Harmonized System (HS) code | 85176990 |
| Unit Calculated Weight | 0.539 kg |
| Product Net Weight | 0.4 kg |
| Unit Calculated Volume | 0.002733 cubm |
| Units per Shipping Box | 36 |
| Shipping Box Weight | 19.3999996185303 kg |
| Unit Width | 9 cm |
| Units per Pallet | 0 |
| Shipping Box Height | 40 cm |
| Unit Depth | 19 cm |
| Shipping Box Depth | 60 cm |
| Unit Height | 13 cm |
| Shipping Box Width | 41 cm |
| Name | NET SWITCH 8PORT 10/100/1000M/LS108G TP-LINK |
| Series | TP-LINK LS108G |
| Model name | LS108G |
