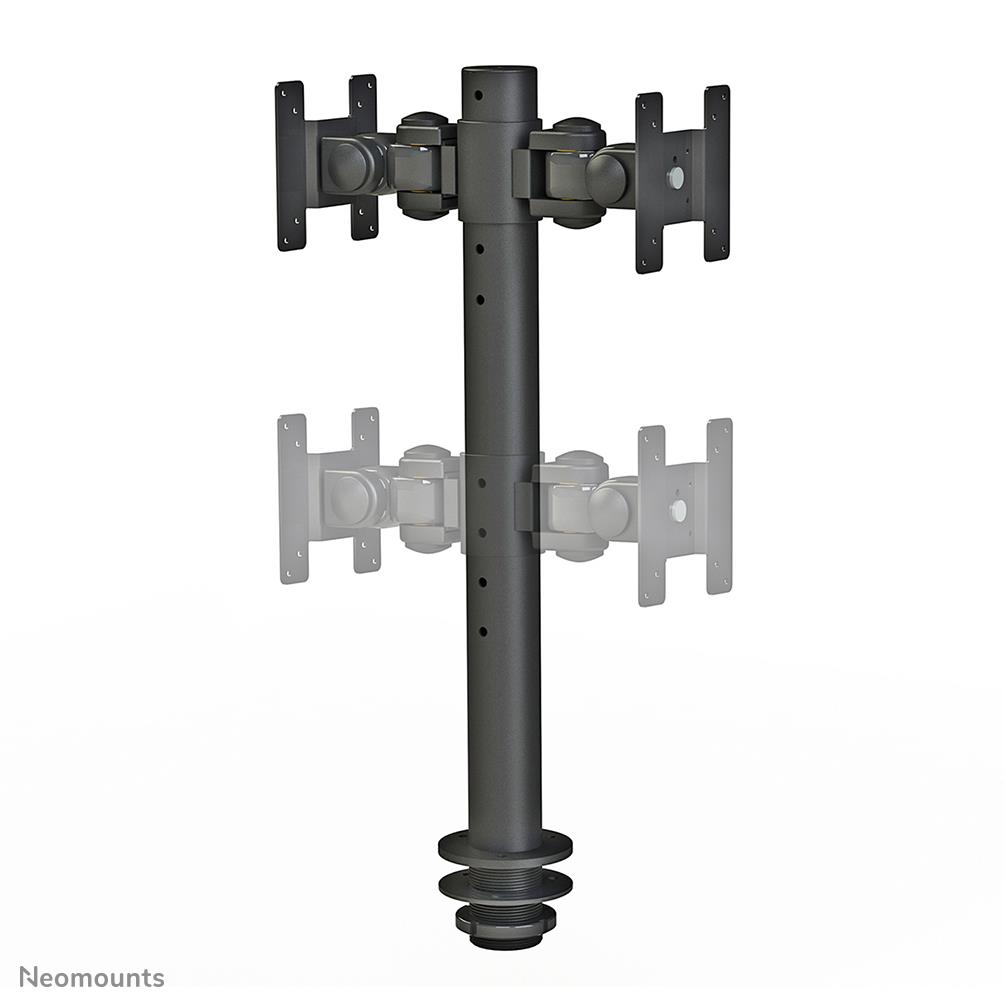

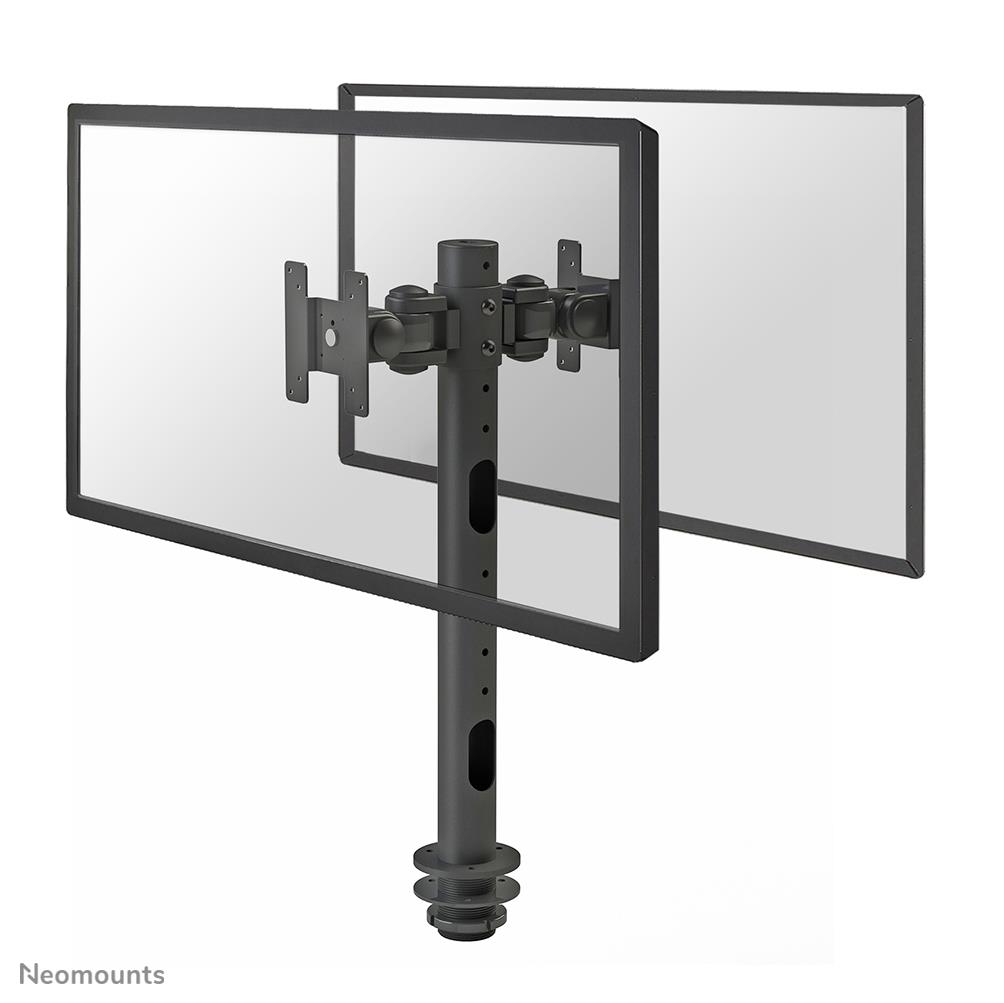

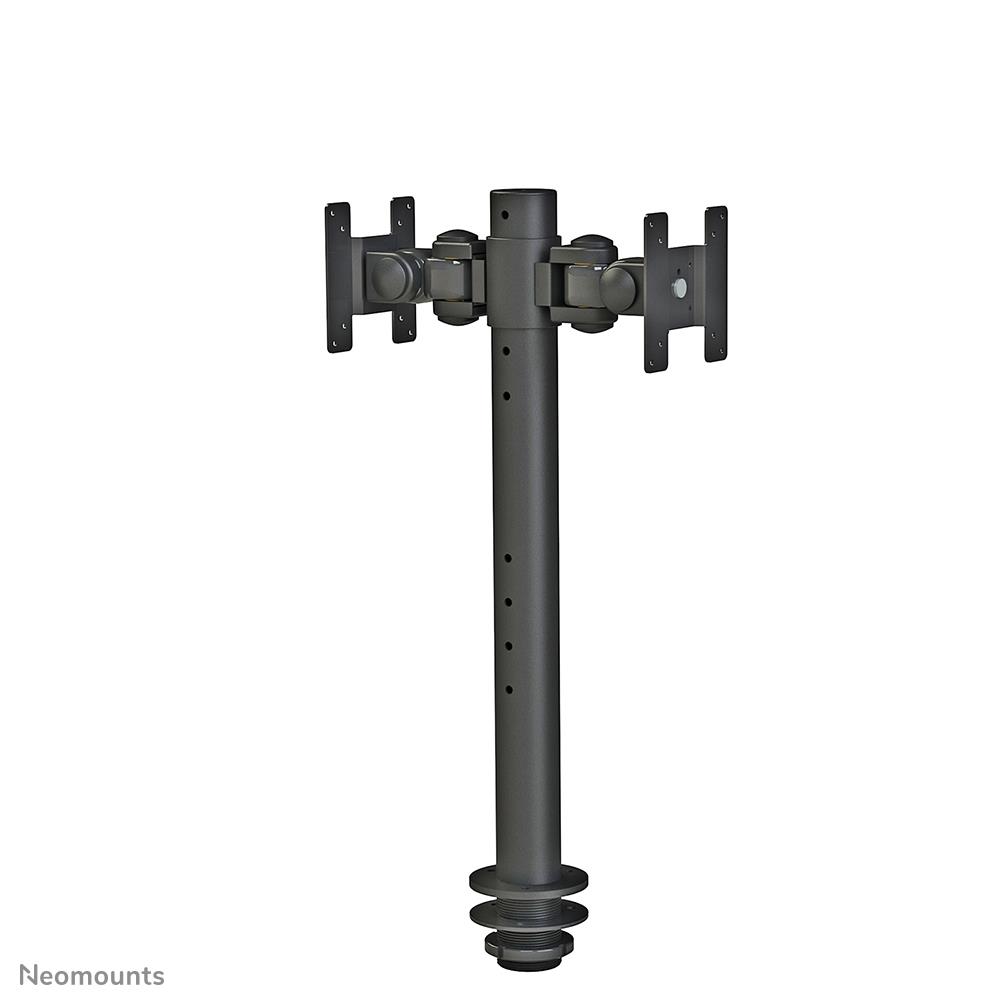

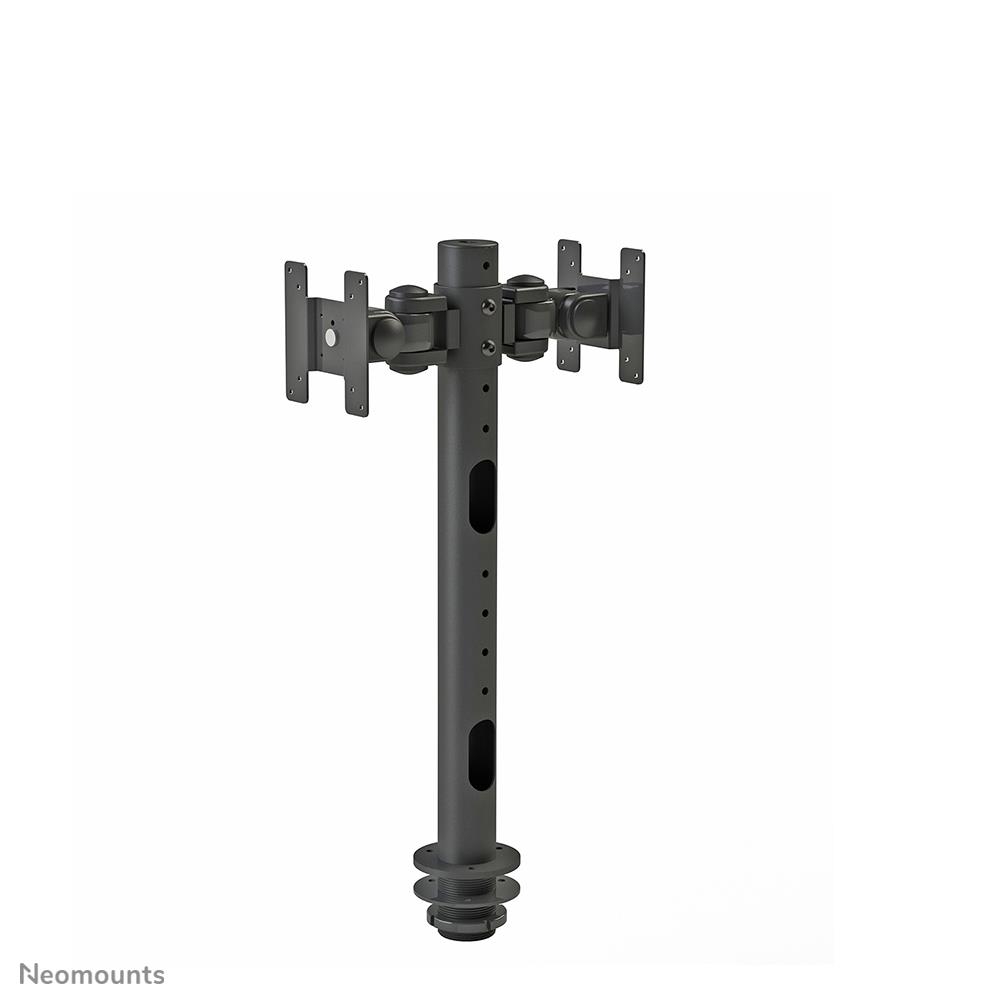

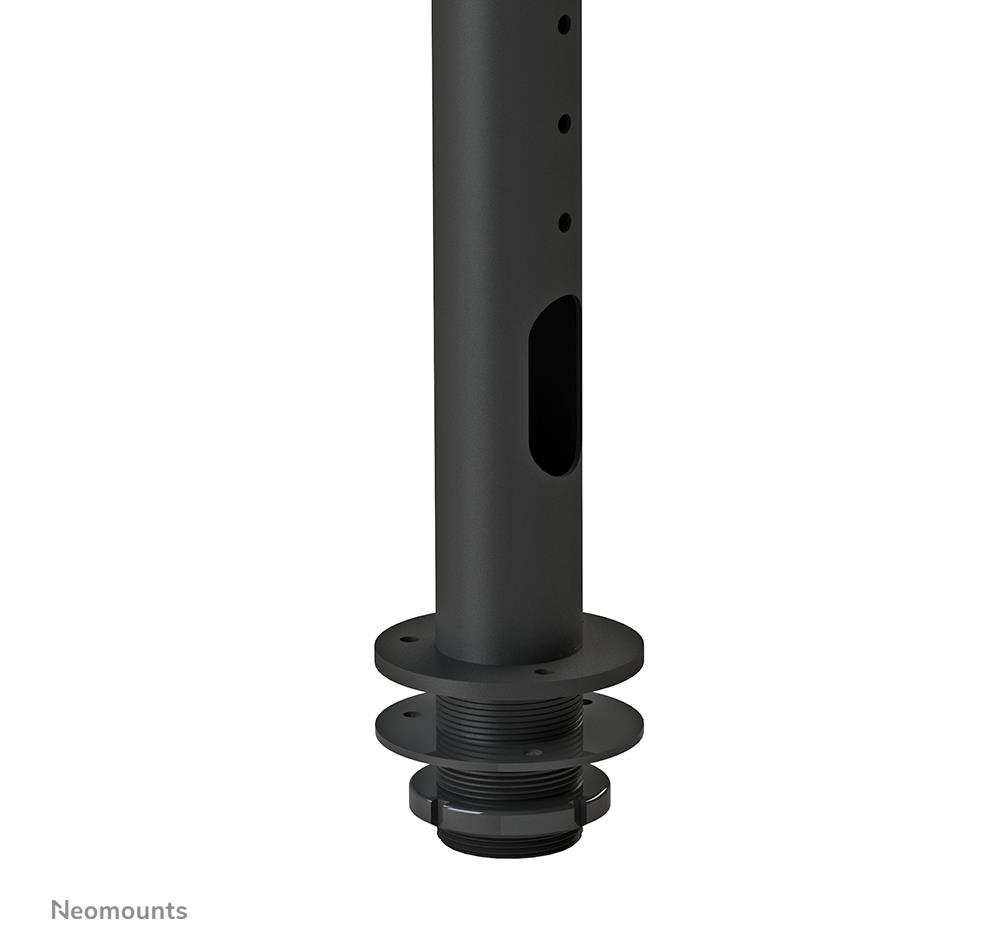

The Neomounts desk mount, model FPMA-D050DBLACK is a dual-sided tilt-, swivel and rotatable desk mount for flat screens up to 30". This mount is a great choice for space saving placement on desks using a grommet mount.

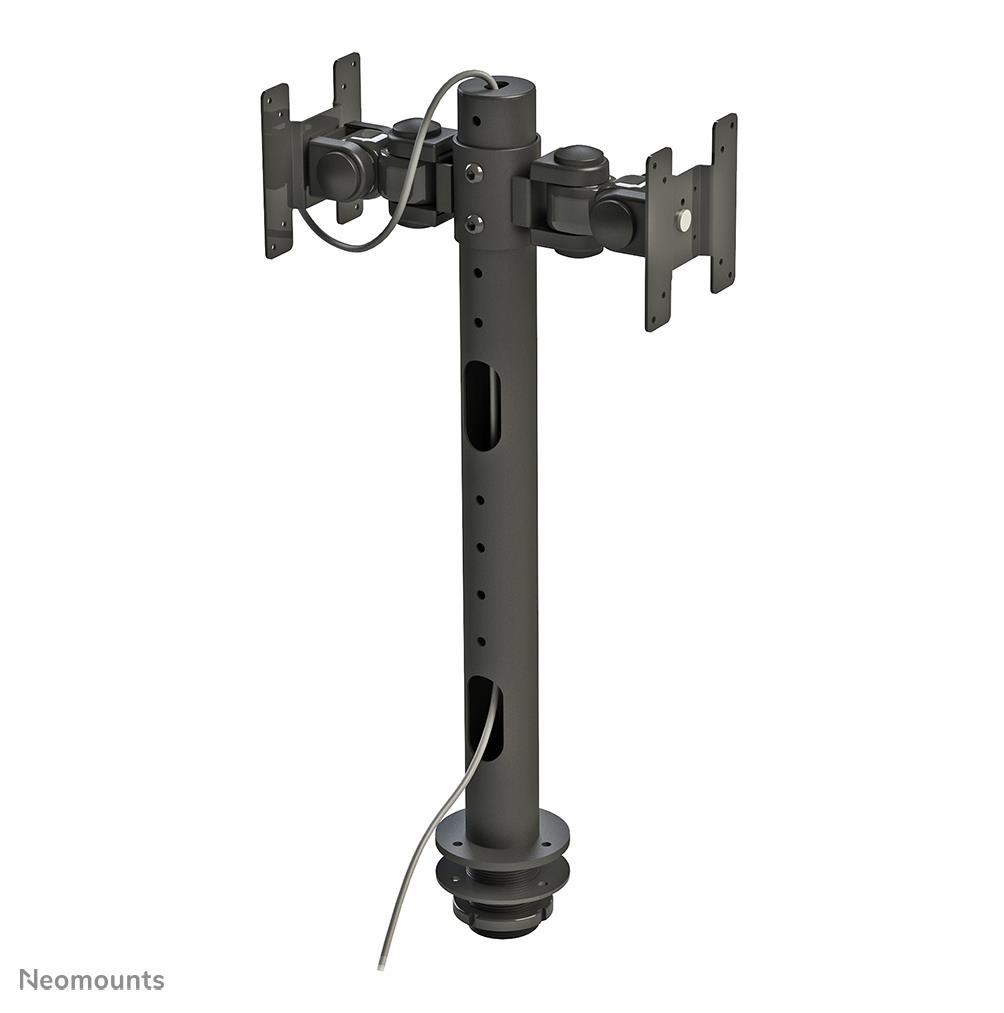

Neomounts versatile tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily height adjustable by hand from 17 to 50 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D050DBLACK has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic flat screen mount you prevent neck- and back complaints. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-D050DBLACK |
|---|---|
| Category Code | MAS |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.61 |
| Unit Box Width | 0.13 |
| Maximum screen size | 30 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 10 kg |
| Maximum weight capacity (per display) | 10 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Angle of rotation | 360 ° |
| Depth adjustment range | 0 - 140 mm |
| Height adjustment | Yes |

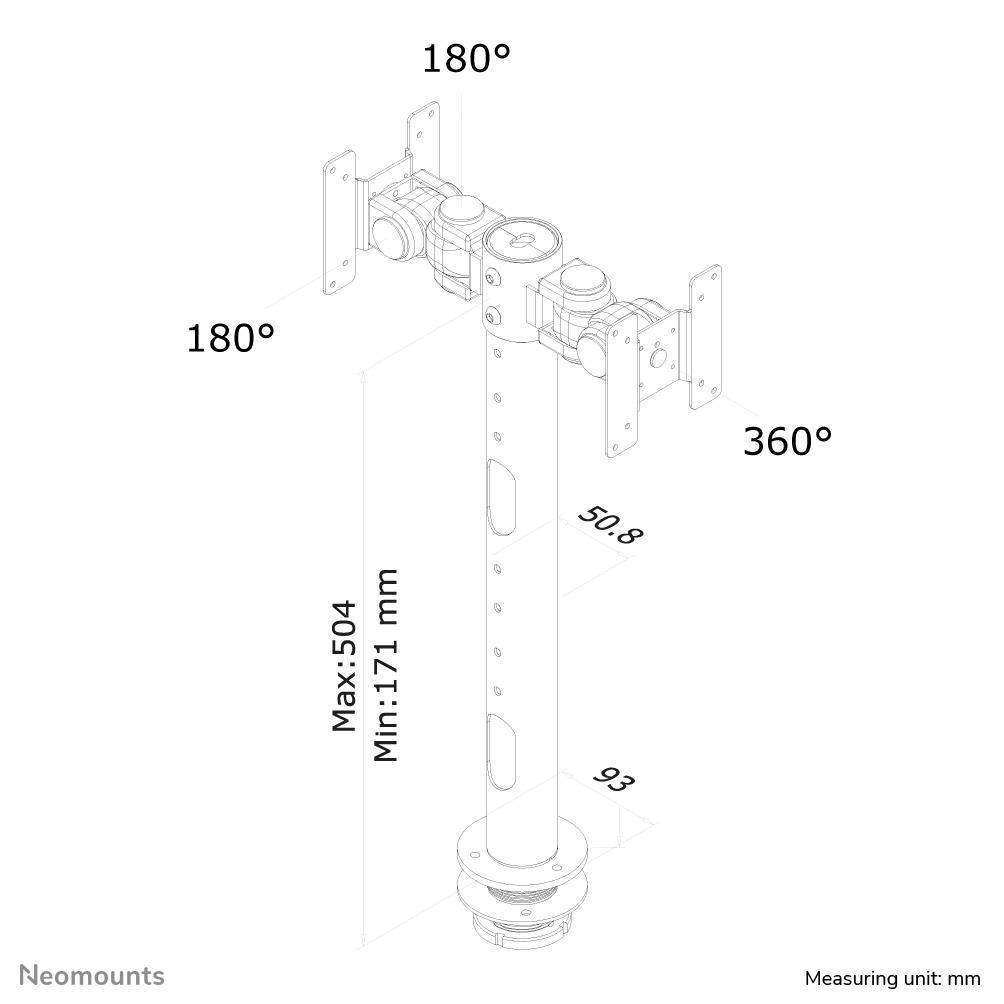

| Height adjustment range | 170 - 500 mm |
| Height adjustment type | Manual |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 20 ° |
| Housing material | Steel |
| Product colour | Black |
| Depth | 140 mm |
| Height | 500 mm |
| Weight | 3320 g |
| Package depth | 167 mm |
| Package height | 130 mm |
| Package weight | 3700 g |
| Package width | 606 mm |
| Mounting interface | VESA 75x75/100x100 mm |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 17000 g |
| Master (outer) case height | 310 mm |
| Master (outer) case length | 367 mm |
| Master (outer) case net weight | 15900 g |
| Master (outer) case width | 620 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 48 pc(s) |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01348 cubm |
| Unit Calculated Weight | 3.95 kg |
