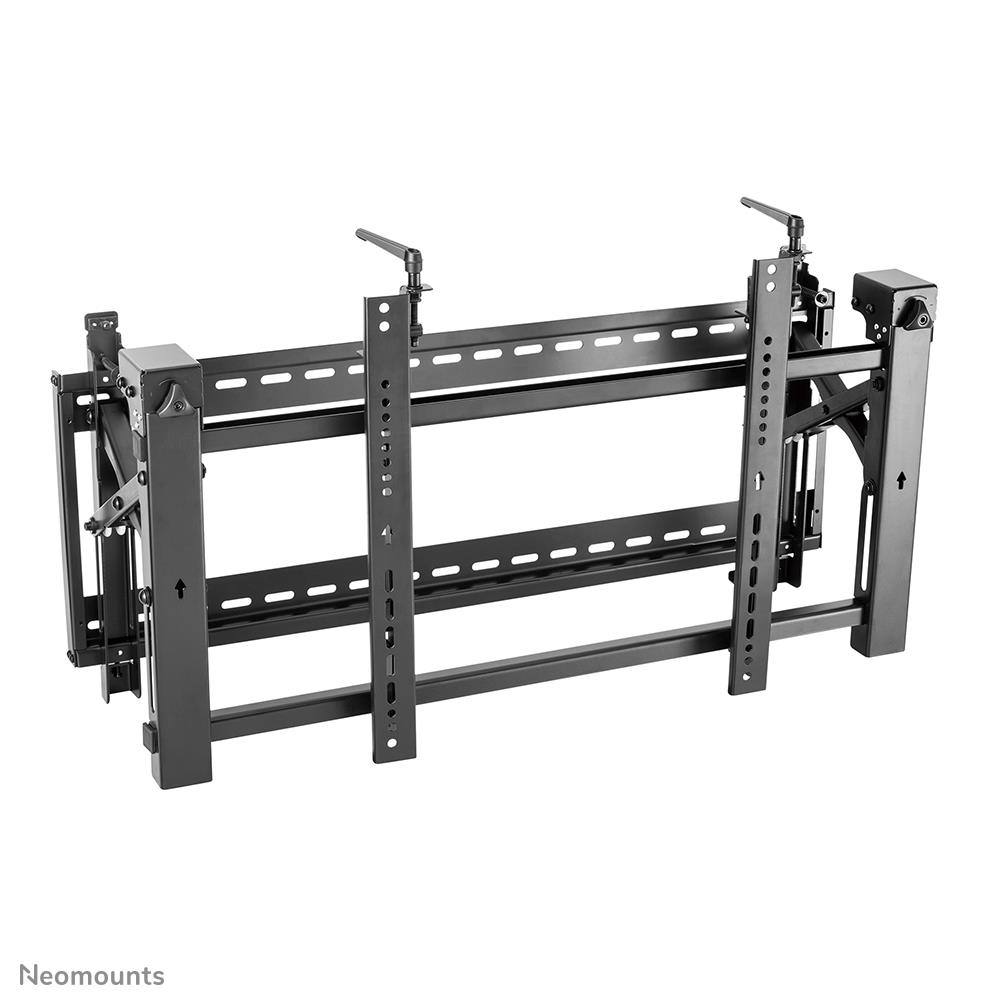

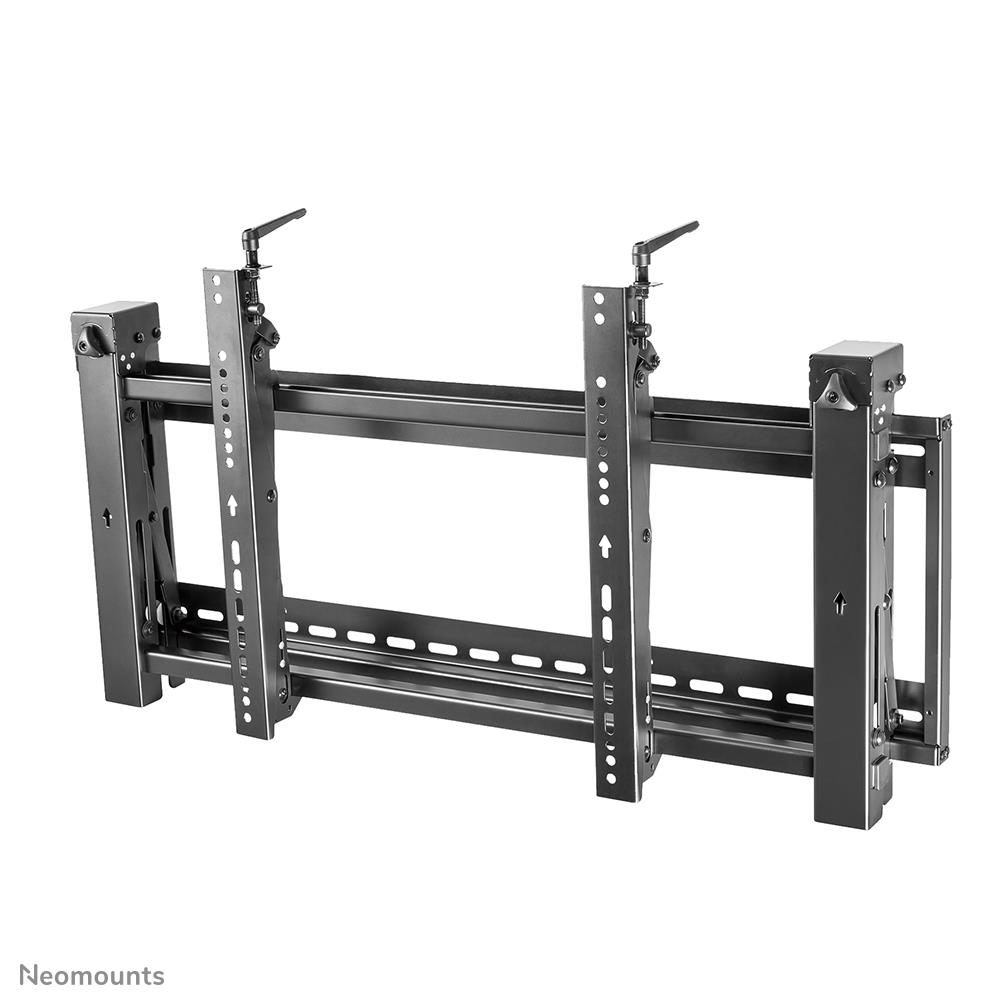

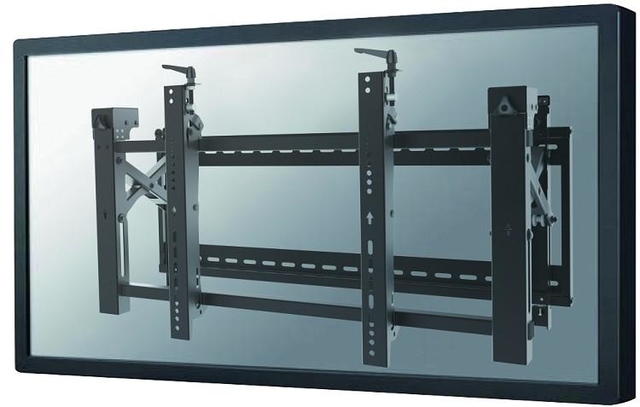

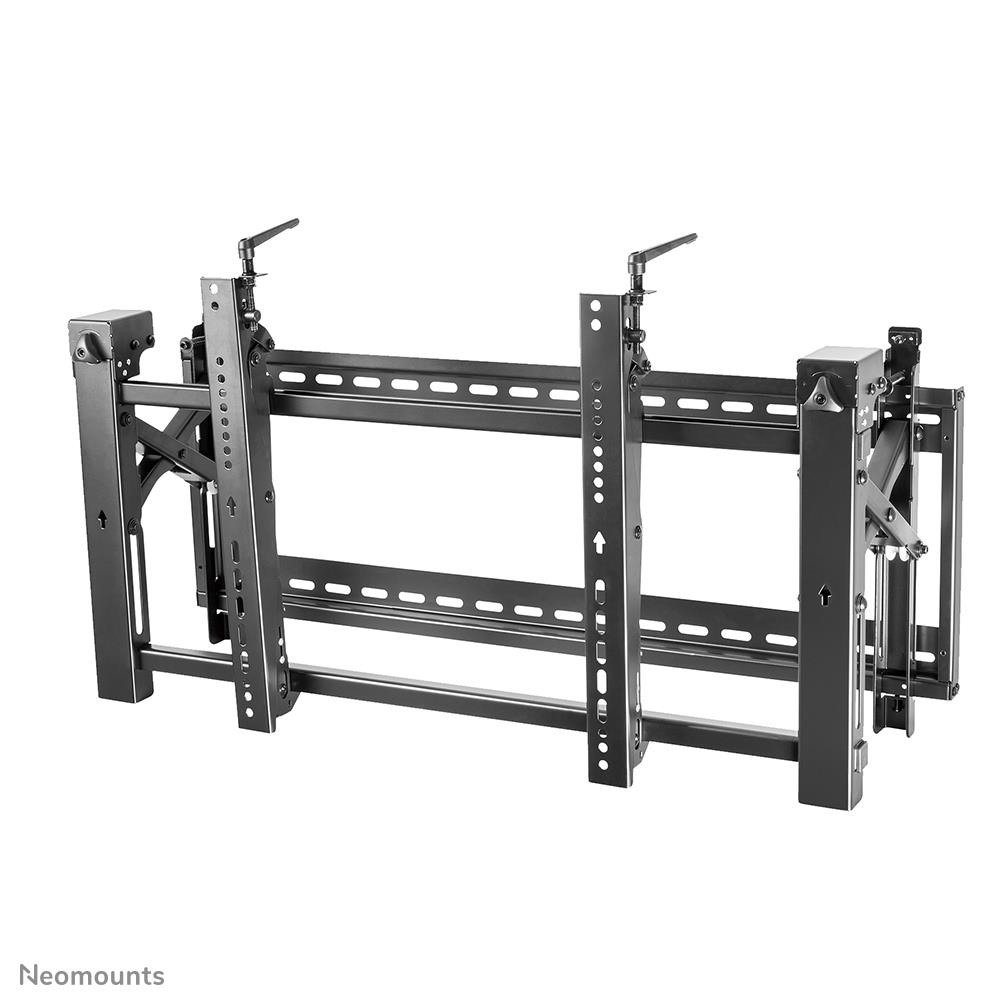

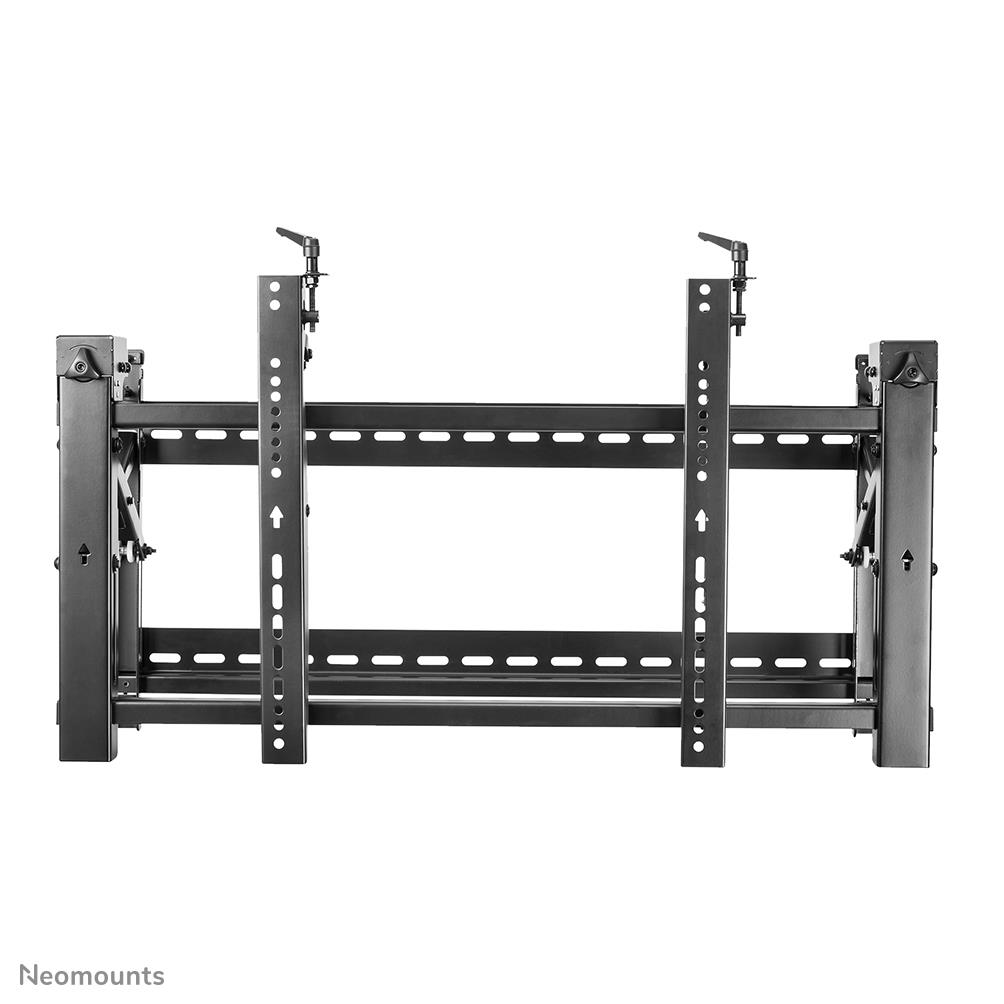

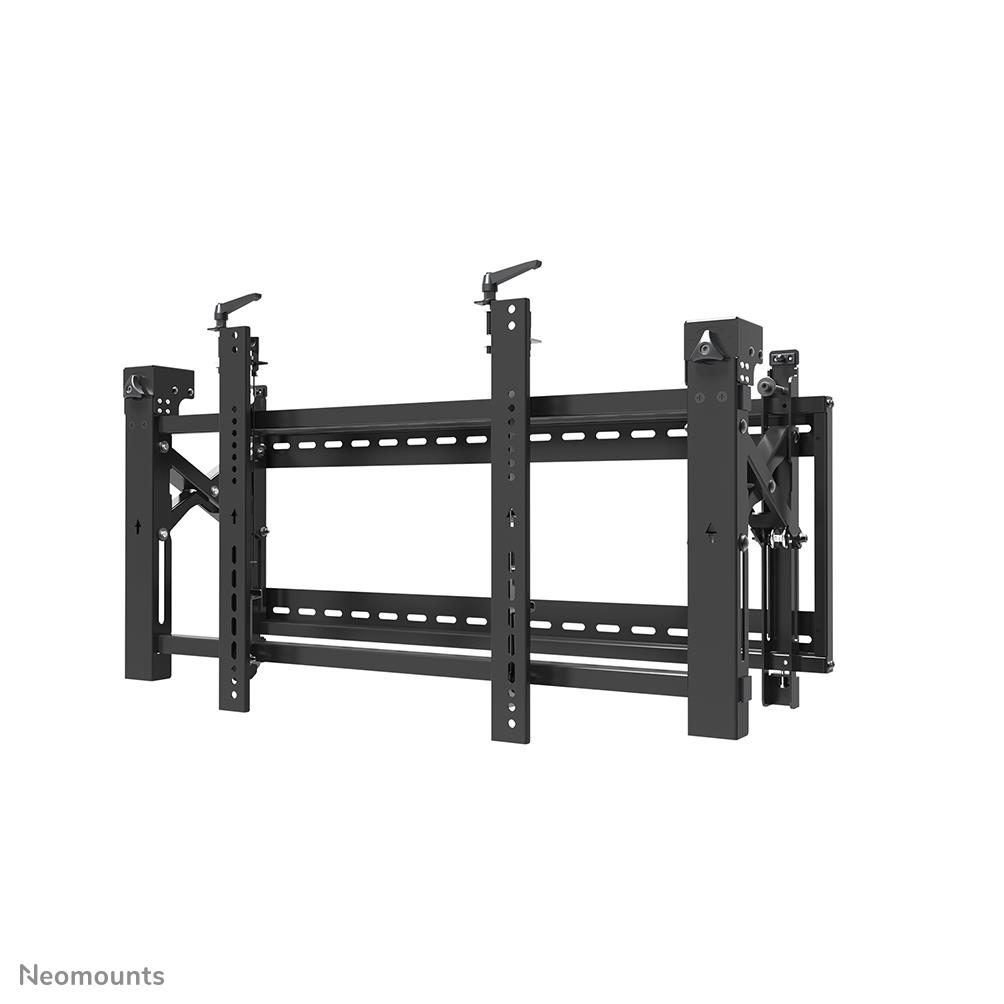

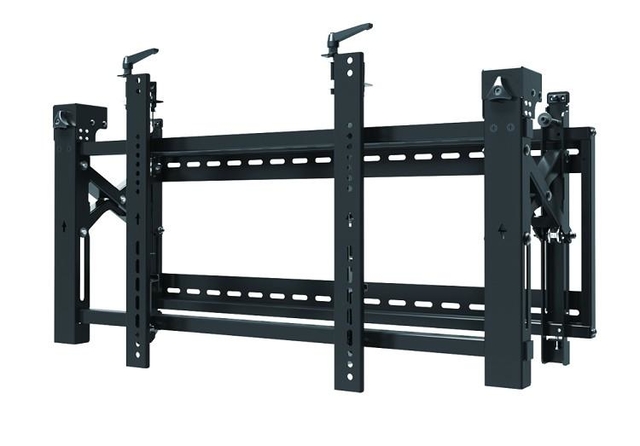

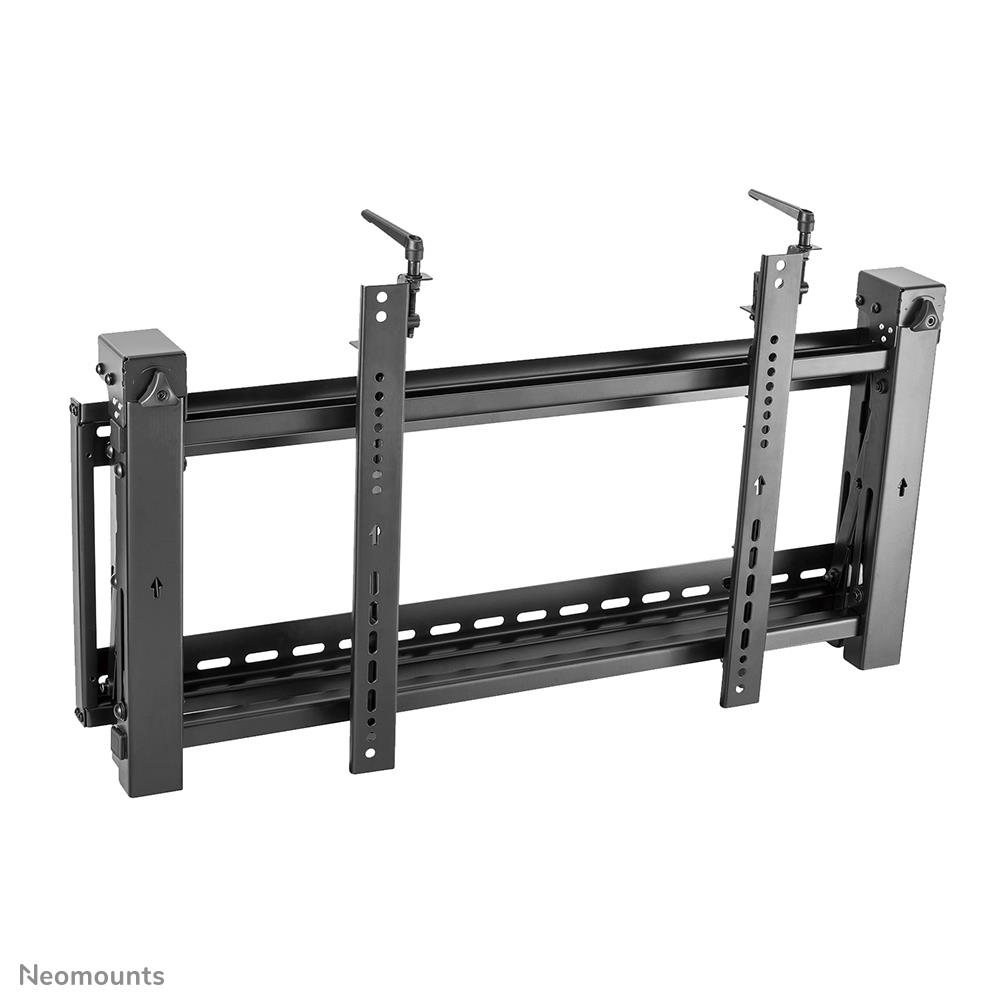

The Neomounts wall mount, model LED-VW2000BLACK is a fixed wall mount for flat screens up to 75″ (191 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 14 to 30 centimetres. This wall mount is specially made to be used in video walls. The screen easily can be pulled out.
Neomounts LED-VW2000BLACK is suitable for flat screens up to 75″ (191 cm). The weight capacity of this product is 70 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200×200 to 600x400mm.

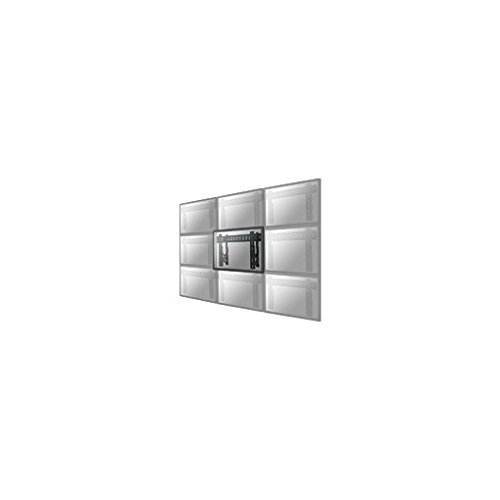

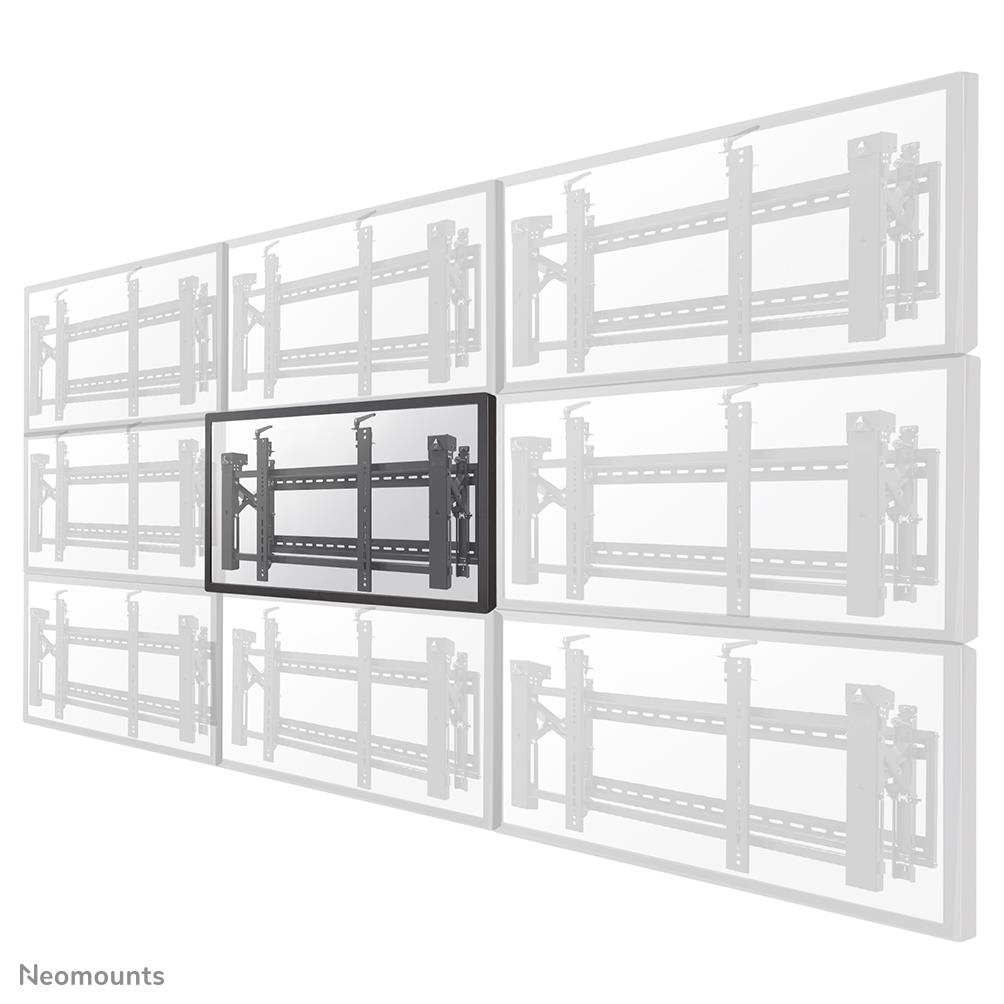

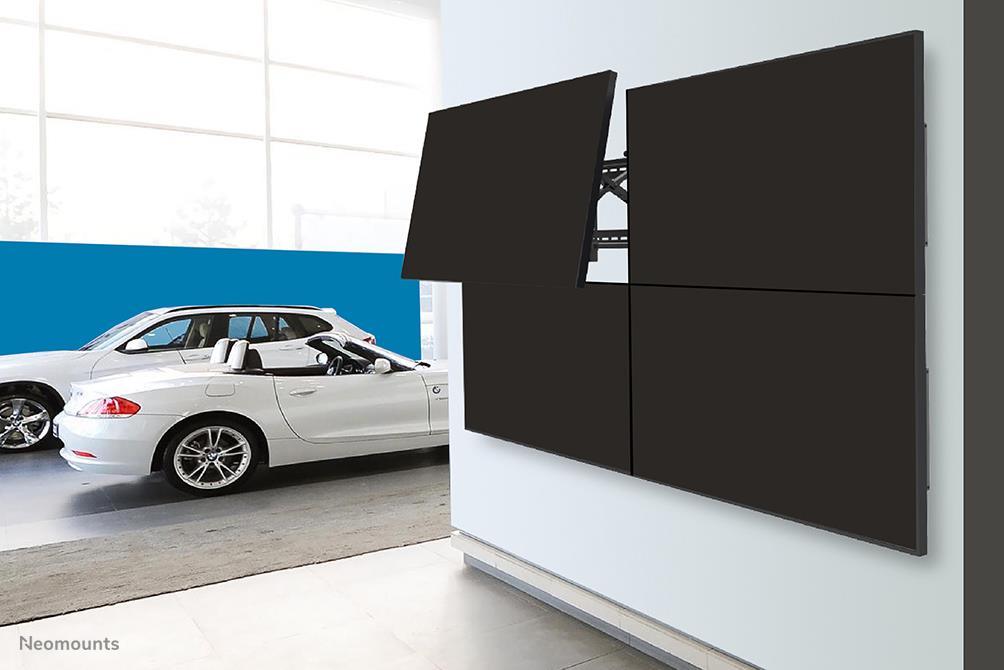

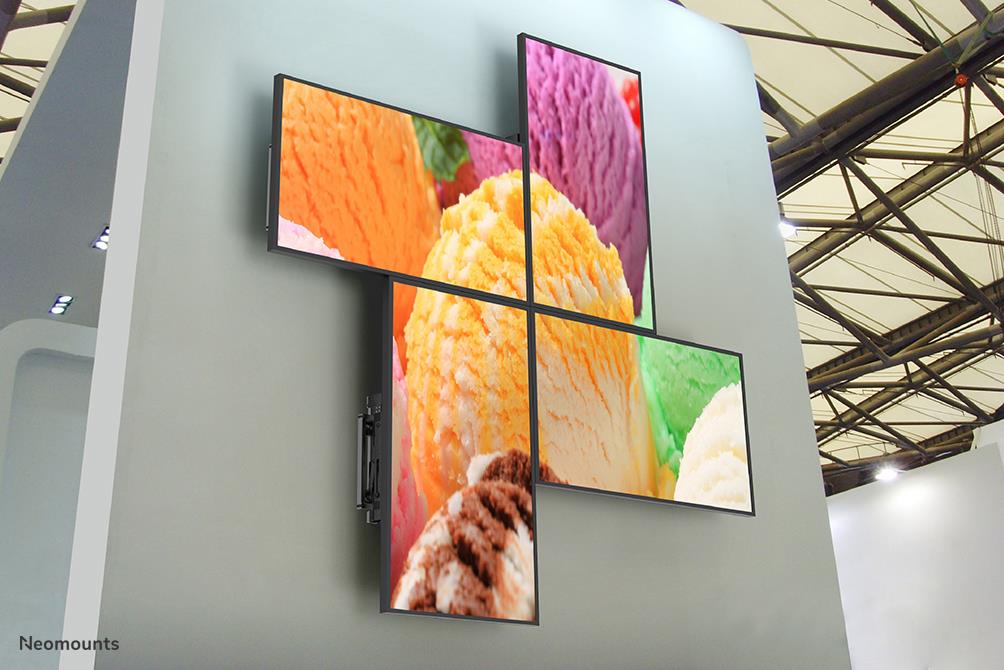

Create a clean design videowall presentation with the Neomounts LED-VW2000BLACK videowall mount solution!
– Pop-out Video Wall Mount

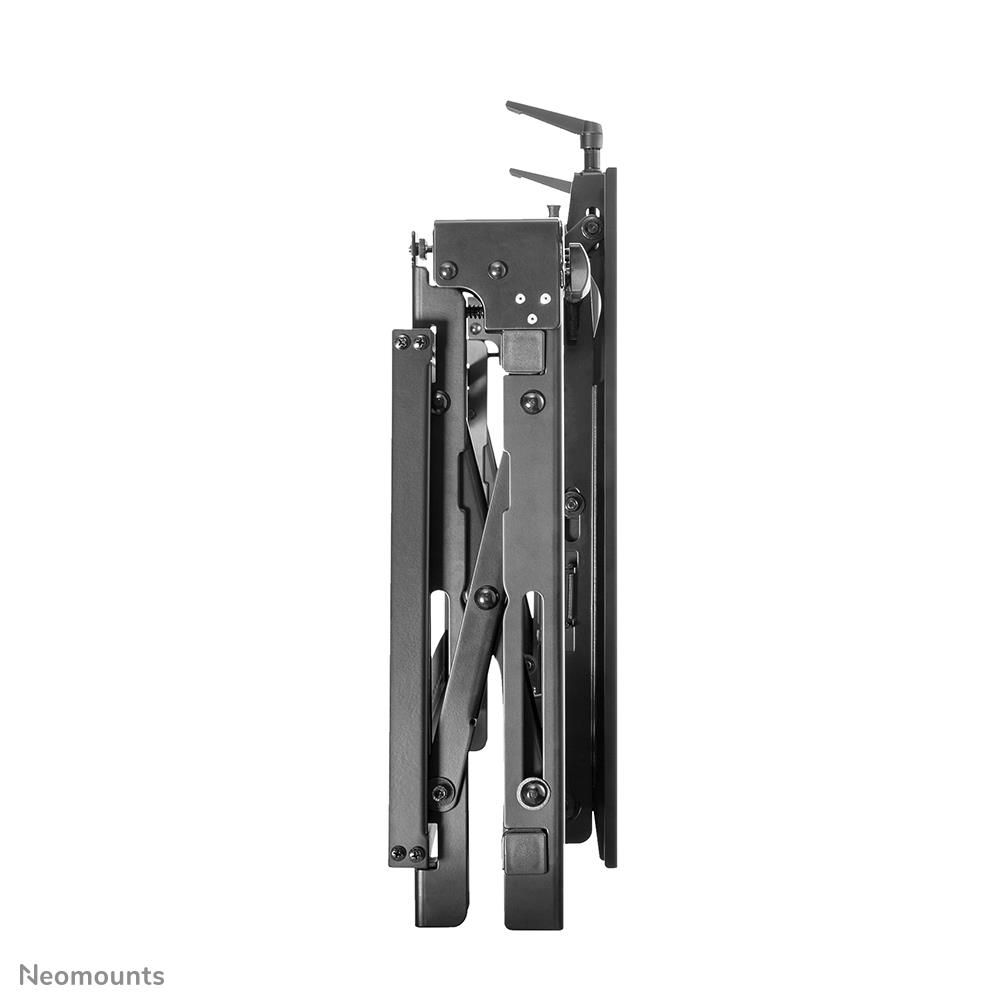

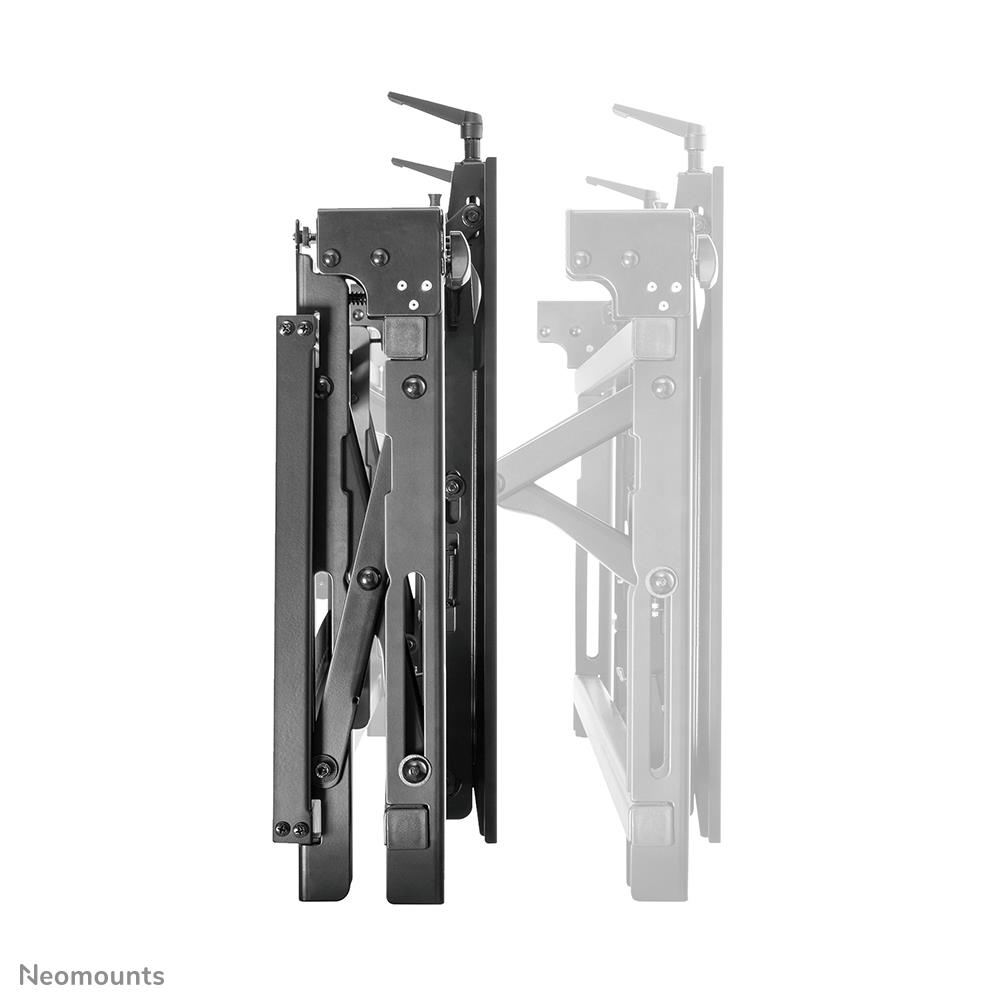

– Pop-out function allows quick release for access
– Lateral shift brackets enable fast alignment

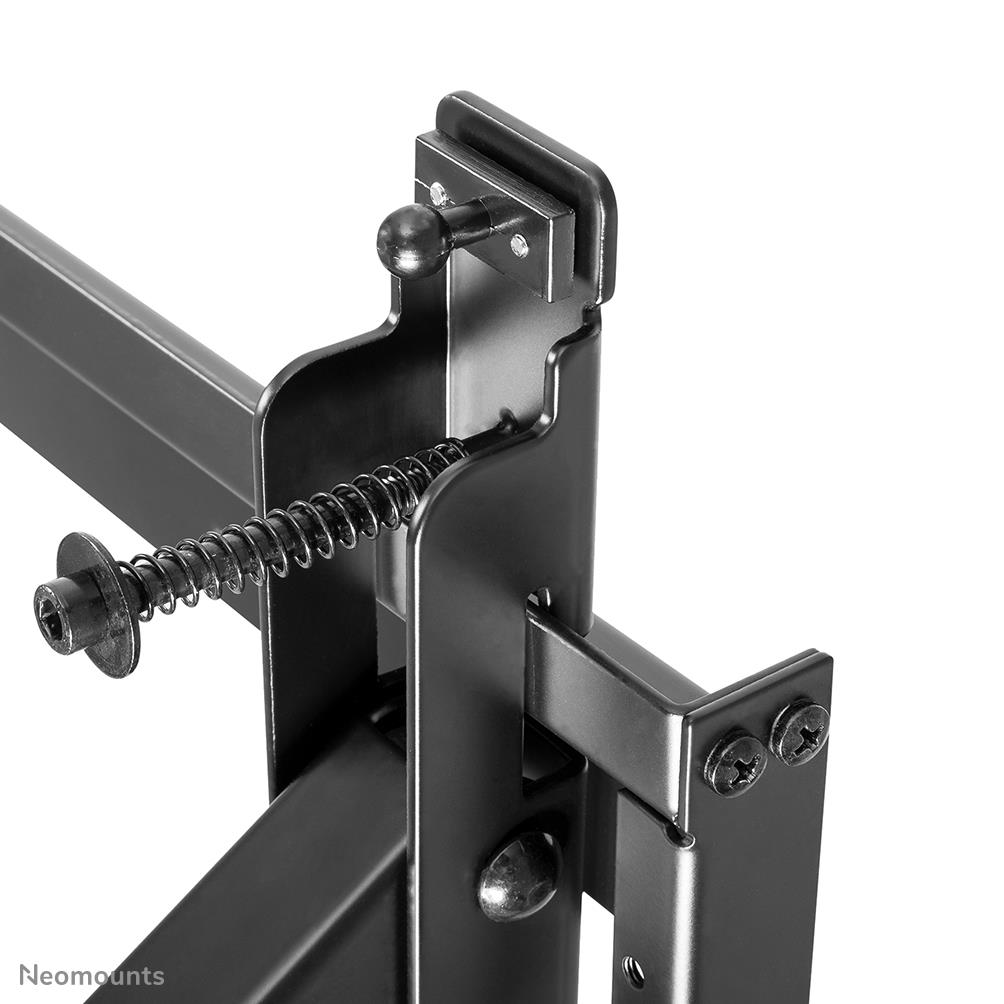

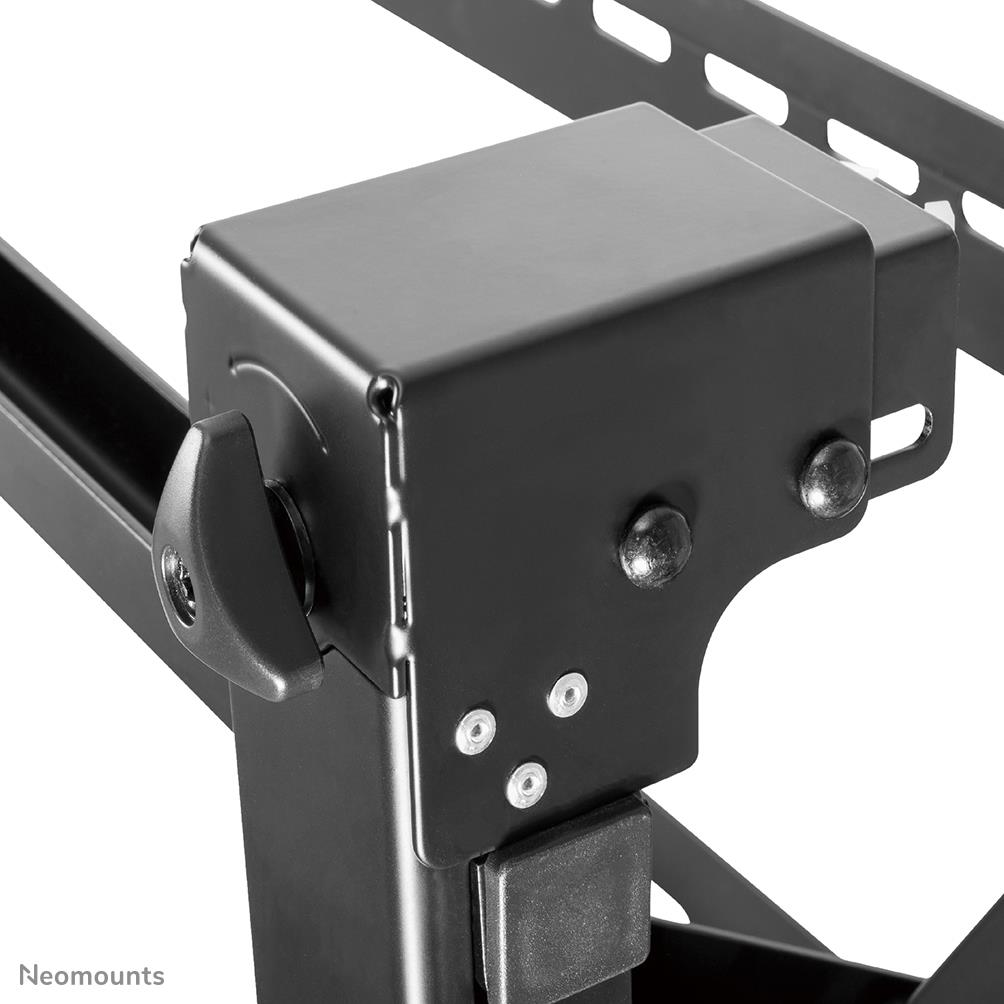

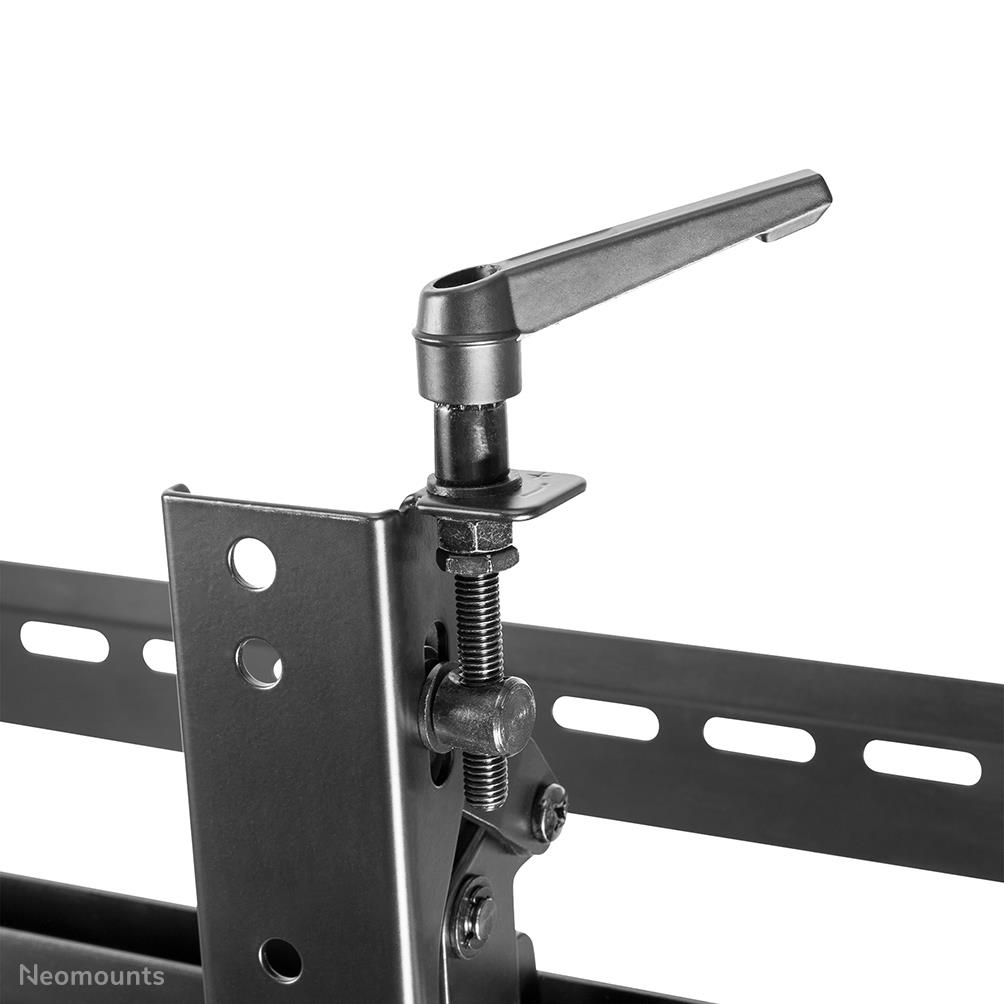

– Micro-adjustment at 8 points for seamless display alignment and level

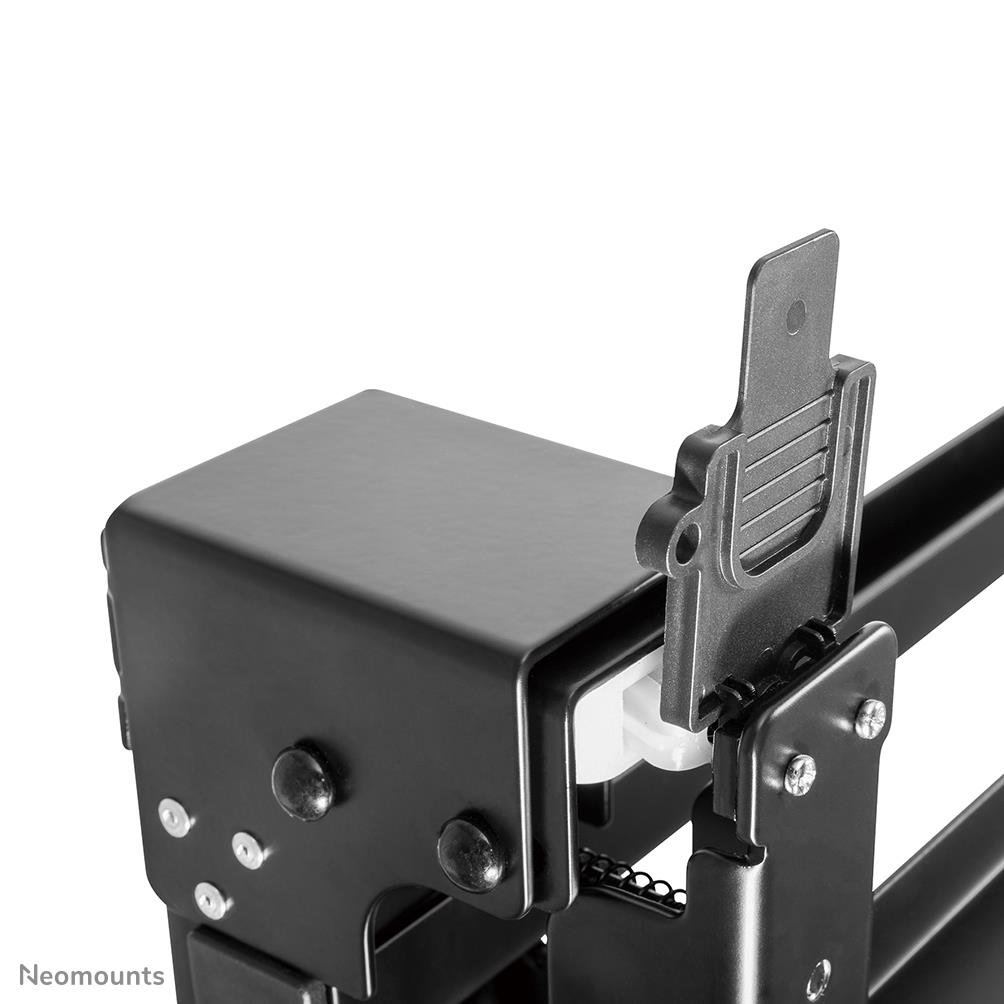

– Lock and unlock switch knob help to lock/release display out of the pop-out module
– Kickstand provides 12° of tilt for easy cable management and maintenance
– Anti-theft design for additional security (require for a padlock)
– Protects displays by removing the possibility of accidental pop-outs via the plastic locking pieces.
All installation material is included with the product.
| Summary | Neomounts LED-VW2000BLACK Videowall wall mount 32-75" – pop-out – max 70 kg. Maximum weight capacity: 70 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 – 12°. Product colour: Black |
|---|---|
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=LED-VW2000BLACK |
| Category Code | SDM |
| Unit Box Height | 0.52 |
| Unit Box Length | 1.03 |
| Unit Box Width | 0.21 |
| Maximum screen size | 75 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 70 kg |
| Maximum weight capacity (per display) | 70 kg |
| Minimum screen size | 32 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm |

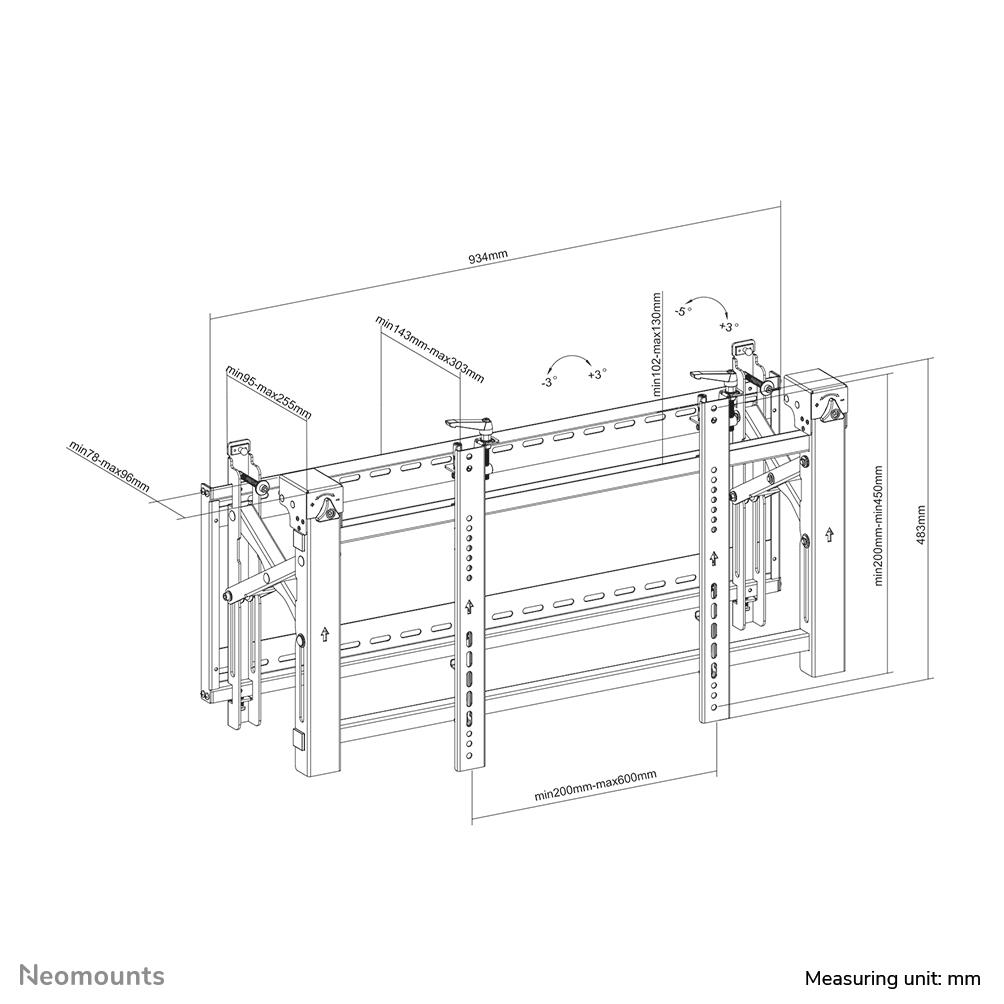

| Distance to the wall (max) | 306 mm |
| Distance to the wall (min) | 143 mm |
| Tilt angle range | 0 – 12 ° |
| Accepts padlock | Yes |
| Housing material | Steel |
| Product colour | Black |
| Type | Fixed floor stand |
| Weight | 12810 g |
| Package depth | 510 mm |
| Package height | 1030 mm |
| Package weight | 13700 g |
| Package width | 200 mm |
| Package net weight | 13700 g |
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 16300 g |
| Master (outer) case height | 200 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case net weight | 13700 g |
| Master (outer) case width | 1030 mm |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 11 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.1125 cubm |
| Unit Calculated Weight | 16.6 kg |
