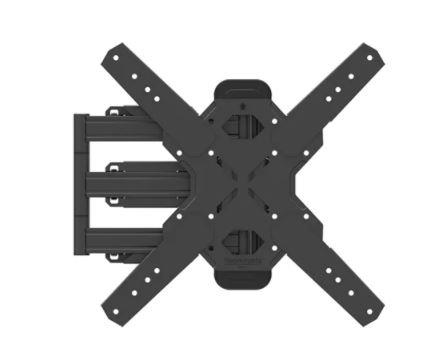

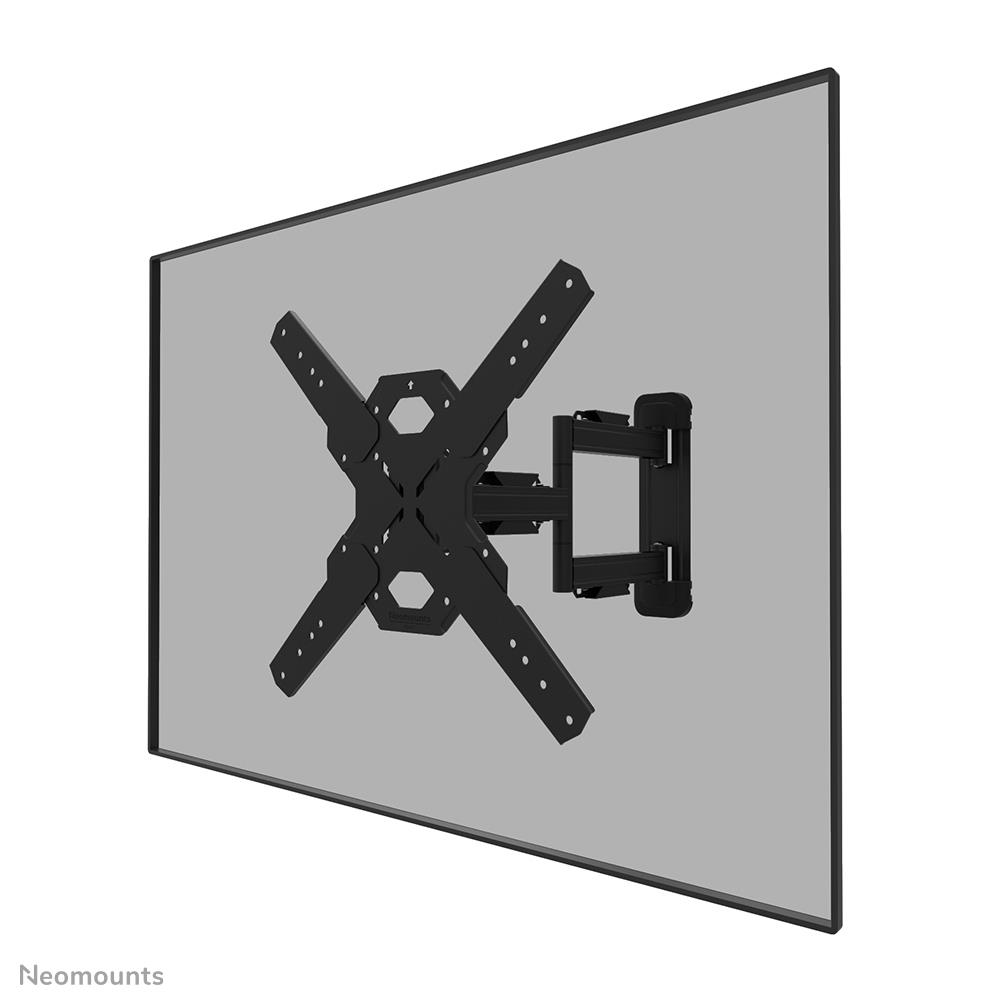

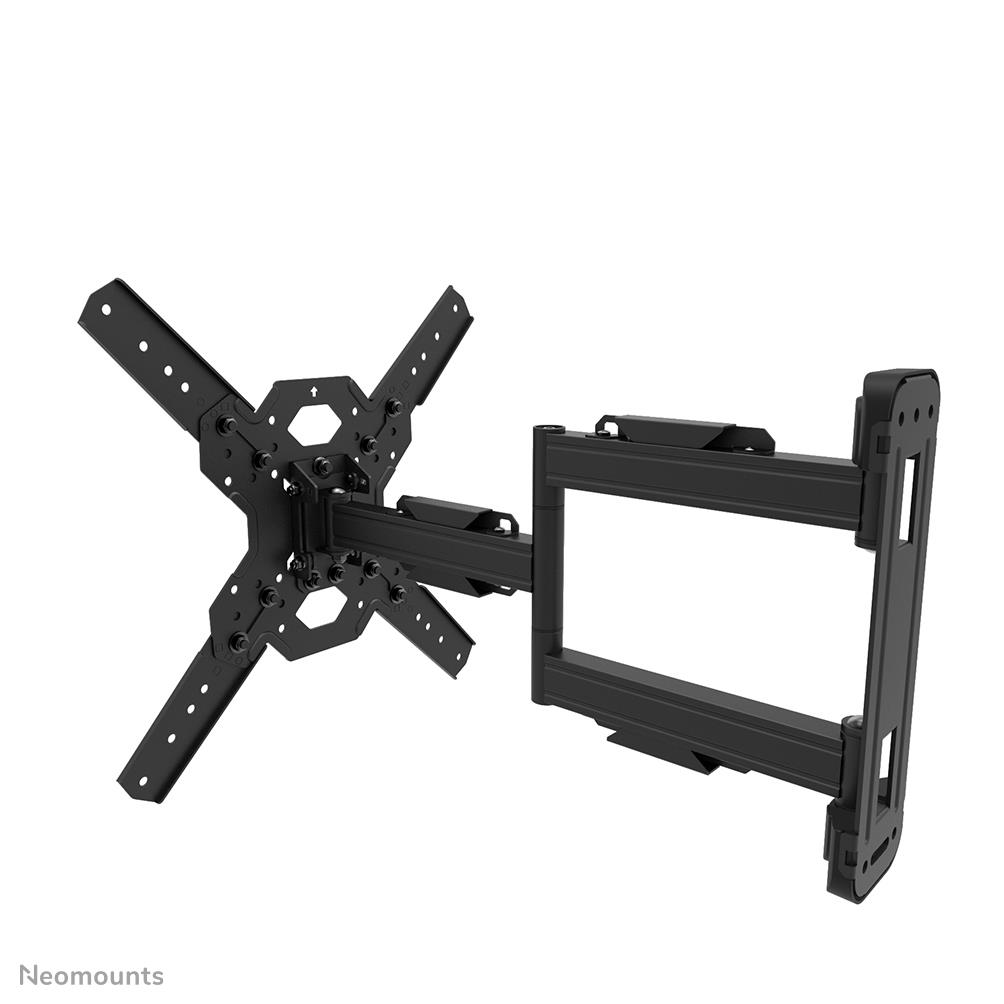

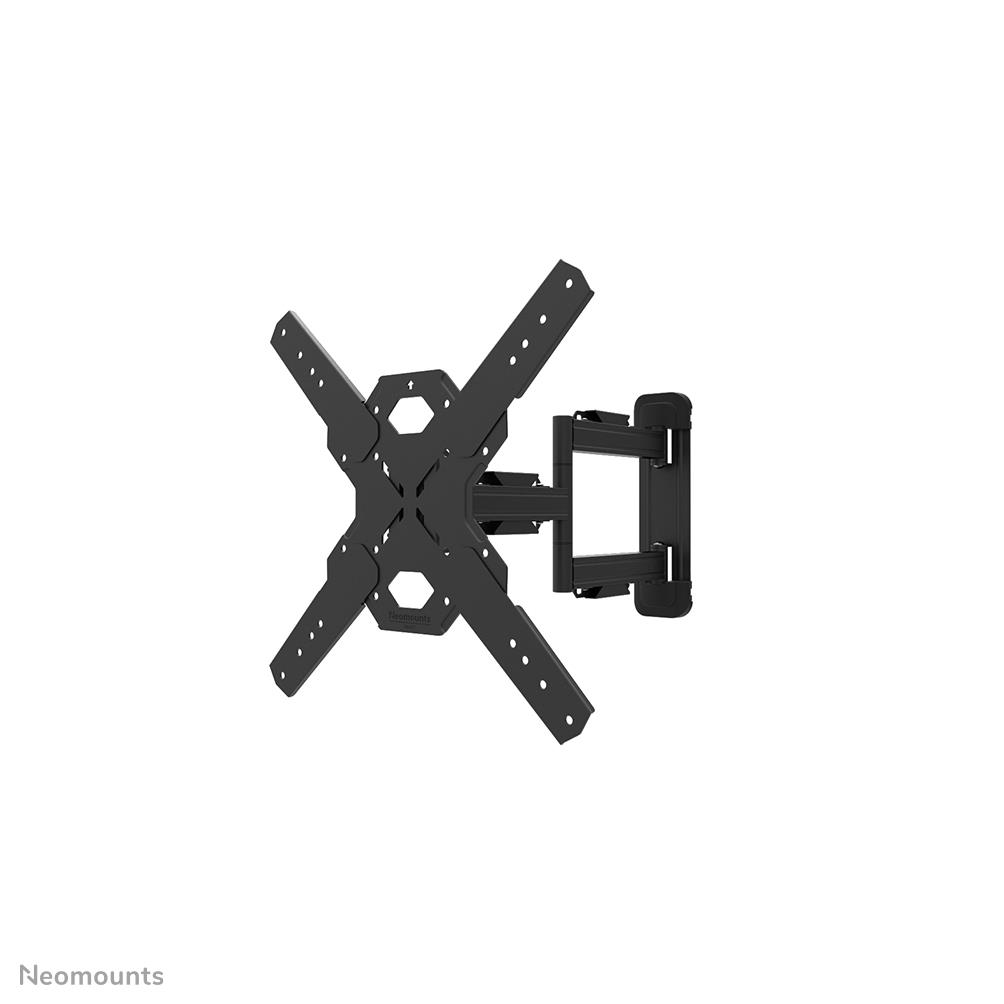

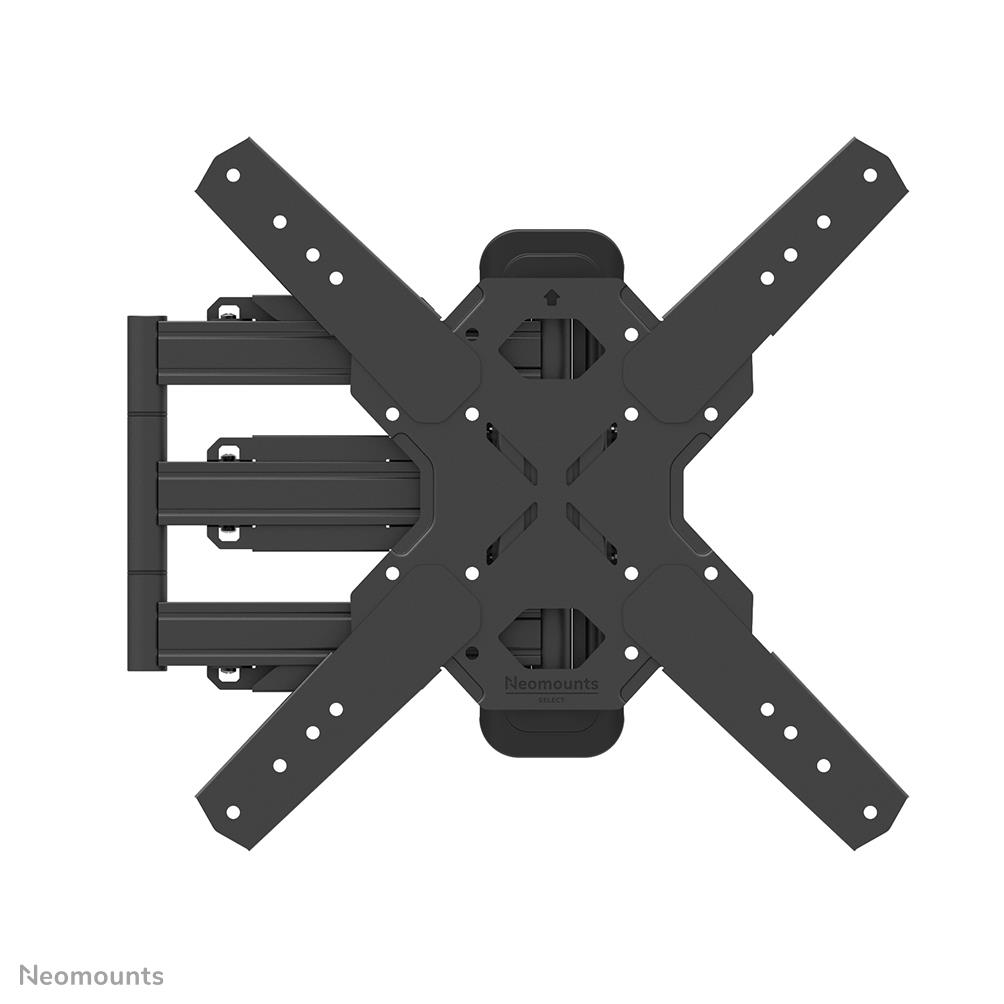

The Neomounts WL40S-850BL14 LEVEL is a full motion wall mount for flat screens up to 65″ with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (45°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

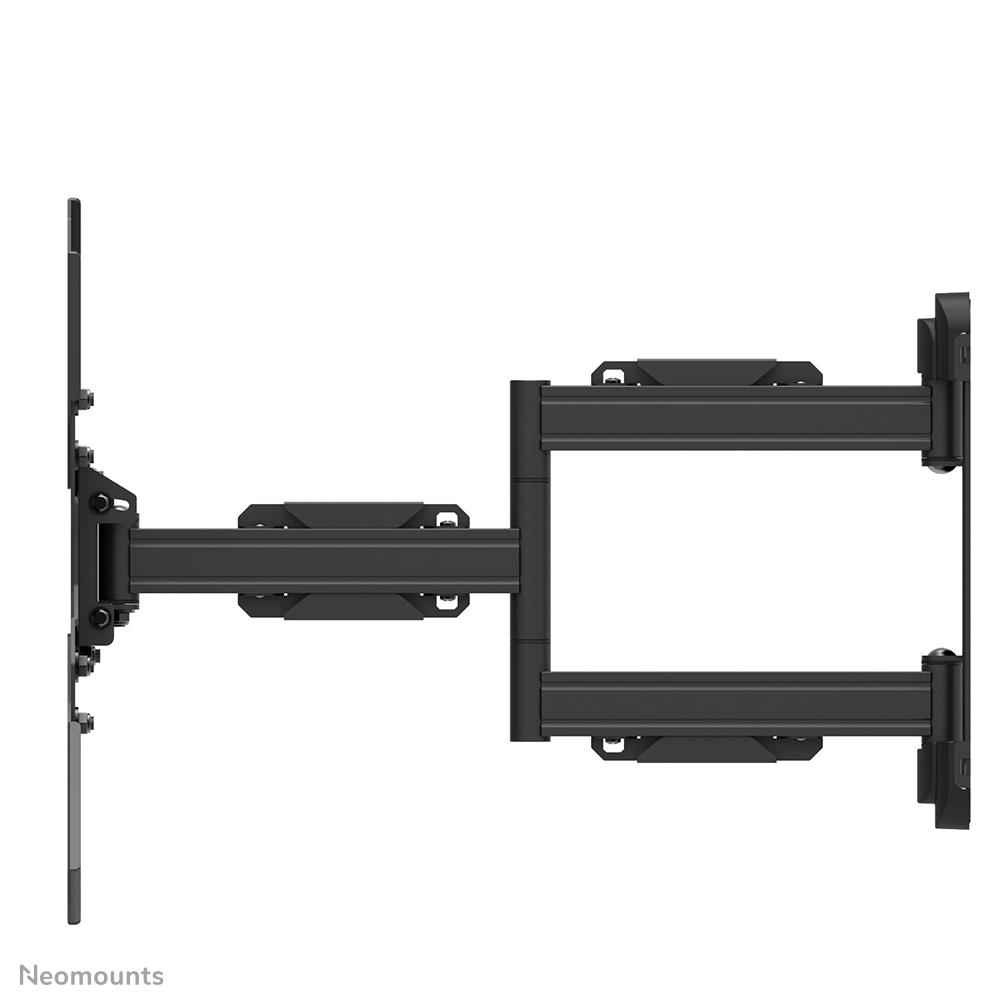

The LEVEL-850 wall mount has a depth of 4,7-55,5 cm and is suitable for screens that meet VESA hole pattern 100×100 to 400x400mm.

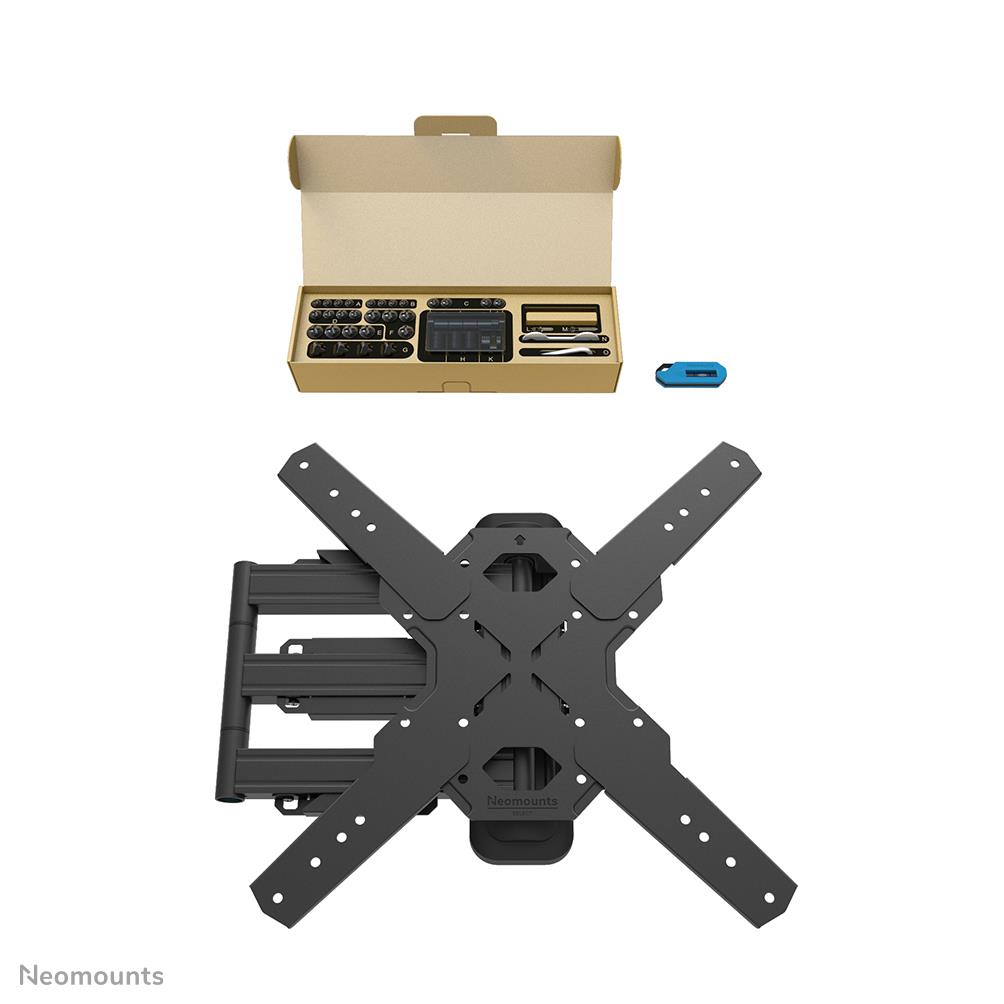

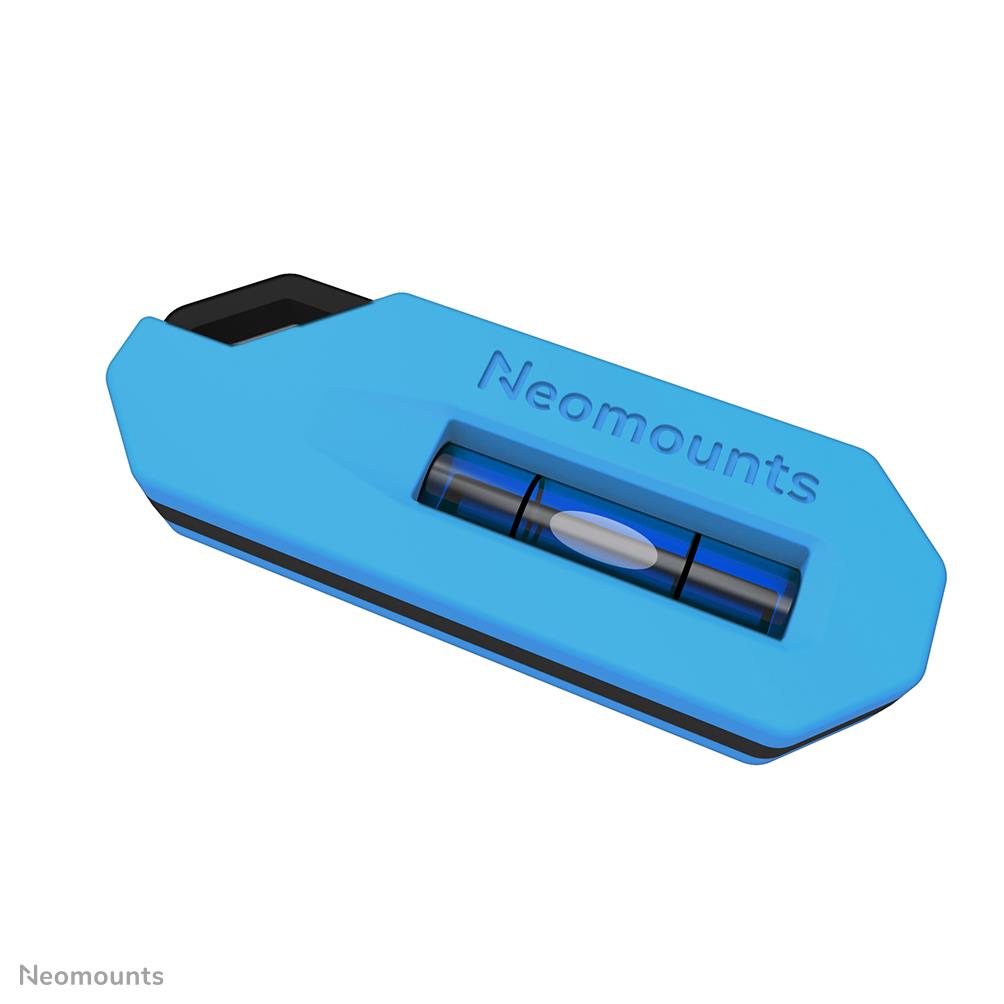

The WL40S-850BL14 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.

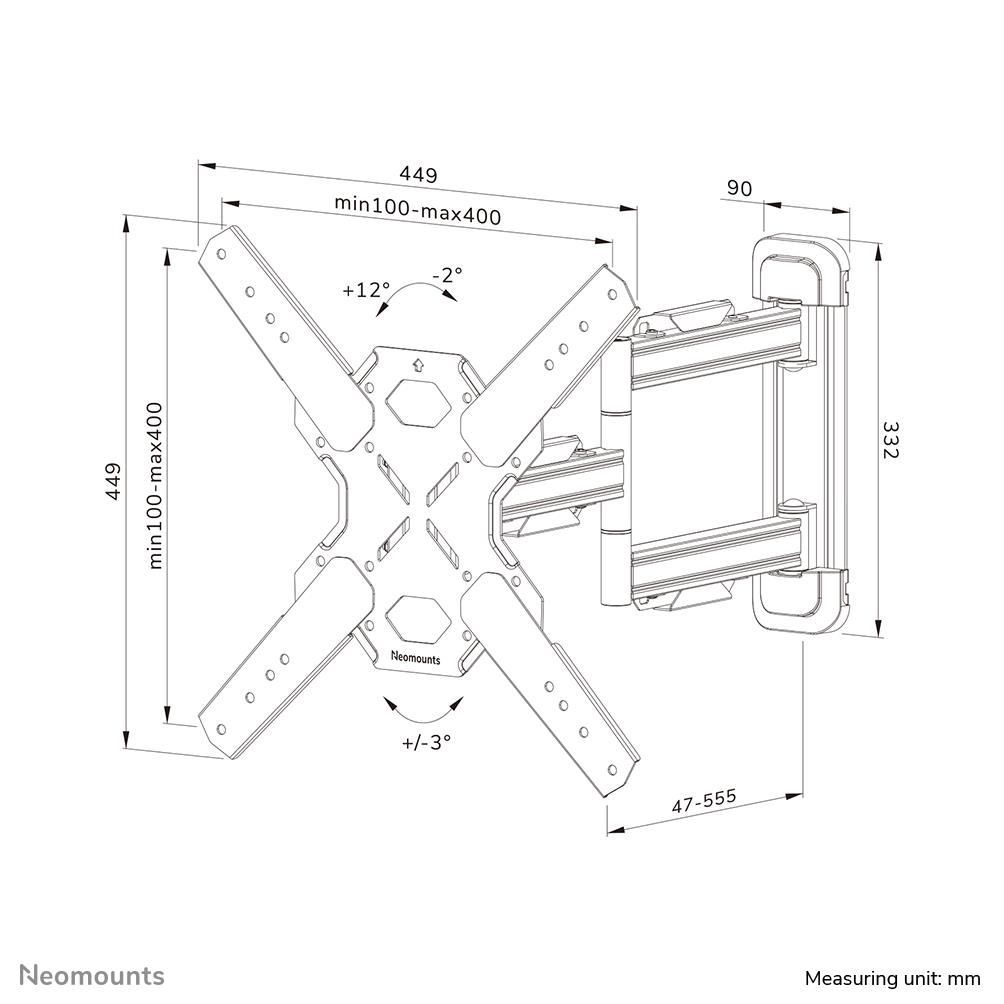

| Summary | Neomounts WL40S-850BL14 TV mount wall 40-65" – full motion – fast installation. Maximum weight capacity: 40 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -2 – 12°, Swivel angle range: 0 – 45°, Angle of rotation: 6°, Distance to the wall (min): 4.7 cm, Distance to the wall (max): 55.5 cm. Product colour: Black |
|---|---|
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL40S-850BL14 |
| Category Code | TMS |
| Unit Box Height | 0.34 |
| Unit Box Length | 0.515 |
| Unit Box Width | 0.07 |
| Maximum screen size | 65 " |
| Maximum VESA mount | 400 x 400 mm |
| Maximum weight capacity | 40 kg |
| Maximum weight capacity (per display) | 40 kg |
| Minimum screen size | 40 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 150/100 x 200/200 x 100/200 x 200/200 x 300/200 x 400/300 x 200/300 x 300/400 x 200/400 x 300/400 x 400 mm |
| Angle of rotation | 6 ° |
| Cable management | Yes |
| Distance to the wall (max) | 555 mm |

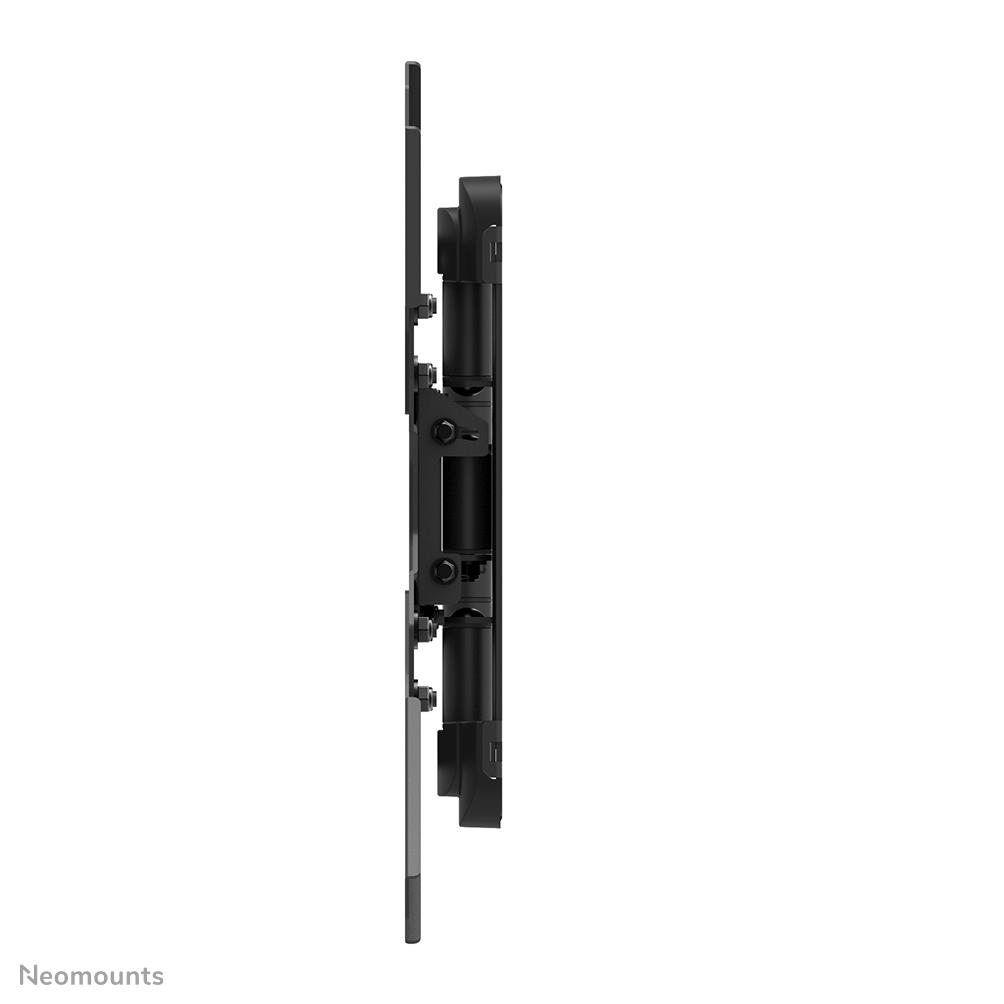

| Distance to the wall (min) | 47 mm |
| Height adjustment | No |

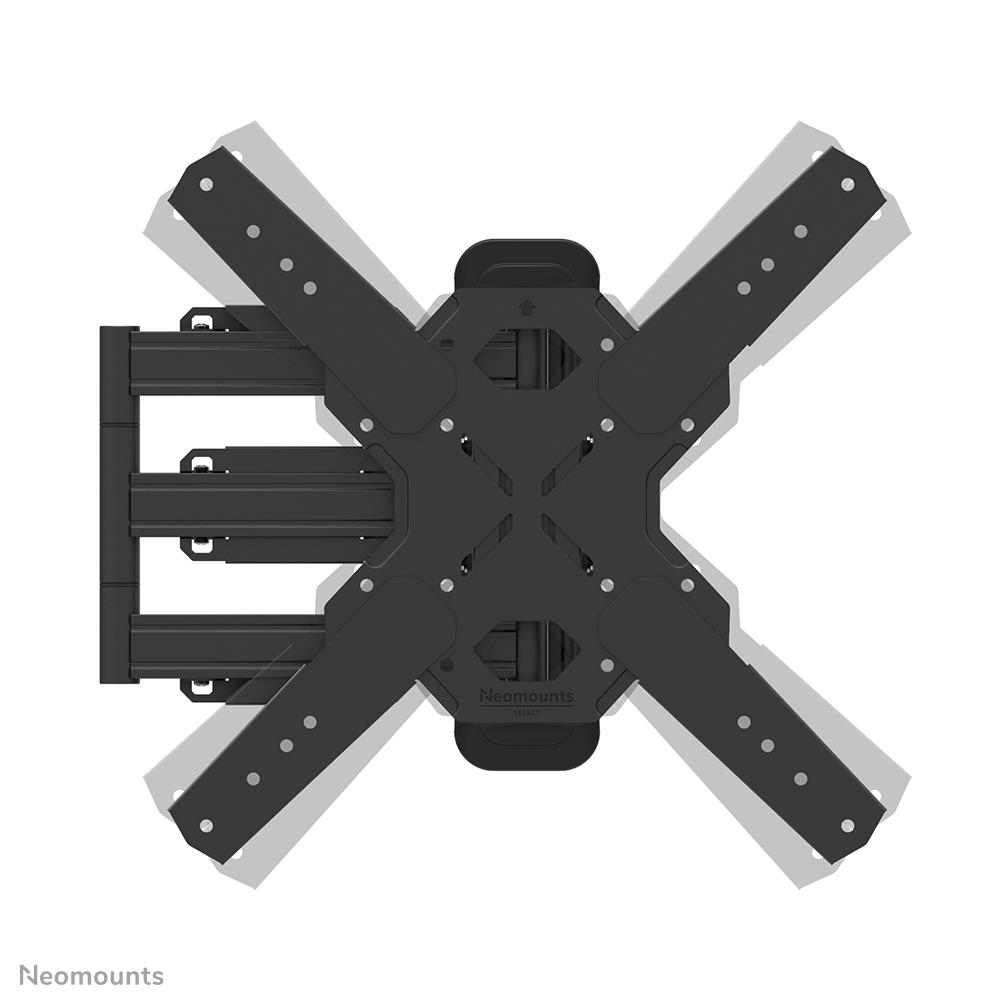

| Pivot angle | -3 – 3 ° |
| Rotating | Yes |
| Swivel angle | 45 ° |
| Swivel angle range | 0 – 45 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -2 – 12 ° |
| Type | Full motion |
| Housing material | Steel |
| Product colour | Black |
| Country of origin | China |
| Hex key included | Yes |
| Lockable | Not lockable |

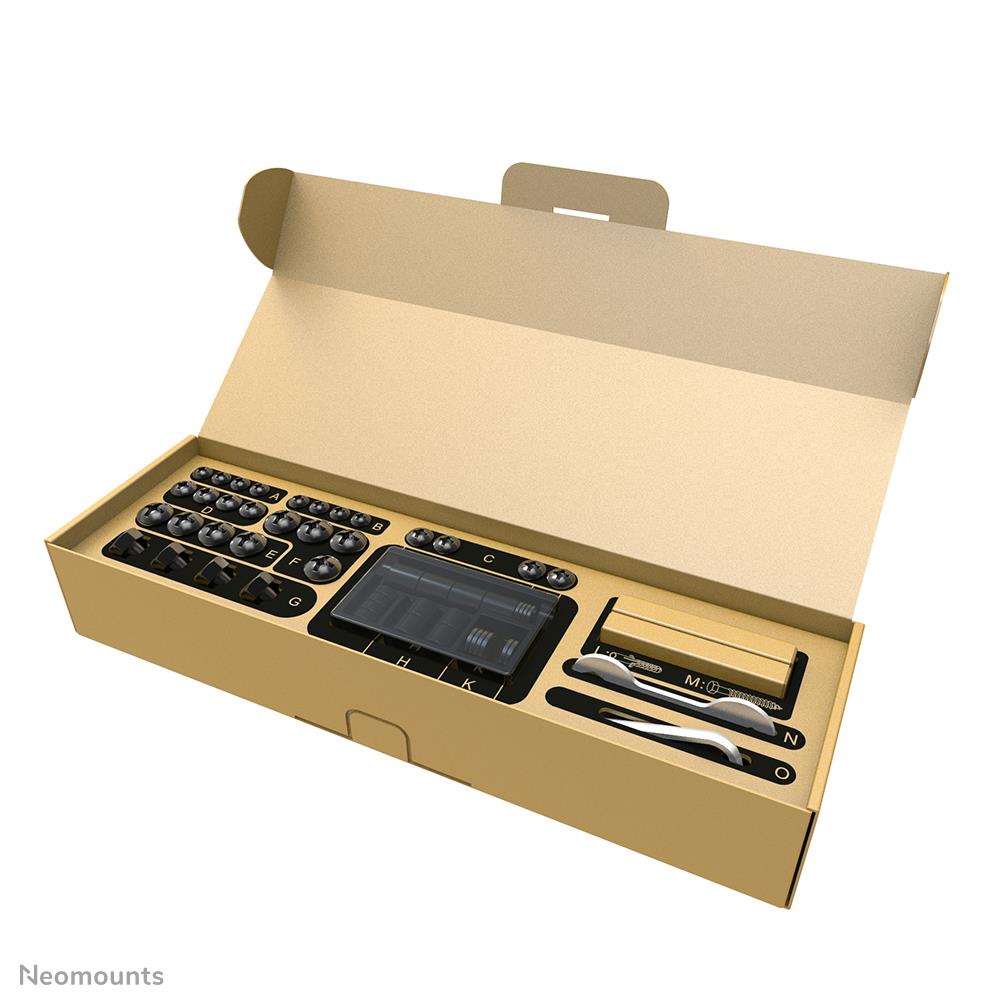

| Mounting kit | Yes |
| Number of wrenches included | 1 |
| Package net weight | 7000 g |
| Quantity per pack | 1 pc(s) |
| Depth | 47 mm |
| Depth (max) | 47 mm |
| Height | 449 mm |
| Weight | 5900 g |
| Width | 449 mm |
| Package depth | 342 mm |
| Package height | 62 mm |
| Package weight | 7000 g |
| Package width | 503 mm |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 21400 g |
| Master (outer) case height | 362 mm |
| Master (outer) case length | 204 mm |
| Master (outer) case net weight | 18300 g |
| Master (outer) case width | 523 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 84 pc(s) |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01226 cubm |
| Unit Calculated Weight | 7.1 kg |
