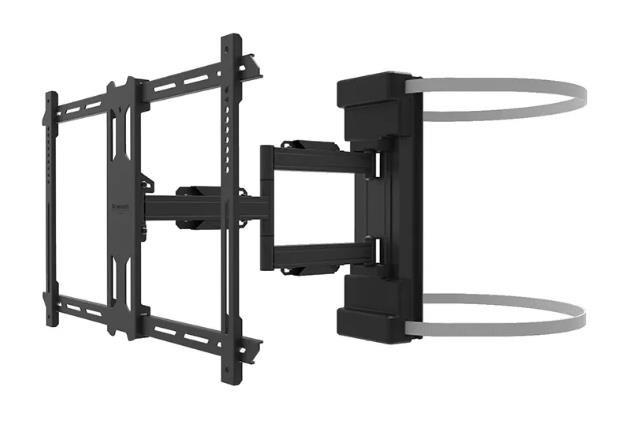

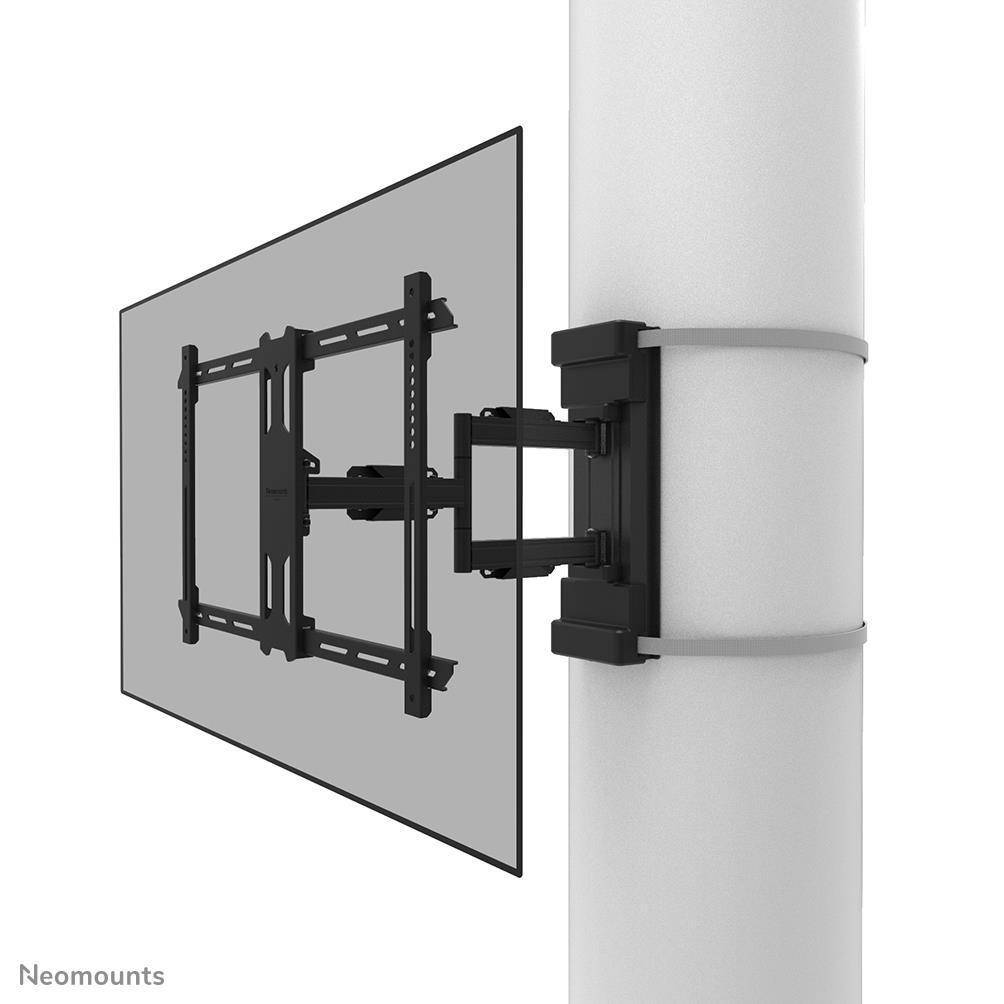

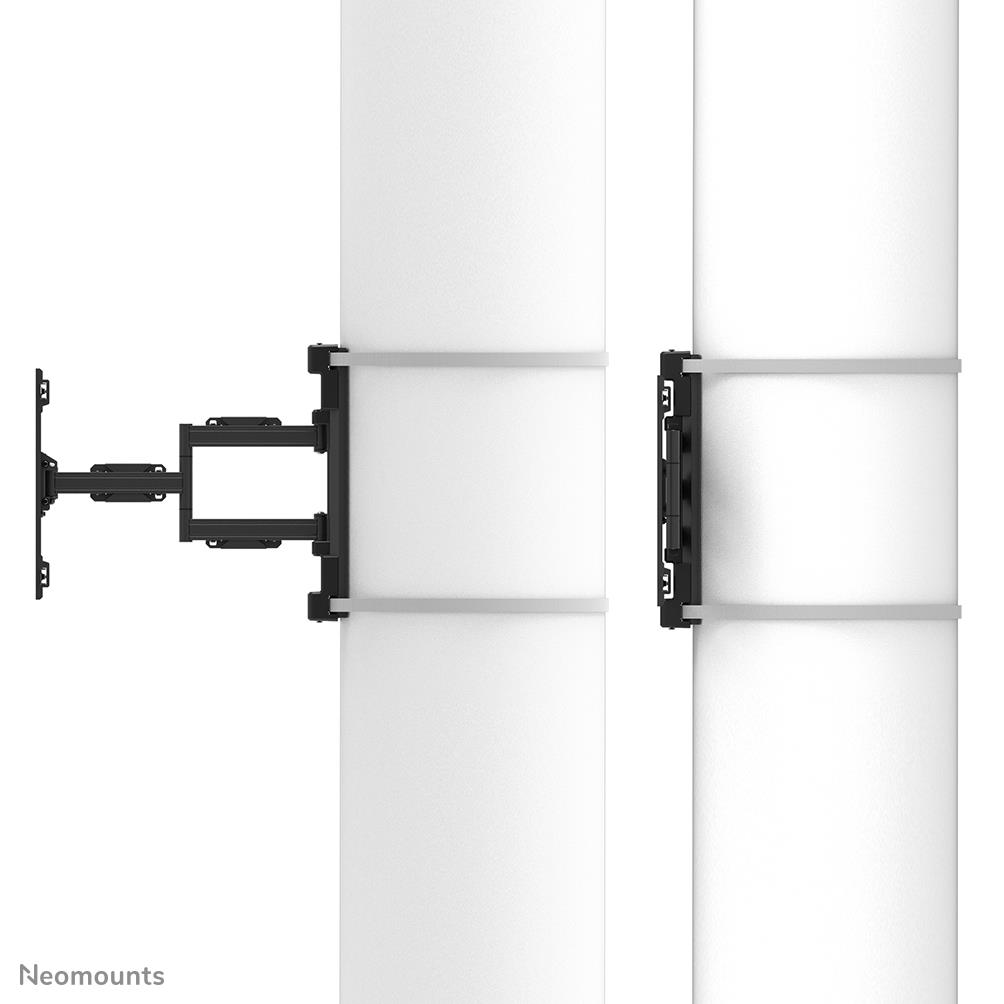

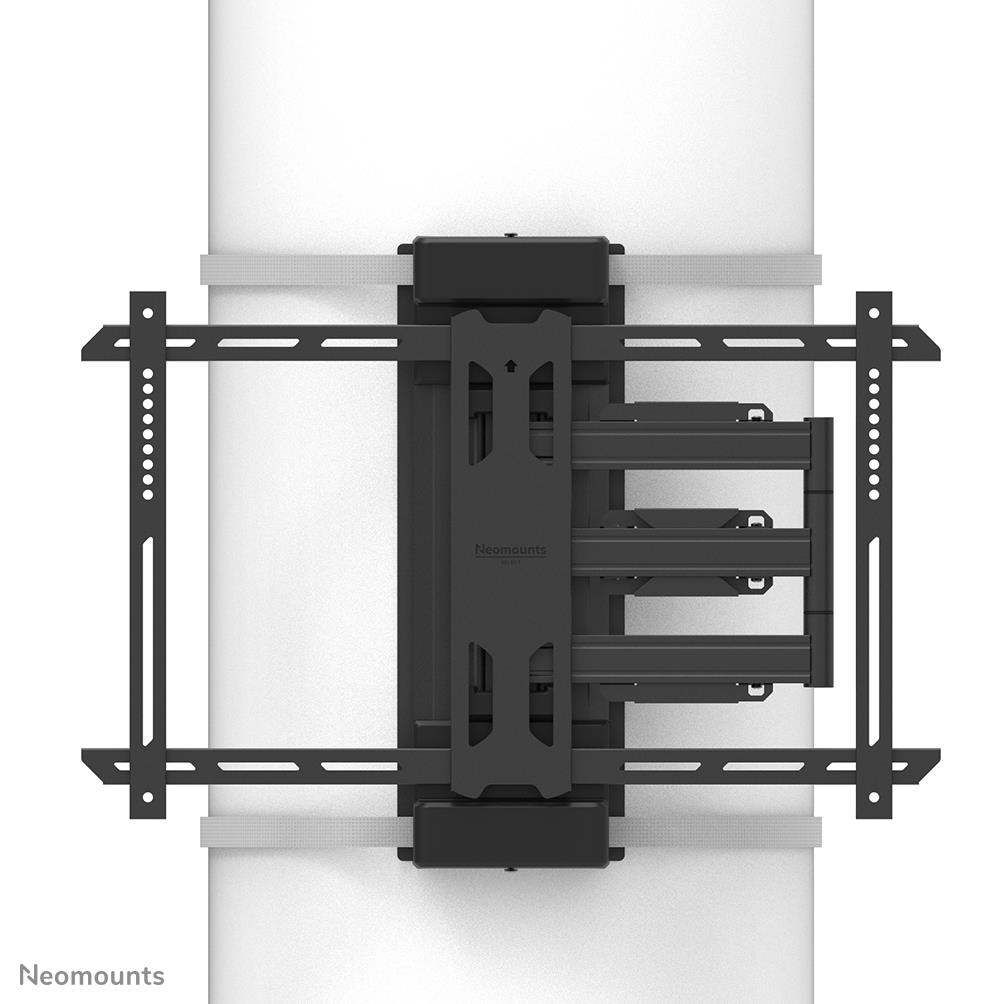

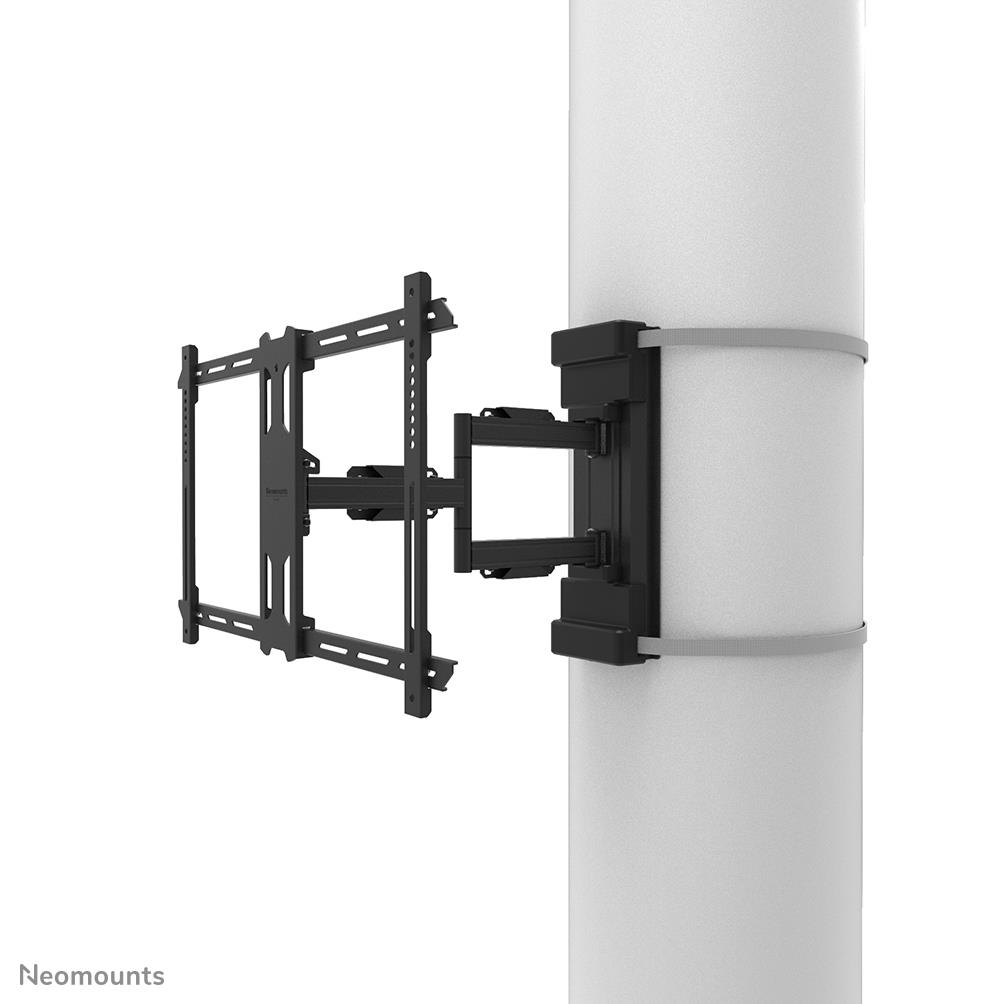

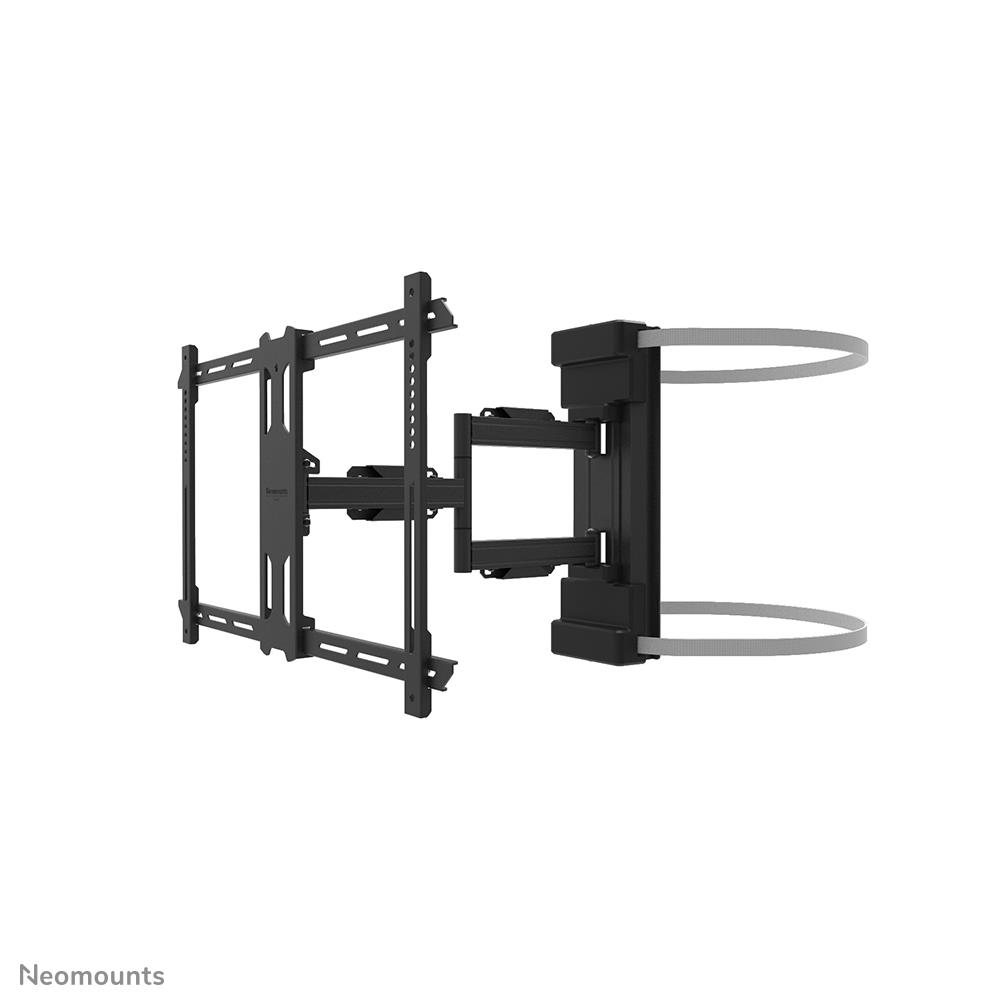

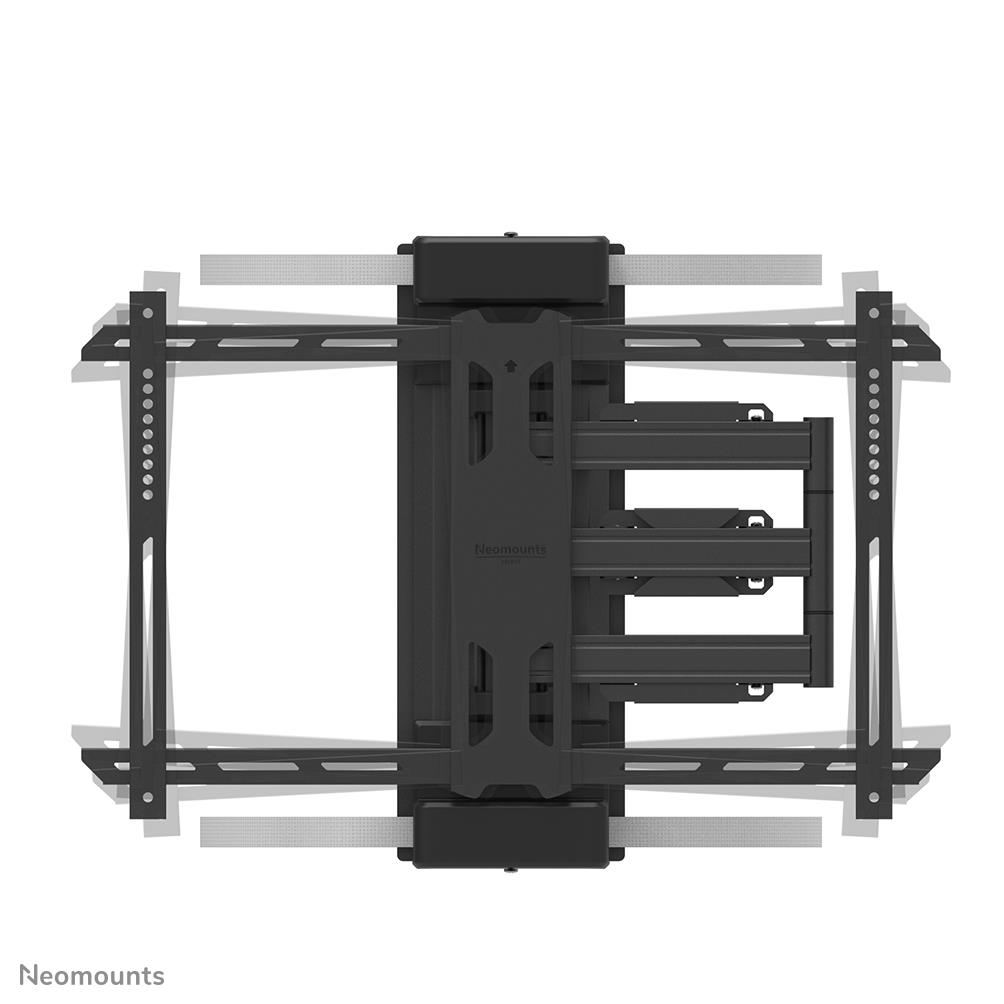

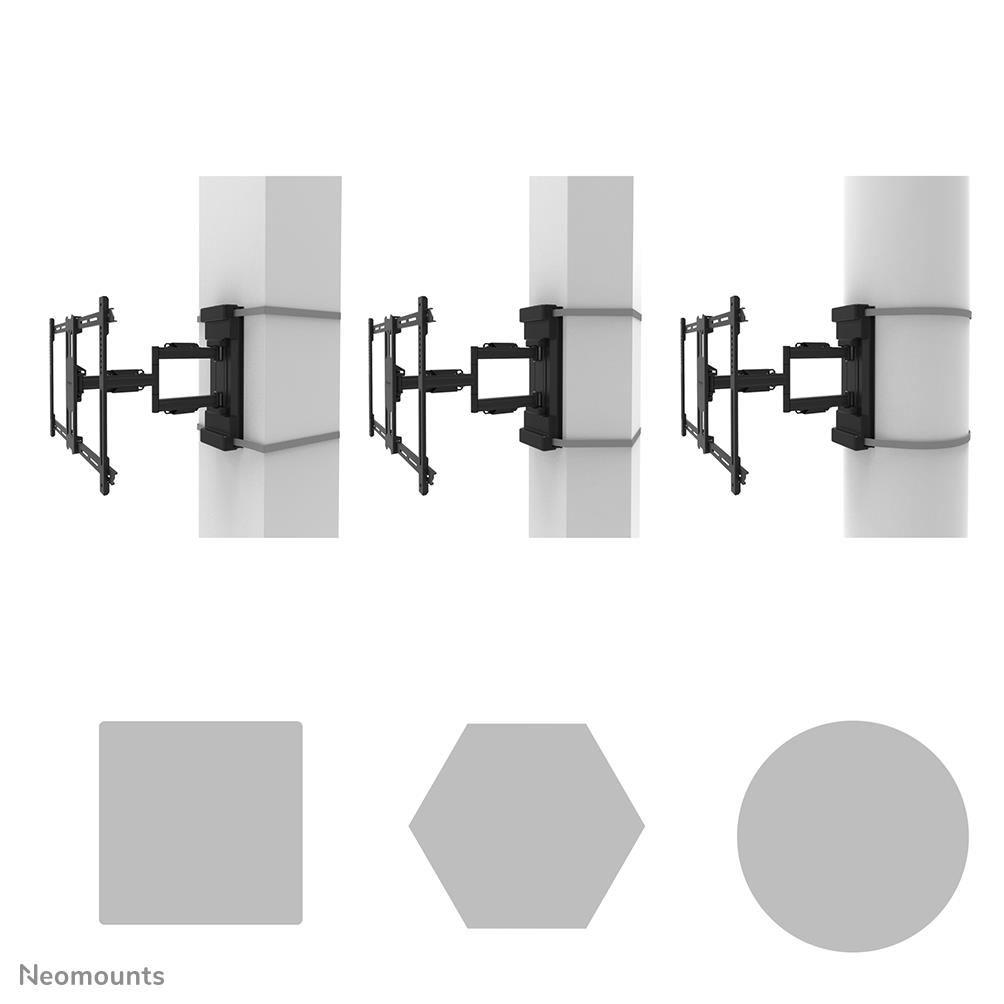

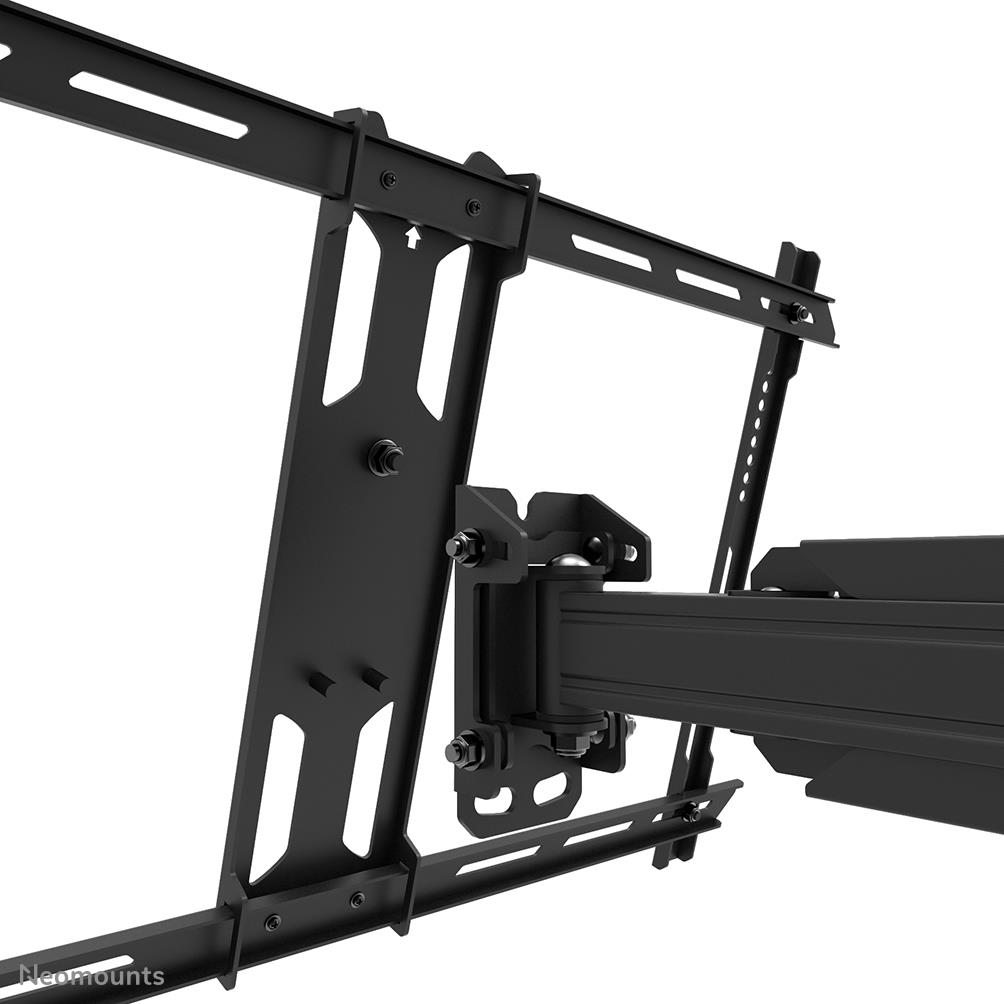

The Neomounts WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.

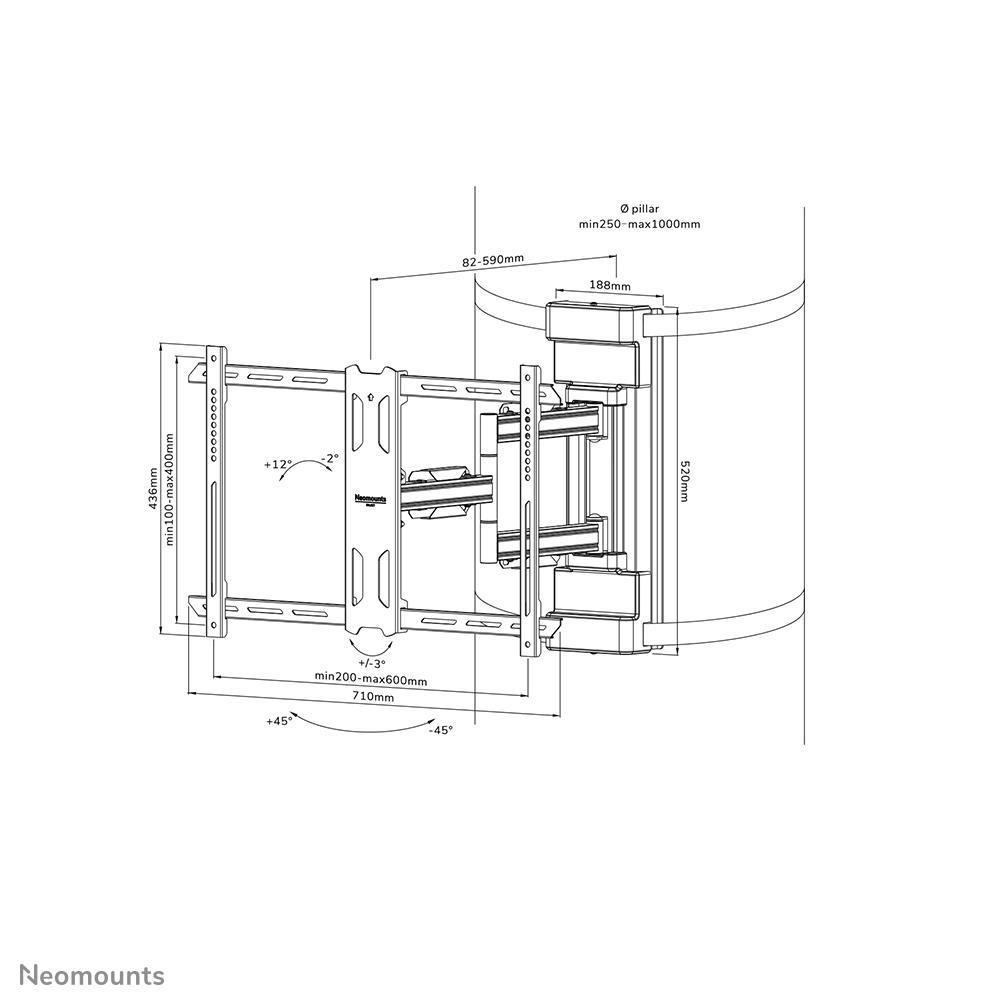

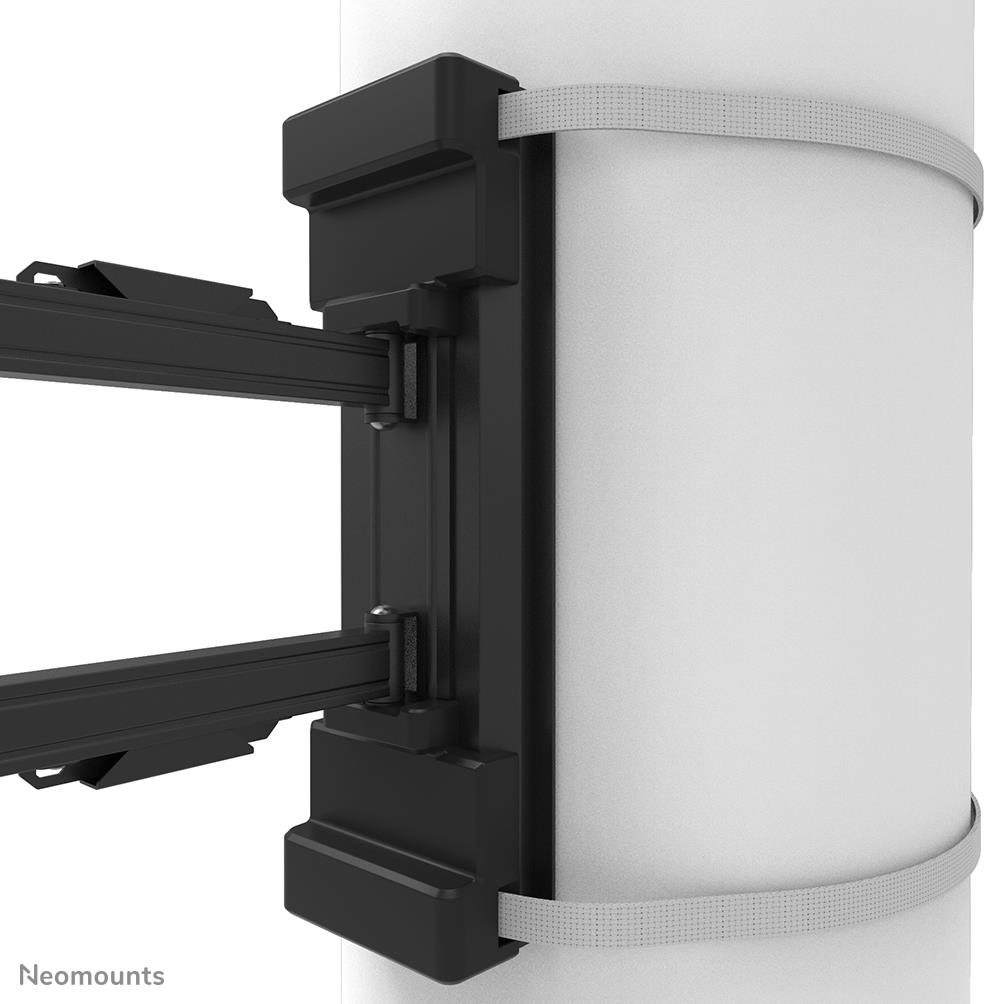

The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm.

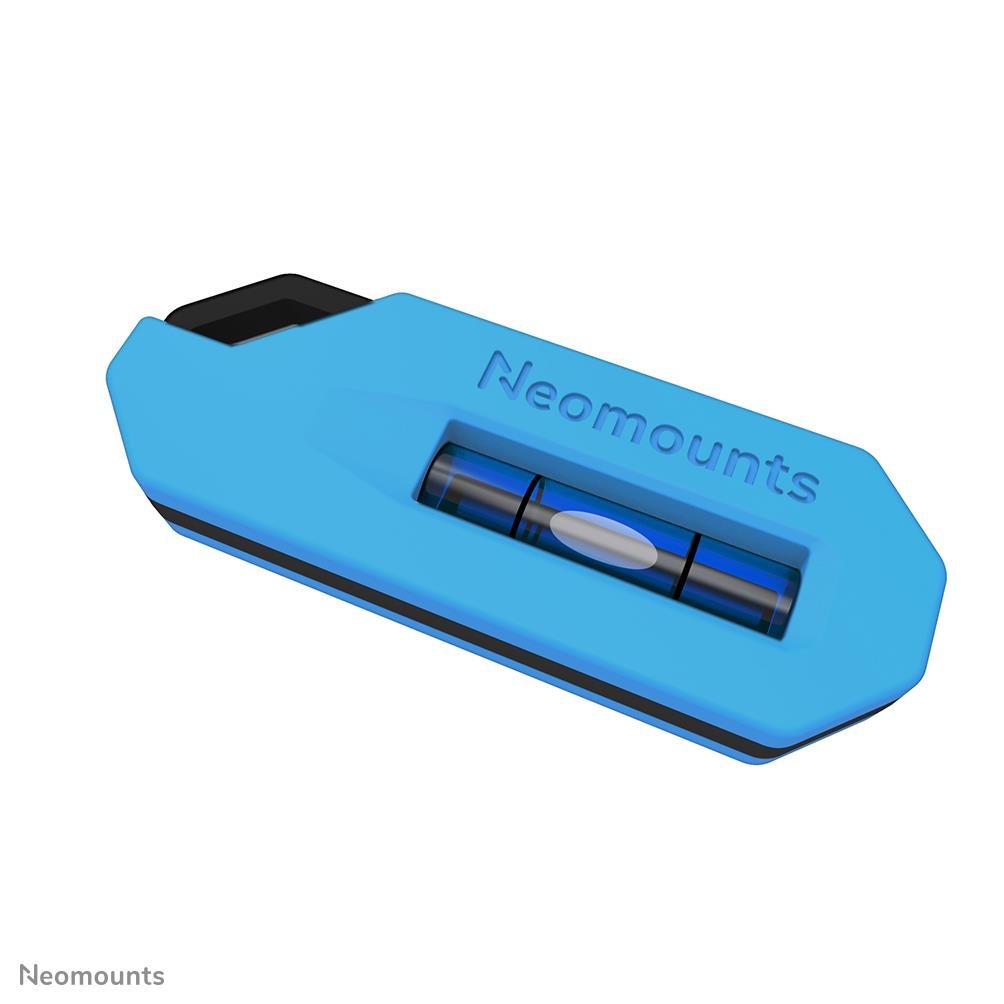

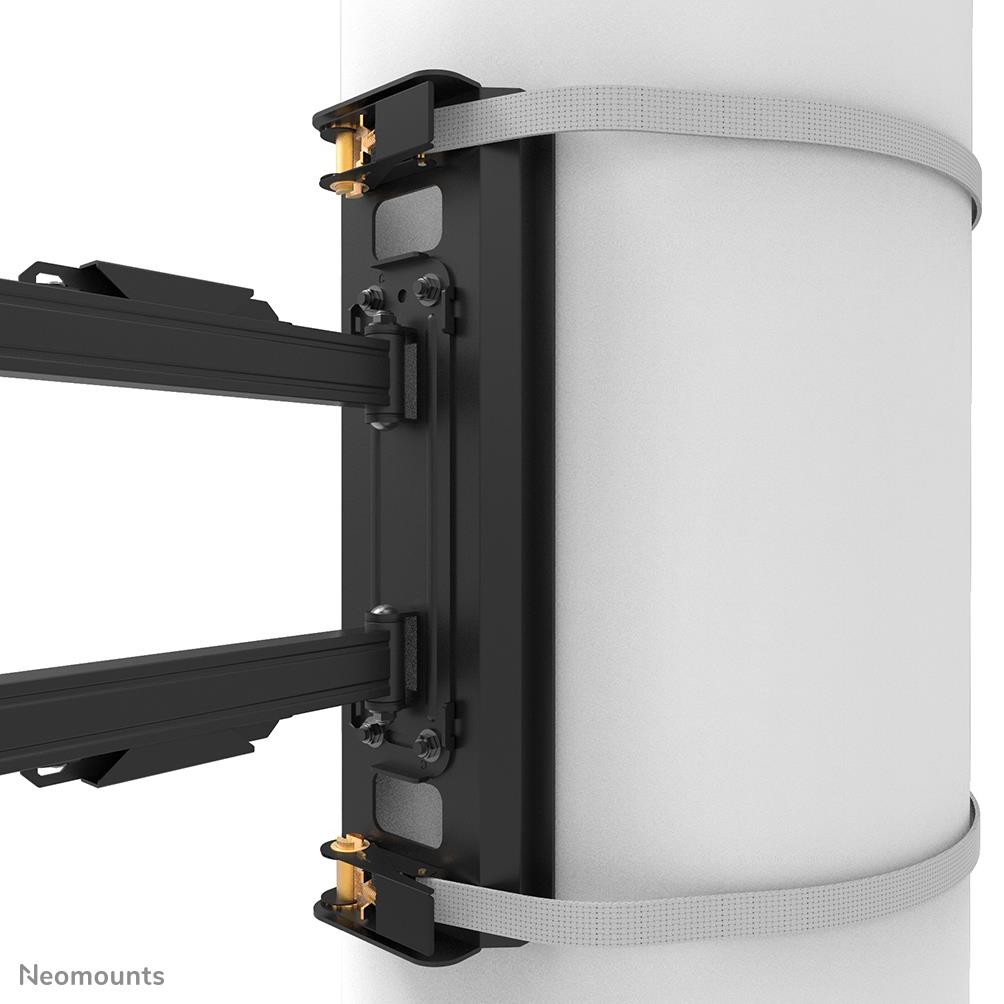

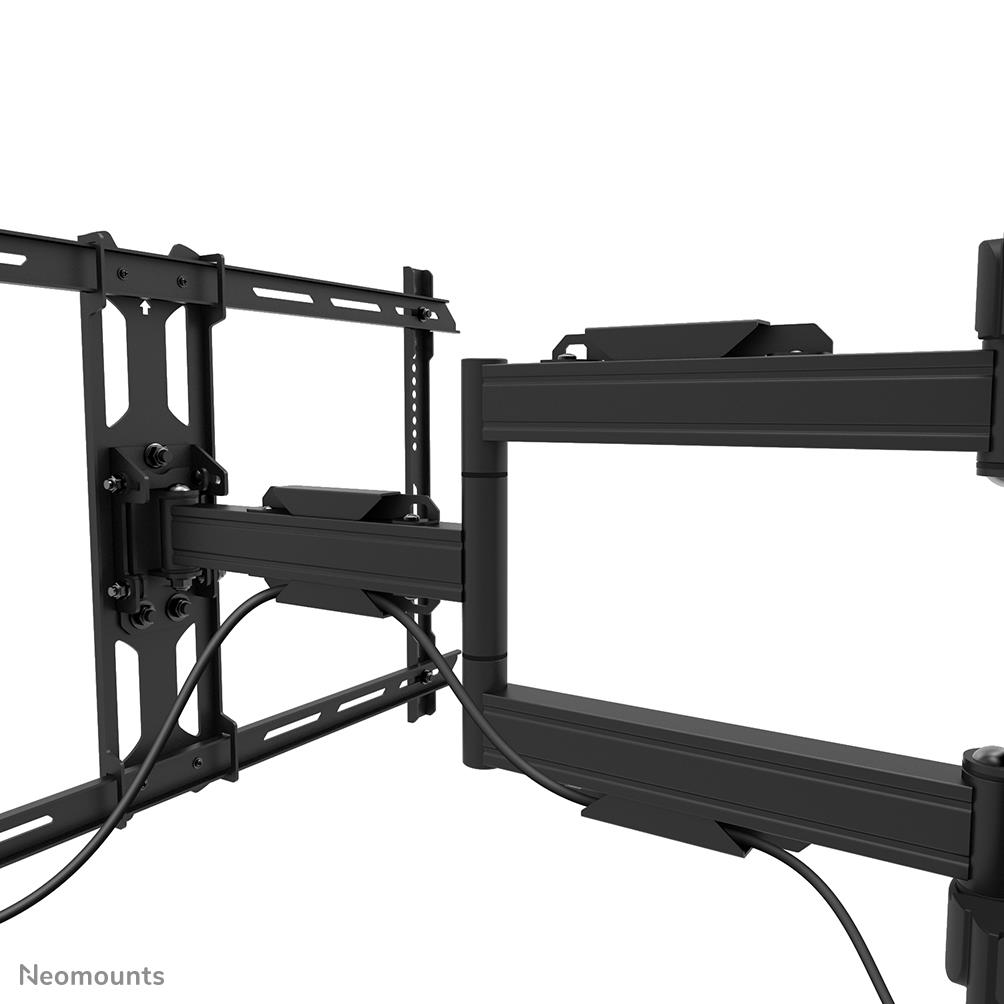

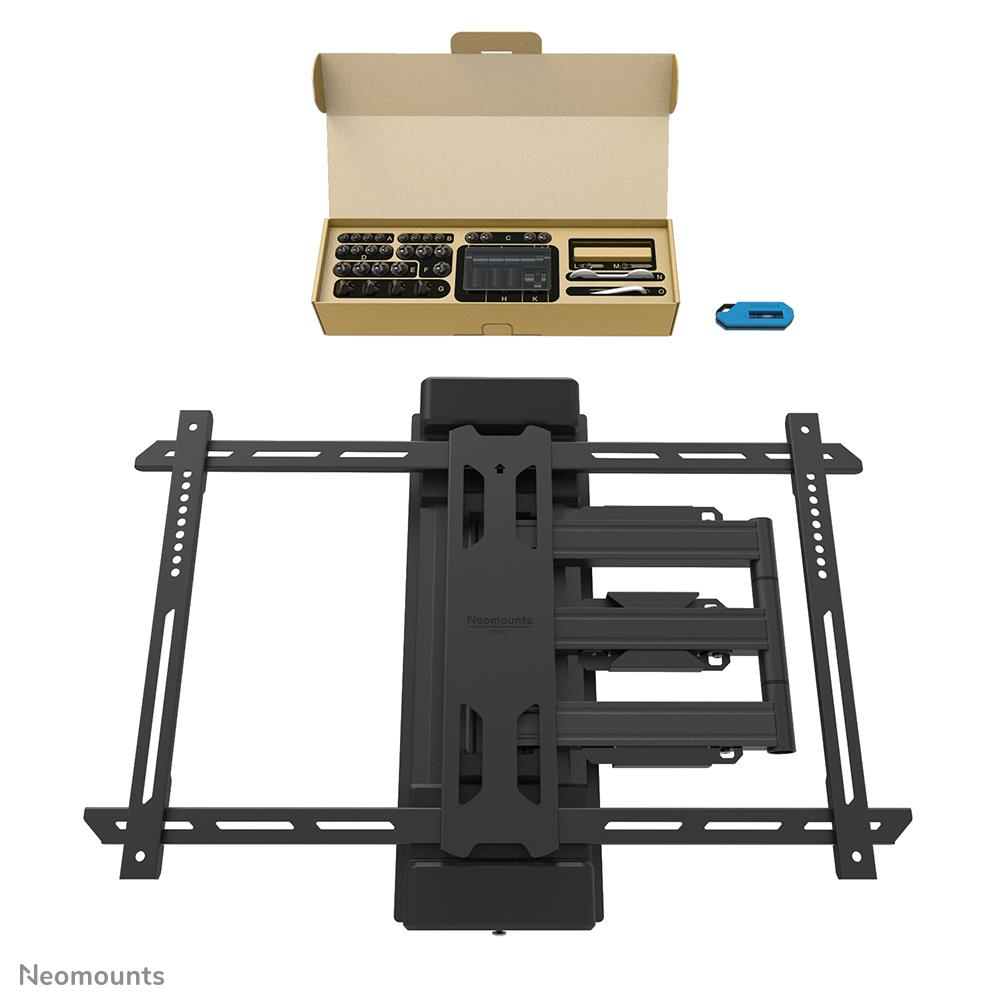

The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Specifikacijos
| Summary | Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm. Maximum weight capacity: 45 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -2 - 12°, Swivel angle range: -45 - 45°, Angle of rotation: 6°, Distance to the wall (min): 8.2 cm, Distance to the wall (max): 59 cm. Product colour: Black |
|---|---|
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL40S-910BL16 |
| Category Code | TMS |
| Unit Box Height | 0.39 |
| Unit Box Length | 0.755 |
| Unit Box Width | 0.1 |
| Maximum screen size | 70 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 45 kg |
| Maximum weight capacity (per display) | 45 kg |
| Minimum screen size | 40 " |
| Minimum VESA mount | 200 x 100 mm |
| Mounting type | Pole |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 400/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/600 x 200/600 x 300/600 x 400 mm |
| Adjustable depth | Yes |
| Angle of rotation | 6 ° |
| Cable management | Yes |
| Distance to the wall (max) | 590 mm |
| Distance to the wall (min) | 82 mm |
| Pivot angle | -3 - 3 ° |
| Rotating | Yes |
| Swivel angle range | -45 - 45 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12 ° |
| Type | Full motion |
| Housing material | Steel |
| Product colour | Black |
| Compatible pole diameter (max) | 1000 mm |
| Compatible pole diameter (min) | 250 mm |
| Country of origin | China |
| Lockable | Not lockable |

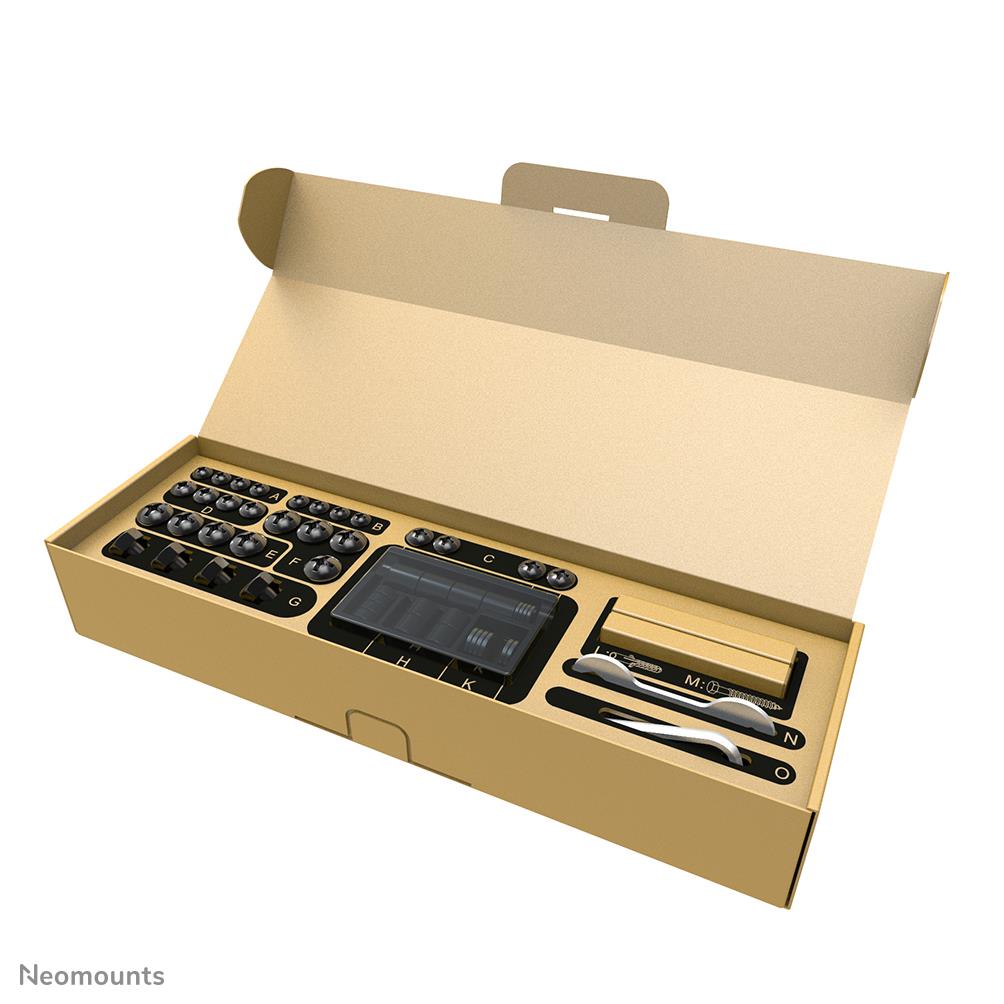

| Mounting kit | Yes |
| Package net weight | 11100 g |
| Warranty period | 5 year(s) |
| Depth | 590 mm |
| Depth (max) | 590 mm |
| Depth (min) | 82 mm |
| Height | 520 mm |
| Weight | 9500 g |
| Width | 710 mm |
| Package depth | 95 mm |
| Package height | 744 mm |
| Package weight | 11100 g |
| Package width | 386 mm |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 22800 g |
| Master (outer) case height | 764 mm |
| Master (outer) case length | 406 mm |
| Master (outer) case net weight | 19000 g |
| Master (outer) case width | 205 mm |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 34 pc(s) |
| Depth adjustment range | 82 - 590 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.02944 cubm |
| Unit Calculated Weight | 11.3 kg |
