Description:

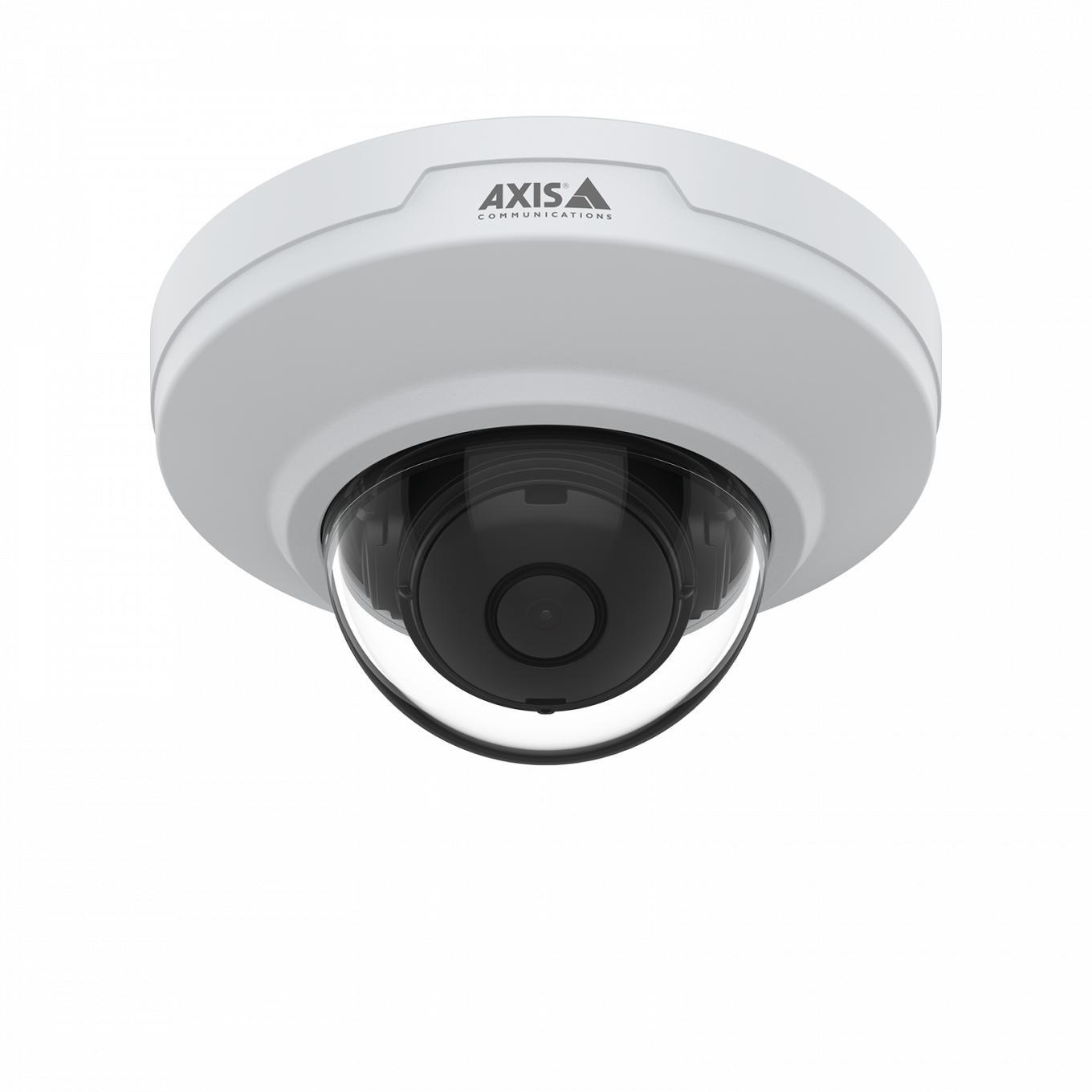

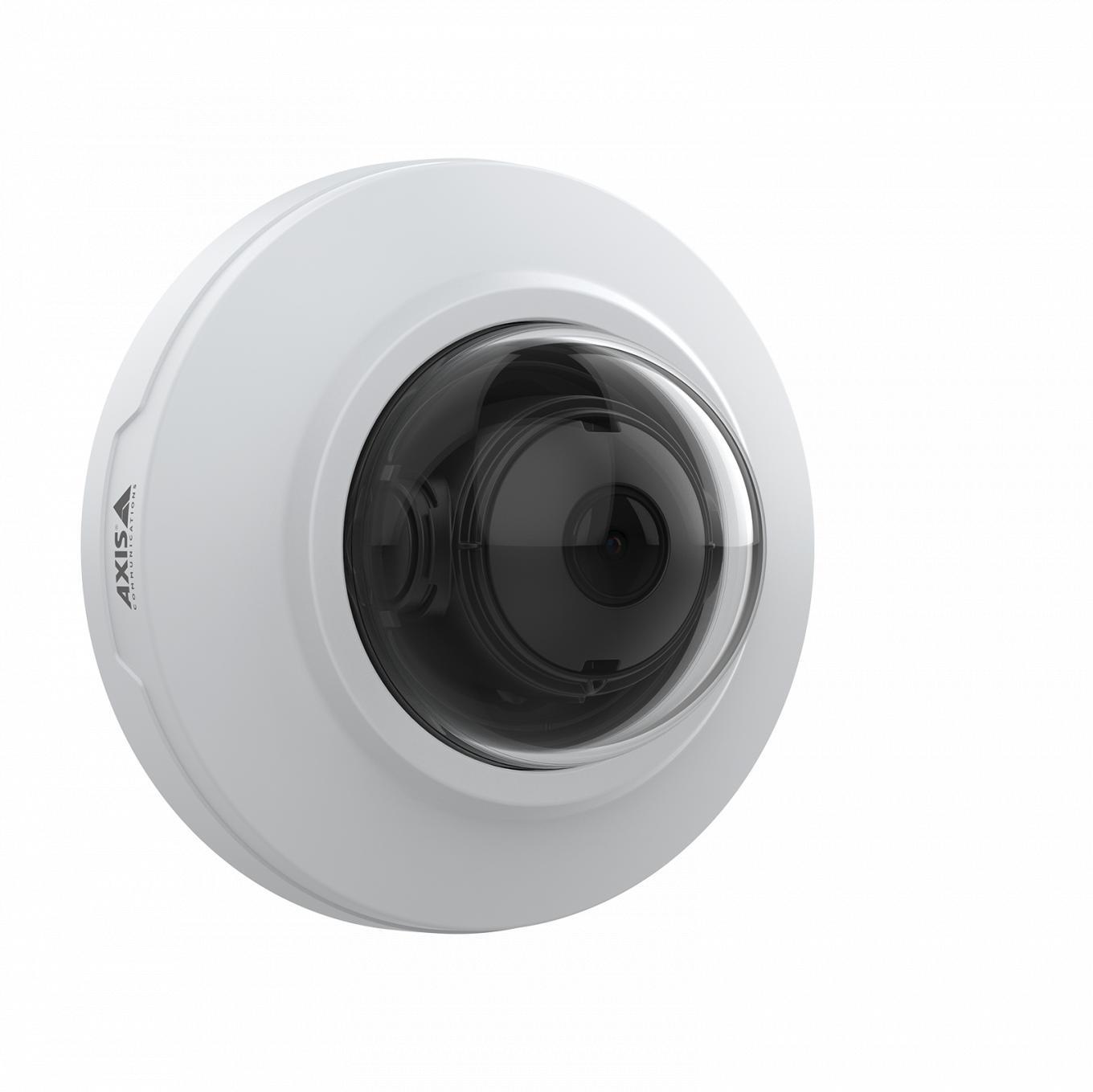

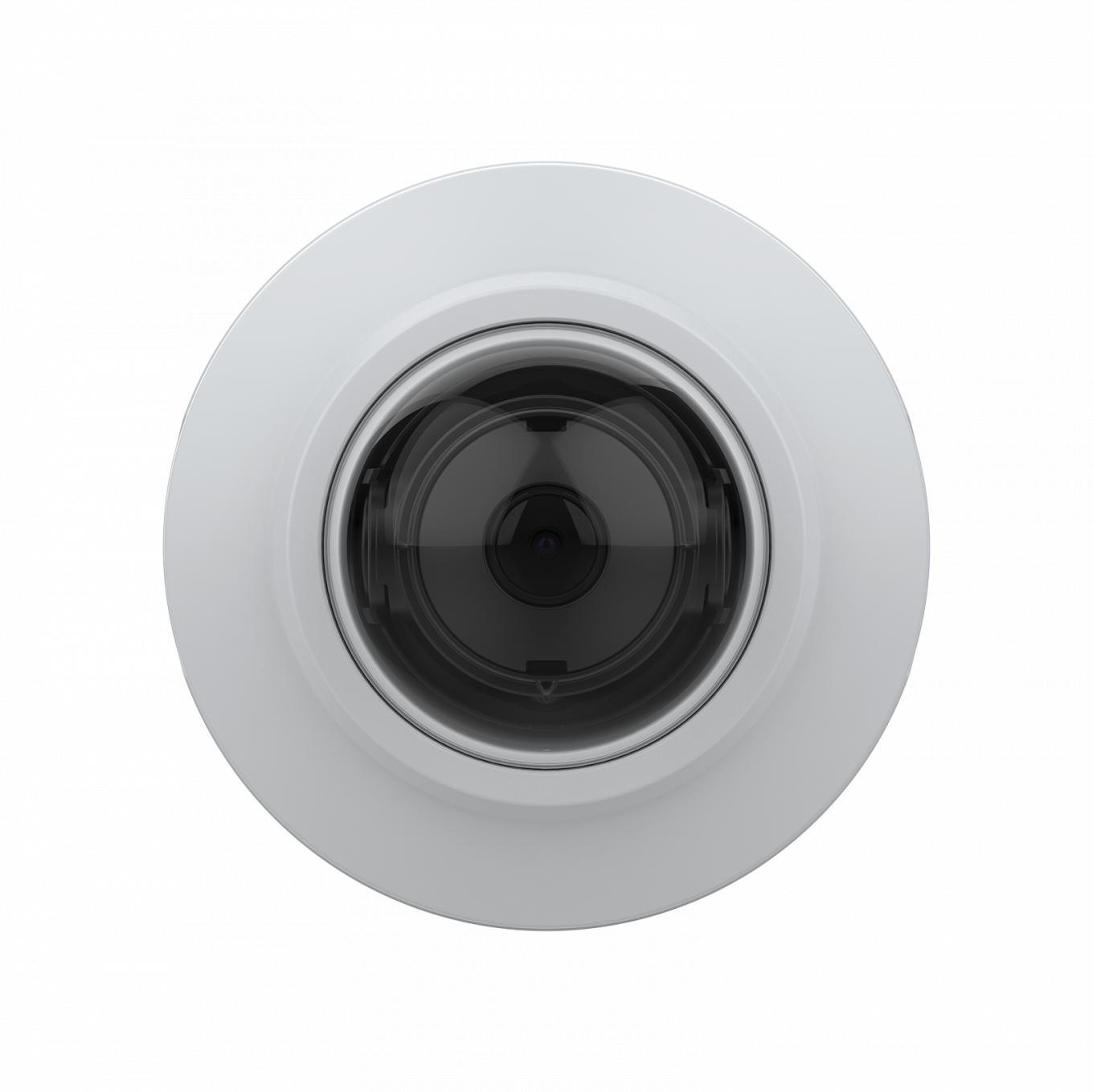

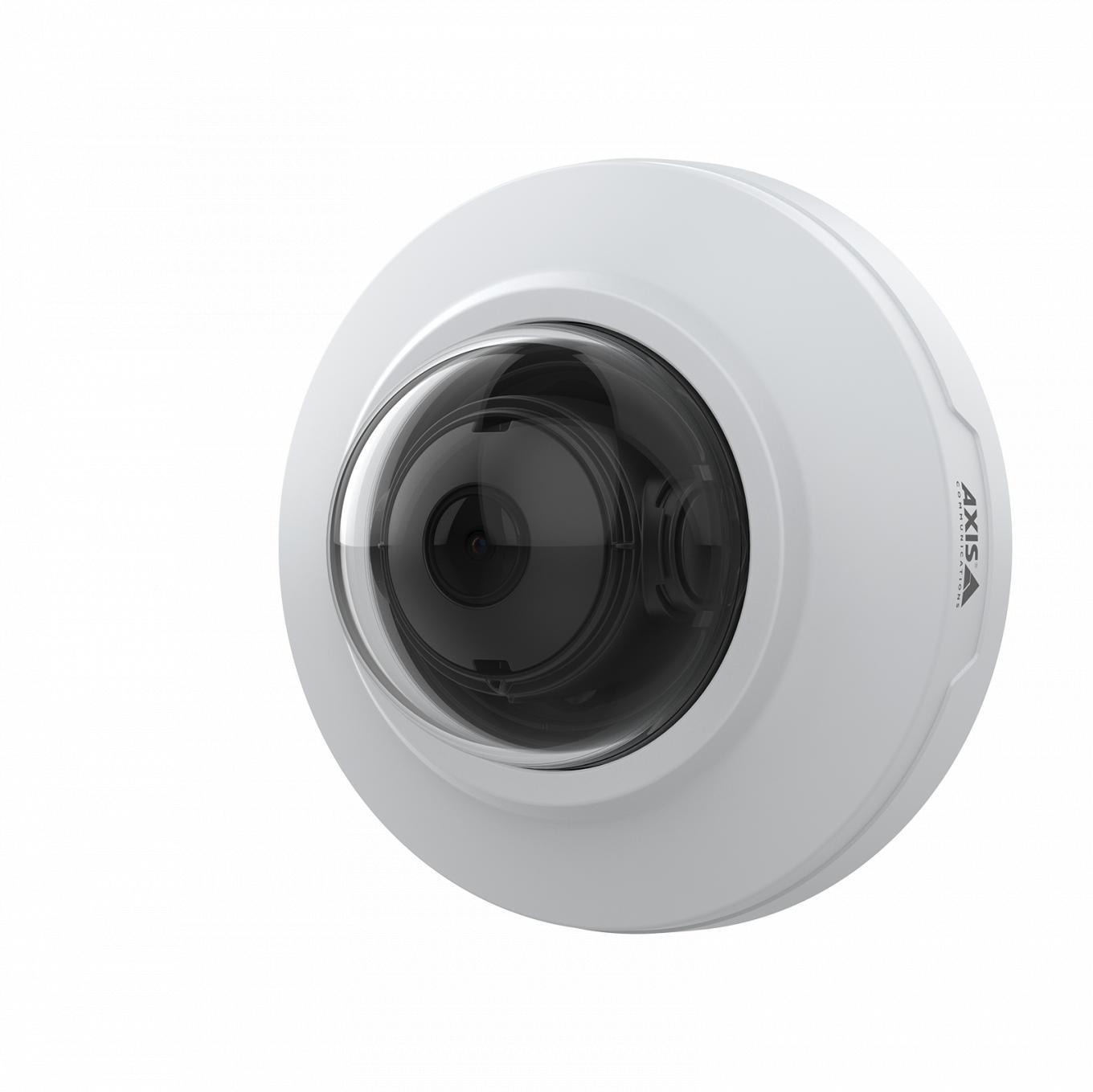

This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there’s both dark and light areas in the scene. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. Plus, AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering. This compact, easy-to-install, vandal-resistant camera comes factory focused so there’s no manual focusing required. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
- Built-in cybersecurity features; Compact, discreet design; Great image quality in 8 MP; Support for analytics with deep learning; WDR for challenging light
Summary: Axis 02375-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.25 lx, Angle of rotation: 175°, Lens viewing angle, horizontal: 109°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Focal length range: 2.9 mm
Vendor Homepage: https://www.axis.com/products/axis-m3088-v
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.09
Unit Box Length: 0.12
Unit Box Width: 0.11
Form factor: Dome
Housing material: Acrylonitrile butadiene styrene (ABS)/Polycarbonate (PC)
IK code: IK08
International Protection (IP) code: IP42
Mounting type: Ceiling/wall
Product colour: White
Protection features: Dust resistant/Impact resistant/Water resistant
Alarm input/output: Yes
Connectivity technology: Wired
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
Number of languages: 18
Placement supported: Indoor
PTZ control: Yes
PTZ modes: Digital PTZ
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Angle of rotation: 175
Camera shutter speed: 1/71500 – 1/5
Lens viewing angle, horizontal: 109
Lens viewing angle, vertical: 56
Minimum illumination: 0.25
Pan range: 0 – 175
Tilt angle range: 0 – 80
Number of sensors: 1
Optical sensor size: 1/2.8
Progressive scan: Yes
Sensor type: CMOS
Focal length range: 2.9
Night vision: Yes
Frame rate: 15
Image quality adjustment: Brightness/Contrast/Sharpness
Maximum resolution: 3840 x 2160
Privacy masking: Yes
Total megapixels: 8
Video compression formats: H.264/H.265/M-JPEG/MPEG4
Audio system: 2-way
Bluetooth: No
Ethernet LAN: Yes
Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
Number of users: 1
Quality of Service (QoS) support: Yes
Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
Flash memory: 512
Internal memory: 2048
Ethernet LAN (RJ-45) ports: 1
Digest authentication: Yes
HTTPS encryption: Yes
IP address filtering: Yes
Network access storage (NAS): Yes
Password protection: Yes
Pixel counter: Yes
Video motion detection: Yes
Power consumption (max): 4.2
Power consumption (typical): 3.6
Power source type: PoE
Operating relative humidity (H-H): 10 – 85
Operating temperature (T-T): 0 – 40
Storage relative humidity (H-H): 5 – 95
Storage temperature (T-T): -40 – 65
Diameter: 101
Height: 56
Weight: 150
Manual: Yes
Number of cameras: 1
Doesn’t contain: BFR/PVC
Warranty period: 5
Units per Shipping Box: 1
Unit Calculated Volume: 0.001188
Unit Calculated Weight: 0.28
