Compliance certificates
CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
- The 2560 × 1440 resolution produces clearer and more vivid images
- IPS panel for wide viewing angles with 3-sided frameless design
- 178° (H) / 178° (V)extra-wide viewing angle for overall viewing performance
- 5 ms fast response time with no image blurring or ghosting
- Low blue light technology can support a comfortable viewing experience

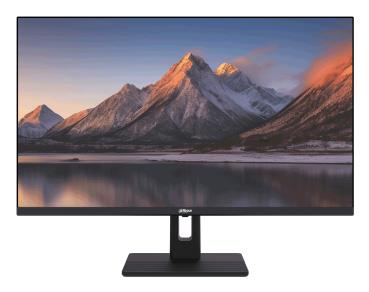

Dahua Technology LM27-C301B. Display diagonal: 68.6 cm (27"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/fr/products/All-Products/Display--Control/Monitors/Commercial-Series/LM27-C301B=V1 |
|---|---|
| Category Code | LC3 |
| Unit Box Height | 0.45 |
| Unit Box Length | 0.7 |
| Unit Box Width | 0.125 |
| Backlight type | Edge LED |
| Colour depth | 8 bit |
| Colour gamut standard | NTSC |
| Contrast ratio (typical) | 1200:1 |
| Display brightness (typical) | 300 cd/m² |
| Display diagonal | 27 " |
| Display diagonal (metric) | 69 cm |
| Display resolution | 2560 x 1440 pixels |
| Display technology | LED |
| Haze rate | 25 % |
| HD type | Quad HD |
| LED backlight | Yes |
| Maximum refresh rate | 100 Hz |
| Native aspect ratio | 16:9 |
| NTSC coverage (typical) | 85 % |
| Panel type | IPS |
| Response time | 5 ms |
| Response time (fast) | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 2560 x 1440 |
| Supported video modes | 1440p |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| NVIDIA G-SYNC | No |
| Built-in camera | No |
| Built-in speaker(s) | No |
| Detachable stand | Yes |
| Feet colour | Black |
| Frameless design | Yes |
| Front bezel colour | Black |
| Illuminated stand | No |
| Market positioning | Office |
| Product colour | Black |
| Built-in USB hub | No |
| DisplayPort out version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone connectivity | 3.5 mm |
| Headphone out | Yes |
| Bluetooth | No |
| Wi-Fi | No |
| Height adjustment | No |
| Panel mounting interface | 75 x 75 mm |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15 ° |
| VESA mounting | Yes |
| Wall mountable | Yes |
| AC adapter output voltage | 12 V |
| Energy consumption (SDR) per 1000 hours | 25 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| Input current | 3 A |
| Power consumption (max) | 30 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 30 W |
| Power supply type | External |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Bezel width (bottom) | 16.1 mm |
| Bezel width (side) | 1.9 mm |
| Bezel width (top) | 1.9 mm |
| Depth (with stand) | 198 mm |
| Depth (without stand) | 51.1 mm |
| Height (with stand) | 461.3 mm |
| Height (without stand) | 363 mm |
| Weight (without stand) | 4800 g |
| Width (with stand) | 614.1 mm |
| Width (without stand) | 614.1 mm |
| Package depth | 126 mm |
| Package height | 458 mm |
| Package weight | 6300 g |
| Package width | 694 mm |
| Cables included | HDMI |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Stand included | Yes |
| Automatic brightness control | No |
| E-manual | Yes |
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2059242/fiches?language=EN |
| Energy efficiency class | F |
| EPREL Registration Number | 2059242 |
| EPREL Version Number | 2 |
| Model name | LM27-C301B |
| Units per Pallet | 0 |
| Unit Calculated Volume | 0.03938 cubm |
| Product Net Weight | 4.8 kg |
| Unit Calculated Weight | 6.05 kg |
