Supported resolutions
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Supported network protocols
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Certification
CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

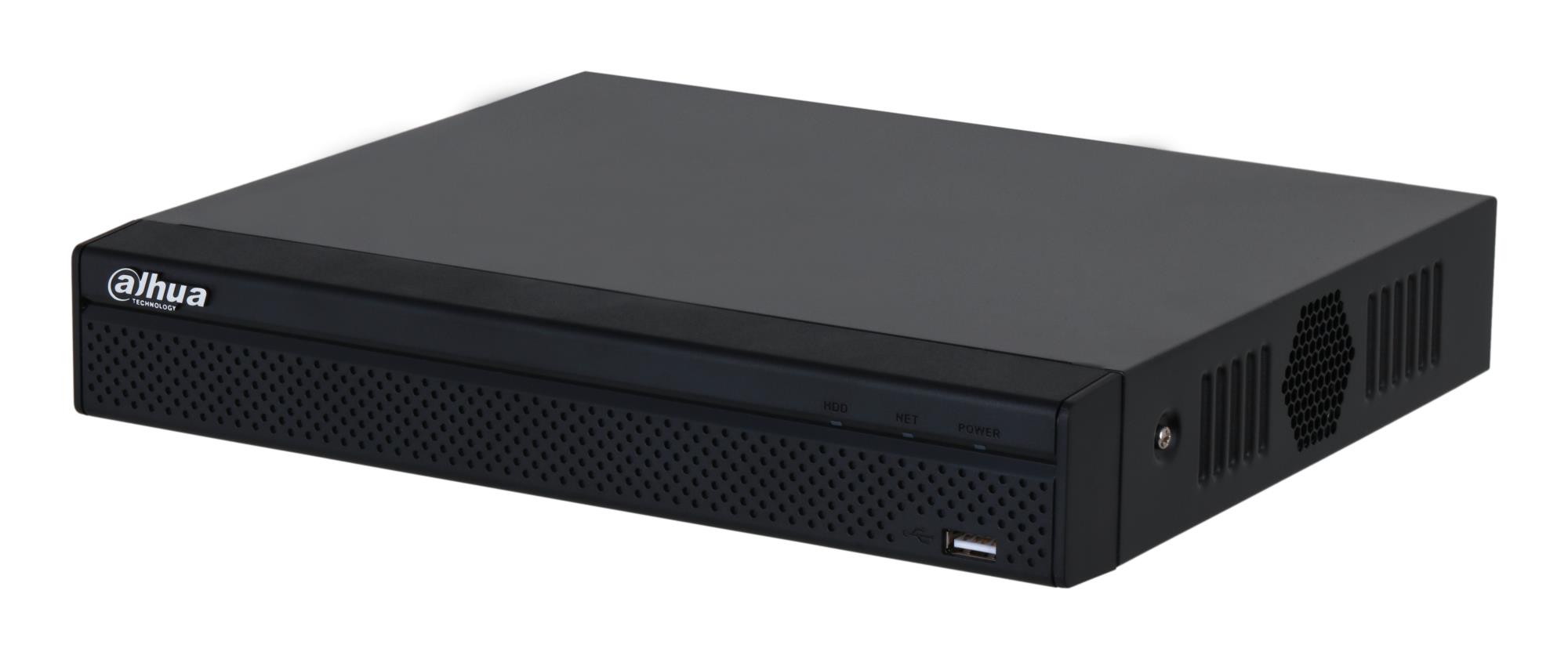

The NVR2000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. This NVR is both costeffective and easy-to-install, making it ideal for a wide range of applications such as villas, shops and other small and medium-sized scenes.
Functions
- SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and ilter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
- Perimeter Protection by Camera
Automatically ilters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
- Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats
- Max. decoding capability: 6 × 1080p@30 fps
- Max. 144/144/72 Mbps incoming/recording/outgoing bandwidth
- Supports IP cameras with a resolution up to 12 MP
- AI by Recorder supports 4-channel SMD
- AI by Camera supports perimeter protection and SMD
- Supports one-click arming and disarming
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2116HS-4KS3 |
|---|---|
| Category Code | NVR |
| Unit Box Height | 0.313 |
| Unit Box Length | 0.335 |
| Unit Box Width | 0.09 |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726/PCM |
| Face detection | Yes |
| Image formats supported | MJPEG |
| Input bandwidth | 80 Mbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Operating system installed | Embedded LINUX |
| Output bandwidth | 60 Mbit/s |
| Video formats supported | H.264/H.264+/H.265/H.265+ |
| Video input channels | 16 channels |
| Video motion detection | Yes |
| Video recording modes | 1080p/720p/960p |
| Wi-Fi | No |
| HDD interface | SATA |
| Maximum storage capacity | 20 TB |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Output current | 2 A |
| Output voltage | 12 V |
| Power consumption (typical) | 10 W |
| Browser supported | Chrome; IE; Safari; Edge; Firefox |
| Mobile operating systems supported | Android/iOS |
| Operating relative humidity (H-H) | 10 - 93 % |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Depth | 232.5 mm |
| Height | 47.6 mm |
| Package depth | 89 mm |
| Package height | 314 mm |
| Package weight | 1390 g |
| Package width | 334 mm |
| Weight | 850 g |
| Width | 260 mm |
| Model | DHI-NVR2116HS-4KS3 |
| Model name | NVR2116HS-4KS3 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.009437 cubm |
| Unit Calculated Weight | 1.39 kg |
