Sold: 0 / 100

Seasonic Atx Pc 100 – 240 V 650 W G12Gc-650

69.79

Pirkti
Kiekis: Liko 100
SKU:1437003

Power protection features

Over current/Over power/Over total voltage/Over voltage/Short circuit/Under voltage

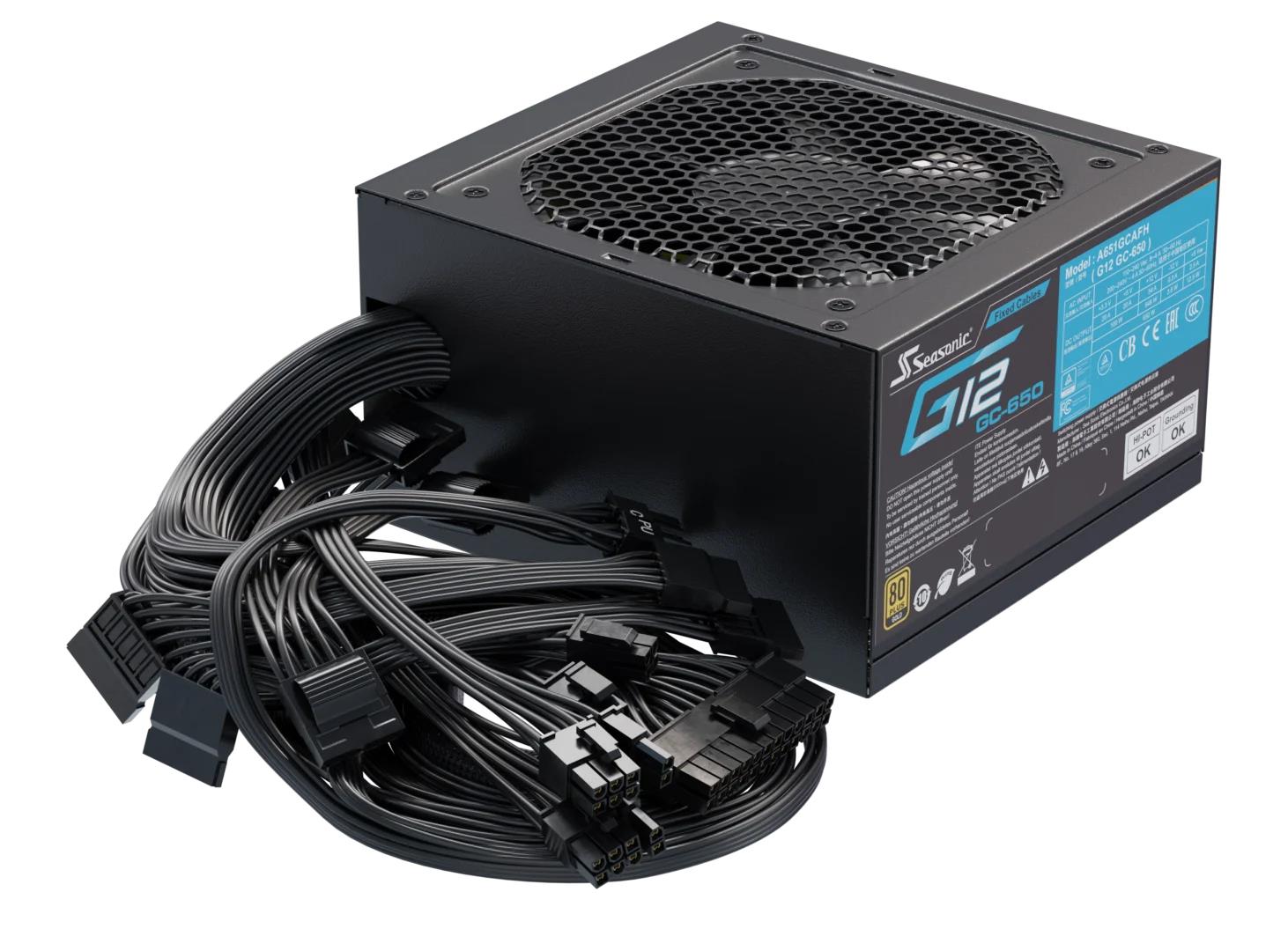

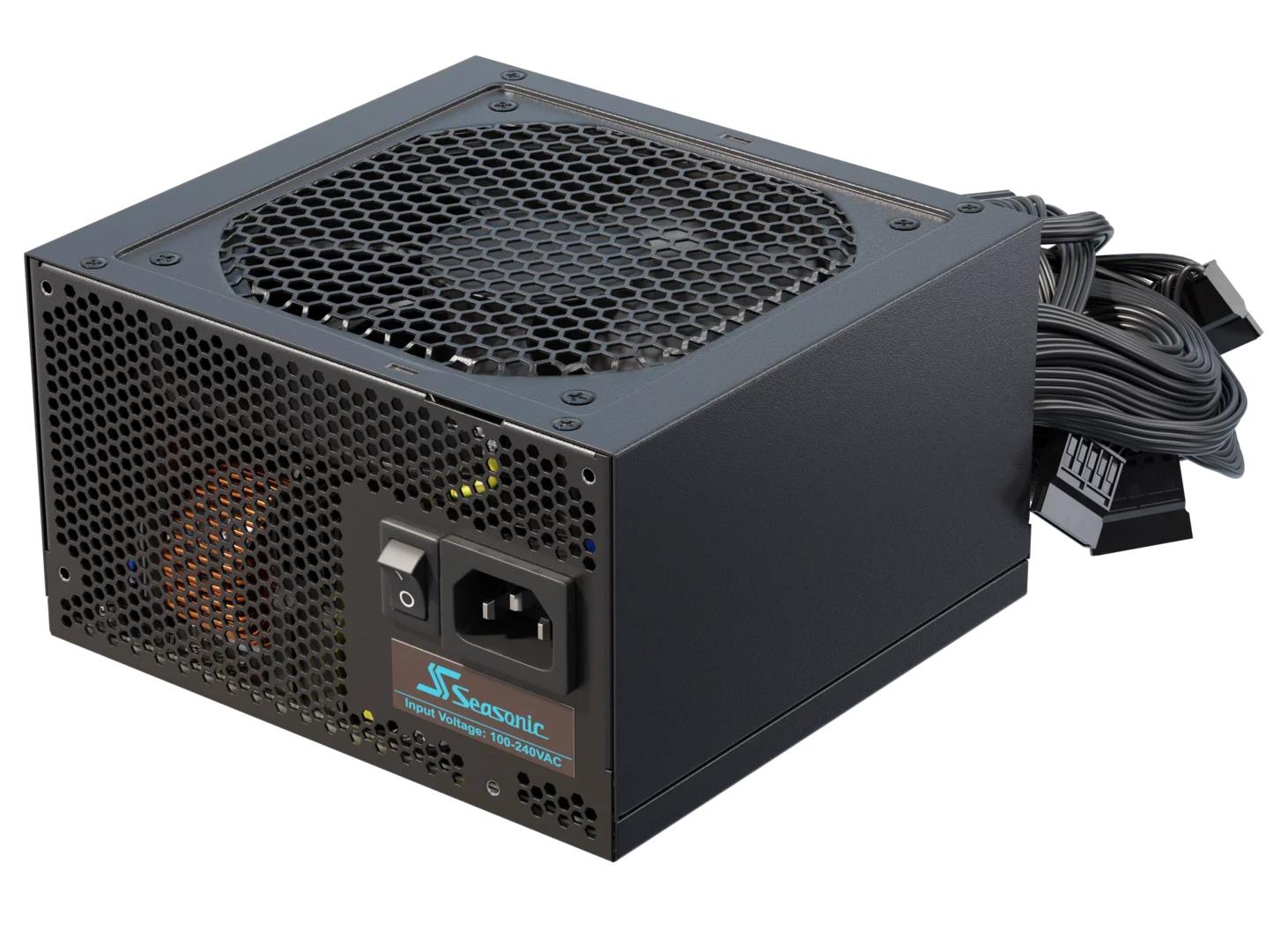

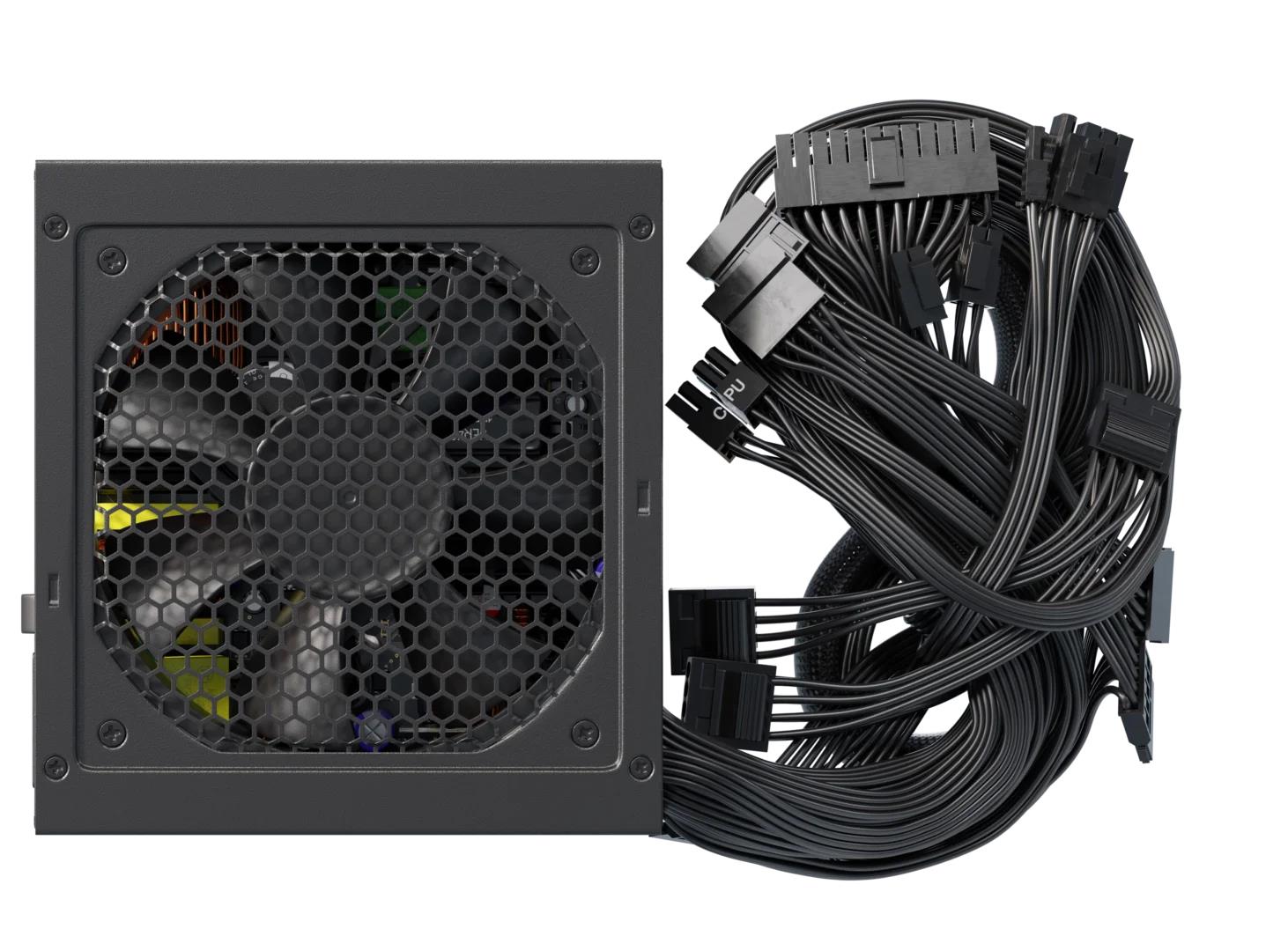

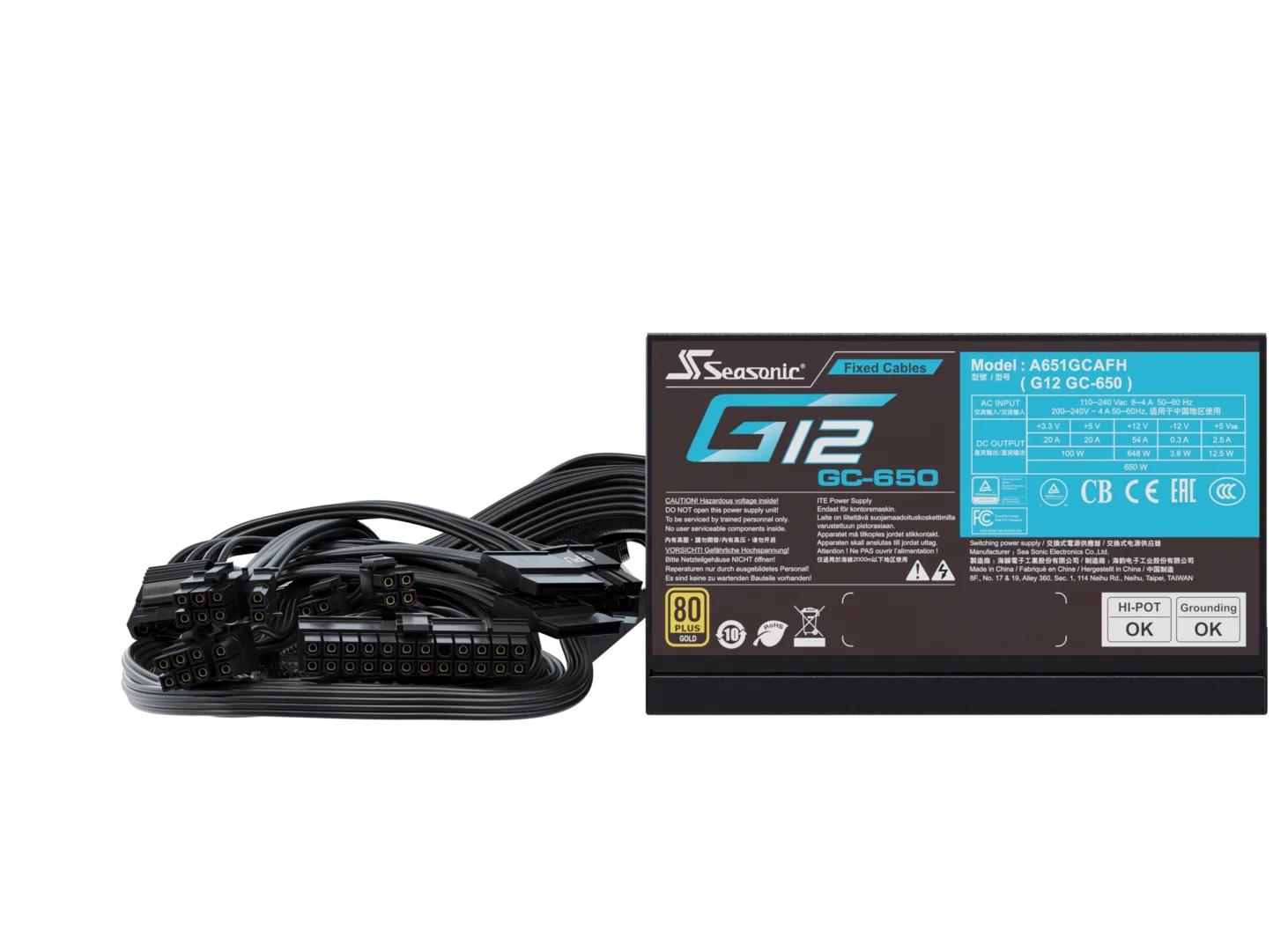

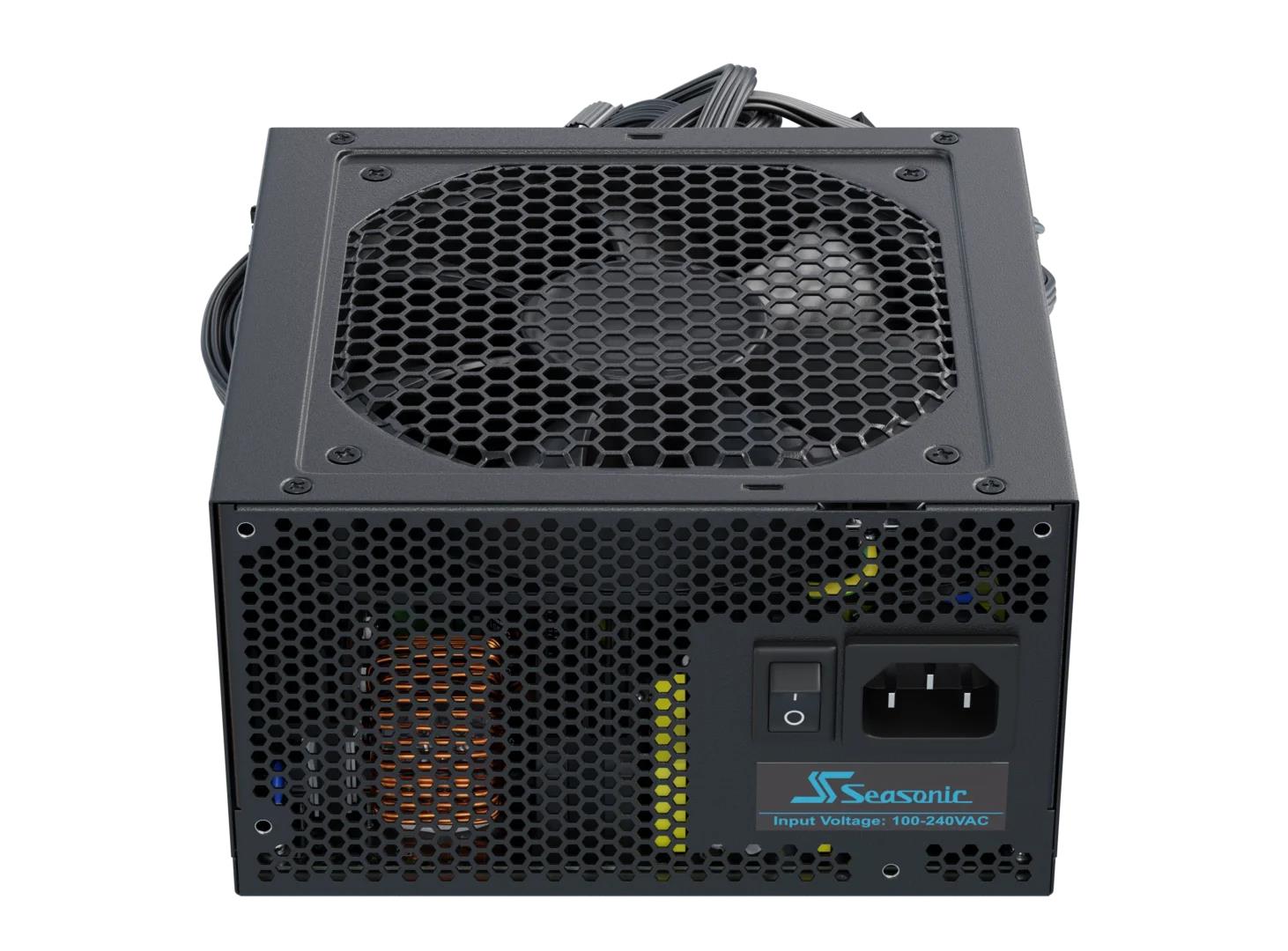

Seasonic Netzteil 650W G12 (GC-650)

The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).

Seasonic Netzteil 650W G12 GC-650 80+Gold. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, SATA

Specifikacijos

Vendor Homepagehttps://seasonic.com/g12-gc/
Category CodePSU
Unit Box Height0.19
Unit Box Length0.275
Unit Box Width0.12
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (+12V)648 W
Combined power (+3.3V)100 W
Combined power (+5Vsb)12.5 W
Combined power (-12V)3.6 W
Efficiency90 %
Input current8 A
Max output current (+12V)54 A
Max output current (+3.3V)20 A
Max output current (+5Vsb)2.5 A
Max output current (-12V)0.3 A
Total power650 W
Cabling typeNon-Modular
80 PLUS certification80 PLUS Gold
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Cooling typeActive
Fan diameter120 mm
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Operating temperature (T-T)0 - 50 °C
Cables includedAC,CPU,PCIe,SATA
CertificationcTUVus, TUV, CB, CCC, BSMI, CE, FCC
Compliance certificatesREACH/RoHS/WEEE
Depth140 mm
Height86 mm
Width150 mm
Package typeBox
Units per Pallet0
Units per Shipping Box5
Unit Calculated Volume0.007812 cubm
Unit Calculated Weight2.58 kg
