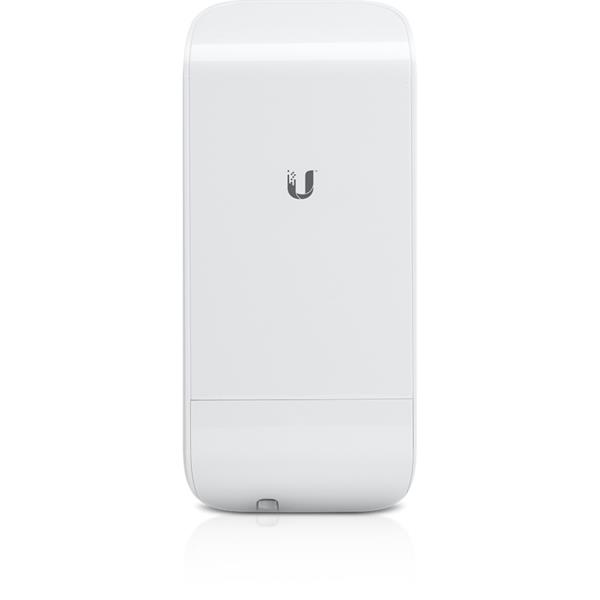

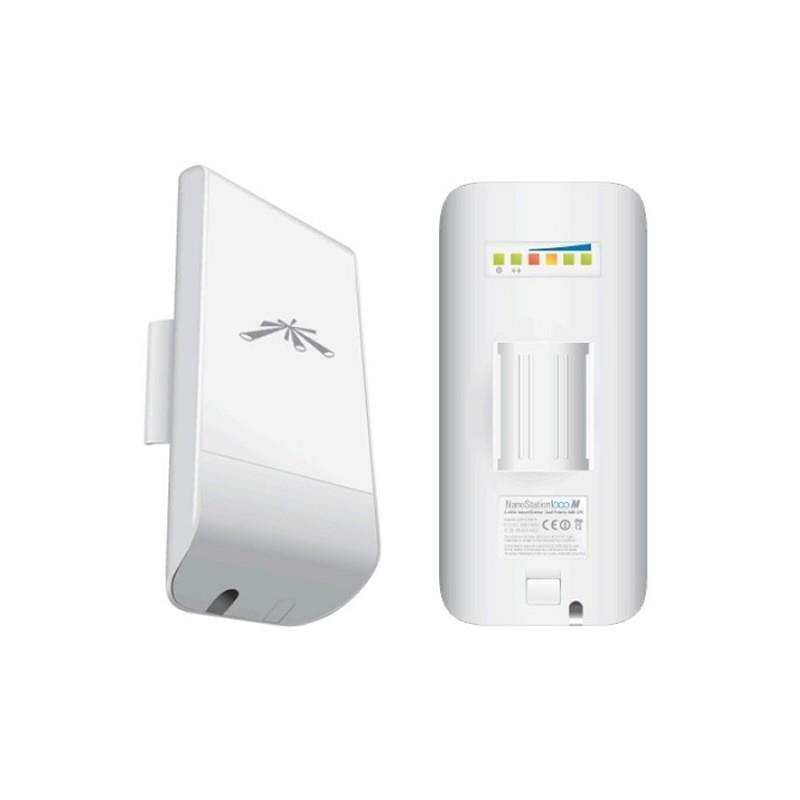

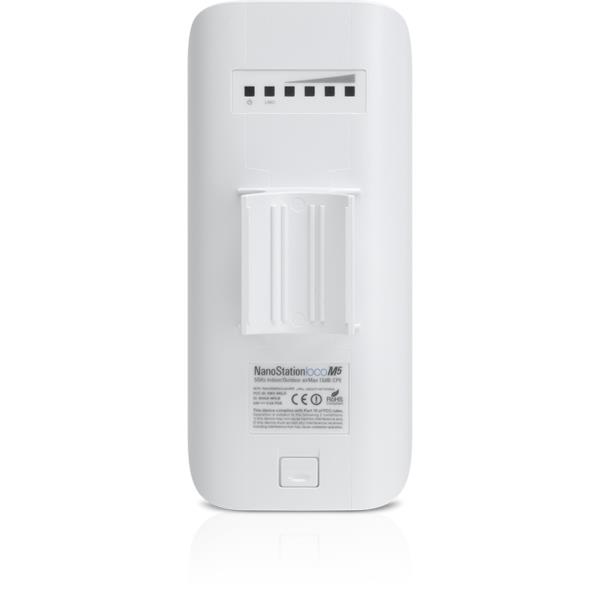

NanoStation Loco M
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.
airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Powerful Software Features
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.
World Class Antenna Design
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.
Ubiquiti LocoM5. Maximum data transfer rate: 150 Mbit/s. Antenna design: Internal, Antenna gain level (max): 13 dBi. Wi-Fi band: Single-band (5 GHz), Frequency band: 5.17 - 5.875 GHz. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u. Connectivity technology: Wired & Wireless
Specifikacijos
| Vendor Homepage | https://www.ubnt.com/airmax#nanostationm |
|---|---|
| Category Code | BRE |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.085 |
| Maximum data transfer rate | 150 Mbit/s |
| Antenna design | Internal |
| Antenna gain level (max) | 13 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Frequency band | 5.17 - 5.875 GHz |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Networking standards | IEEE 802.3/IEEE 802.3u |
| Cabling technology | 10/100Base-T(X) |
| Connectivity technology | Wired & Wireless |

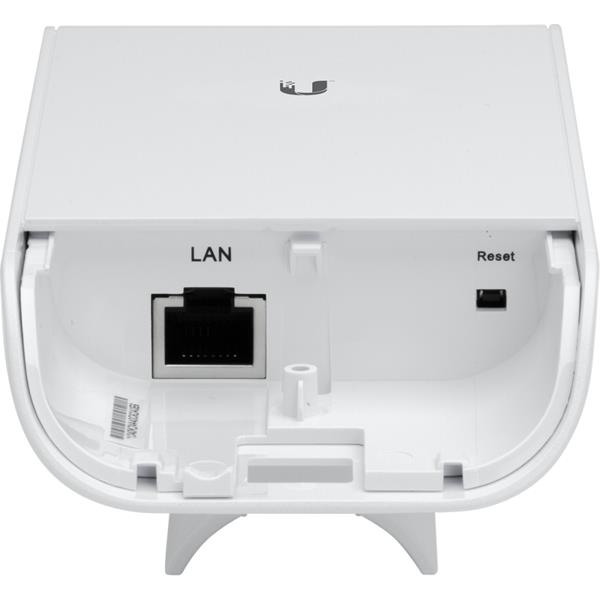

| Ethernet LAN (RJ-45) ports | 1 |
| Product type | Network bridge |
| Material | Plastic |
| Mounting type | Pole |
| Product colour | White |
| Processor family | Atheros |
| Processor frequency | 560 MHz |
| Processor model | MIPS 74Kc |
| Internal memory | 64 MB |
| RAM type | DDR2 |
| Power consumption (max) | 5.5 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 24 V |
| Operating temperature (T-T) | -30 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Certification | FCC, IC, CE, RoHS |
| Width | 80 mm |
| Depth | 31 mm |
| Height | 161 mm |
| Weight | 180 g |
| Flash memory | 8 MB |
| Harmonized System (HS) code | 85176990 |
| Unit Calculated Weight | 0.518 kg |
| Product Net Weight | 0.18 kg |
| Unit Calculated Volume | 0.001979 cubm |
| Units per Shipping Box | 20 |
| Shipping Box Weight | 10.3599996566772 kg |
| Unit Width | 8.5 cm |
| Units per Pallet | 0 |
| Shipping Box Height | 24 cm |
| Unit Depth | 22 cm |
| Shipping Box Depth | 48.5 cm |
| Unit Height | 9.5 cm |
| Shipping Box Width | 34 cm |
| Name | WRL CPE OUTDOOR/INDOOR 150MBPS/AIRMAX LOCOM5 UBIQUITI |
